PLH290BK
Menu

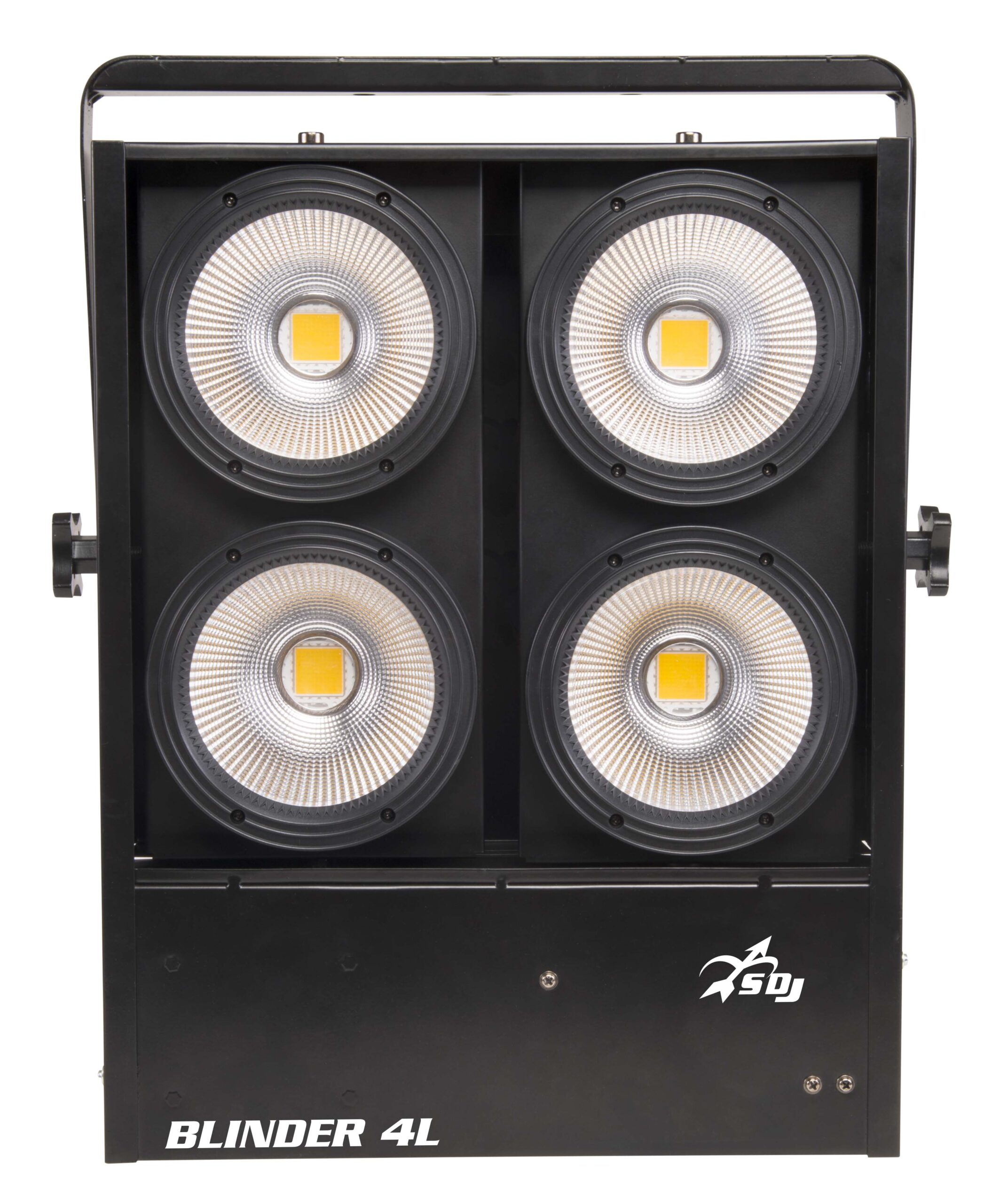

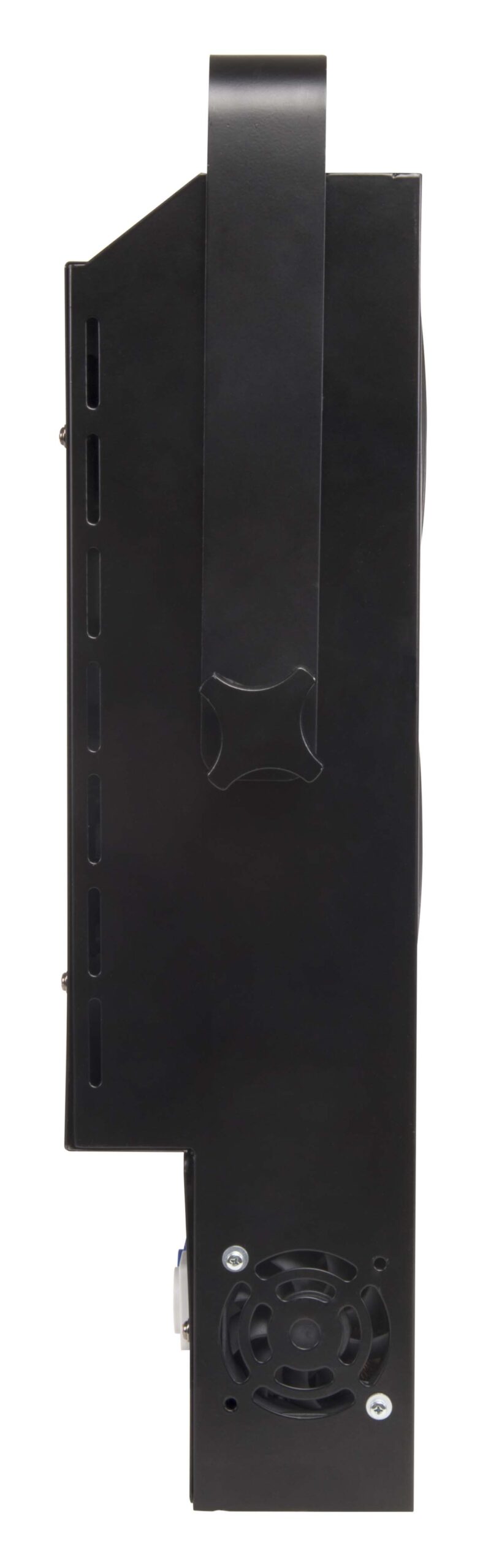

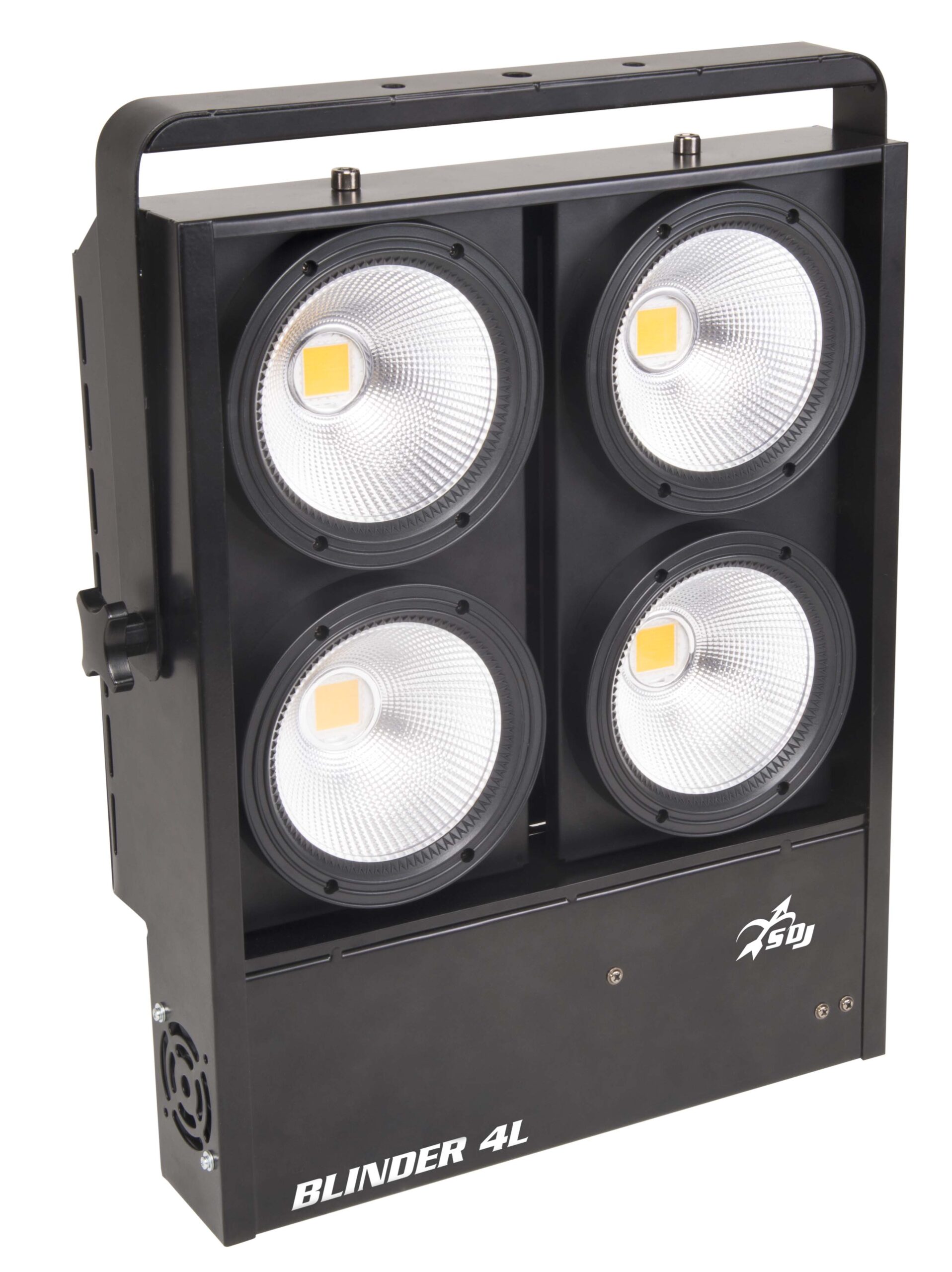

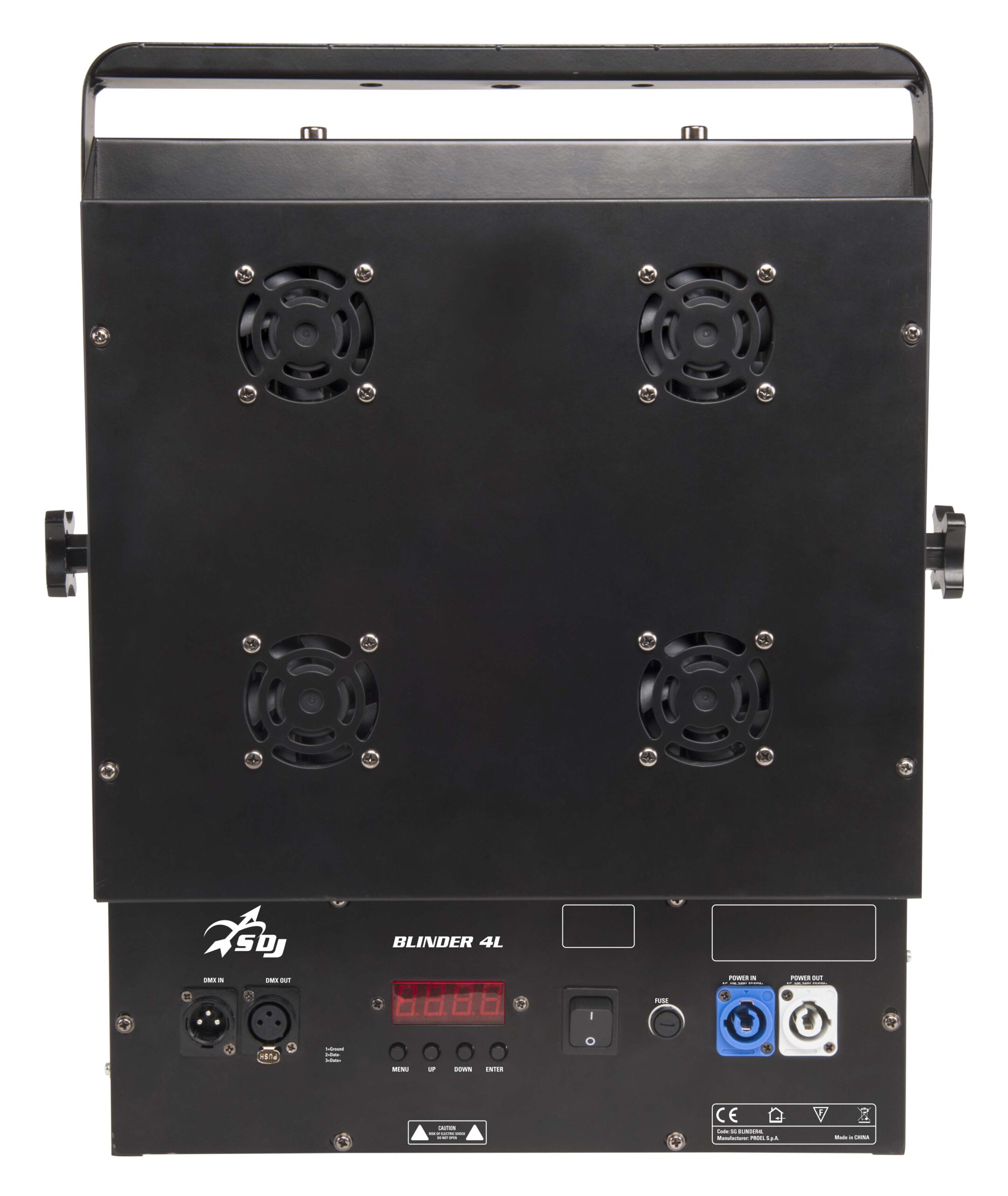

The cutting-edge technology allows us to replace the traditional Blinder incandescent lamp stage light, with a brand new stage light sourced by a special integrated led COB, which emulates the typical blinding effect of the leading stage lights in the live entertainment business. As per our tradition, Sagitter introduces 2 different sizes, Blinder led 2 and Blinder led 4. Both the versions allow the “single pixel” control system or the “Full pixel” control system, nowadays standard option in the entertainment business. The special reflector generates a smooth light diffusion even wider.
Light source
• 4X100W COB led
• LED lifespan: >50.000h
• LED refresh frequency: >400Hz flicker free
Optic system
• Beam angle: 45°
• Luminous flux: 840lux @ 4mt
Color system
• LED source COB warm white 3200K
Effects
• High precision linear Dimmer 0-100%
• Electronic strobe: 1-20 flashes/s with adjustable speed
• Singol led control
Control and programming
• 3 DMX configurations available: 1/2/4/8 channels
• Protocol USITT DMX 512
• Master / Slave mode
• Sound mode with adjustable mic sensitivity
• Automatic mode with 3 different programs selectable from thedisplay with independent adjustment of the speed and strobe
Structure and cabinet
• Metal housing black color
• Red LED graphic display
• Mounting points: double bracket for suspension or floor support
• 3-poles XLR in/out connection
• IP rating: IP 20
Power supply
• Input Voltage: AC~100-240V 50/60Hz
• Switching power supply unit
• Power consumption 450W
• Power IN/OUT connection with Powecon
• Power supply cable 1,5 mt included
• Max 3 pcs linkable @240V
Weight and dimensions
• Net weight: 7,8kg
• Dimensions: 405x120x495 mm
The cutting-edge technology allows us to replace the traditional Blinder incandescent lamp stage light, with a brand new stage light sourced by a special integrated led COB, which emulates the typical blinding effect of the leading stage lights in the live entertainment business. As per our tradition, Sagitter introduces 2 different sizes, Blinder led 2 and Blinder led 4. Both the versions allow the “single pixel” control system or the “Full pixel” control system, nowadays standard option in the entertainment business. The special reflector generates a smooth light diffusion even wider.
Light source
• 4X100W COB led
• LED lifespan: >50.000h
• LED refresh frequency: >400Hz flicker free
Optic system
• Beam angle: 45°
• Luminous flux: 840lux @ 4mt
Color system
• LED source COB warm white 3200K
Effects
• High precision linear Dimmer 0-100%
• Electronic strobe: 1-20 flashes/s with adjustable speed
• Singol led control
Control and programming
• 3 DMX configurations available: 1/2/4/8 channels
• Protocol USITT DMX 512
• Master / Slave mode
• Sound mode with adjustable mic sensitivity
• Automatic mode with 3 different programs selectable from thedisplay with independent adjustment of the speed and strobe
Structure and cabinet
• Metal housing black color
• Red LED graphic display
• Mounting points: double bracket for suspension or floor support
• 3-poles XLR in/out connection
• IP rating: IP 20
Power supply
• Input Voltage: AC~100-240V 50/60Hz
• Switching power supply unit
• Power consumption 450W
• Power IN/OUT connection with Powecon
• Power supply cable 1,5 mt included
• Max 3 pcs linkable @240V
Weight and dimensions
• Net weight: 7,8kg
• Dimensions: 405x120x495 mm
