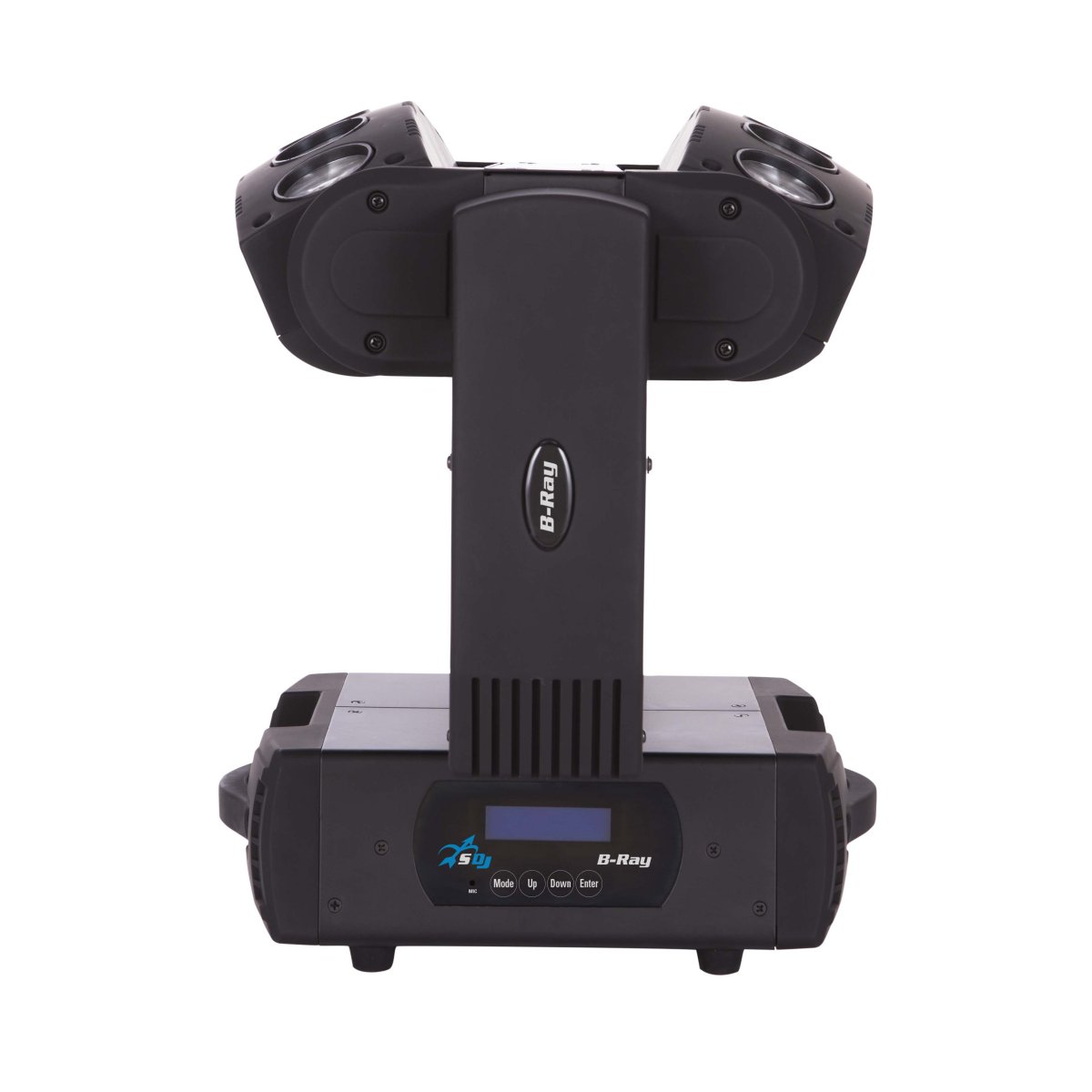

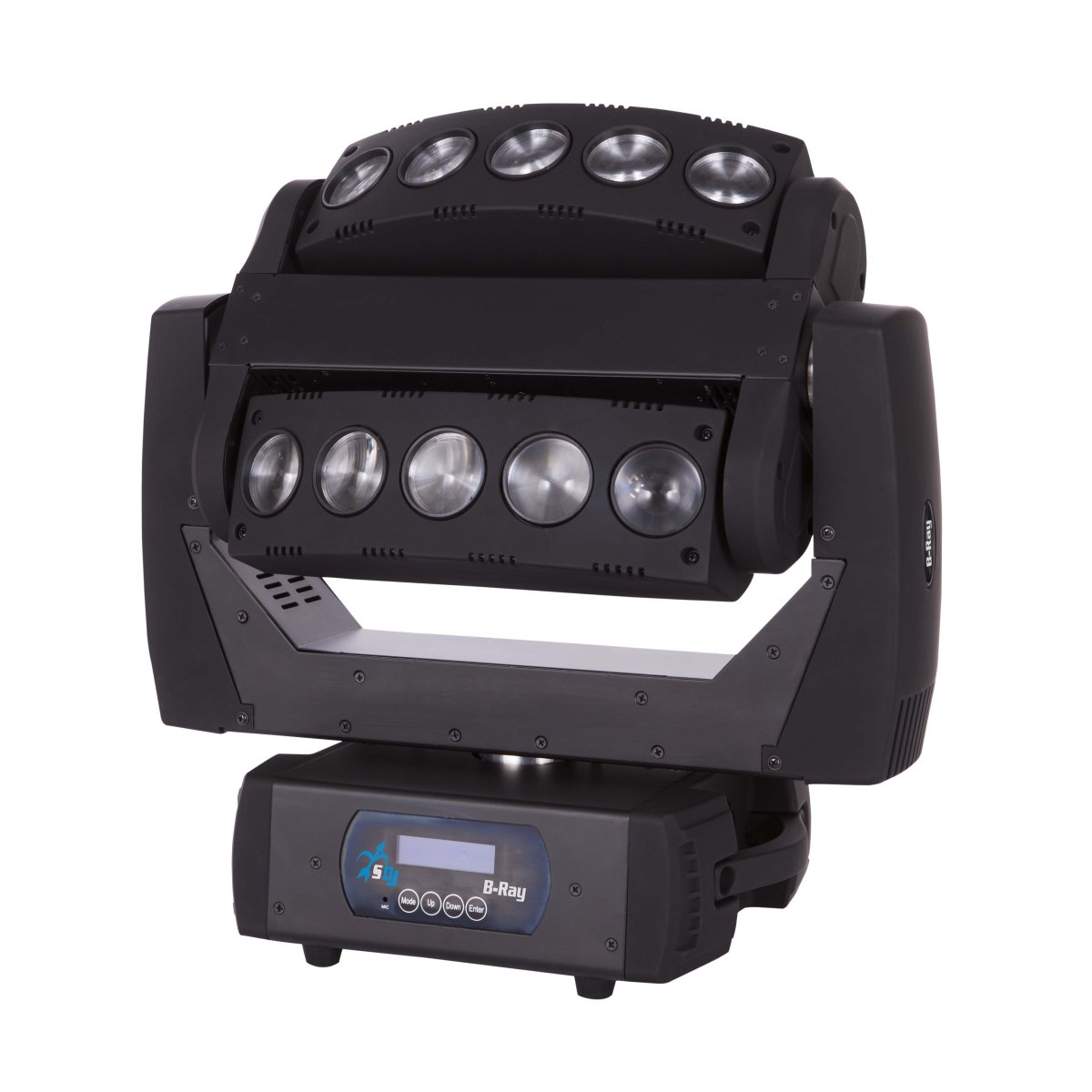

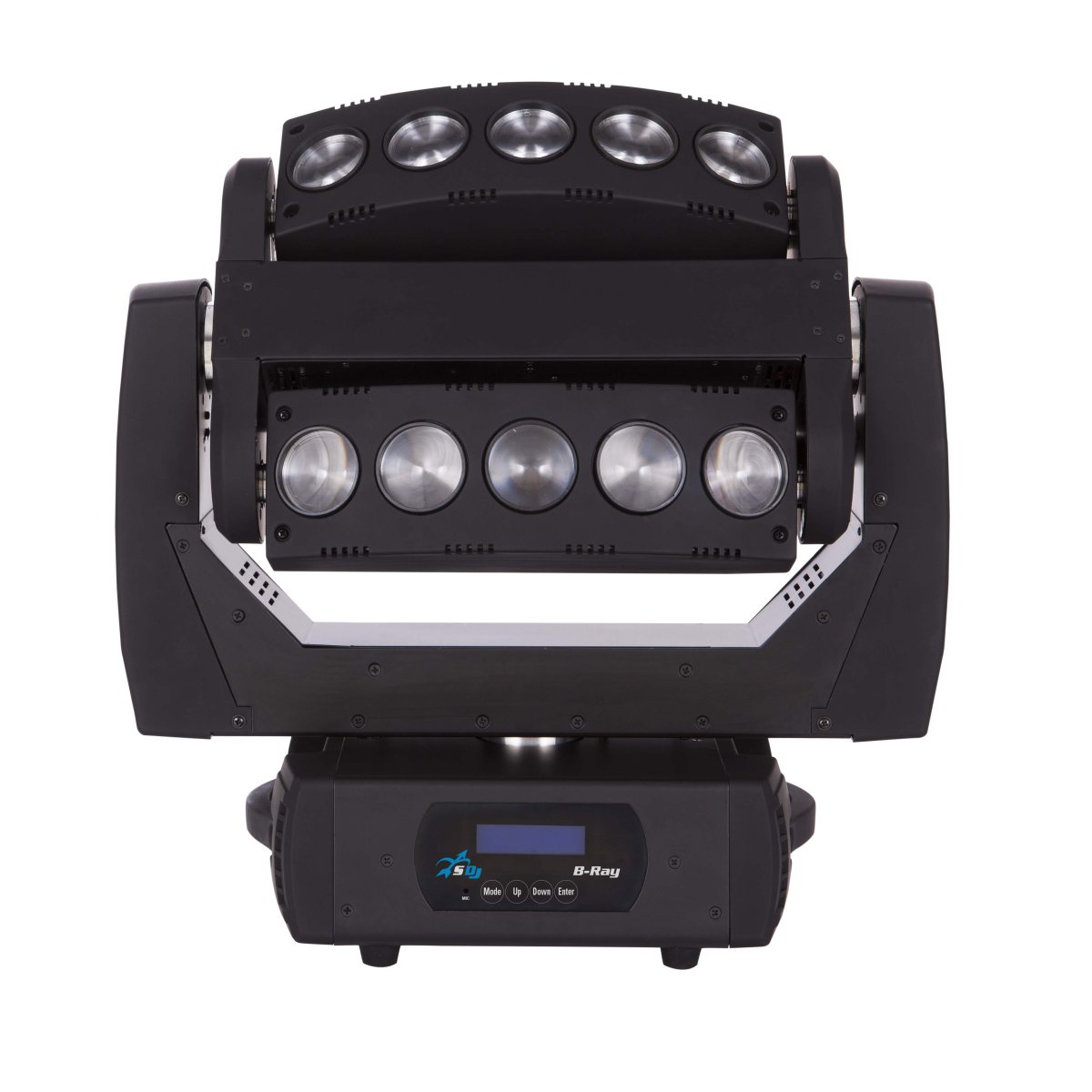

Moving head B.Ray pixel control 2×5 beam led RGBW

Description

Today the entertainment world can choose from a wide range of next generation beam effects. The innovative B-Ray line offers a double series of products that meet the demands of the professionals. B-Ray is one of a kind, one machine encloses several effects with endless possibilities for combining long range light beams and amazing limitless movements. In the body of a traditional moving head we can find a beam effect, featuring 8 linear beams with 2° of light projection, powered by powerful 10W RGBW multi colour LED sources. The individual control of the beams and the endless Pan&Tilt movement ensure a light effect that has never been seen before.

SG BRAY

Technical Specifications

Light source

10x10W led RGBW
LED lifespan: >50.000h
LED Refresh frequency: >400Hz flicker-free

Optic system

Beam angle: 2°

Color system

LED source RGBW

Effects

Linear dimmer 0-100%
Electronic high speed strobefrom 1 to 25 flashes/s, with adjustable speed.
Random strobe and pulse effect with adjustable speed
Single pixel control
Color macros and Pixel macros selectable from DMX

Control and programming

3 different DMX channels configurations: 55/15/59 channels
Protocol USITT DMX 512
Master/Slave mode selectable
Sound mode with adjustable microphone sensitivity
Edit program mode with the possibility to customize 1 program with 8 scenes maximum
Reset via DMX

Structure and cabinet

Black metal Housing, and plastic materials with high resistance
LCD blue graphic display
Double independent tilt movement with 180° rotation
Infinite high precision TILT with adjustable speed
Infinite high precision PAN with adjustable speed
Mounting points: 2 pairs of ¼-turn locks
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
3-poles XLR in/out connection
IP Rating: IP 20
Forced air fan cooling system with electronic control

Power supply

Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 155W
IN / OUT power connection with powerCON sockets
Power supply cable 1,5 mt included
Max 4 pcs linkable @240V

Weight and dimensions

Net weight: 13,9 kg
Dimensions: 260x480x480 mm
