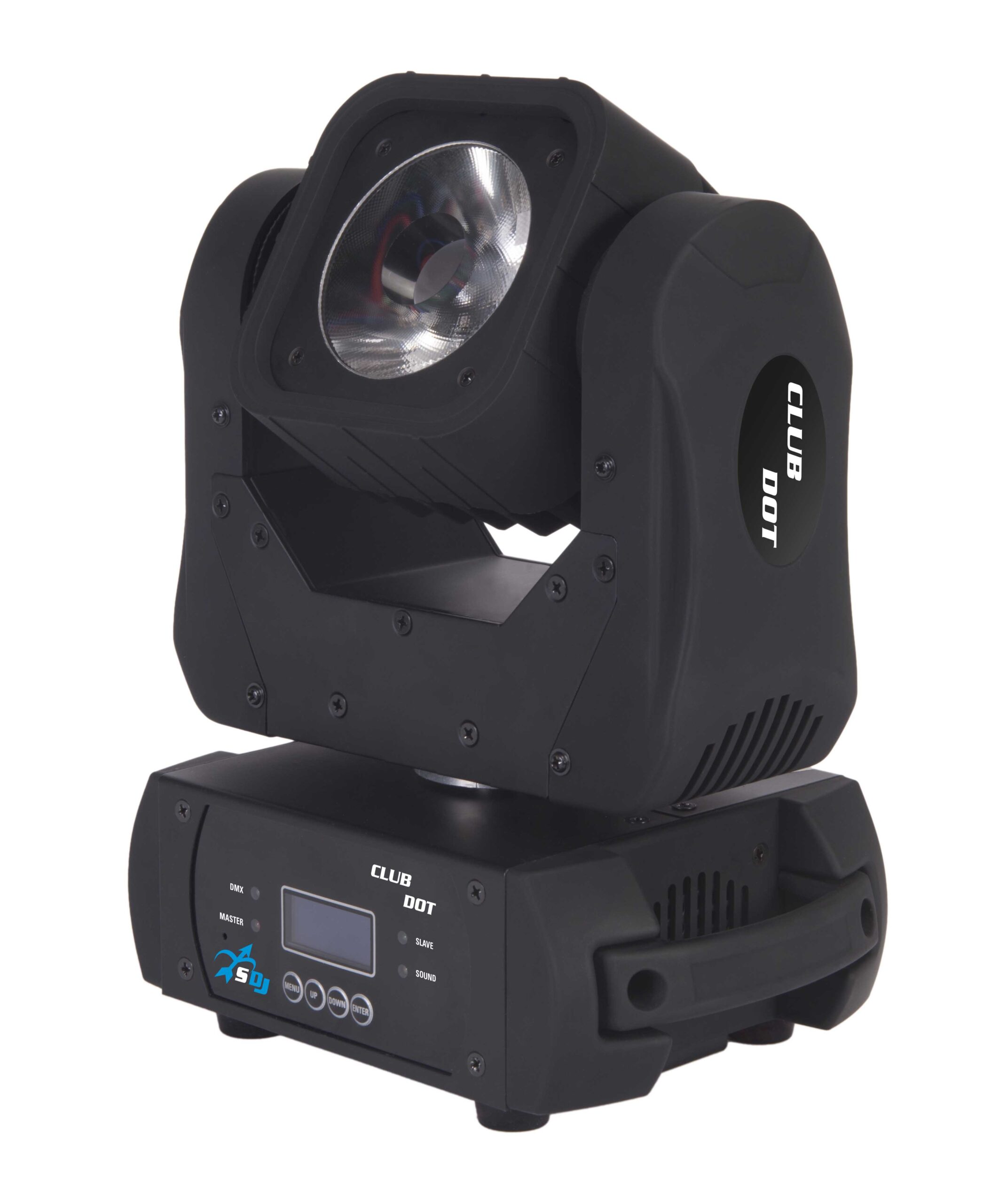

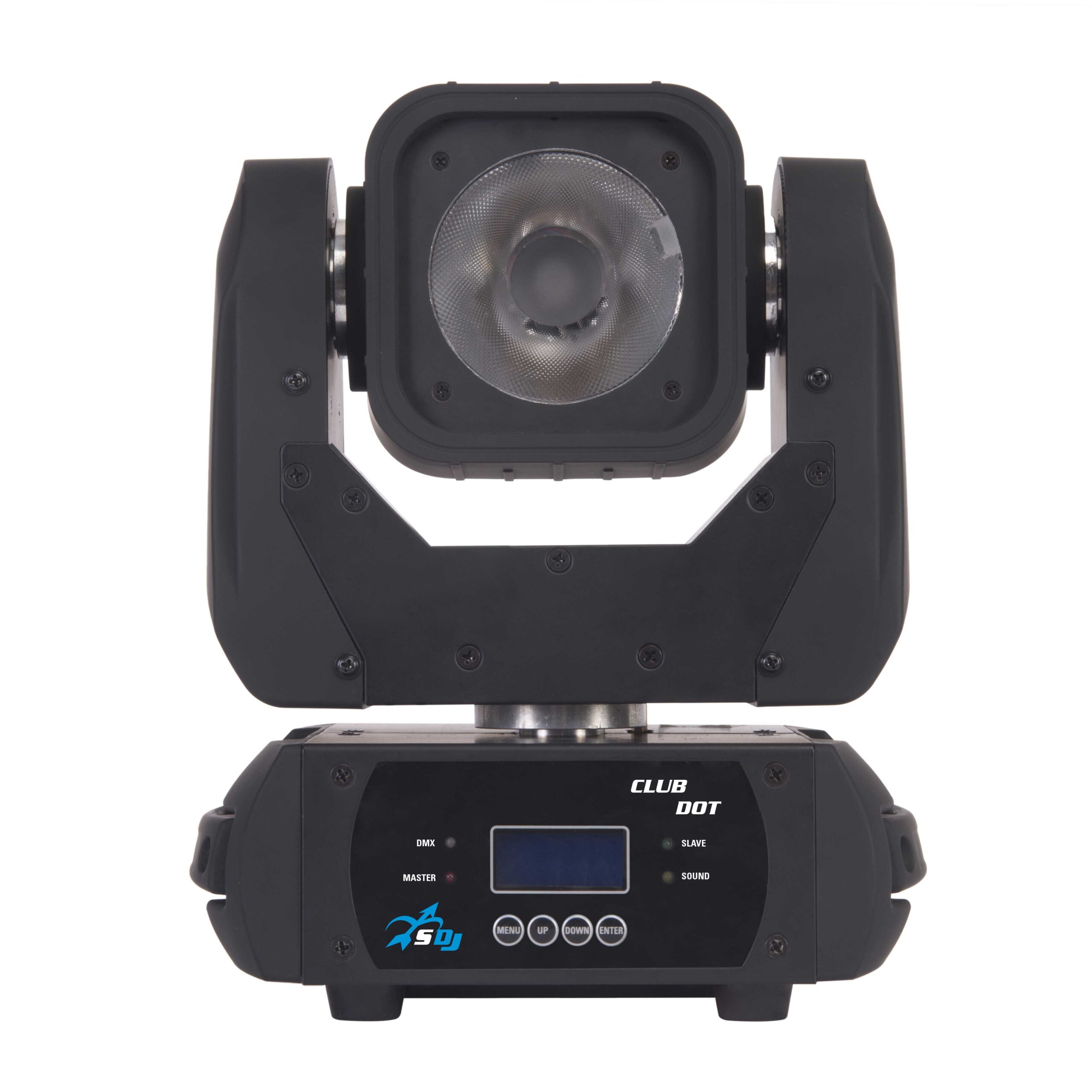

The CLUB series was designed by listening to the needs of indoor and outdoor entertainment professionals. The winning features of this new range are: the lighting efficiency, compactness and functionality, three core values in today’s market. Club Dot completes the series with this innovative product with a single Osram high power 60W LED with full colour RGBW/FC technology and 4° projection angle which assures the utmost lighting efficiency and a defined and very powerful beam effect, allowing it to achieve over 11,000 lux at 3 metres. To complete the performance and to give a unique added value, we have included new head movement technology, without limits nor mechanical constraints: an high speed endless Pan&Tilt movement, which offers the user endless programming possibilities.
Light source
• 1x60W led RGBW Full Color
• LED lifespan: > 50.000h
• LED refresh frequency: > 400Hz flicker-free
Optic system
• Beam Angle: 4°
Color system
• LED source RGBW Full color
• Infinite chromatic possibilities
Effects
• Linear dimmer 0-100%
• Electronic high speed strobefrom 1 to 25 flashes/s, with adjustable speed.
• Random strobe and pulse effect with adjustable speed
• Color macros selectable via DMX
Control and programming
• 2 different DMX channels configurations: 15/17 channels
• Protocol USITT DMX 512
• Master/Slave mode
• Sound mode with adjustable microphone sensitivity
• Auto mode
• Reset via DMX
Structure and cabinet
• Black metal housing and high resistance plastic materials
• Blue LCD graphic display
• Infinite high precision Pan with adjustable speed
• Infinite high precision Tilt with adjustable speed
• Automatic repositioning of Pan and Tilt after accidental movements

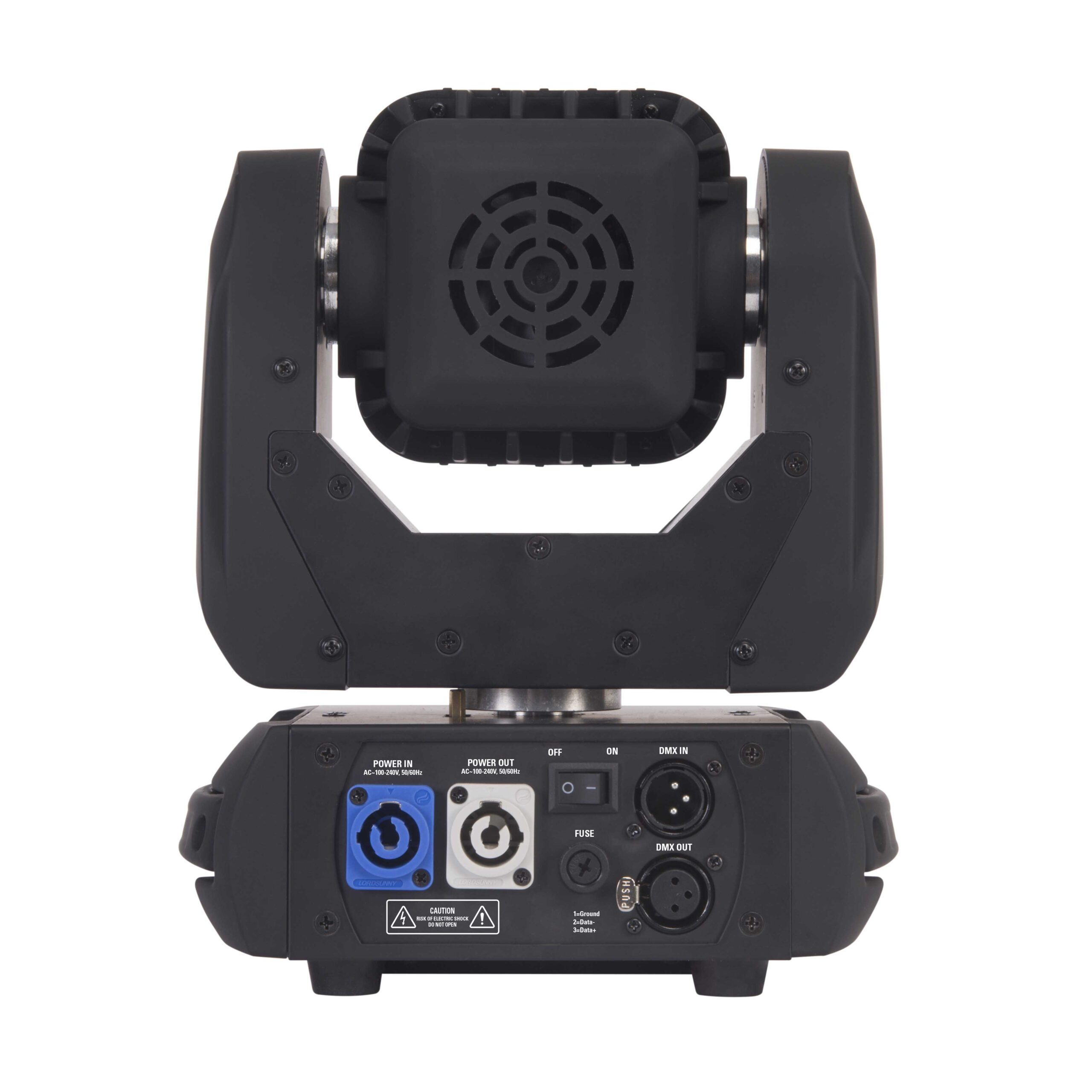

• XLR 3-poles DMX IN/OUT connection
• IP rating: IP20
• Forced air cooling system with electronic control
Power supply
• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Power consumption: 80W
• Power input with PowerCON connector
• Power supply cable 1mt included
Weight and dimensions
• Net weight: 5,1 kg
• Dimensions 290x155x290 mm
