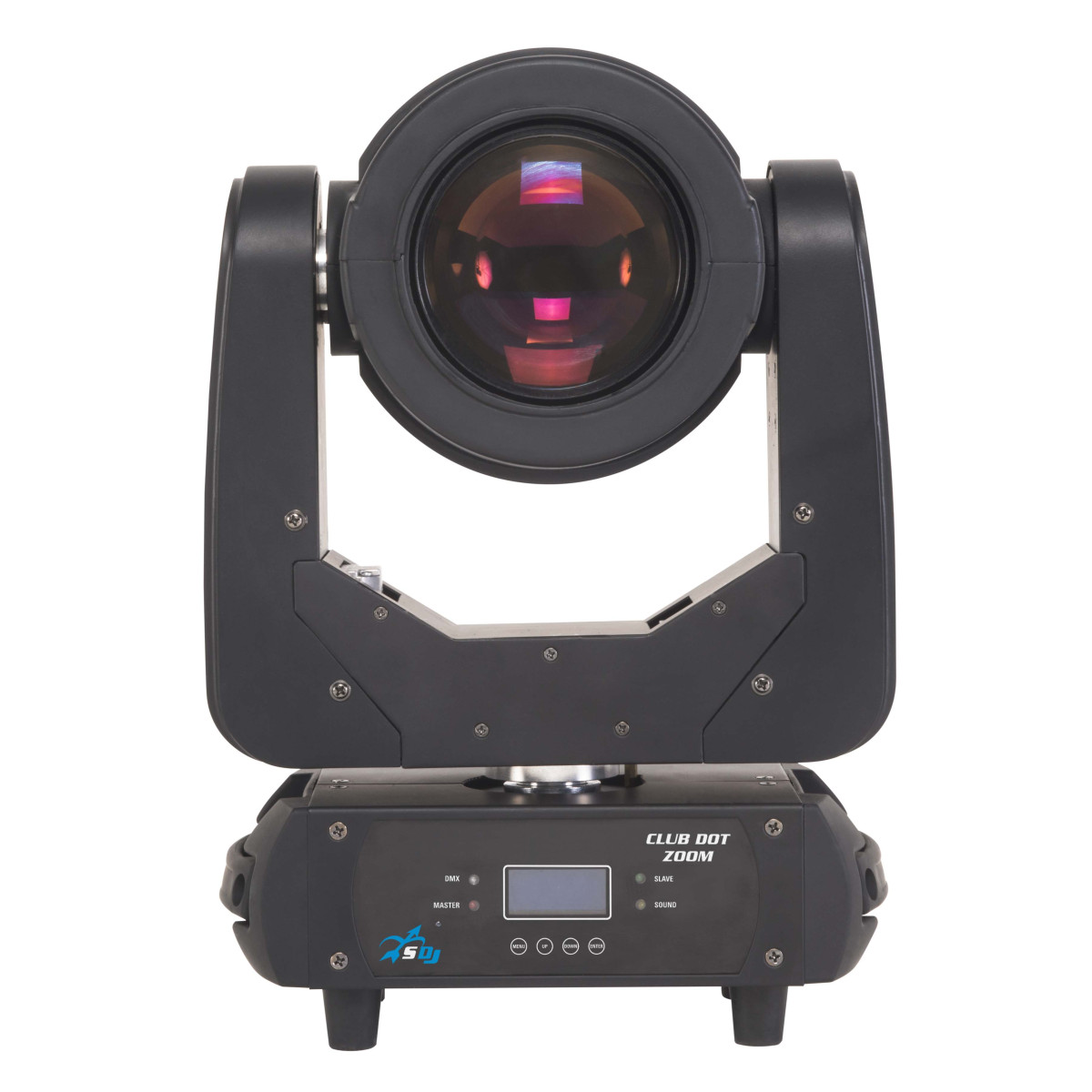

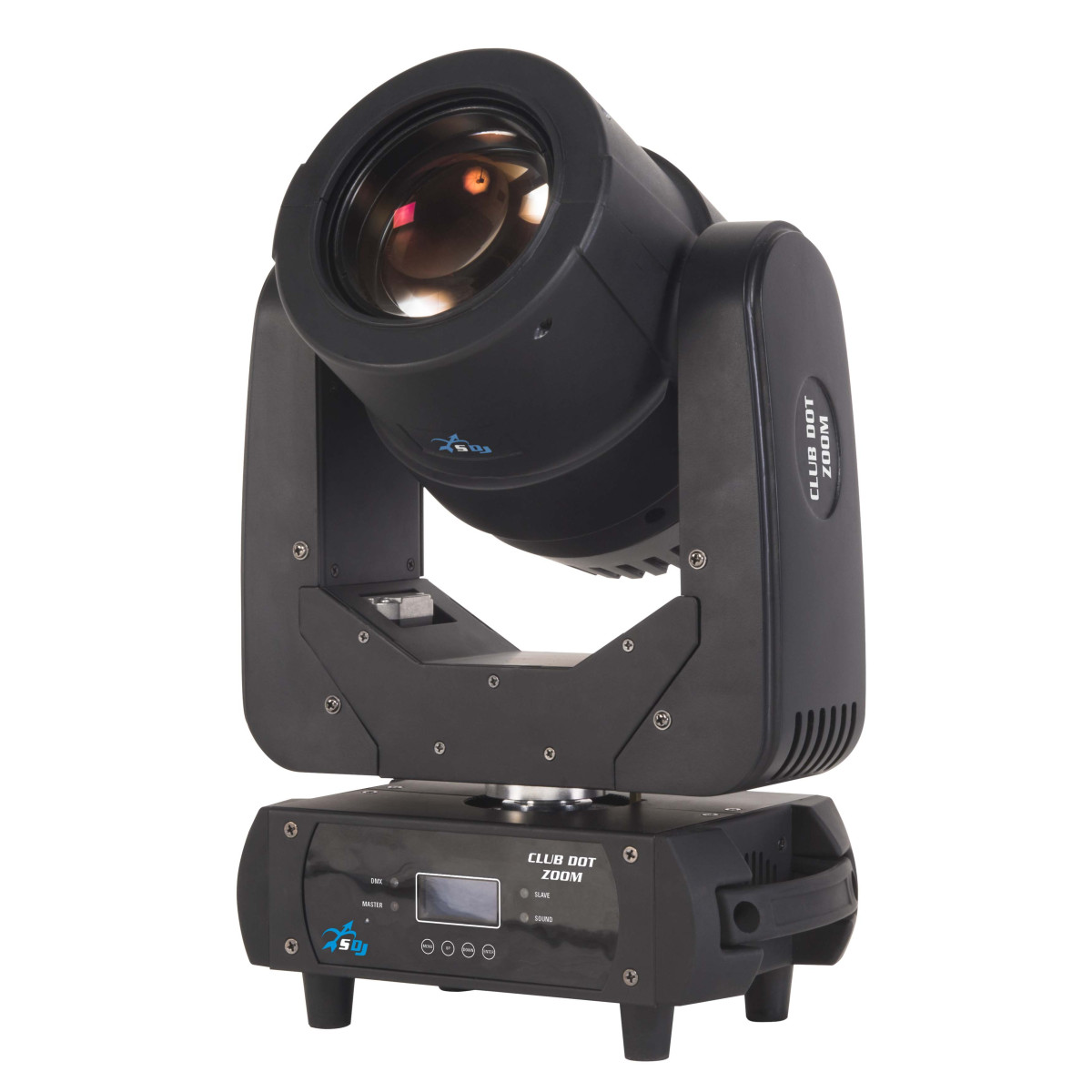

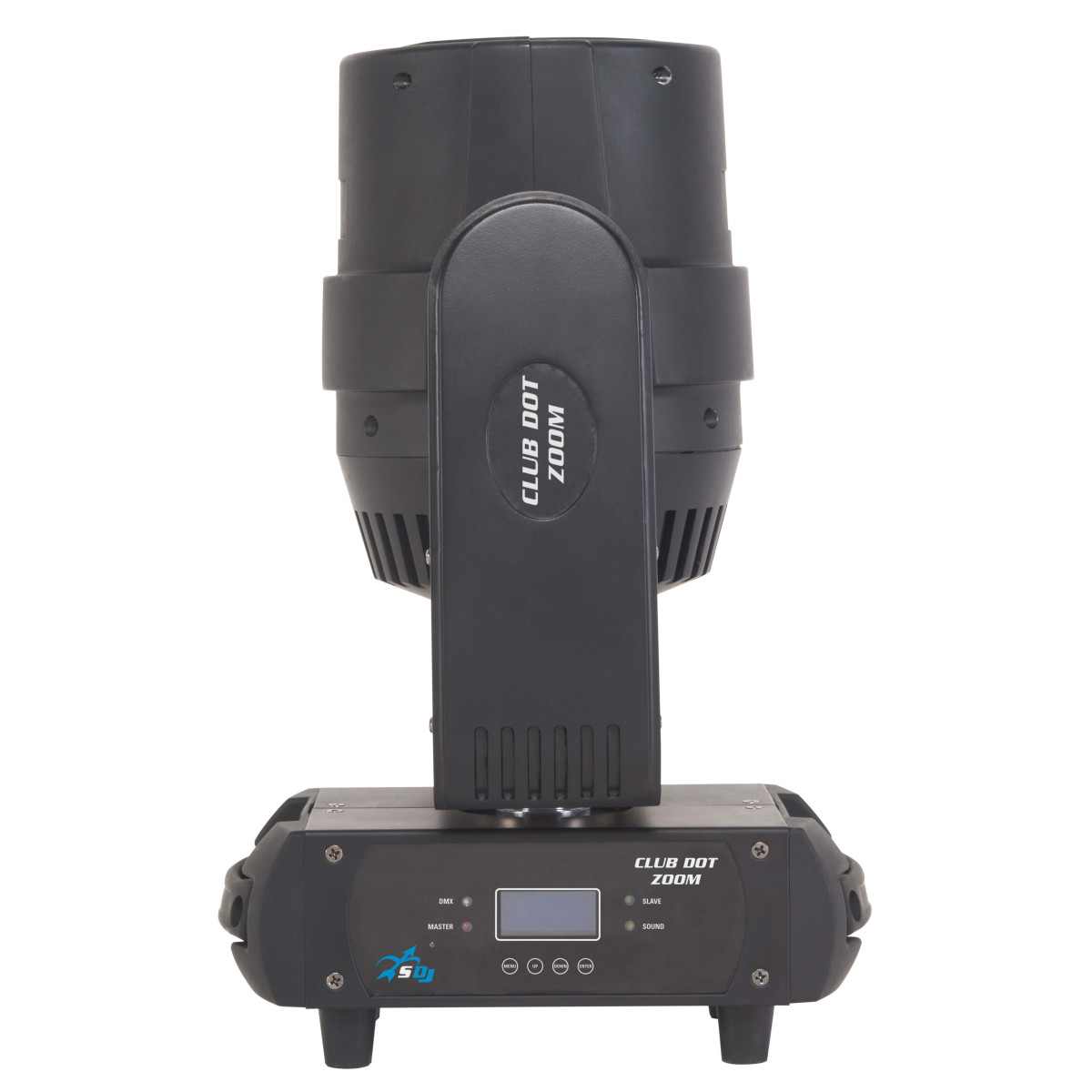

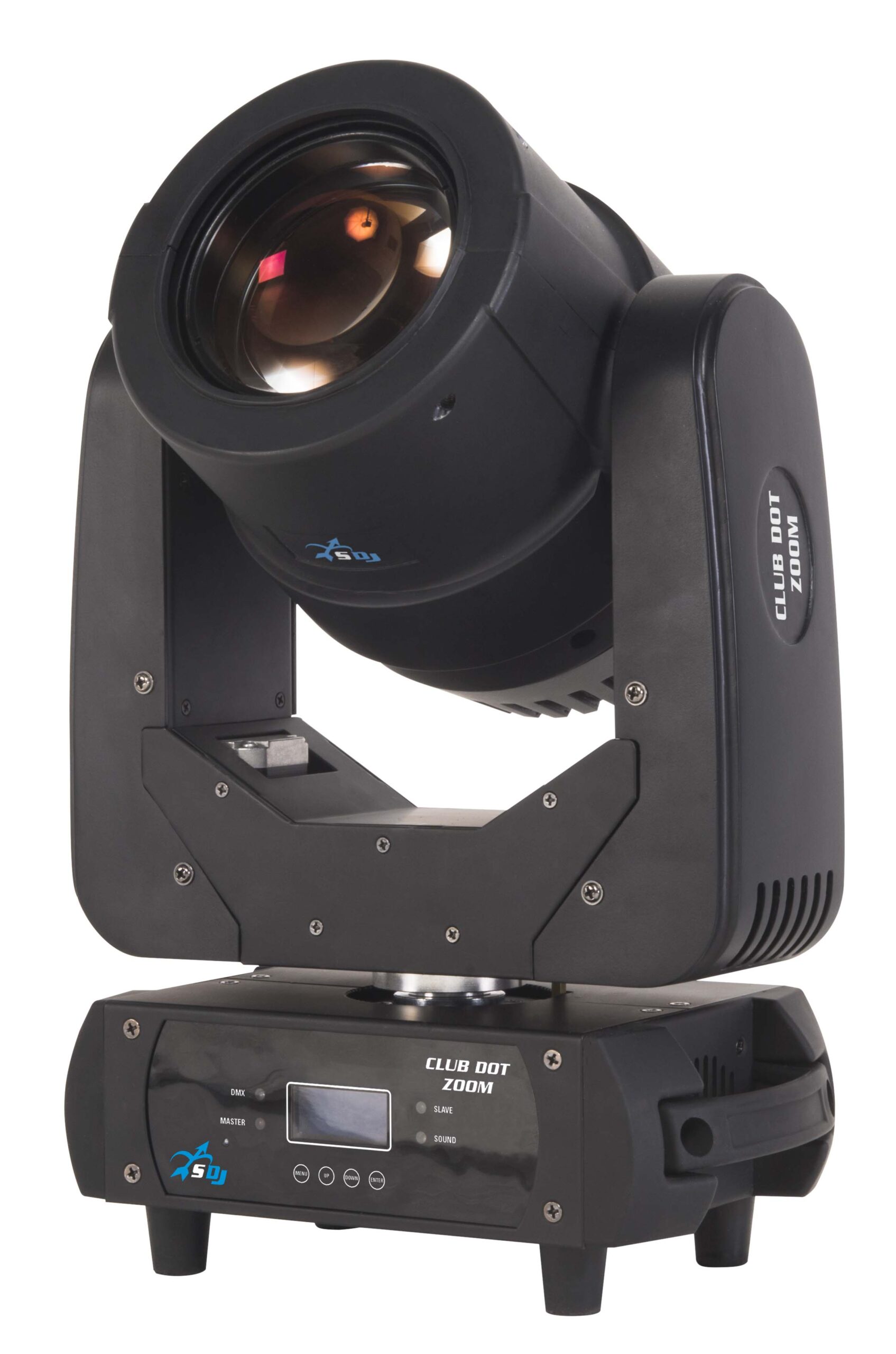

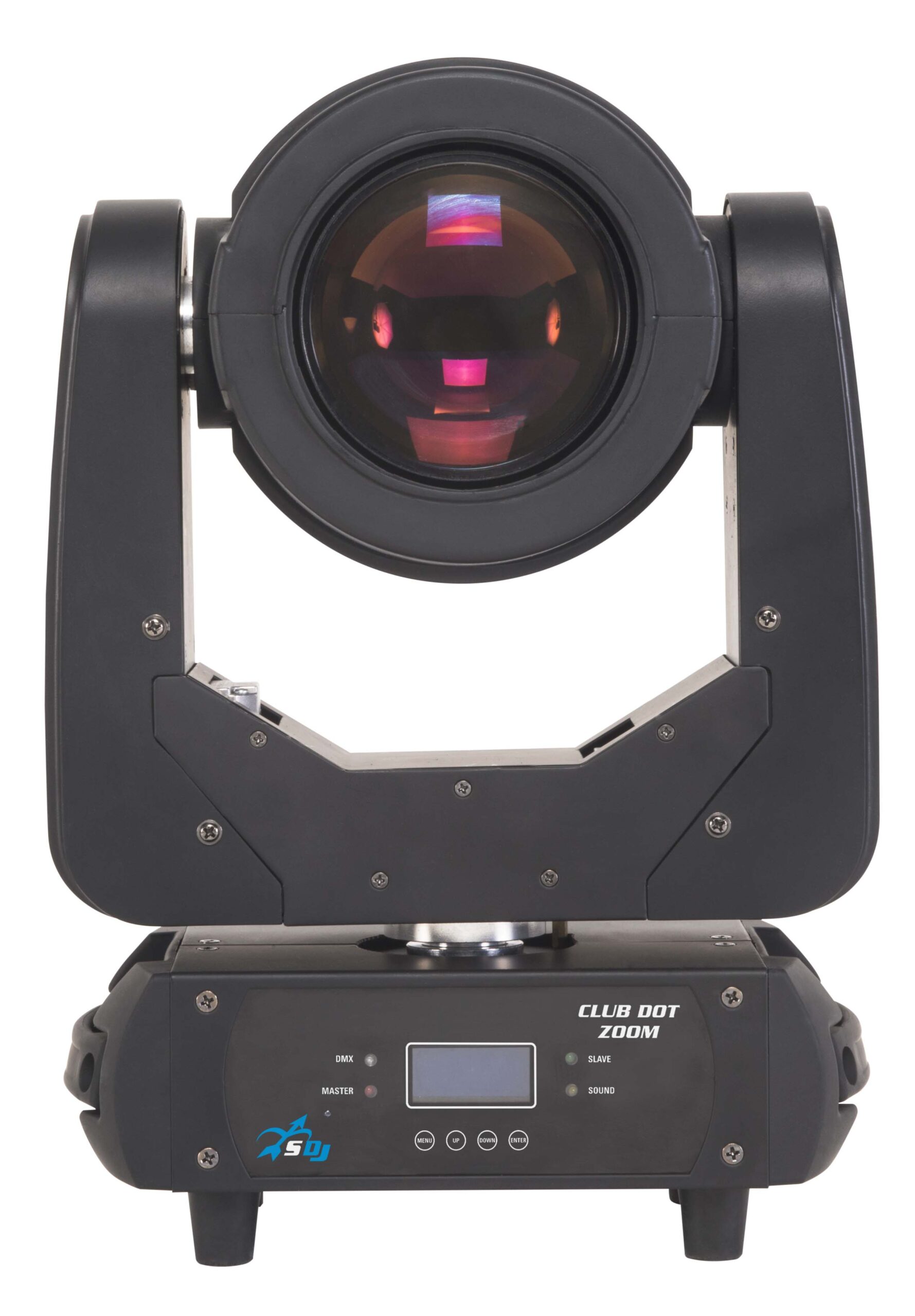

Moving head Club DOT zoom 1X60W led RGBW/FC

Moving head Club DOT zoom 1X60W led RGBW/FC

Description

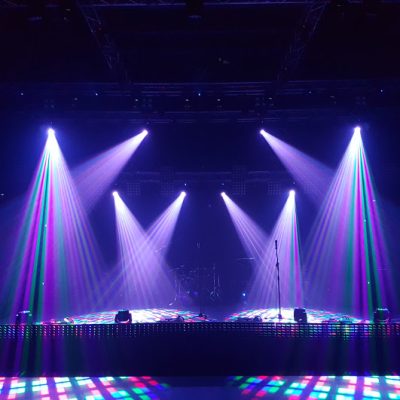

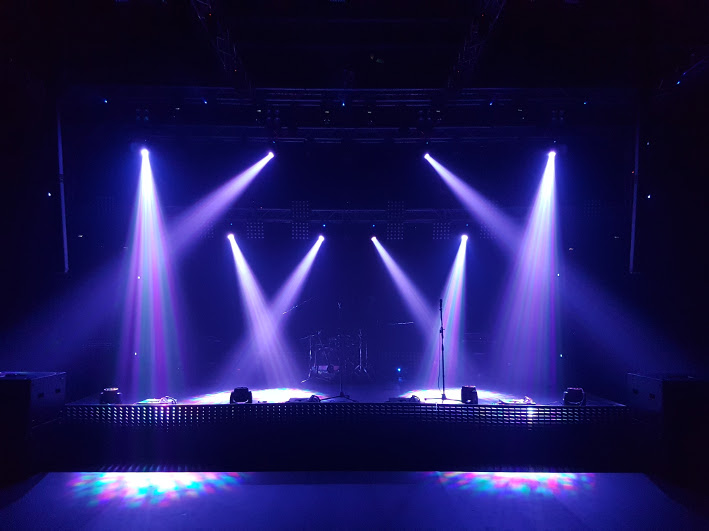

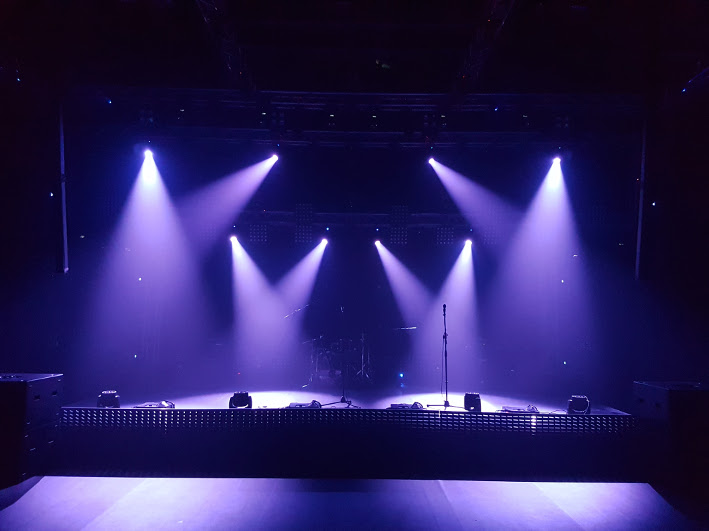

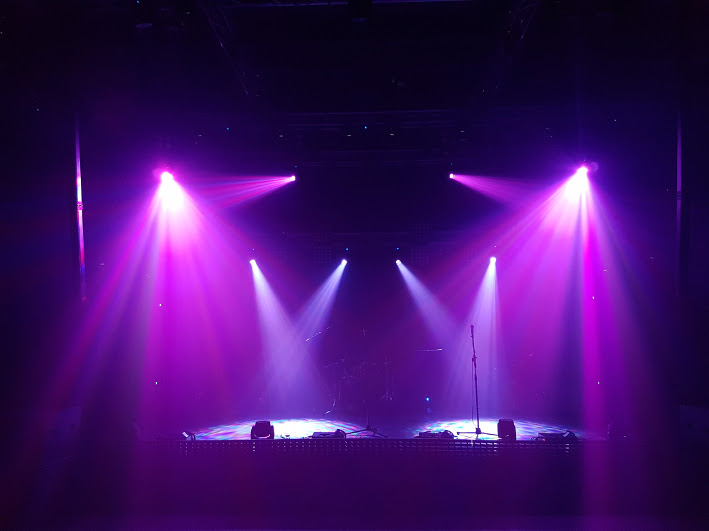

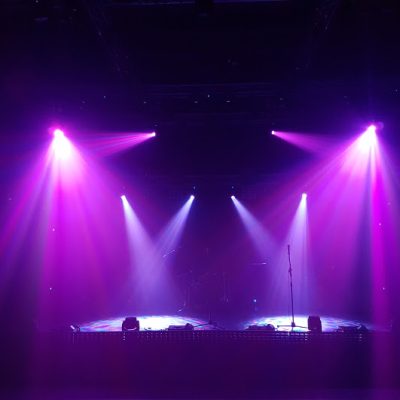

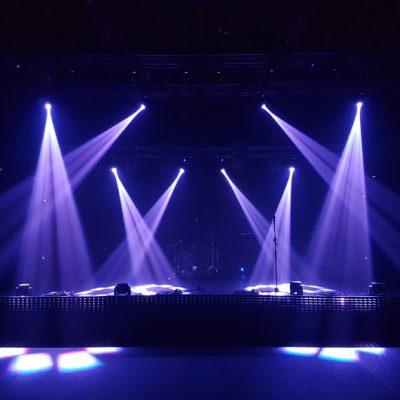

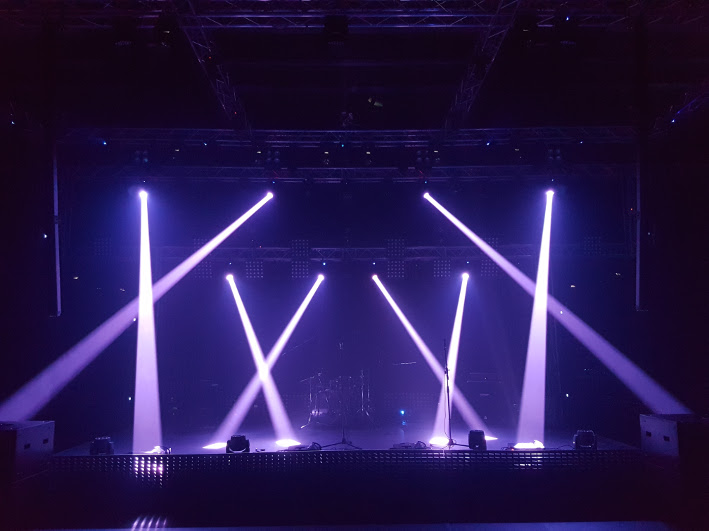

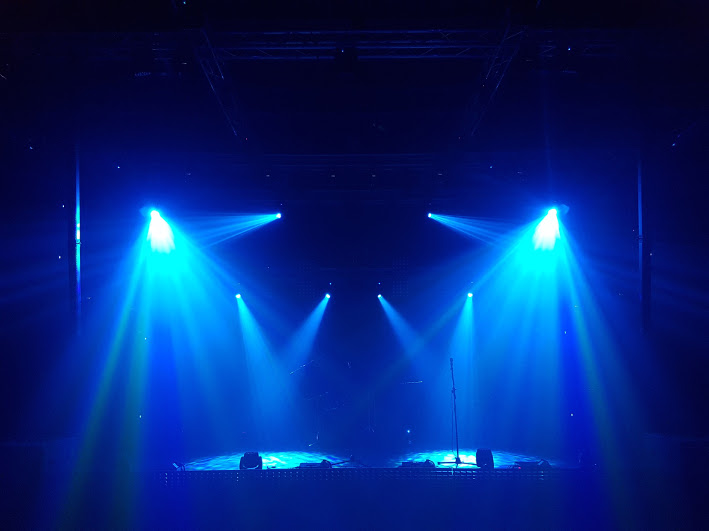

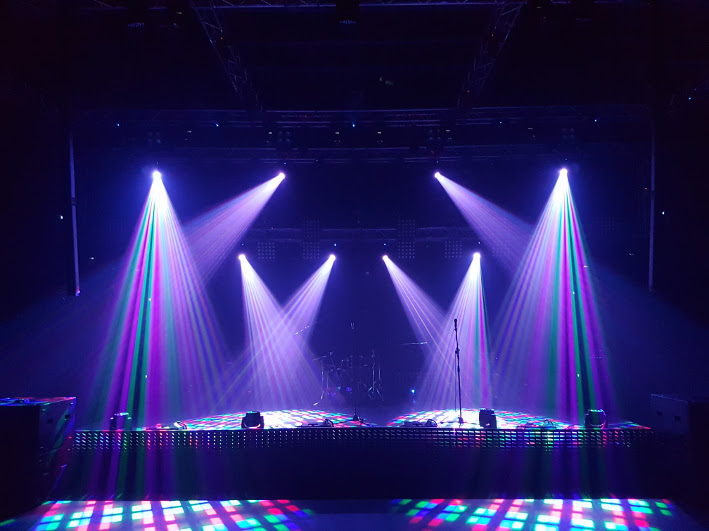

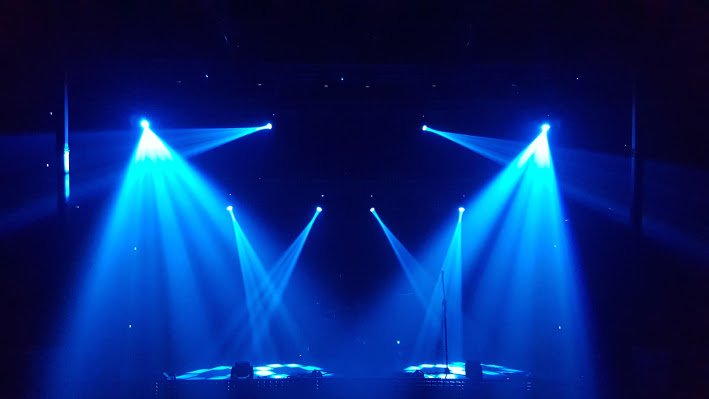

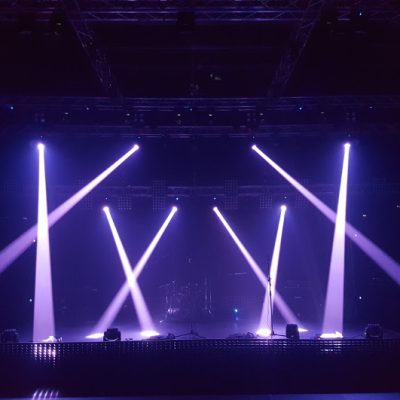

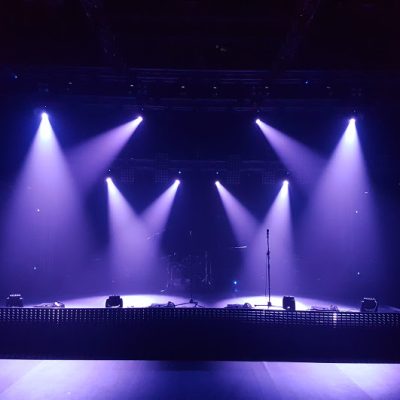

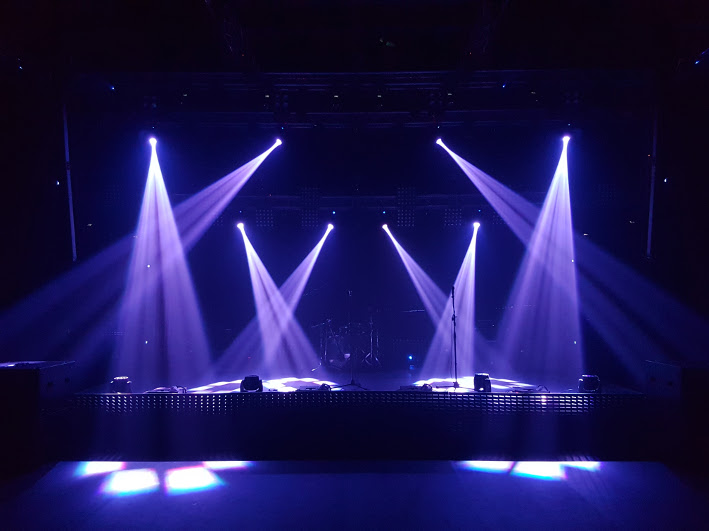

Club series has been designed by listening to the needs of professionals in the field of indoor and outdoor entertainment. The key points of this new line are: the luminous efficiency, compactness and functionality, three core values in today’s market. Club Dotz completes the series with this innovative product with a unique 60W high power Osram LED equipped with full-color RGBW / FC technology and projection angle from 2.5 ° to 35 ° which ensures maximum light output, a defined and very powerful beam effect and a uniform wash beam. To complete the performances and to give an added value, we have included a new technology that allows a three rotating beams multiray effect in both directions overlapping to a 8 faces prism with wide angle that creates great effects. To complete the functions there is a high speed infinity Pan&Tilt movement which gives the user endless possibilities of programming.

SG CLDOTZ

Technical Specifications

Light source

• 1x60W led RGBW Full Color
• LED lifespan: > 50.000h
• LED refresh frequency: > 400Hz flicker-free

Optic system

• Beam Angle: 2,5° – 35°

Color system

• LED source RGBW Full color
• Infinite chromatic possibilities

Effects

• Linear dimmer 0-100%
• High speed electronic strobe max.25 flashes/s, with adjustable speed
• Random strobe and pulse dimmer effects with adjustable speed
• Color macros selectable via DMX
• Caleidoscope and Flower effect
• 8-facet rotating prism with adjustable speed
• Secondary LED rotating prism for flower effect, with adjustable speed
• Frost filter

Control and programming

• 2 different DMX channels configurations: 16/18 channels
• Protocol USITT DMX 512
• Master/Slave mode
• Sound mode with adjustable microphone sensitivity
• Auto mode
• Reset via DMX

Structure and cabinet

• Black metal housing and high resistance plastic materials

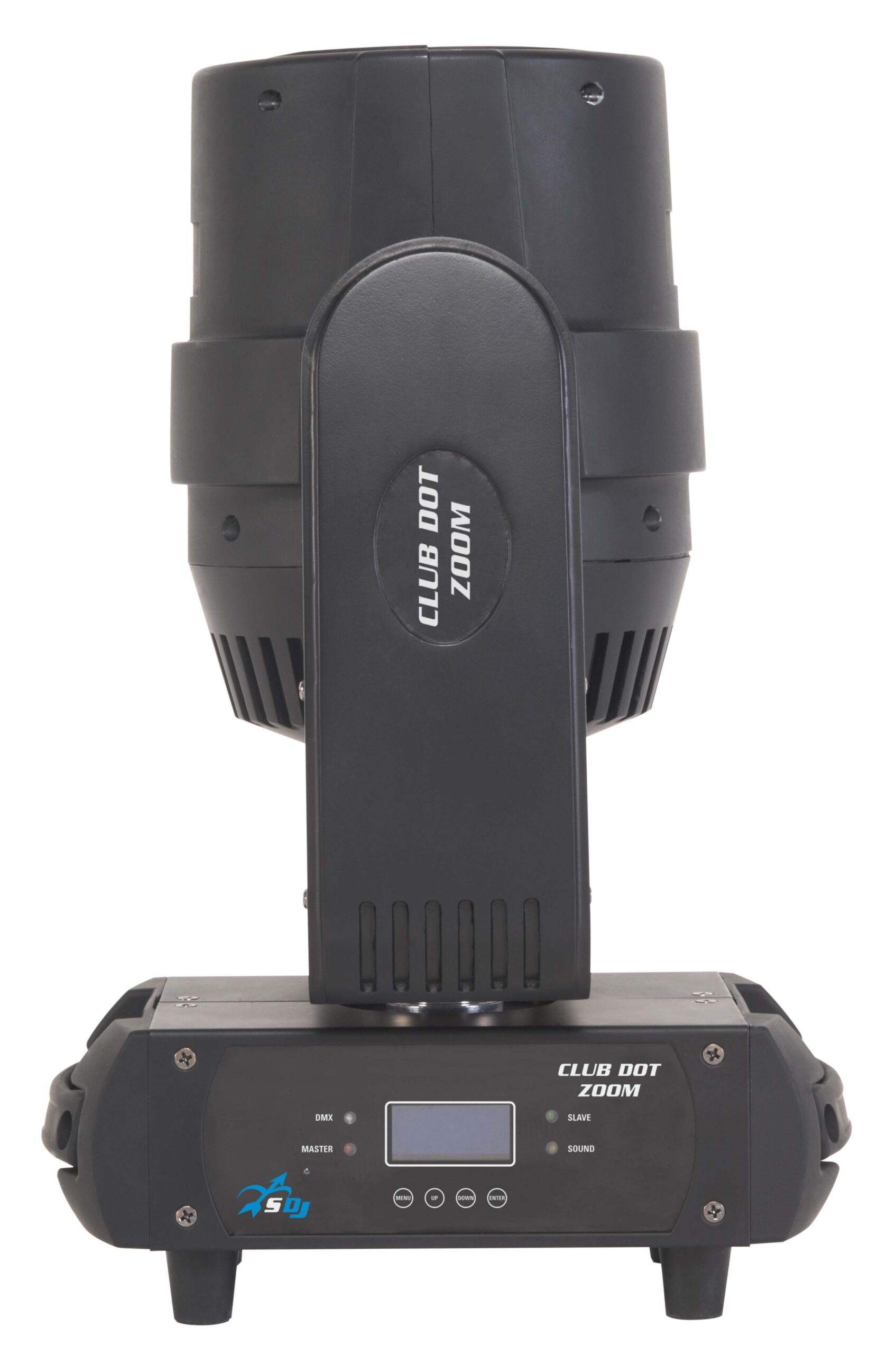

• Blue LCD graphic display
• Infinite high precision Pan with adjustable speed
• Infinite high precision Tilt with adjustable speed
• Automatic repositioning of Pan and Tilt after accidental movements

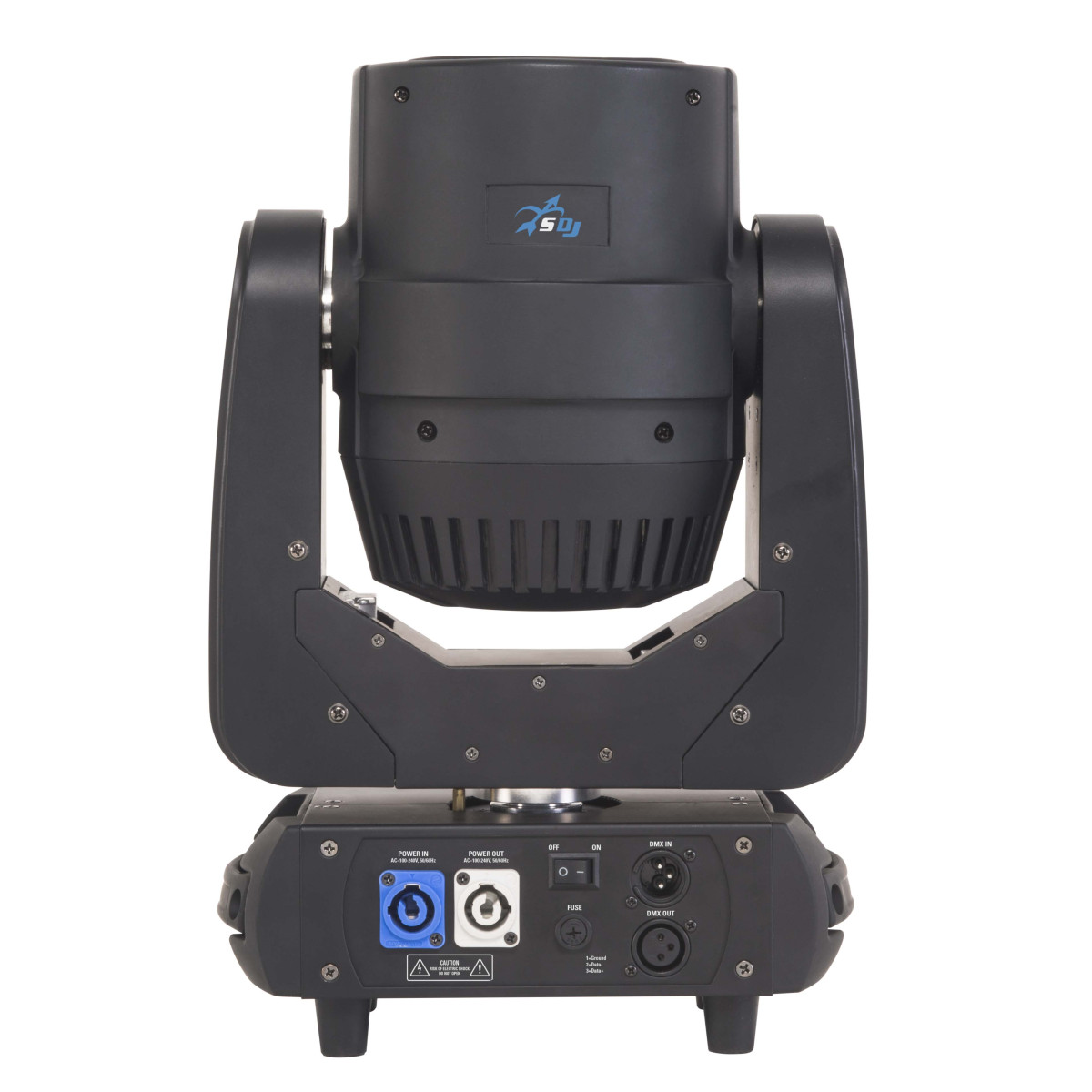

• XLR 3-poles DMX IN/OUT connection
• IP rating: IP20
• Forced air cooling system with electronic control

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Power consumption: 145W

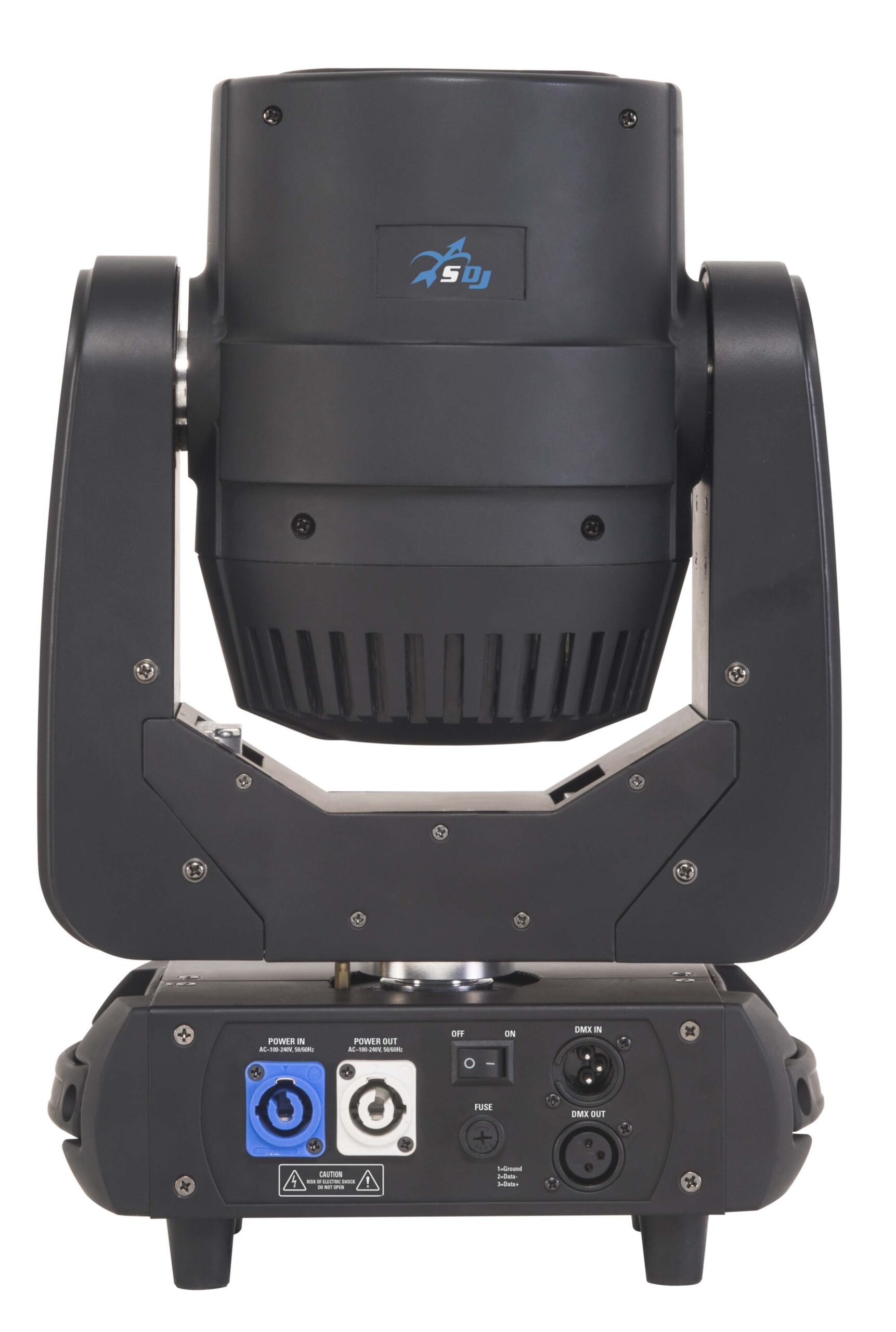

• Power input with IN/OUT PowerCON connector
• Power supply cable 1mt included

Weight and dimensions

• Net weight: 8,3 kg
• Dimensions: 280x155x420 mm
