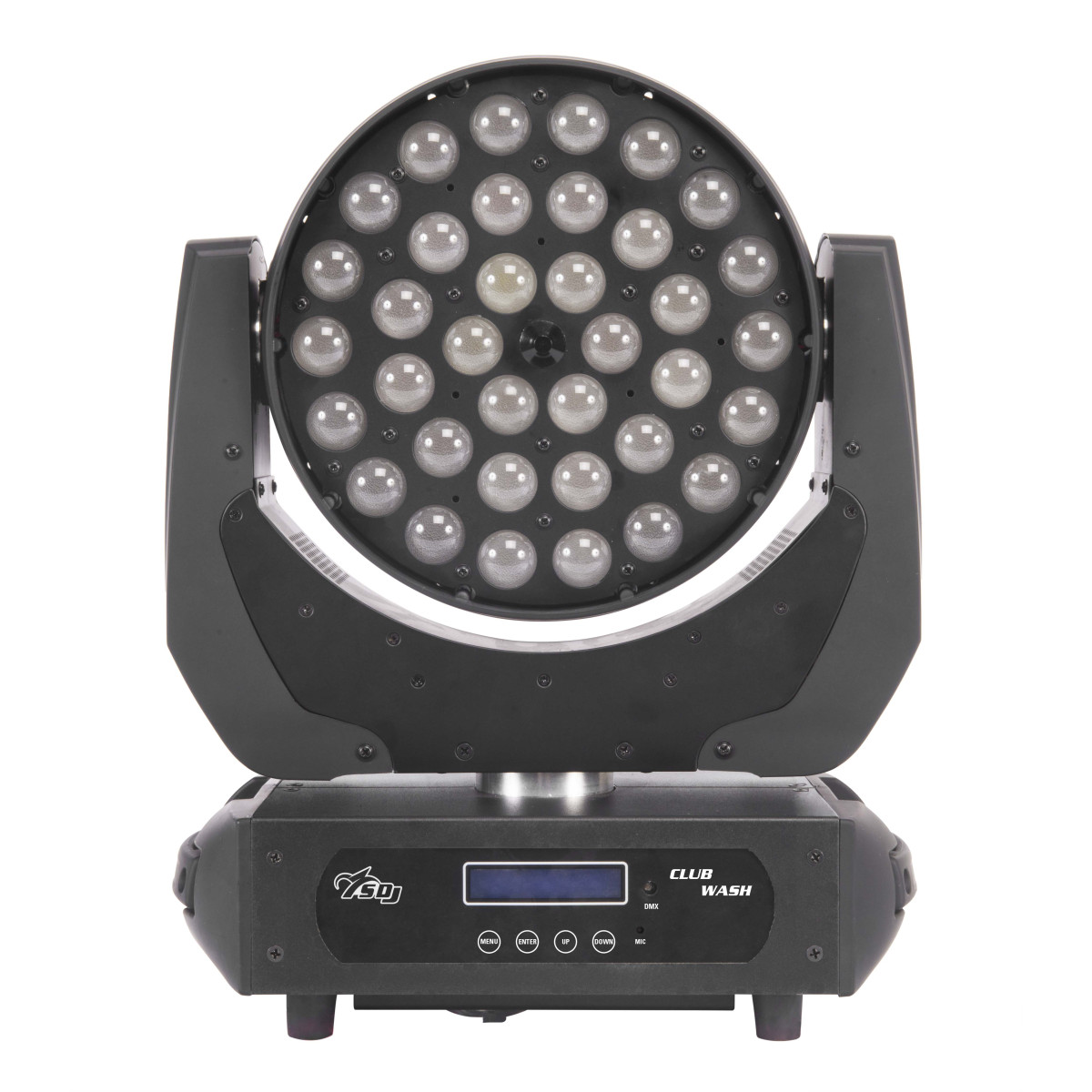

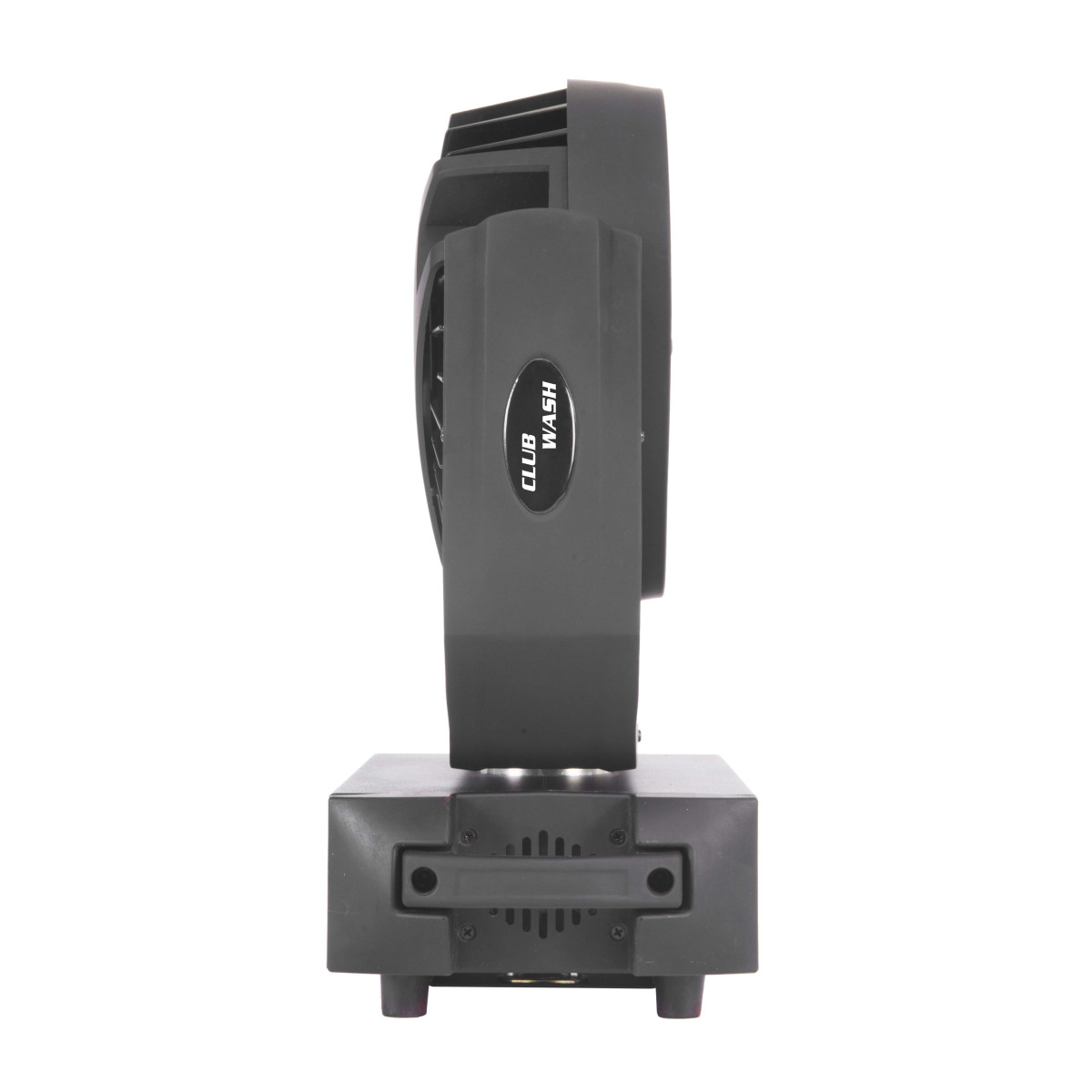

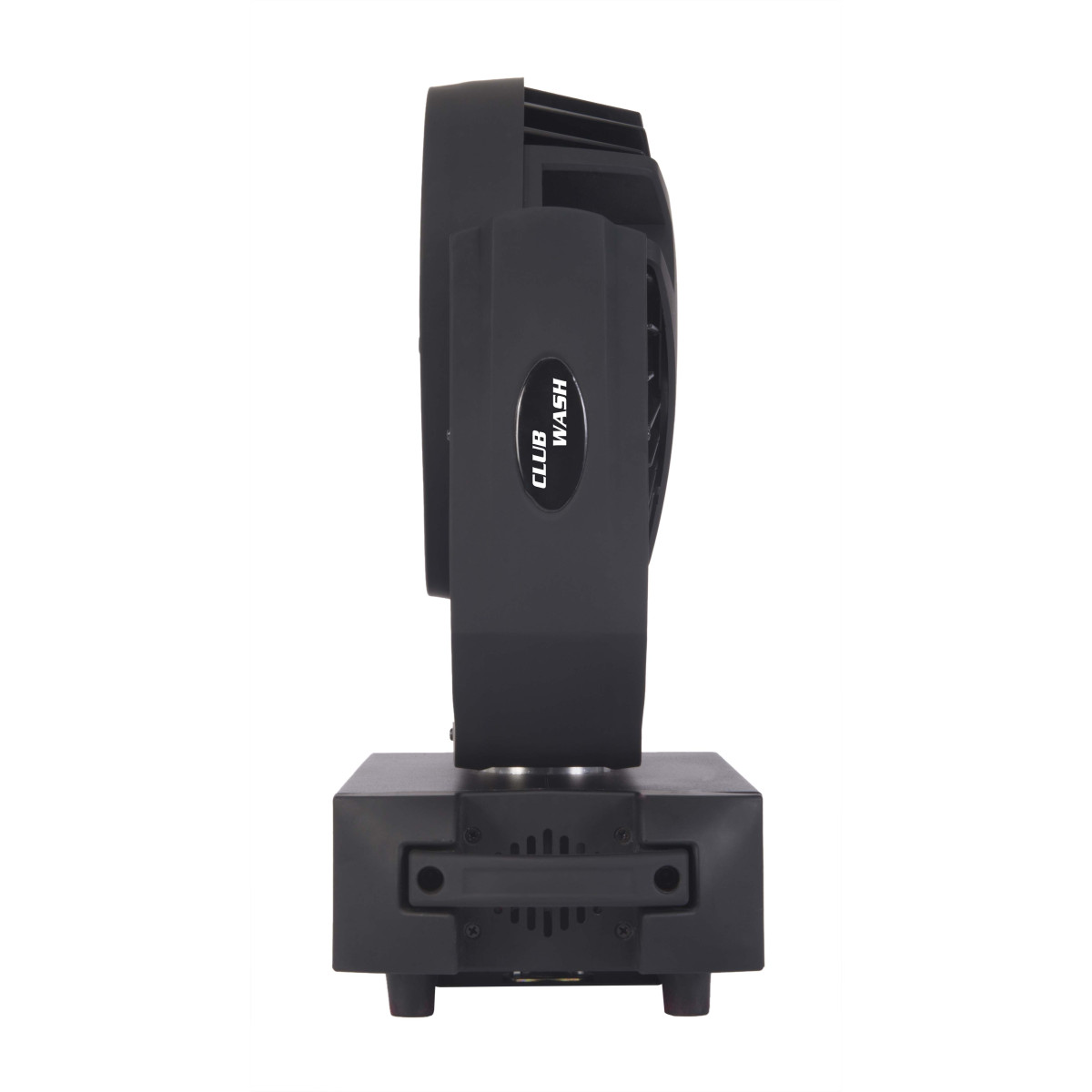

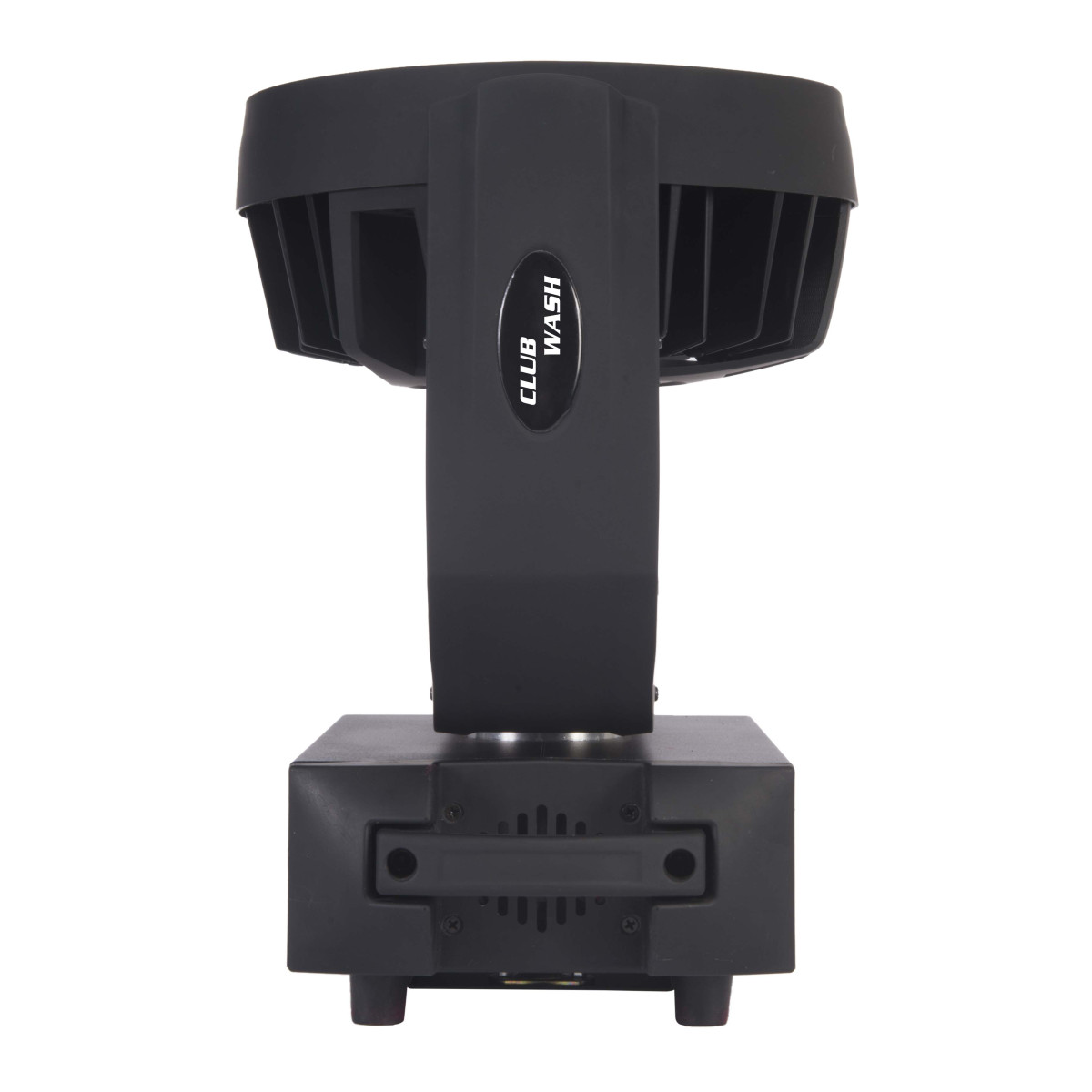

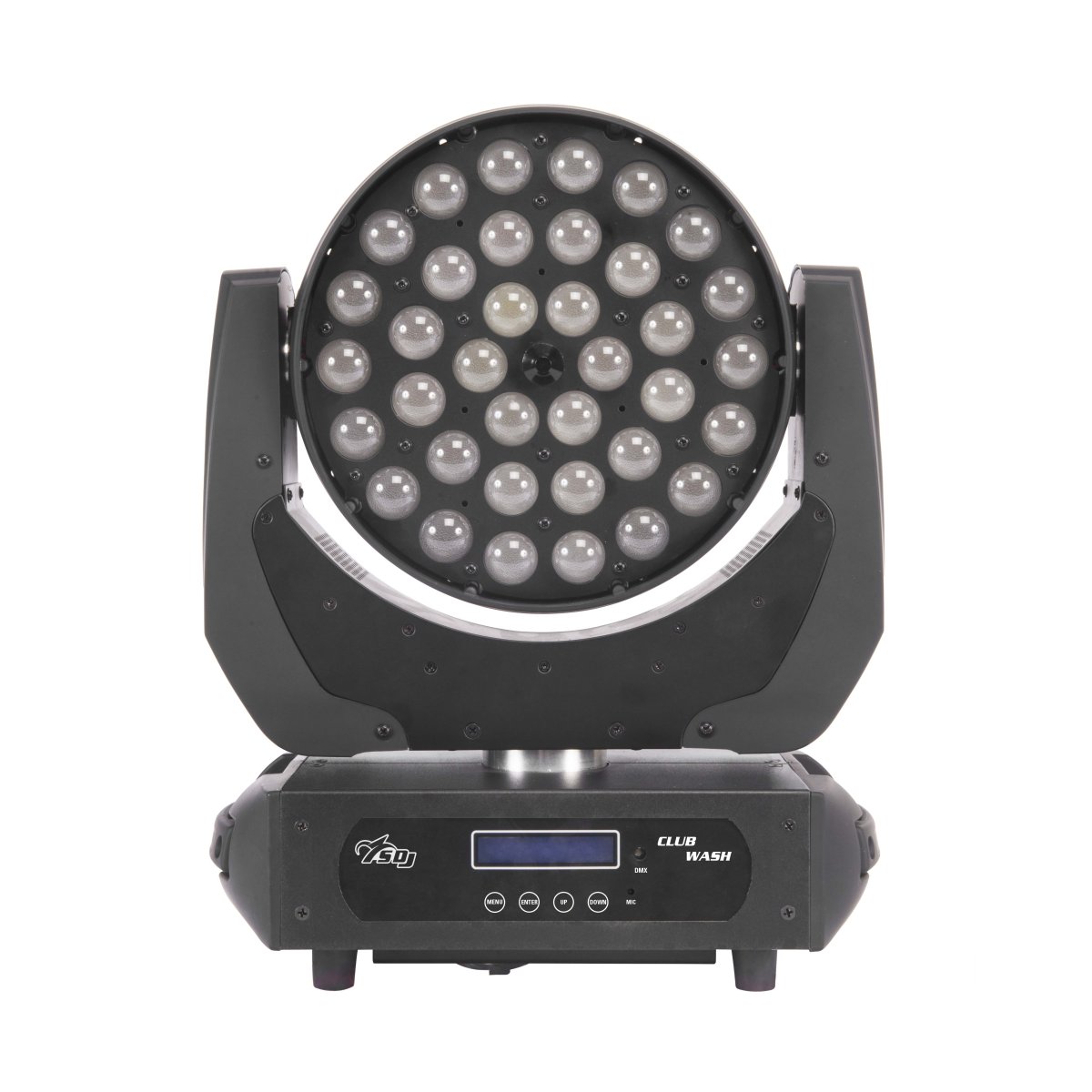

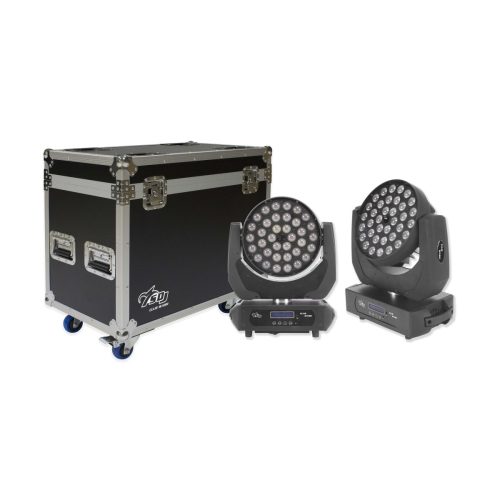

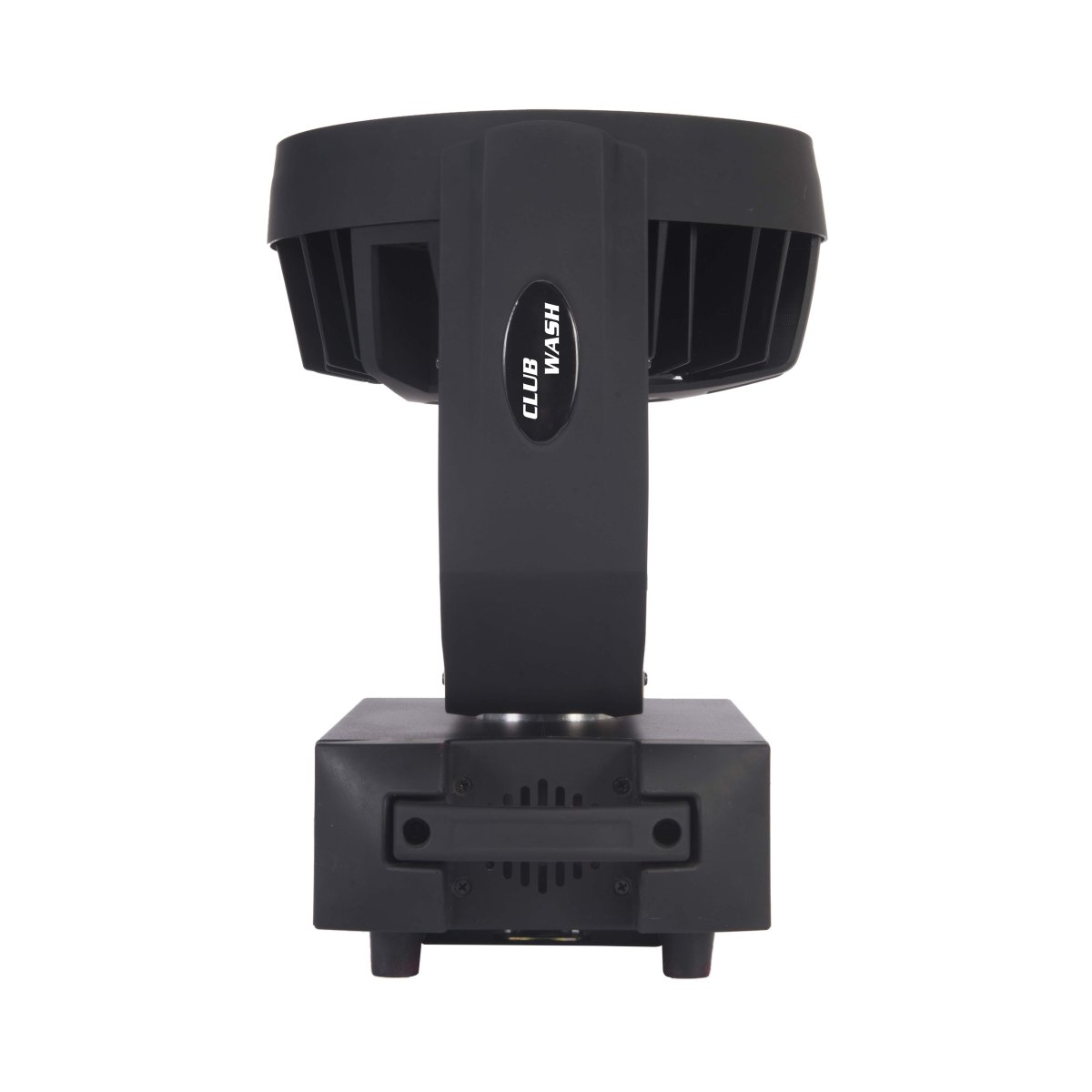

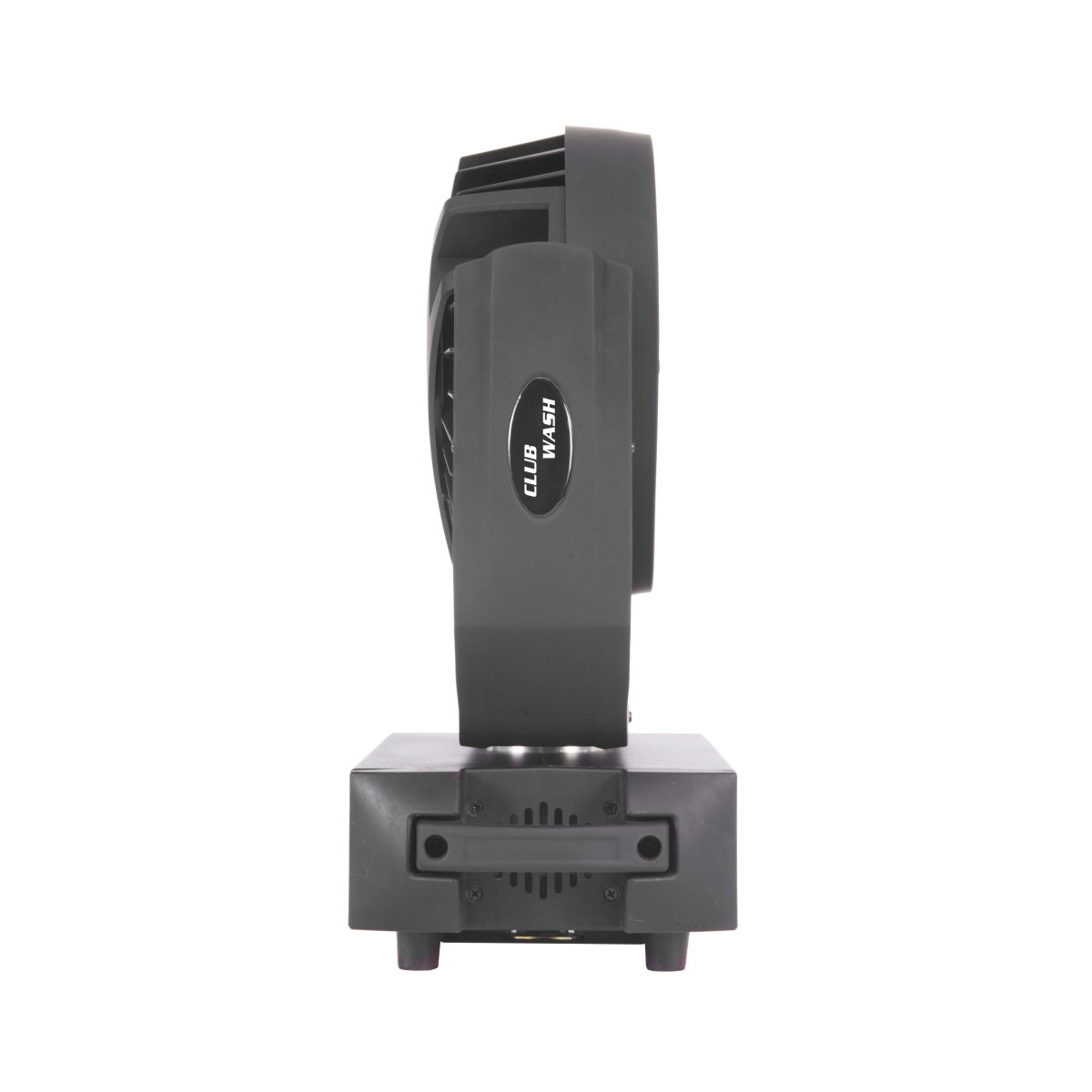

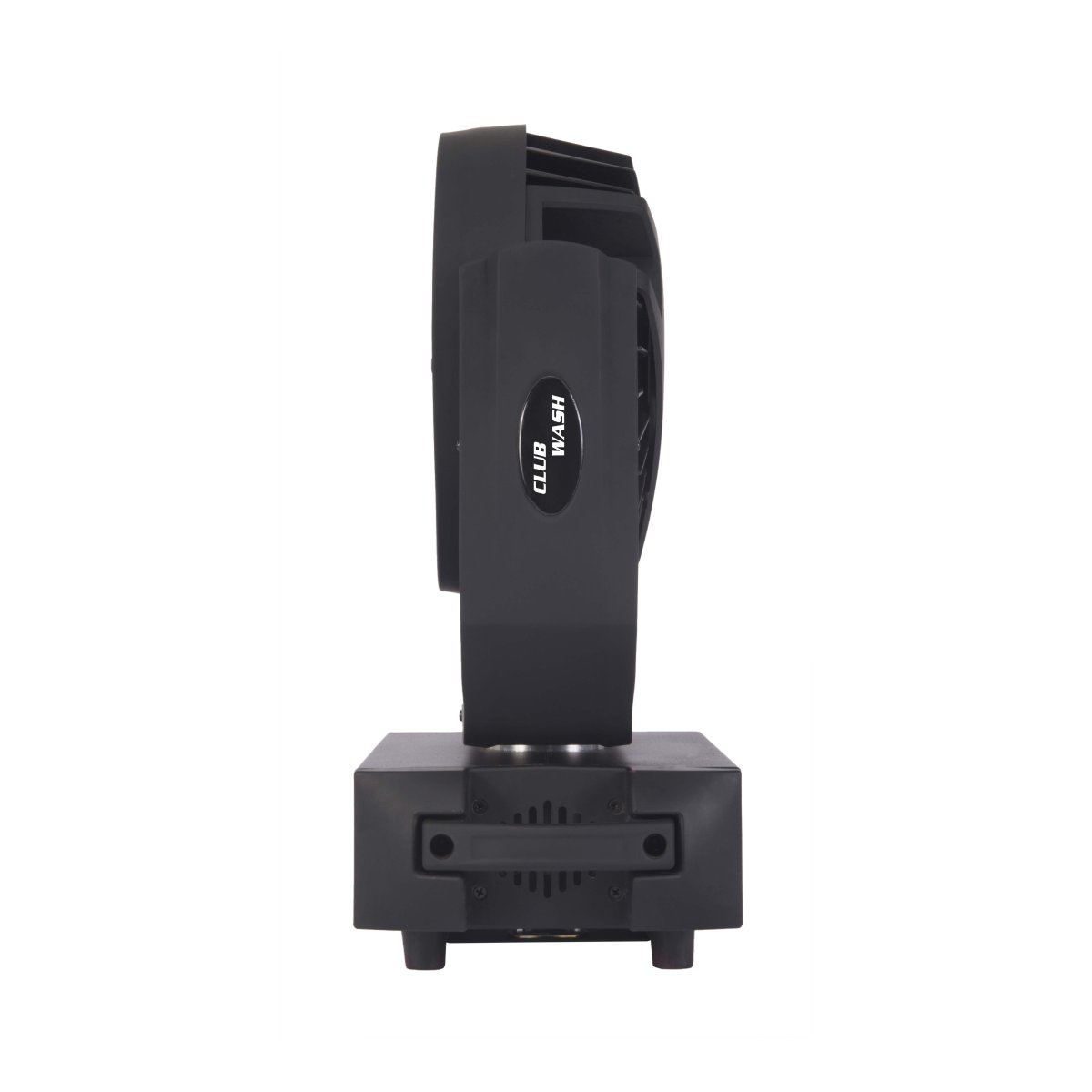

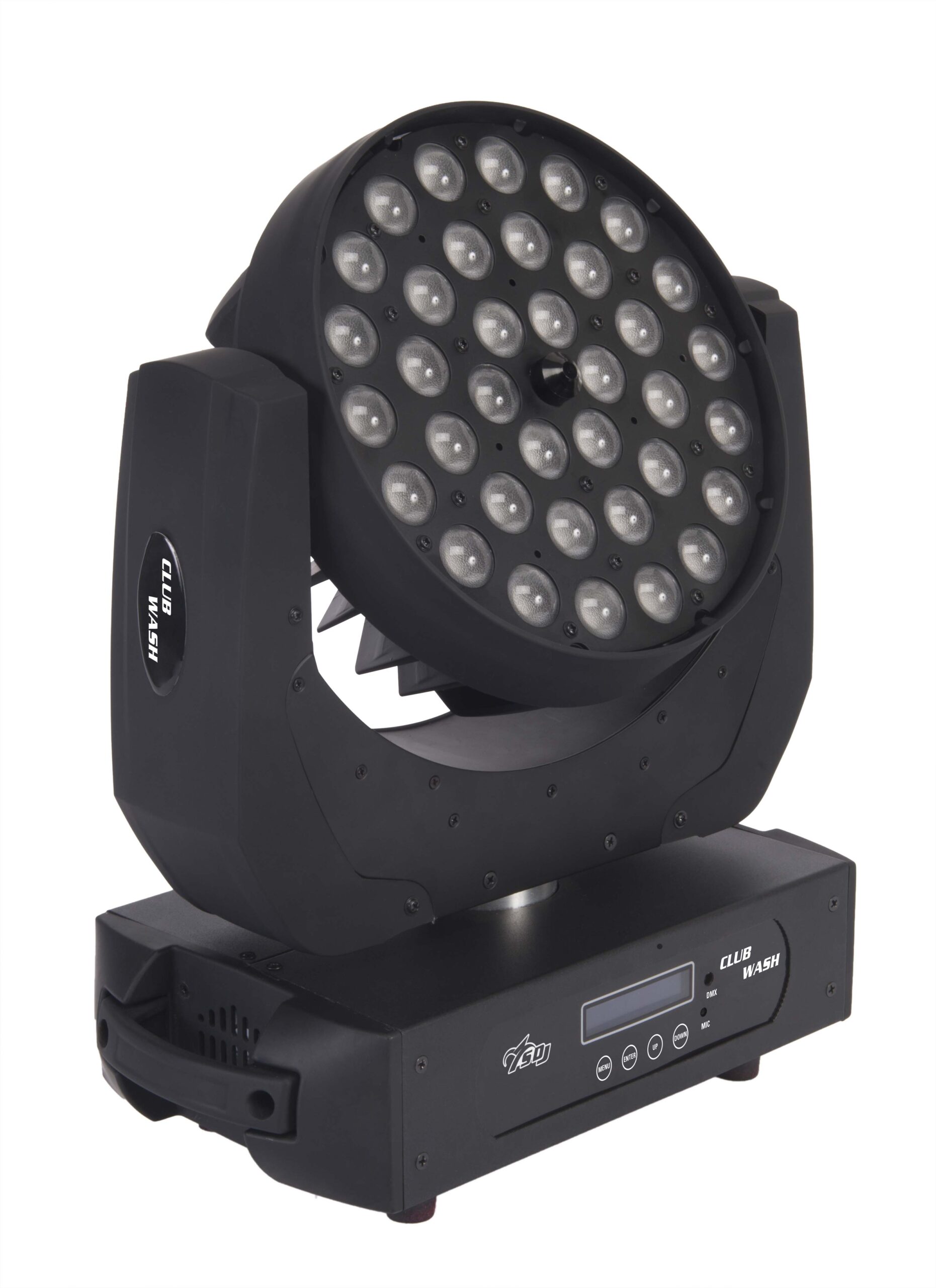

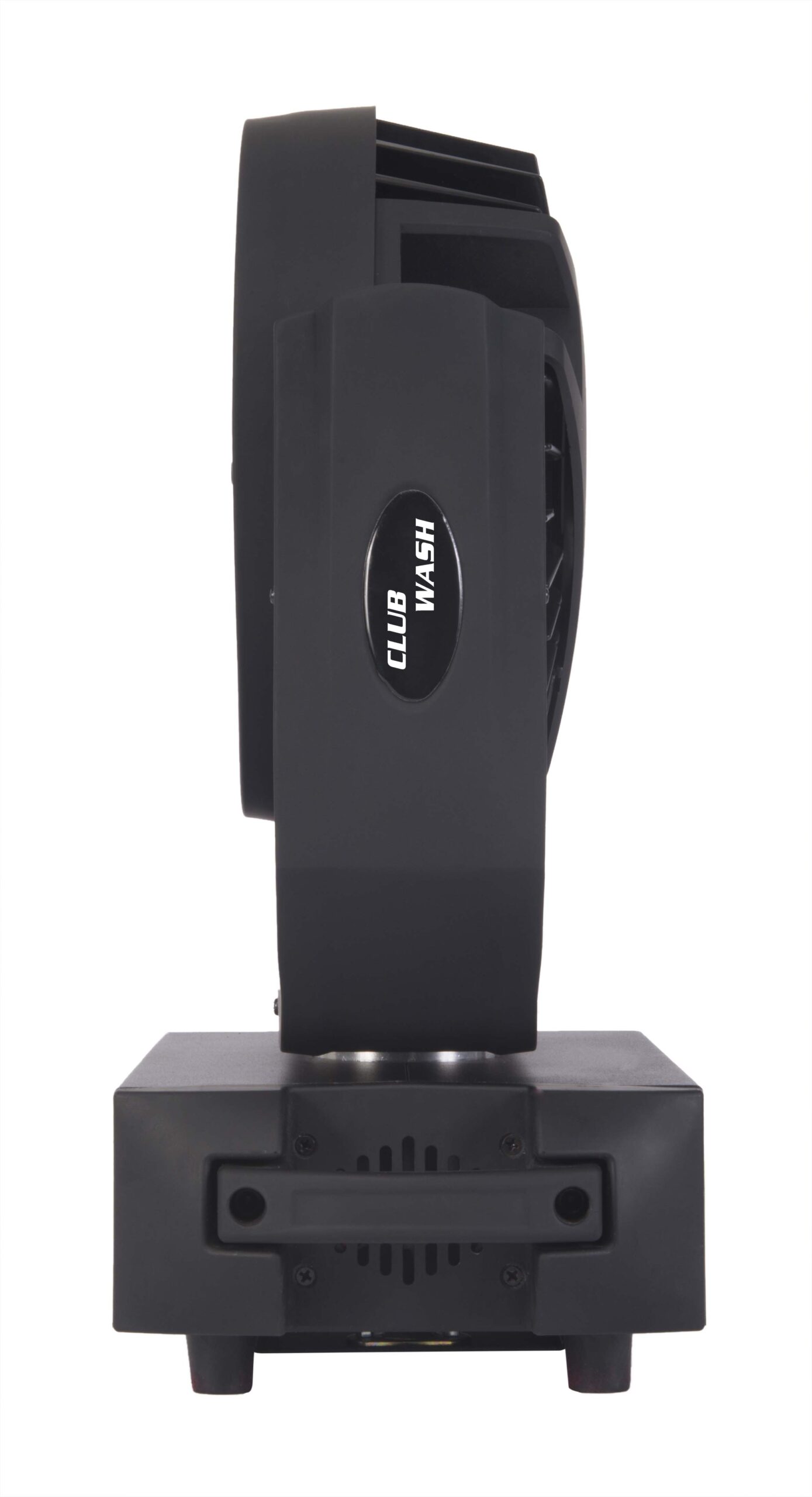

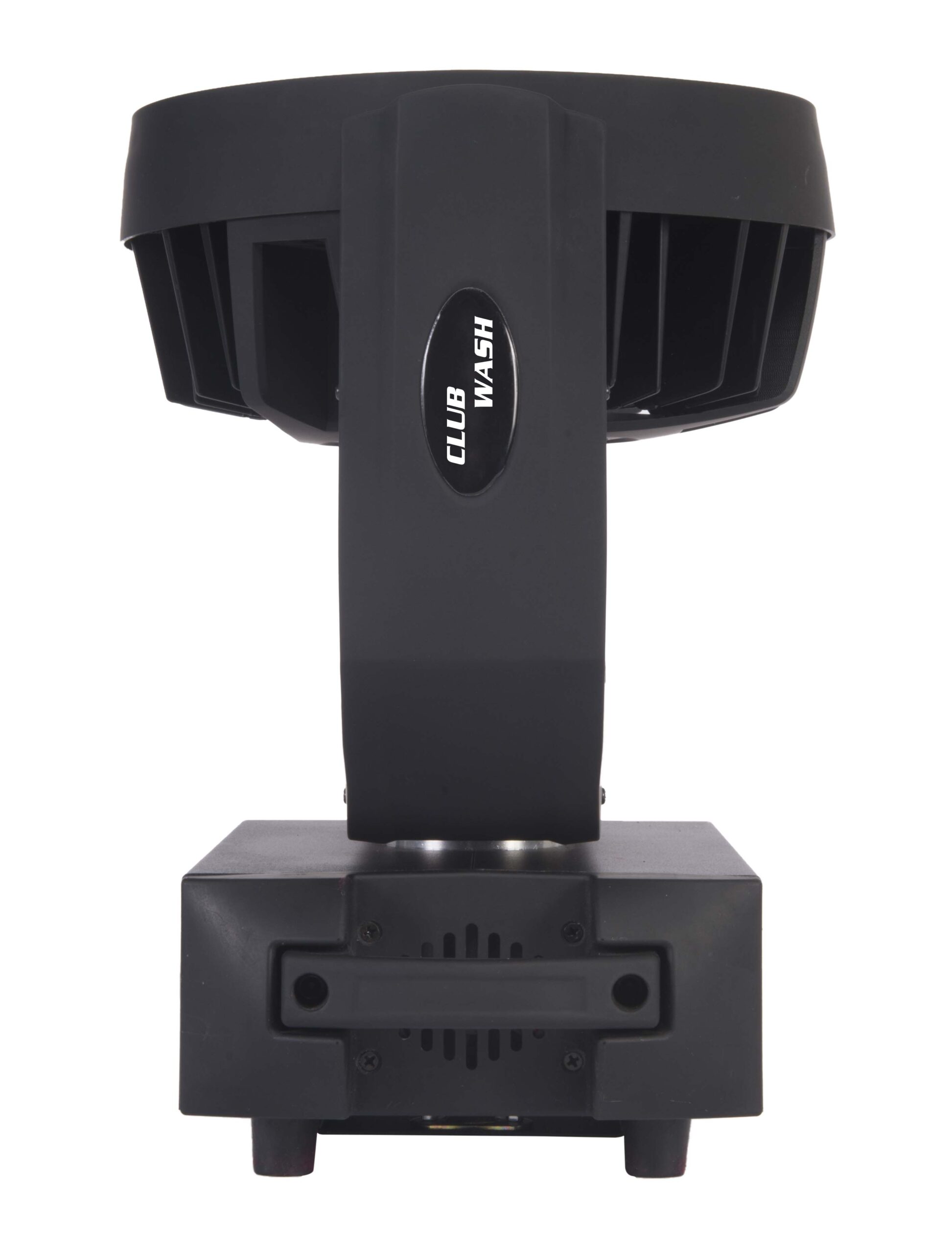

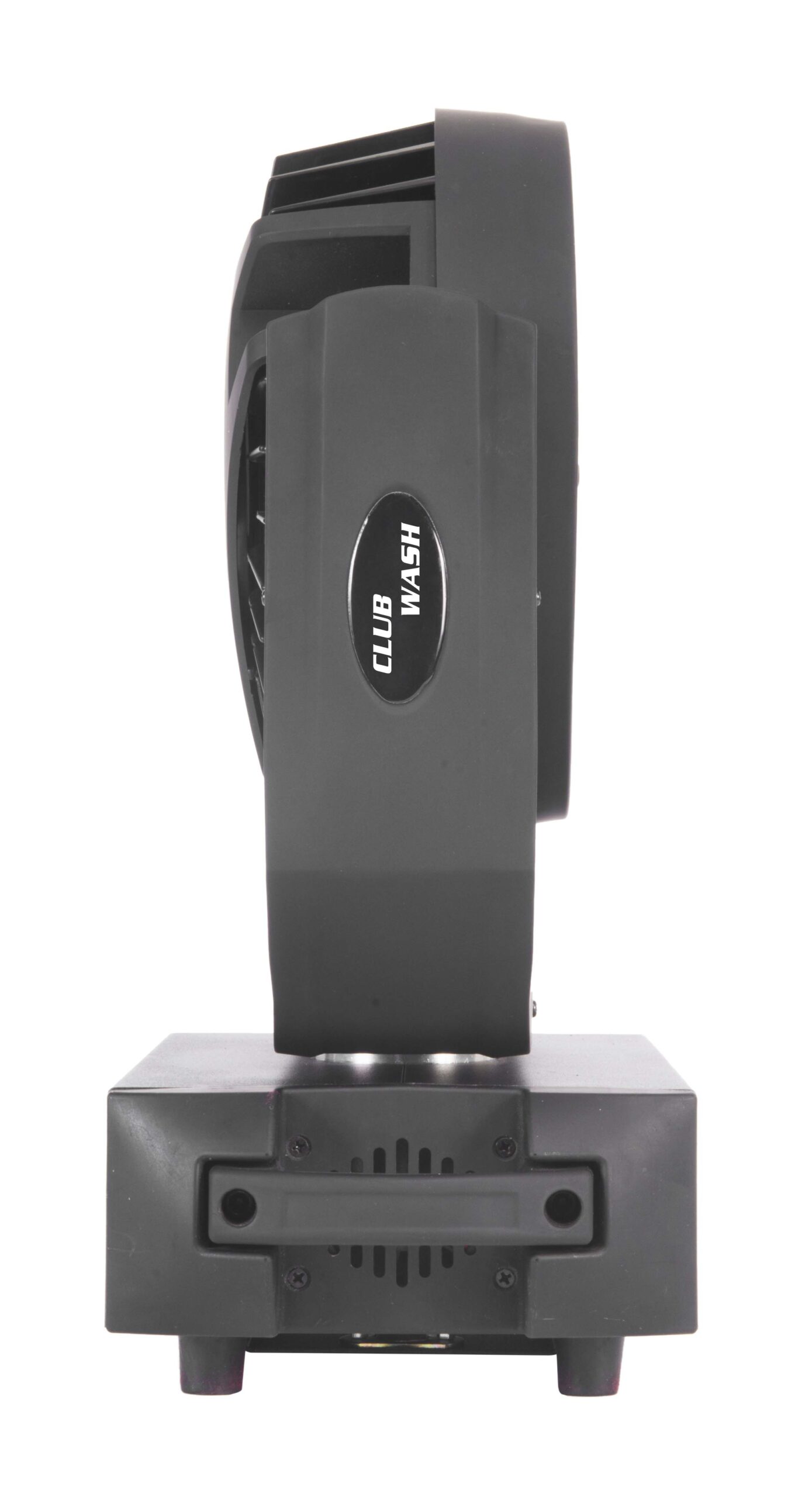

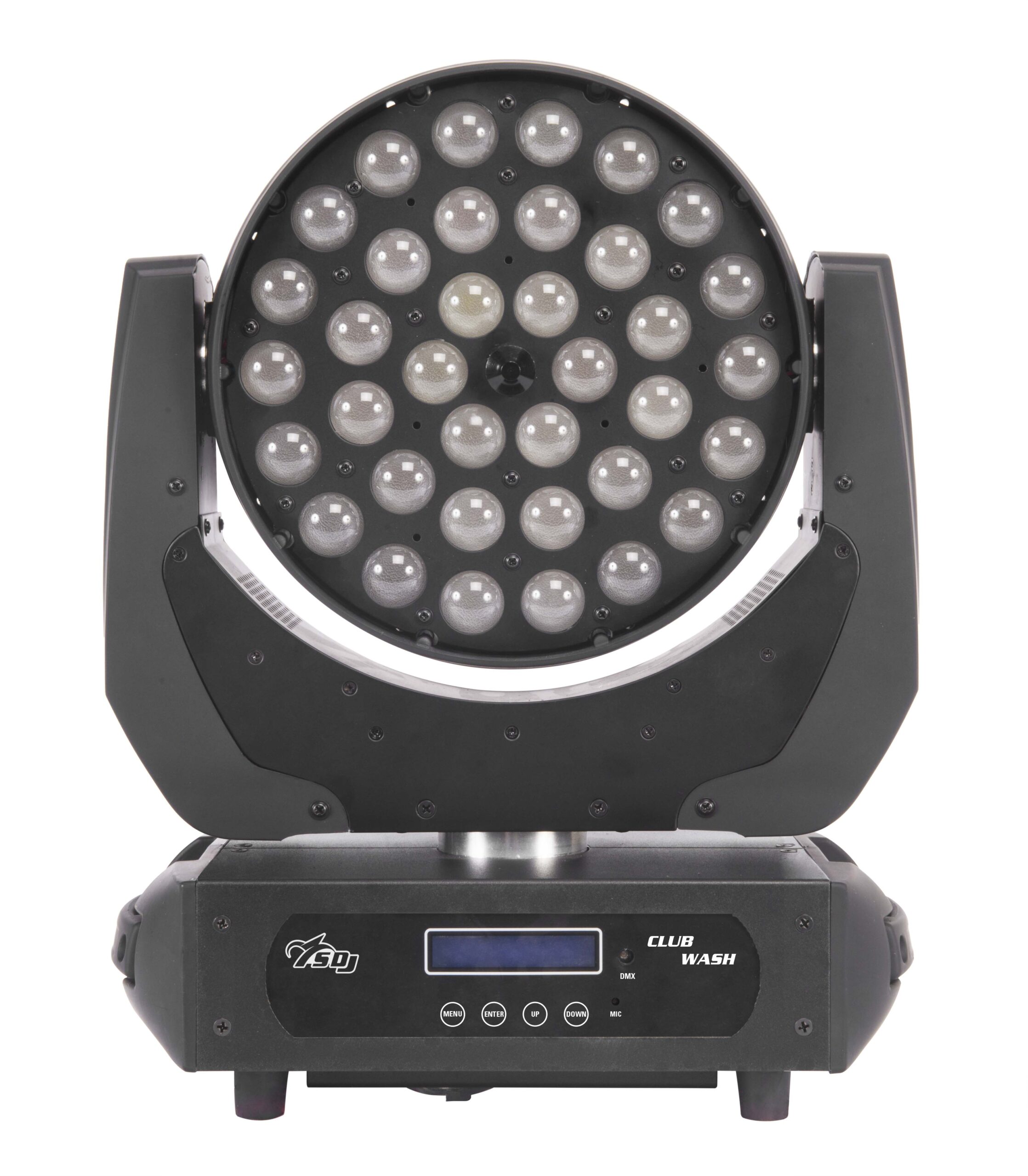

Moving head Club Wash led 36X10W led RGBW/FC ZOOM

Club WashMoving head Club Wash led 36X10W led RGBW/FC ZOOM

Description

The CLUB series was designed by listening to the needs of indoor and outdoor entertainment professionals. The winning features of this new range are: the lighting efficiency, compactness and functionality, three core values in today’s market. Club WASH has sufficient lighting efficiency to replace the most traditional motorised wash machines with discharge lamp, thanks to the use of 36 high power 10W LED sources with full colour RGBW/FC technology and an electronic zoom with variable aperture angle from 8° to 50°. Compactness was one of the main objectives, making the Club line suitable for any type of set-up and user. Functions are no less outstanding, all the features of a very common, larger machines have also been added to the wash version.

SG CLWASH

Technical Specifications

Light source 36x10W led RGBW Full Color
LED lifespan: > 50.000h
LED refresh frequency: > 400Hz flicker-free
Optic system Beam Angle: zoom from 8° to 50°
Luminous flux: 1.130 lux @ 5mt (8°)
Color system LED source RGBW Full color
Infinite chromatic possibilities
Effects Linear dimmer 0-100%
High speed electronic strobe max.25 flashes/s, with adjustable speed
Random strobe and pulse dimmer effects with adjustable speed
Color macros selectable via DMX
Control and programming 1 DMX configuration available: 14 channels
Protocol USITT DMX 512
Master/Slave mode
Sound mode with adjustable microphone sensitivity
Auto mode
Reset via DMX
Structure and cabinet Black metal housing and high resistance plastic materials
Blue LCD graphic display
Selectable Pan angle 540° / 630°
Mounting points: 1 pairs of 1/4-turn locks
Automatic repositioning of Pan and Tilt after accidental movements

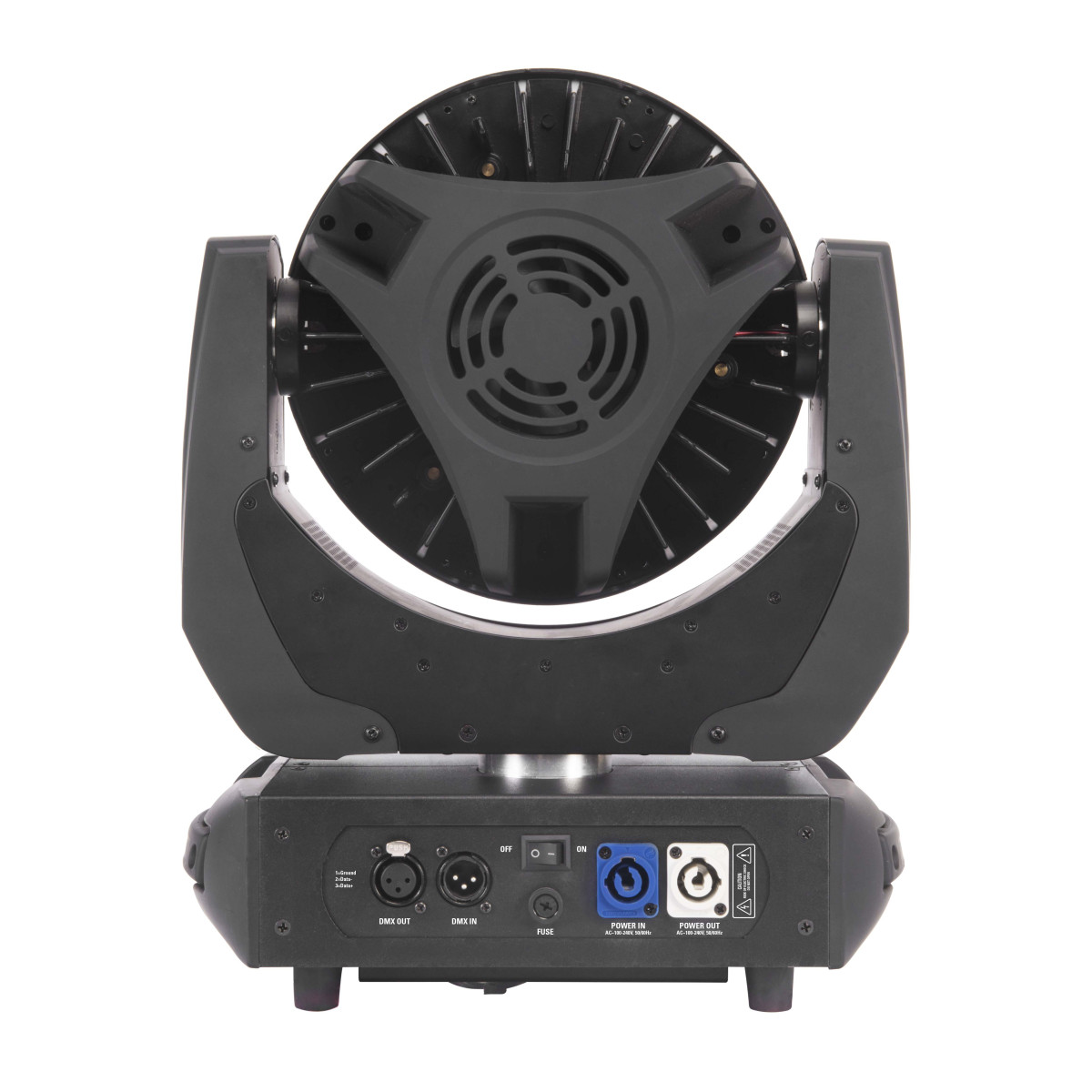

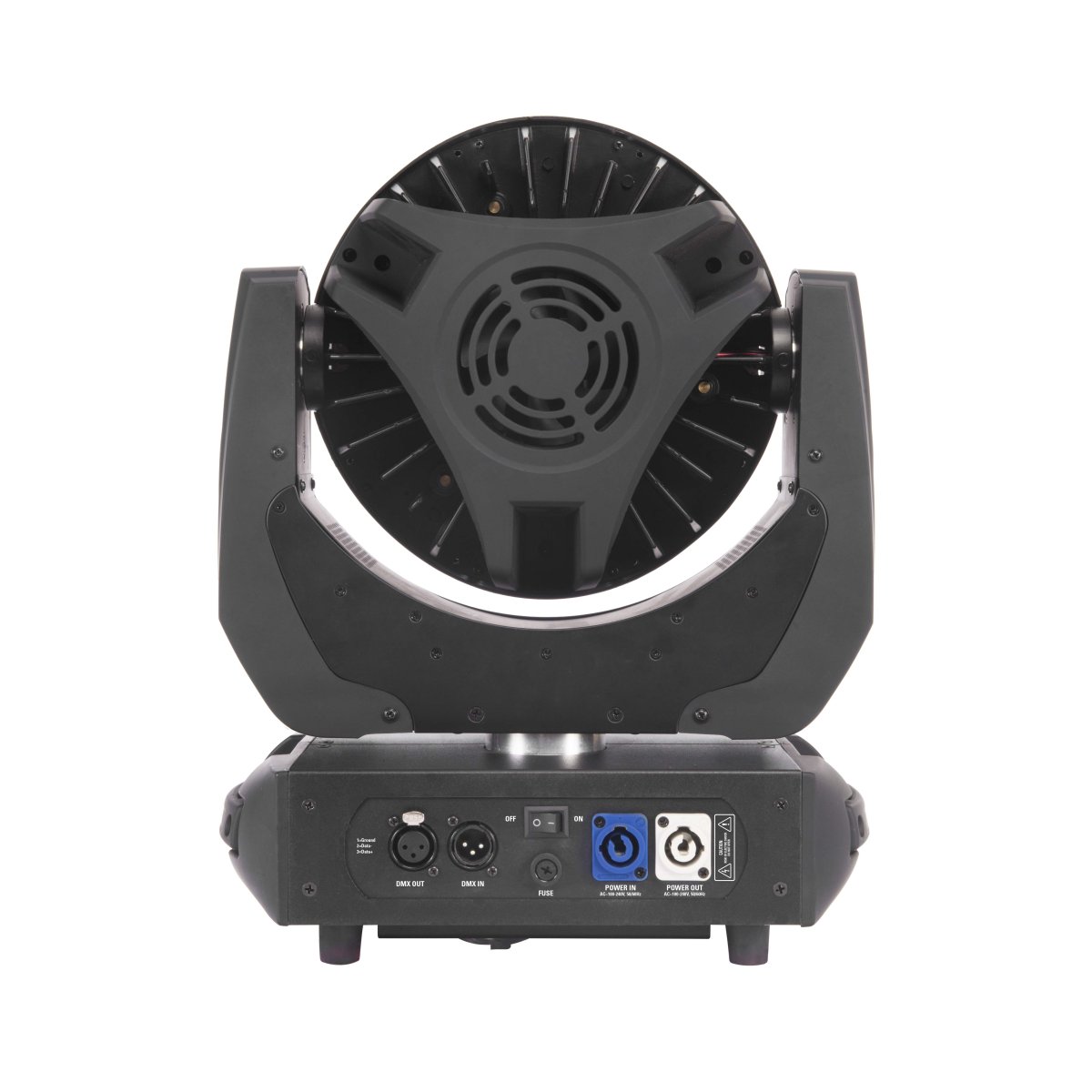

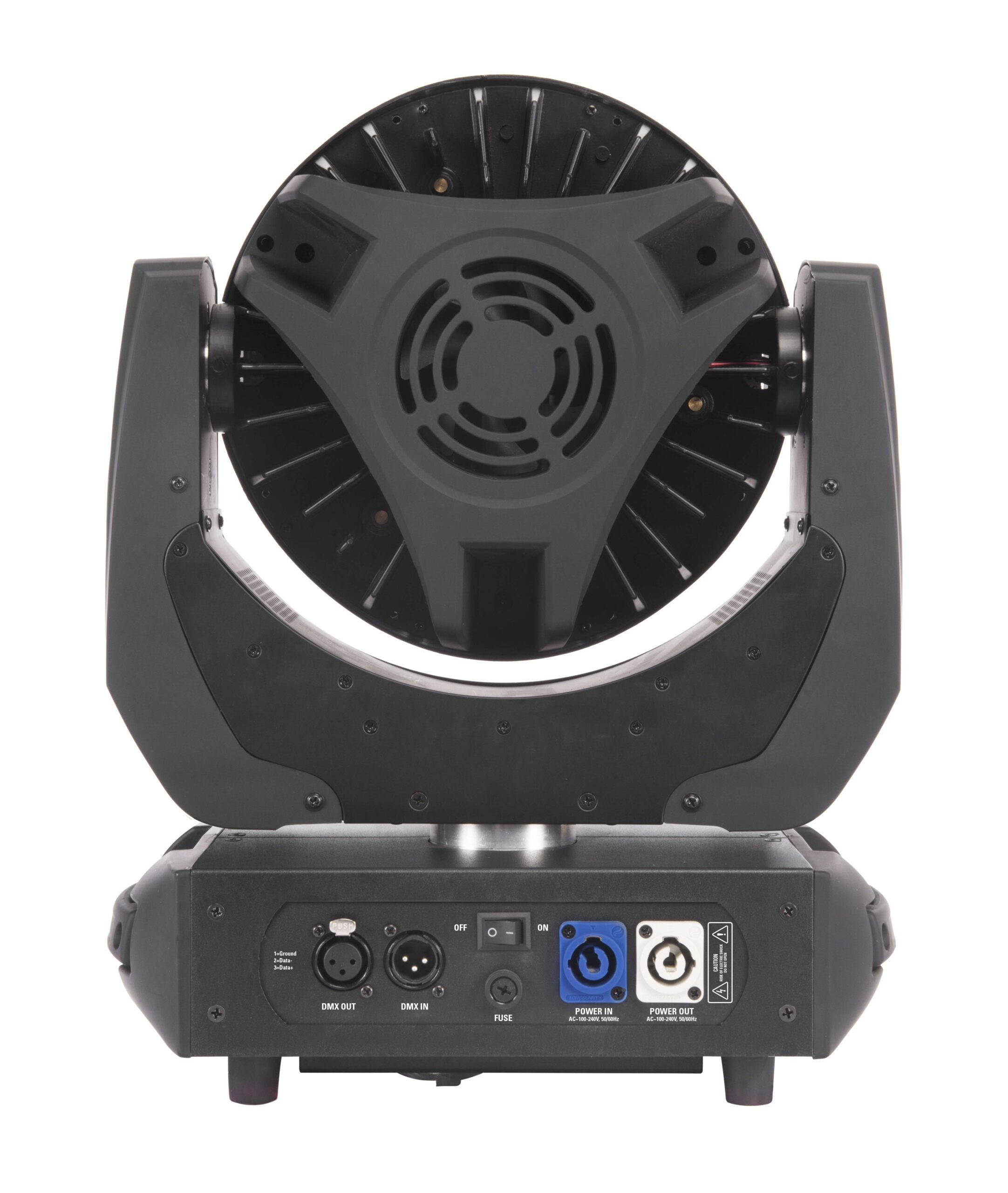

XLR 3-poles DMX IN/OUT connection
IP rating: IP20
Forced air cooling system with electronic control
Power supply Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Power consumption: 370W
Power input with PowerCON connector
Power supply cable 1mt included
Weight and dimensions Net weight: 9,8 kg
Dimensions: 335x235x442 mm

download

Share the product

Facebook
Twitter
LinkedIn
WhatsApp
Skype
Email
Telegram

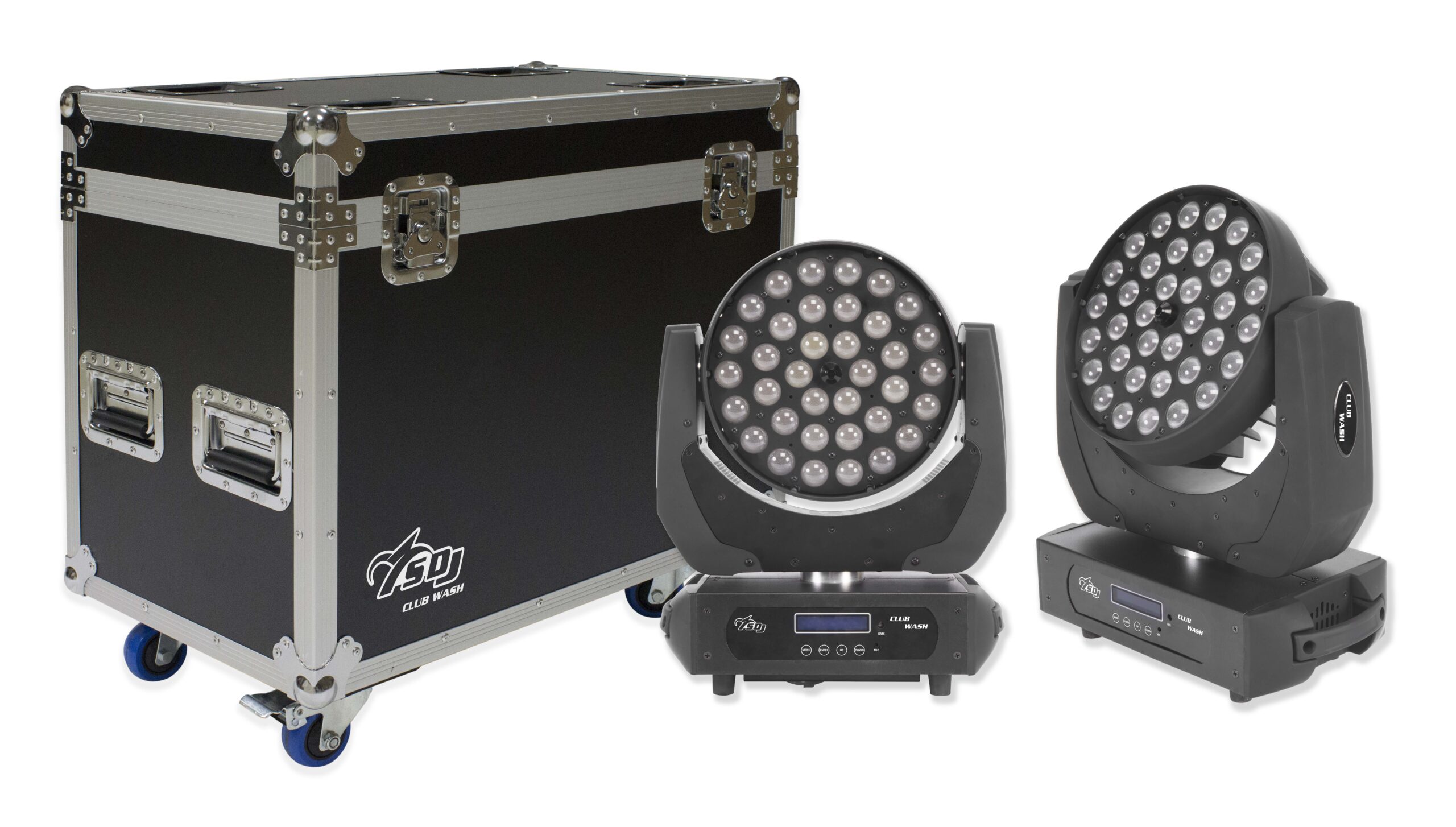

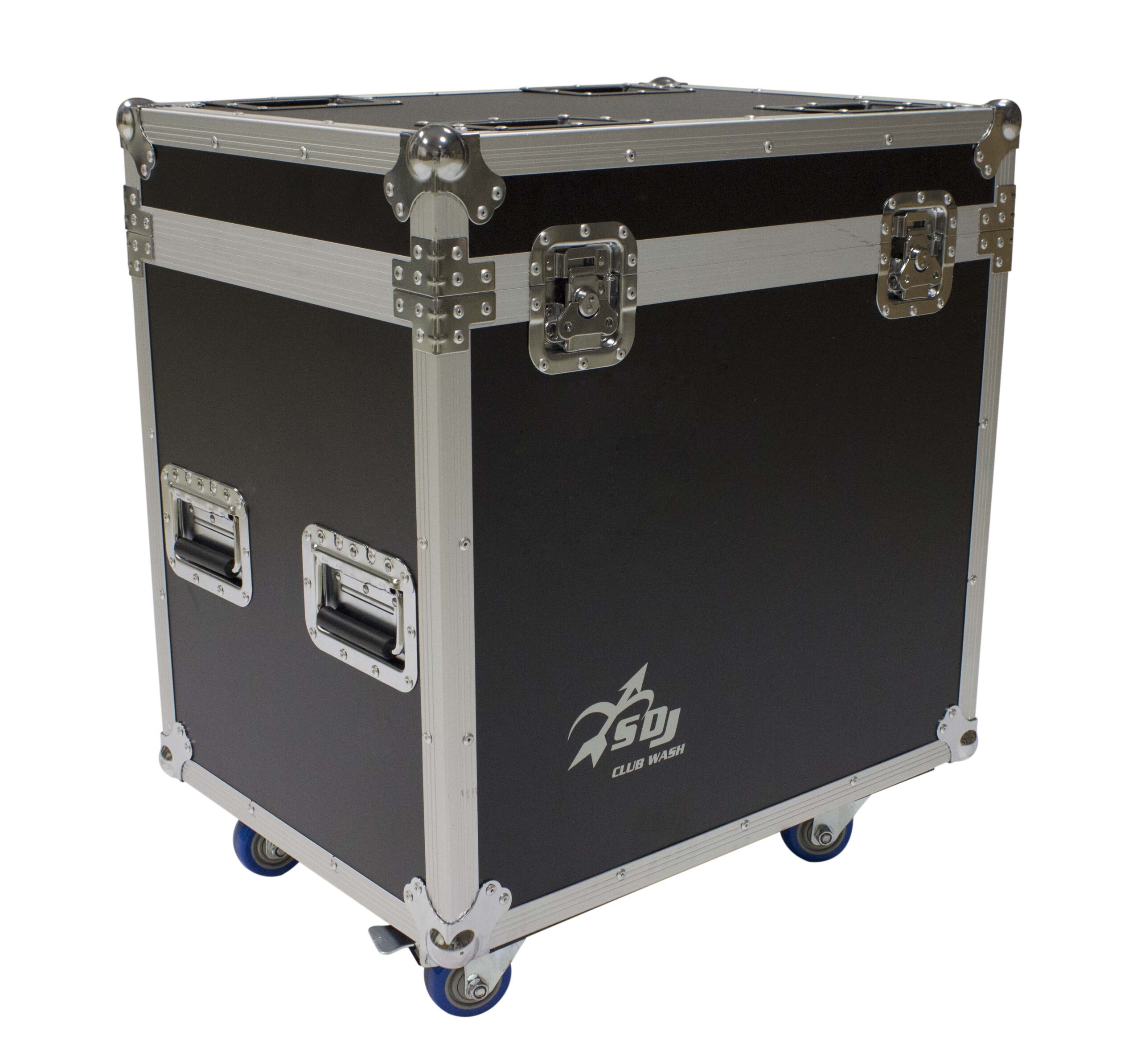

Complementary products
