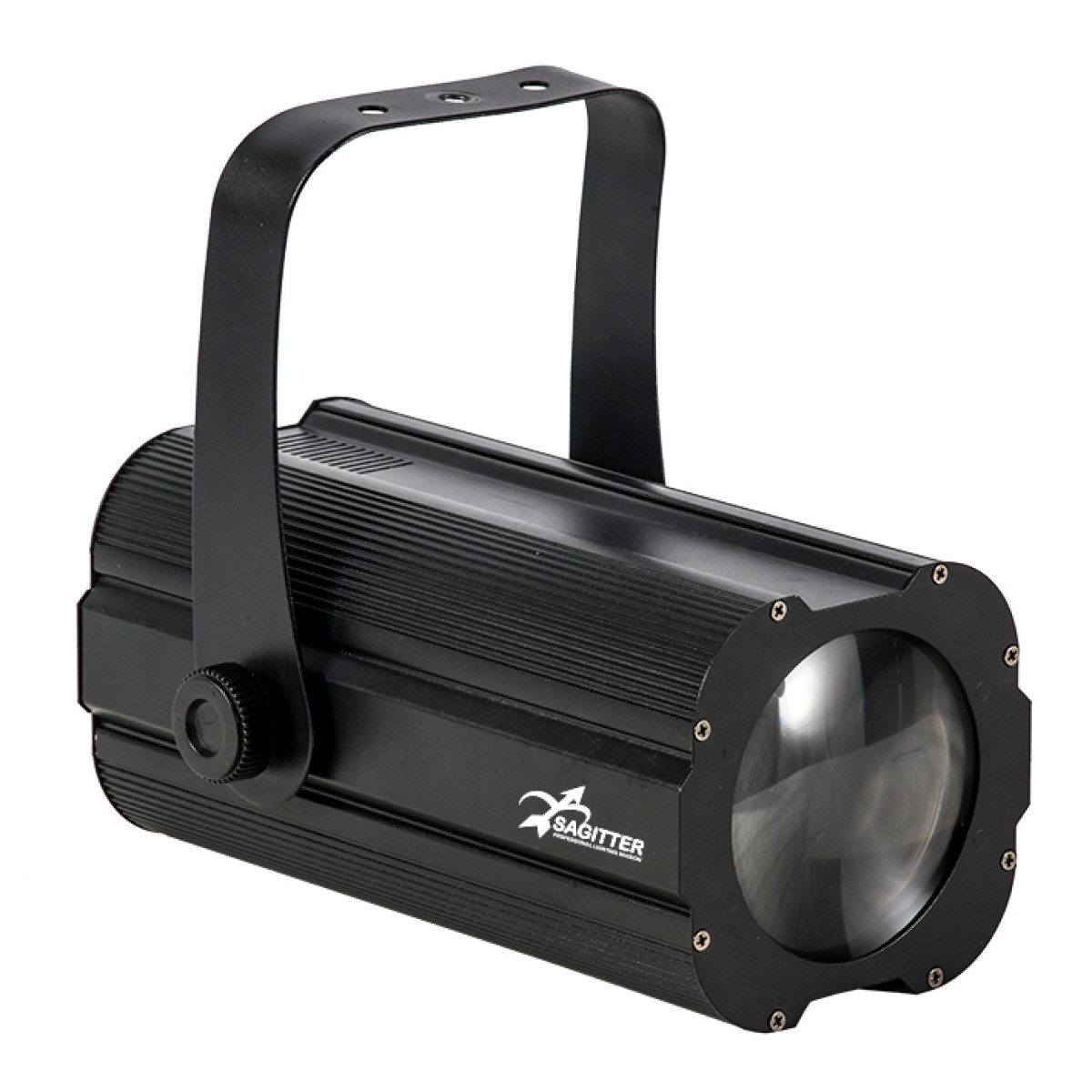

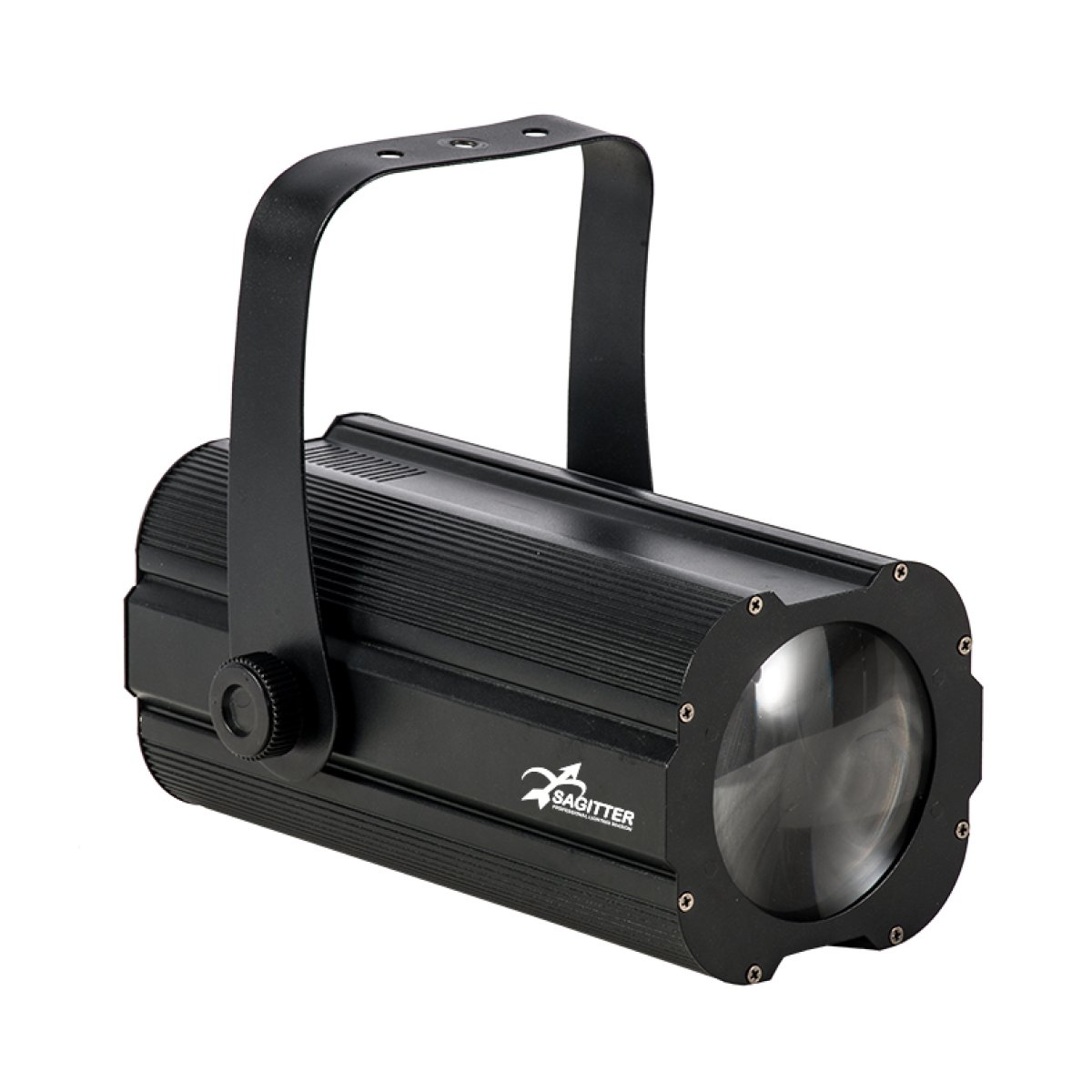

• COBE BEAM is part of an innovative line of projectors called COBE that use modern COB LED light sources of varyingpower designed for a variety of needs in the world of entertainment. In this case it is a single 30W COB LED with a 5° frontbeam optic. The extreme power of the luminous flux makes the projector suitable for any type of use and performance,guaranteeing low power consumption if compared to similar projectors with traditional lamps such as ACL or PAR36. Thealuminium “cabinet” is designed for maximum heat dissipation and the software enables control of the projector in all itsmodes: sound, master/slave, DMX etc.
ELECTRICAL DATA
Supply: AC~100-240V, 50/60Hz
Power consumption: 35W
LIGHT SOURCE
LED: COB 30W RGB/FC
Lux@2m: 5400 LUX
Beam: 5°
CONTROL
Control software: LCD Display
Control: Built-in programs, auto running mode, DMX mode, master/slave mode, soundactive mode, and static colors
Channels DMX: 3,6,7 CH
TECHNICAL DATA
Chassis: Die-cast aluminum
Anchorage: Single bracket
Power IN: VDE connector IN/OUT
Power OUT: max. 12 pcs @240V – 8 pcs @110V
Weight: 2,5 kg
Dimensions: 303x165x272 mm
DMX connection: XLR 3 poles
IP rating: IP20
