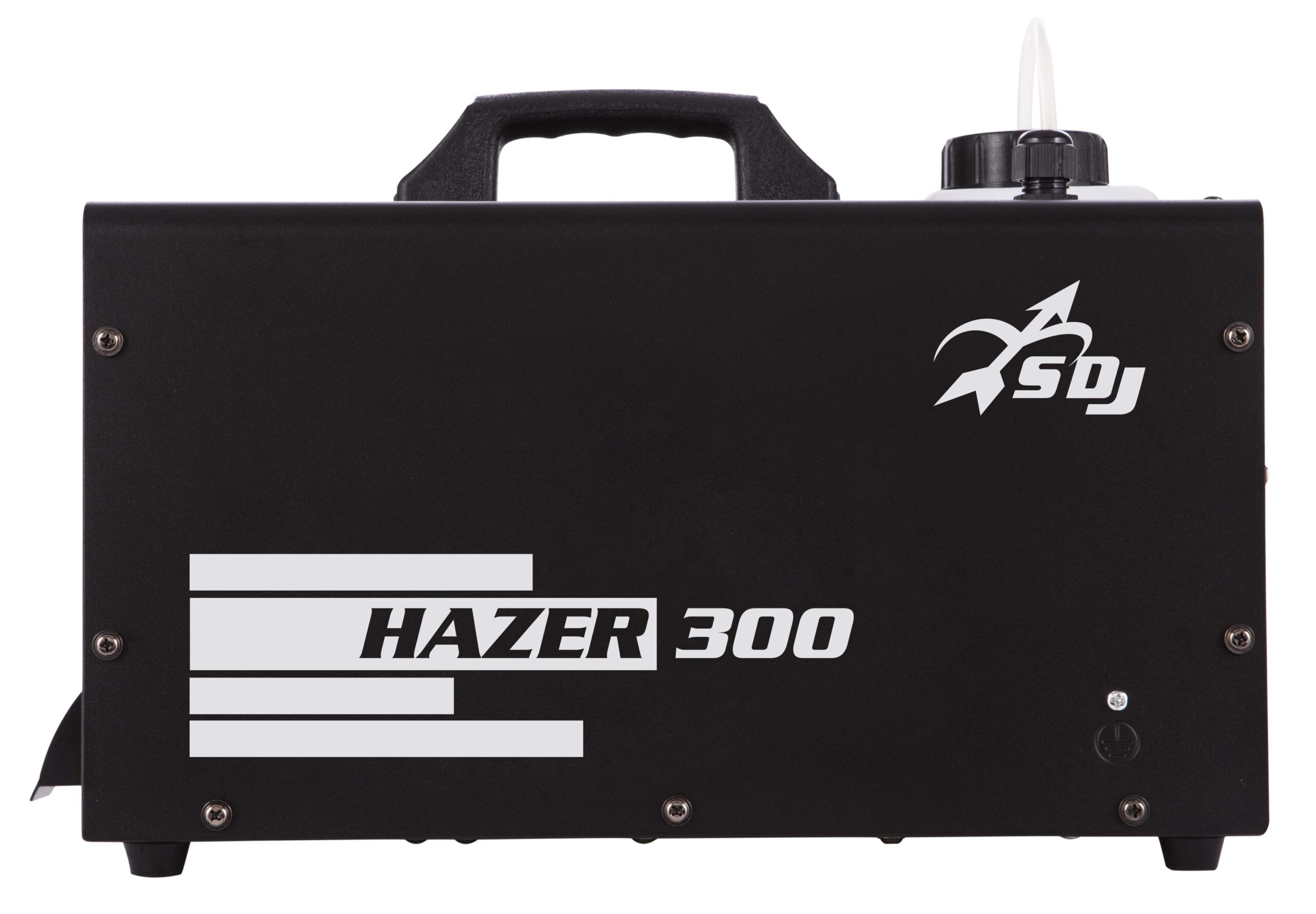

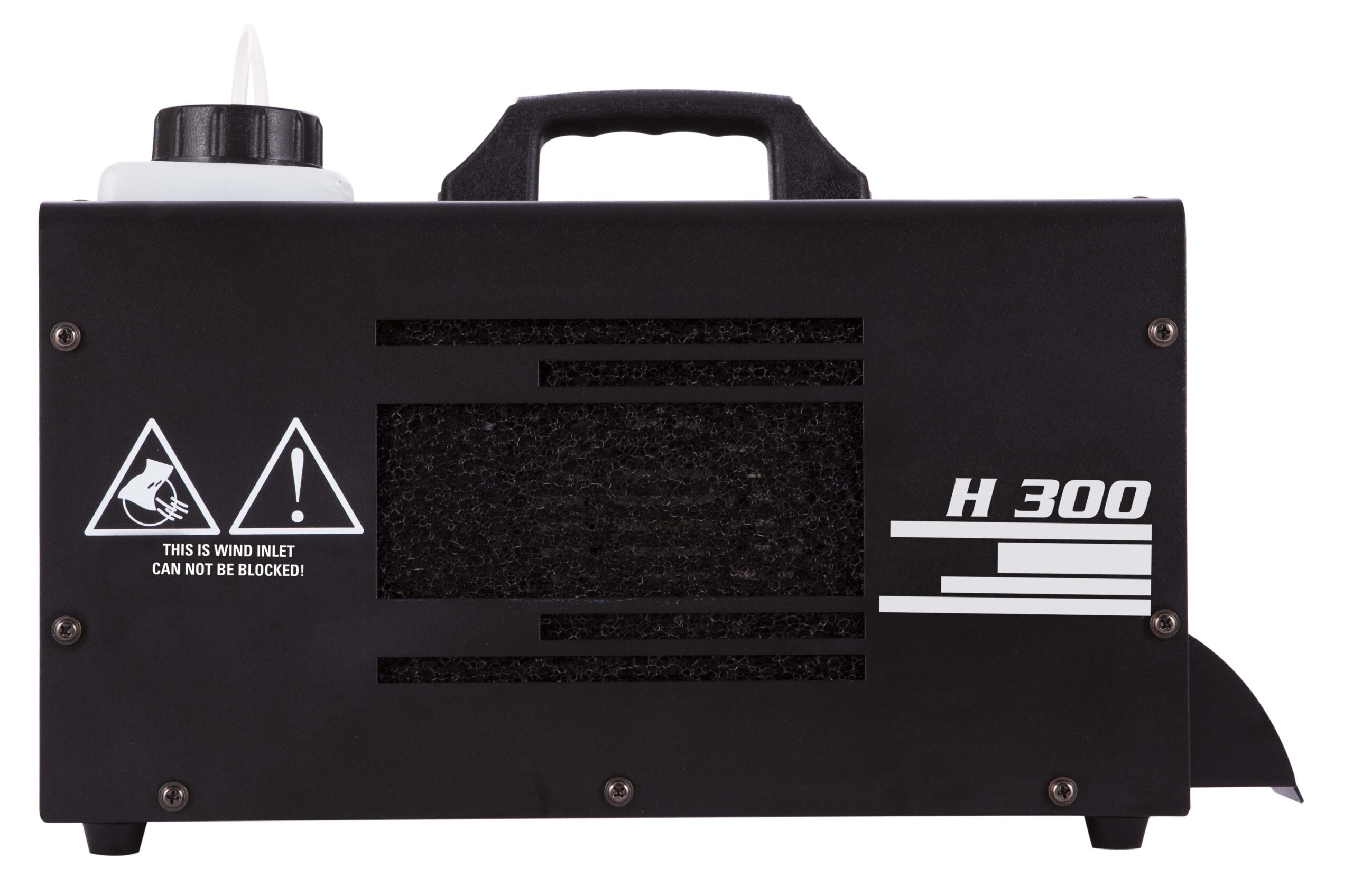

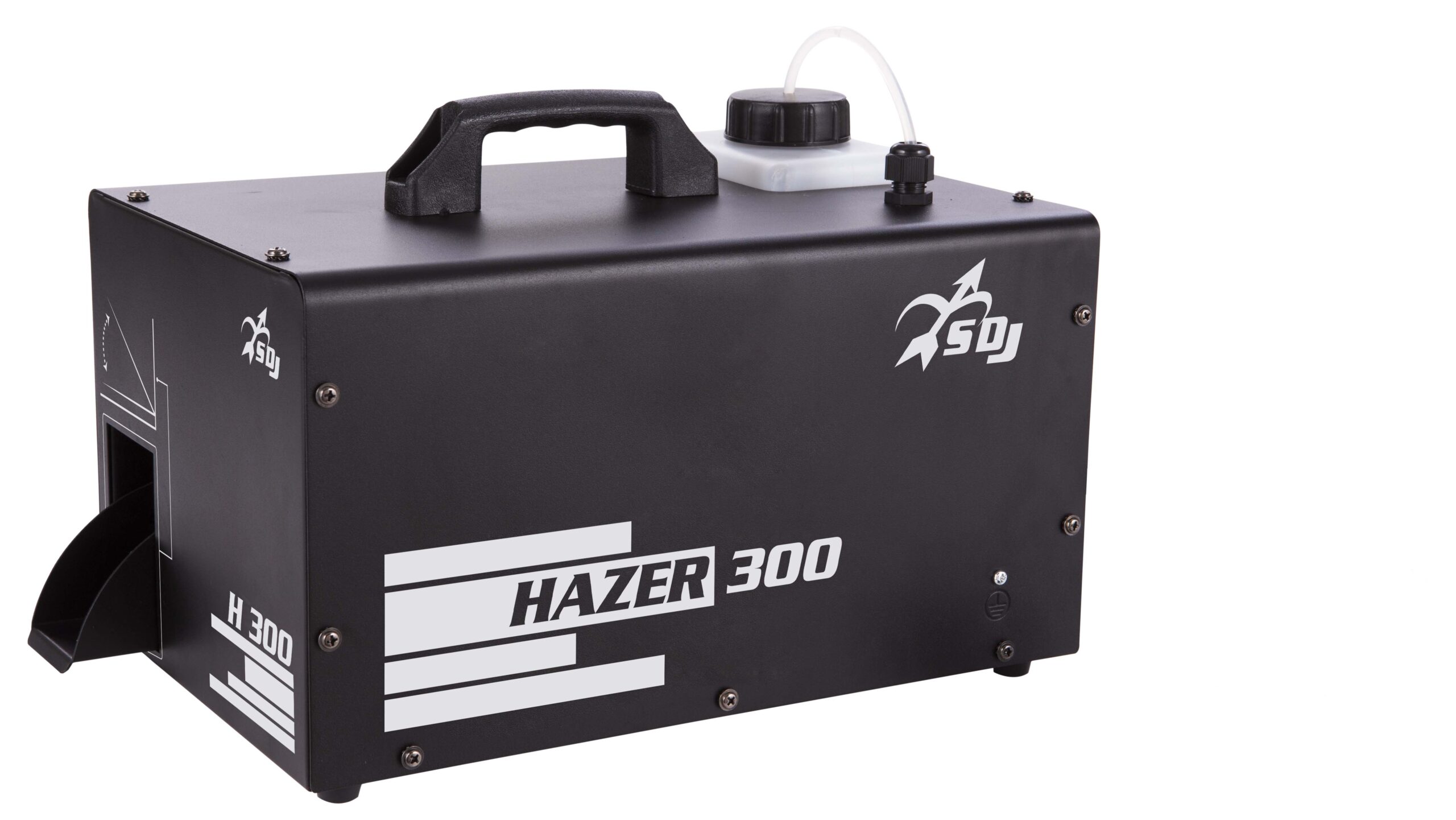

Hazer machine 300

Hazer machine 300

Description

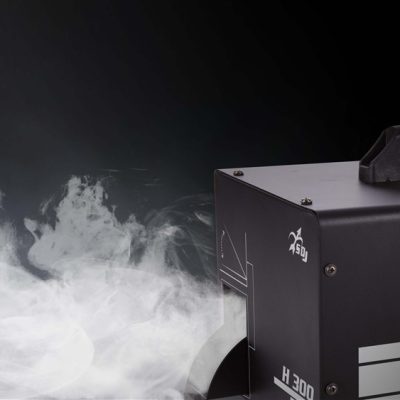

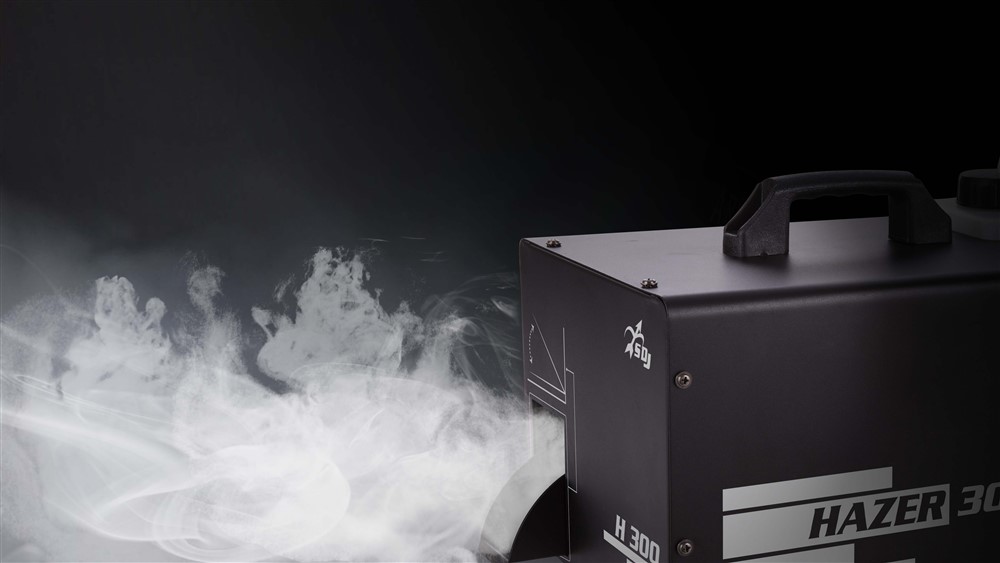

H type smoke machine designed for the SDJ world. Inside its compact body there is a machine with features inherited from the effects of professional live entertainment environments, like its older sister H 1500. H 300 ensures perfect coverage of medium and small indoor and outdoor environments, its new technology uses an air pump that as well as ensuring optimal smoke and air mixing, also guarantees extreme cleanliness of the heating duct, preventing troublesome blockages resulting from normal limescale deposits. The fog effect generated is dry and fine, it does not obstruct the viewer’s vision and thanks to a powerful internal fan with controllable speed it can saturate the environment quickly. The machine is equipped with a dual-channel DMX control, a manual mode recalled from the control panel and a very handy radio control (included), which is used to start or stop the ambient effect.

SG H300

Technical Specifications

Effects

  • Hazer effect

Control and programming

  • 1 DMX channel configuration: 2 channels
  • Fan’s speed adjustable via software and via DMX
  • Protocol USITT DMX 512
  • Radio remote controller included
  • Automatic safety shutdown circuit for pump prevention in case of finished liquid in the circuit
  • Heating time: 2 mins
  • Smoke output: 1000cuft
  • Continue output
  • Manual mode adjustable via display

Structure and cabinet

  • Metal black housing
  • Red LED display
  • Confortable handle for transportation
  • Led indicator for heating and ready to smoke
  • High performance pump for optimal emission
  • High speed axial fan
  • External tank: 1,2 litres

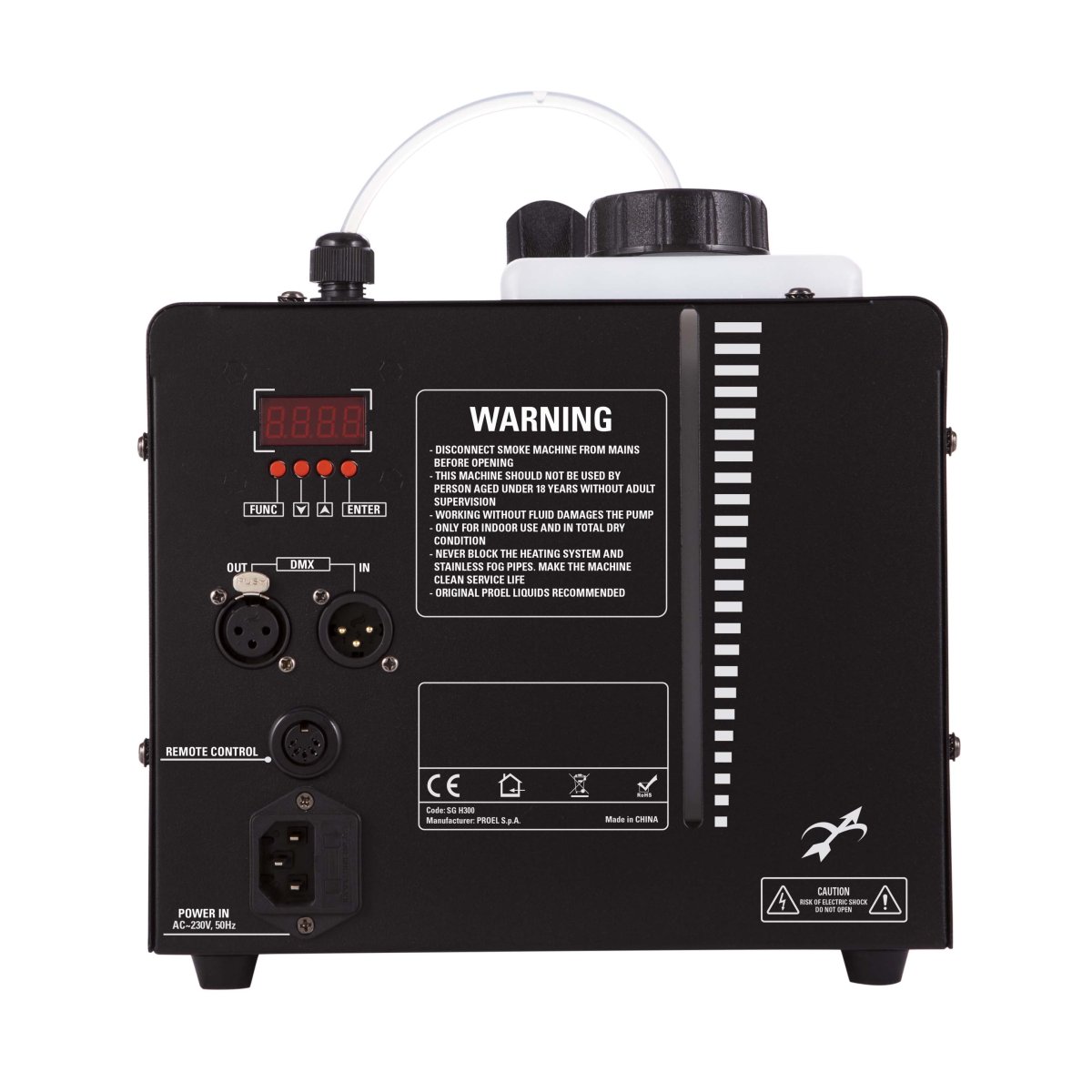

  • 3-poles XLR in/out connection
  • IP rating: IP20
  • For best applications and correct function we recommend using Sagitter fluids

Power Supply

  • Input Voltage: AC~230V 50Hz
  • Power consumption 650 W
  • IN power connection with VDE sockets
  • Power supply cable 1,5 mt included

Weight and dimensions

  • Net weight: 8 kg
  • Dimensions: 235x355x200 mm

download
