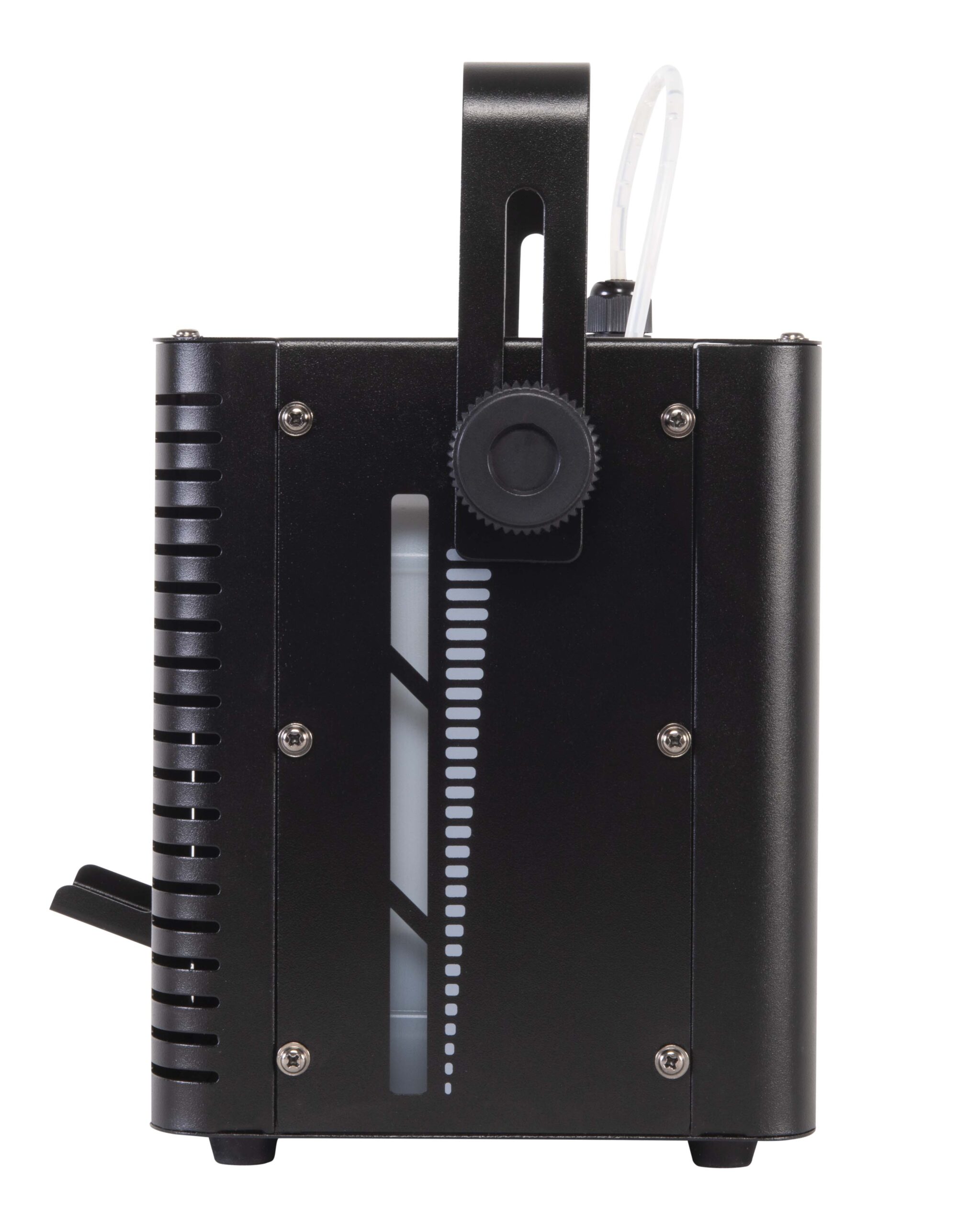

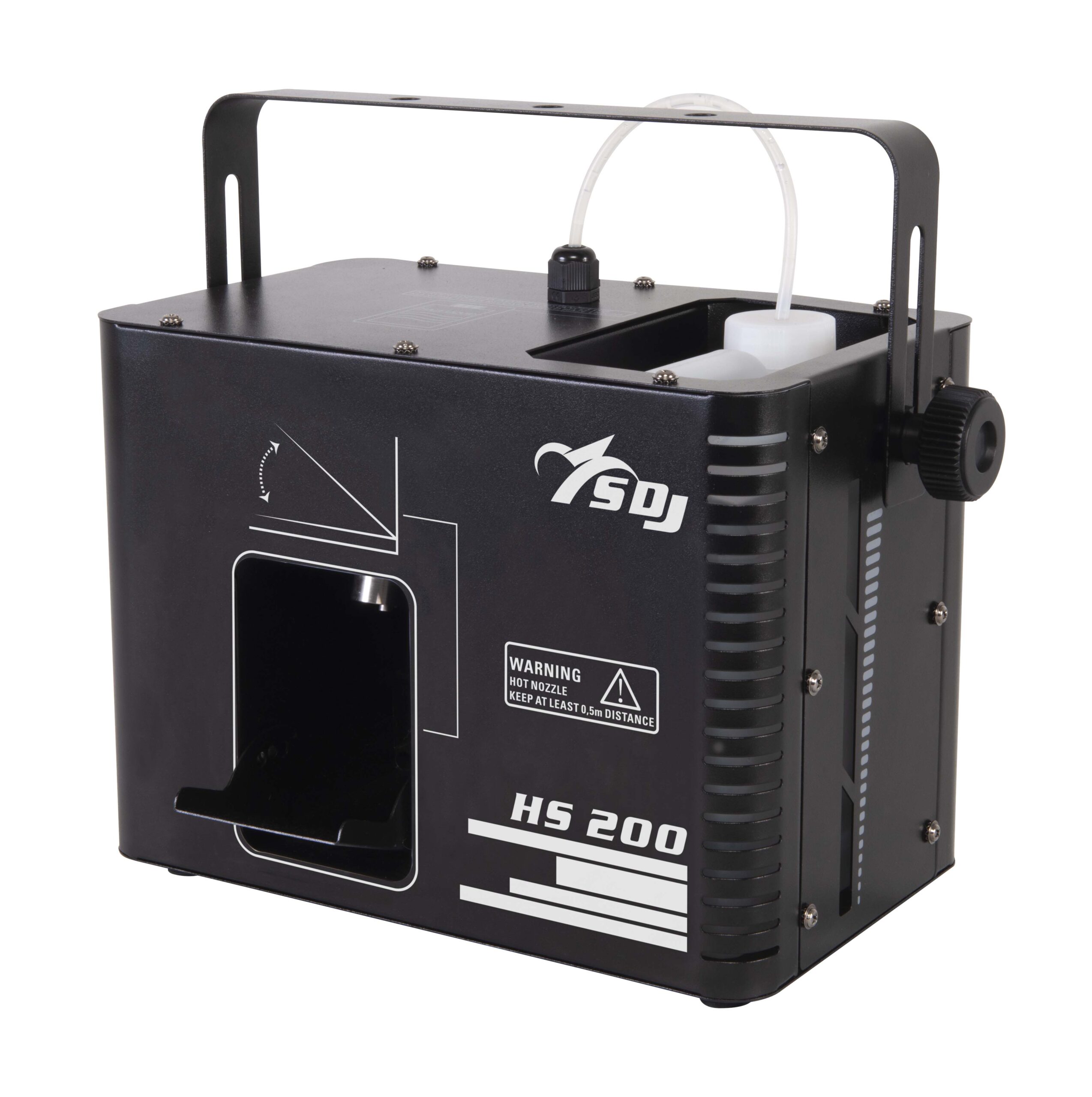

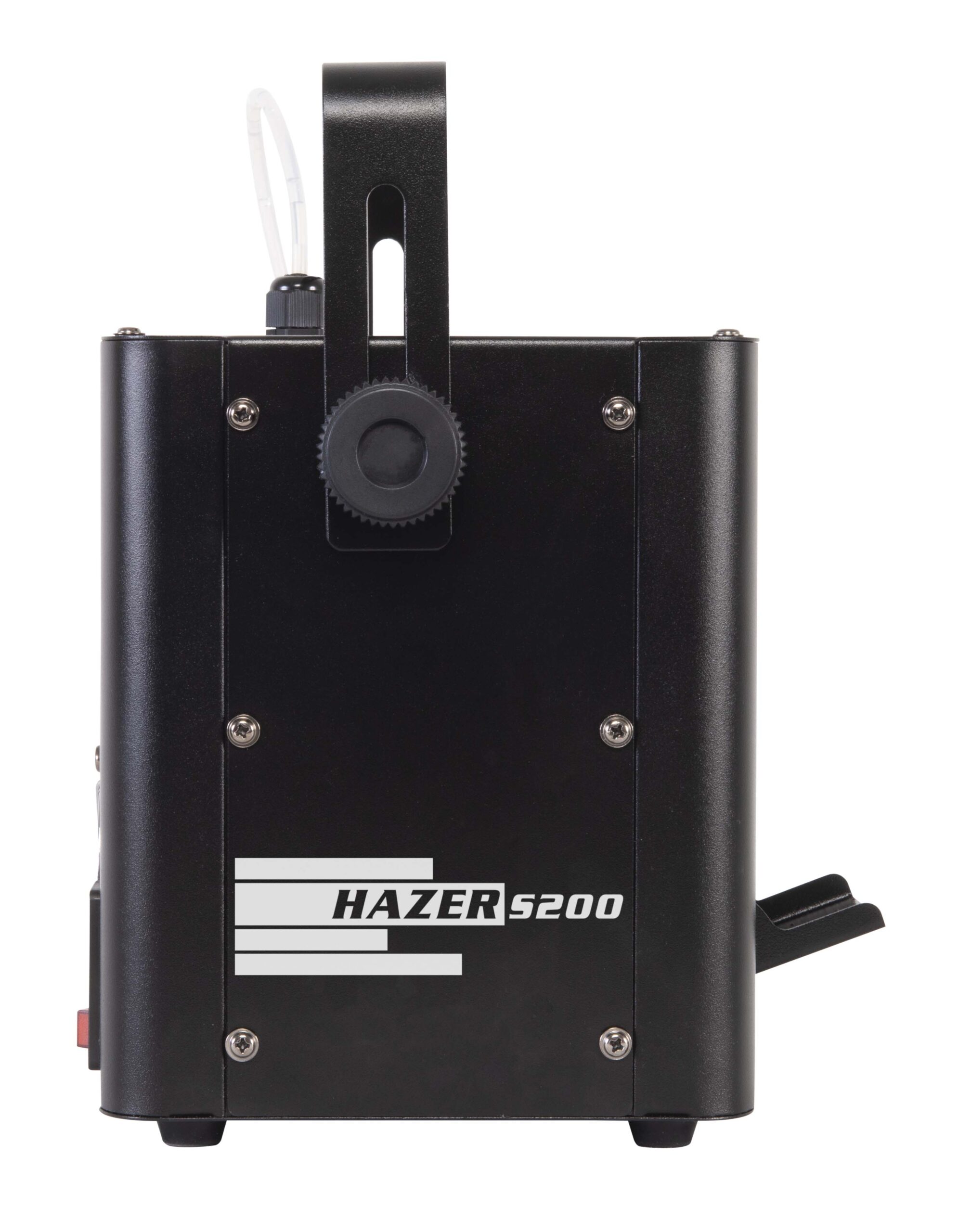

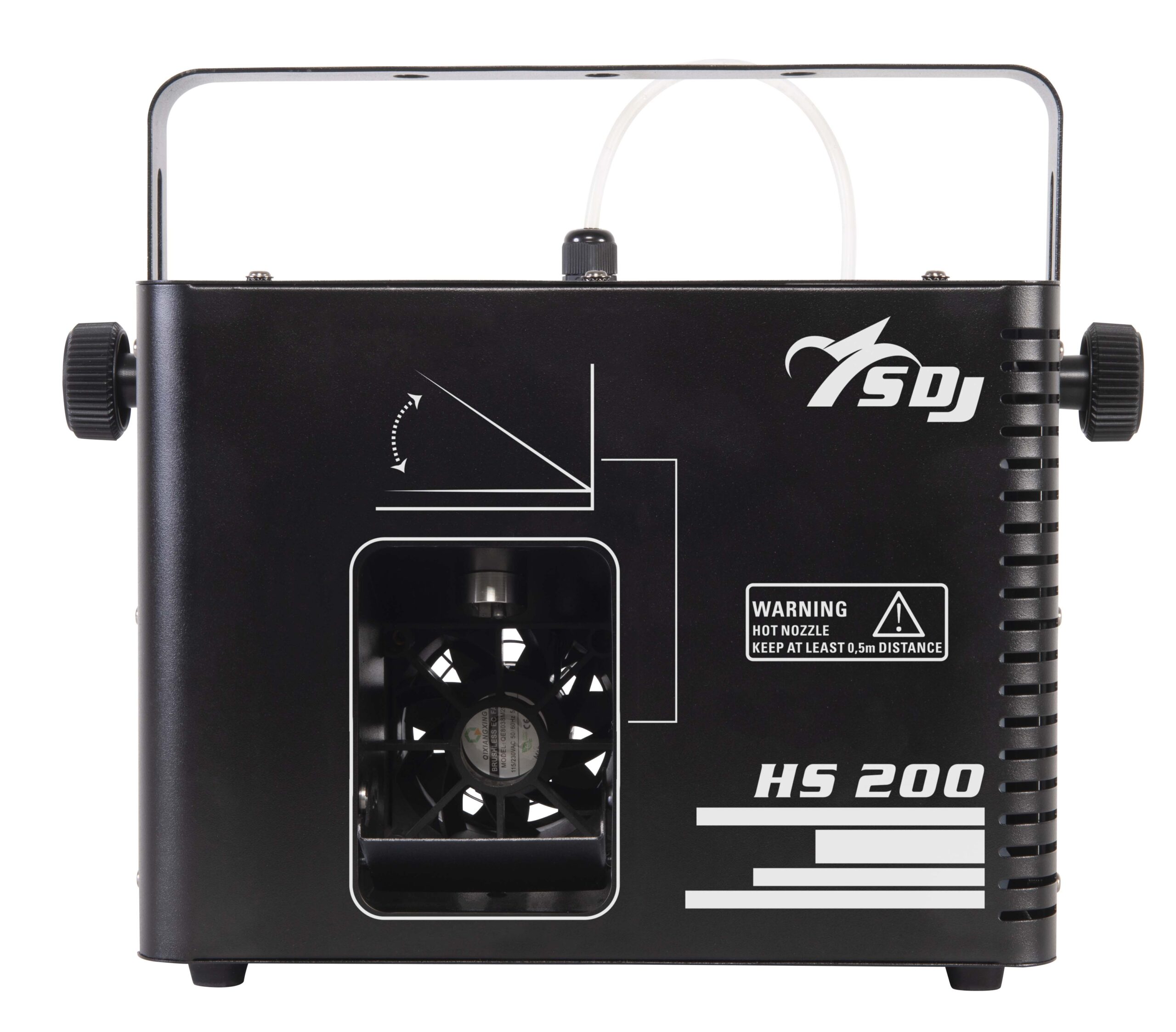

Hazer machine HS-200

�HS-200
Continue emitting hazer machine
Radio remote (included)
DMX control
Power consumption 500W

SG HS200

Technical Specifications

EFFECTS

• Hazer effect

CONTROL AND PROGRAMMING

• 1 DMX channel configuration: 1 channel
• Protocol USITT DMX 512

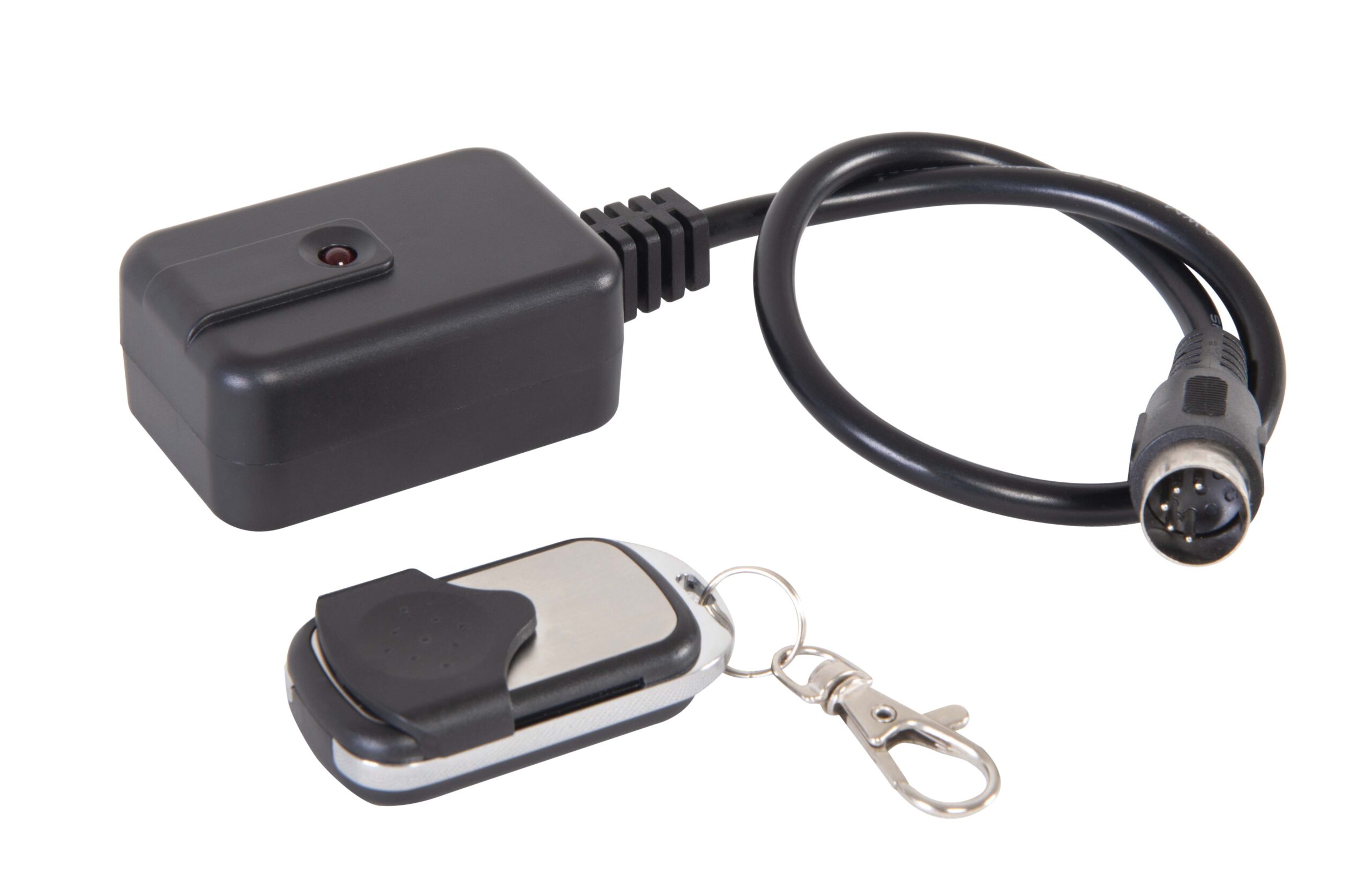

• Radio remote controller included
• Heating time: 2 mins
• Smoke output: 800cuft
• Continue output
• Manual mode adjustable via display

STRUCTURE AND CABINET

• Metal black housing
• Red LED display
• Led indicator for heating and ready to smoke
• High performance pump for optimal emission
• High speed fan
• External tank: 2 litres

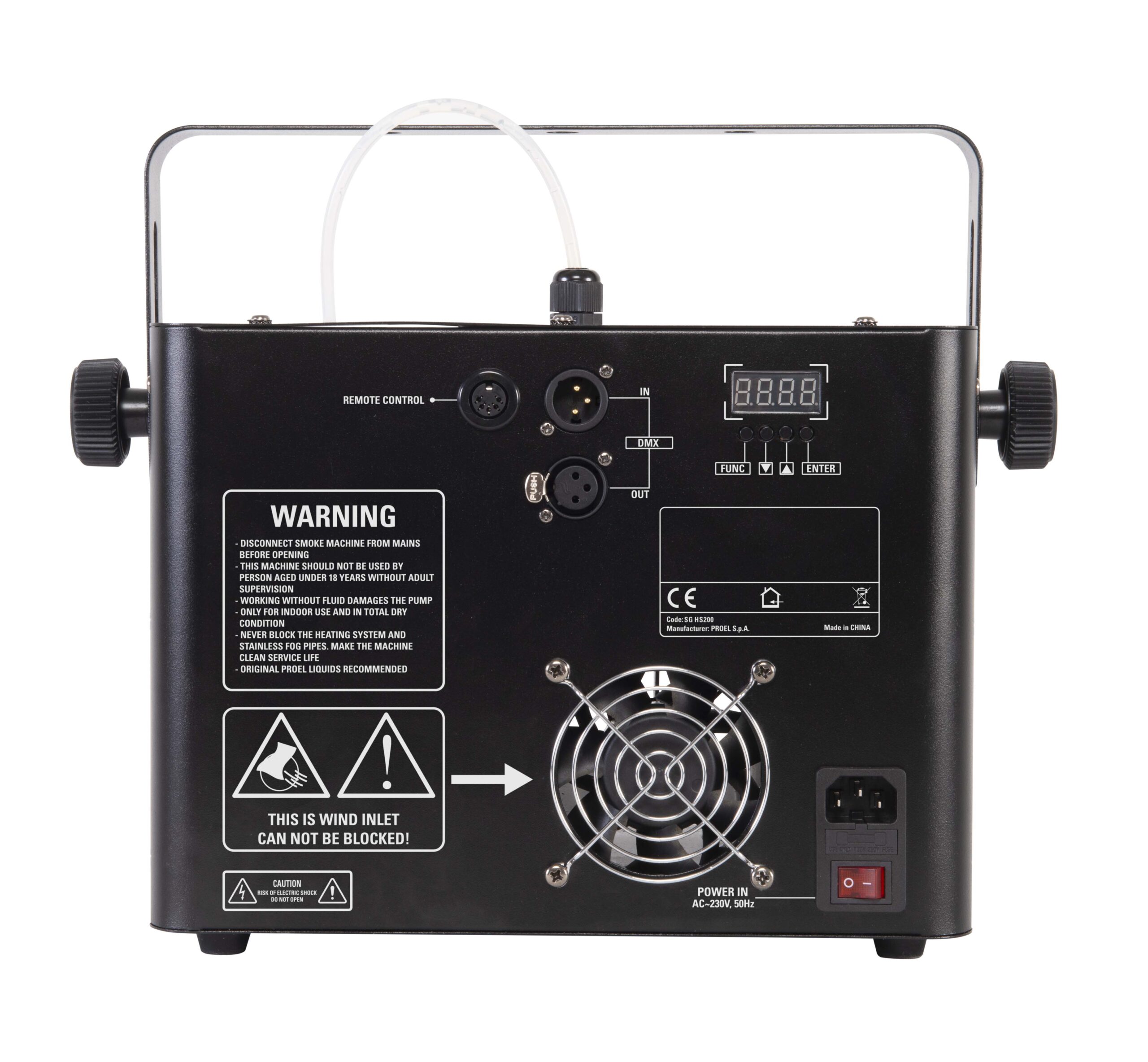

• 3-poles XLR in/out connection
• IP rating: IP20
• For best applications and correct function we recommend
using Sagitter fluids

POWER SUPPLY

• Input Voltage: AC~230V, 50Hz
• Max Power: 480W @ 230VAC
• IN power connection with VDE sockets
• Power supply cable 1,5 mt included

WEIGHT AND DIMENSIONS

• Net weight: 4,7 kg
• Dimensions: 357x231x304 mm
