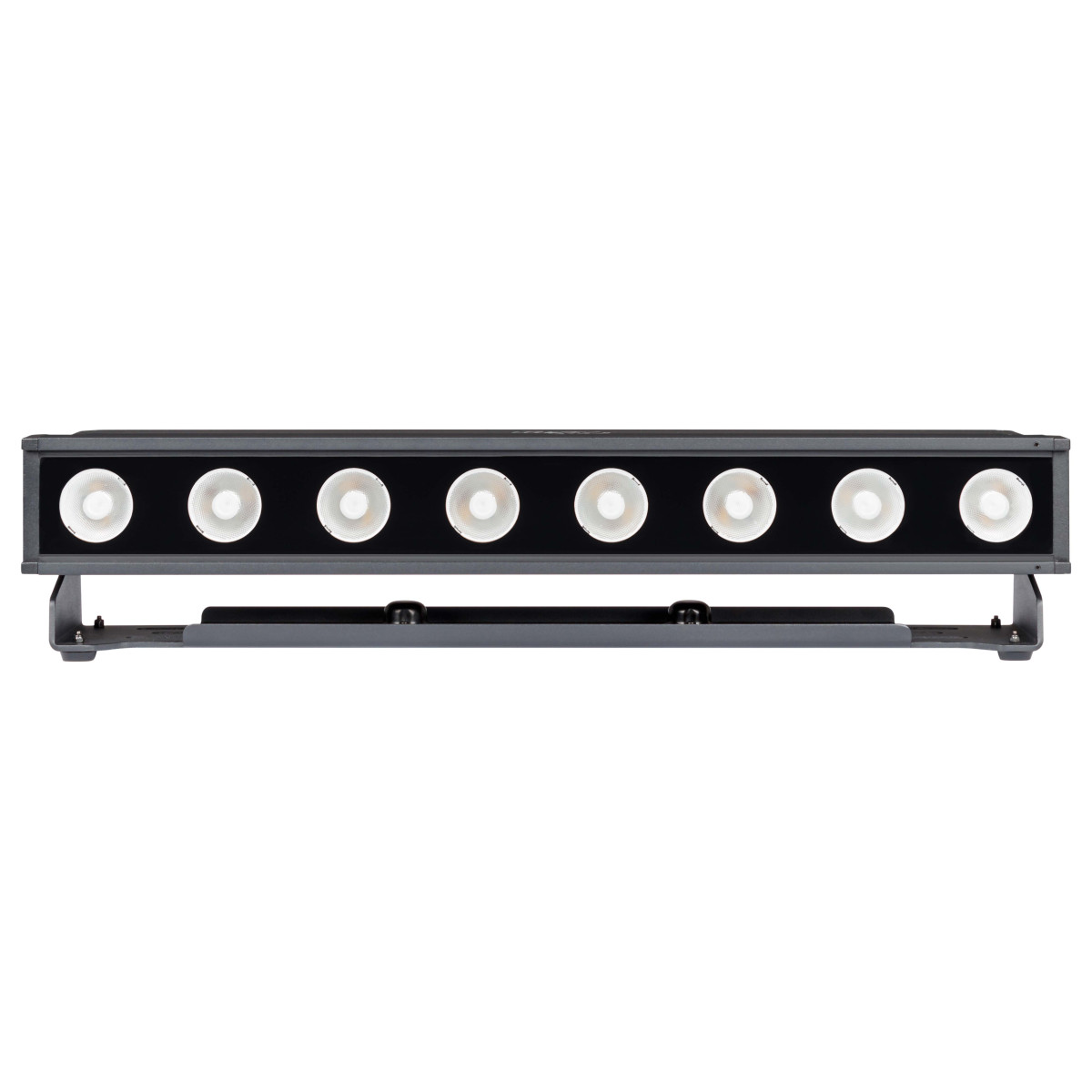

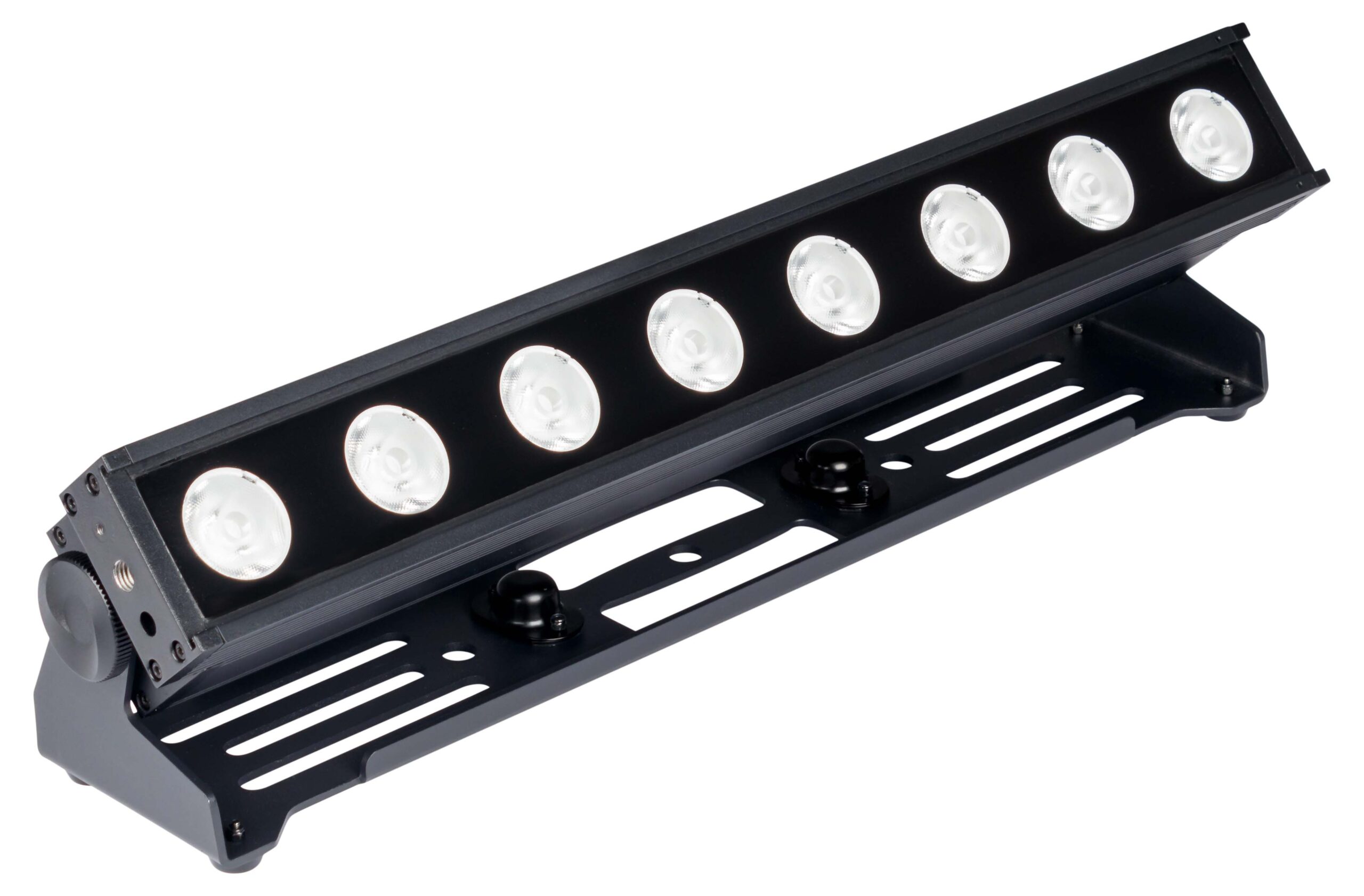

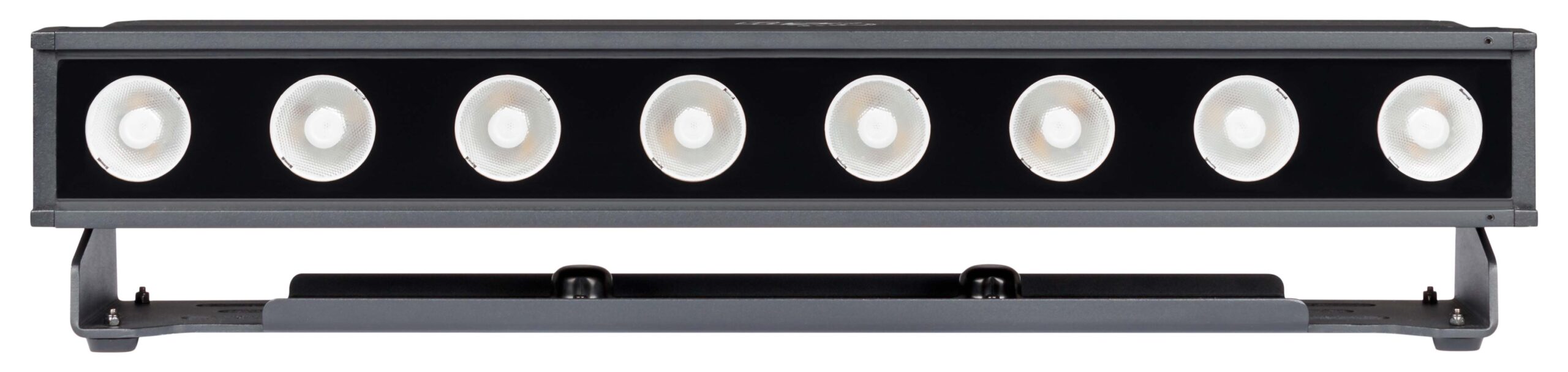

| Light source | 8x10W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > from 600 Hz to 15 KHz flicker-free |
| Optic system | Beam Angle: 25° |
| Color system | LED source RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Pixel control |
| Control and programming | 6 DMX configurations available: 3/4/6/13/32/41 channels Protocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 13 programs selectable from the display, with speed adjustment Color mode with 50 color macros and 11 white macros Color calibration system Power management system 4 different dimming curves available |

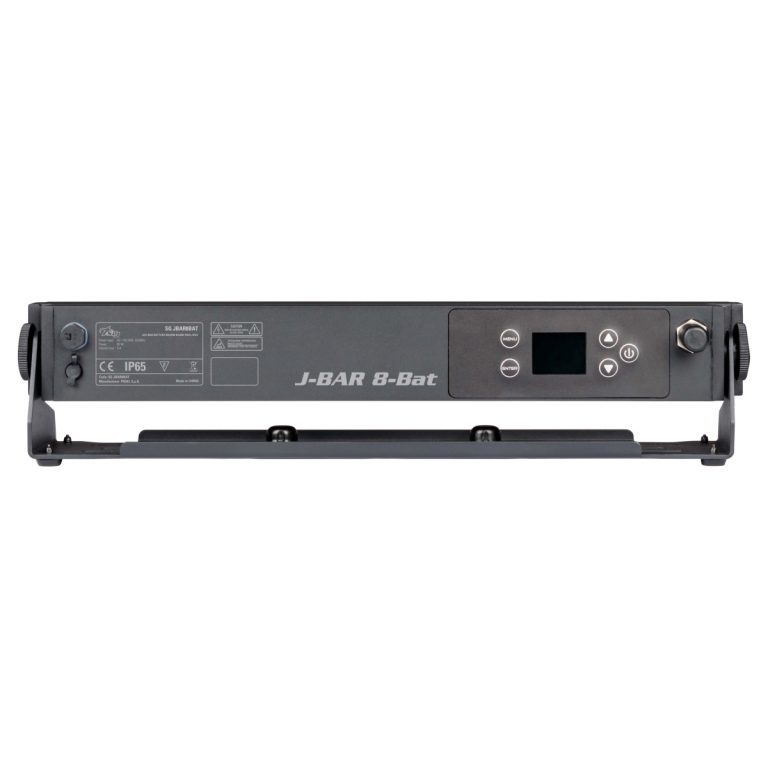

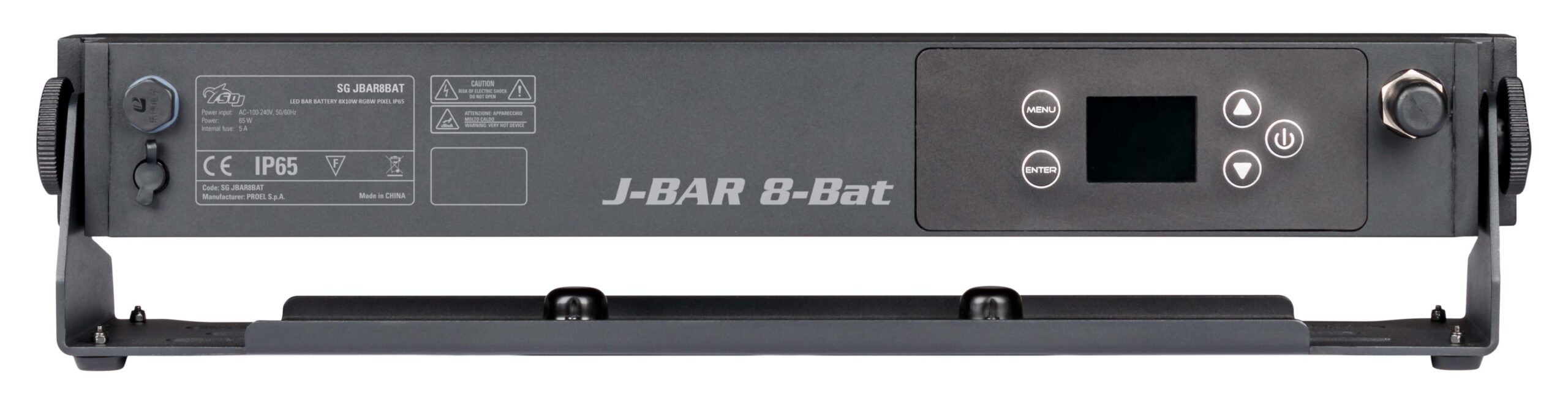

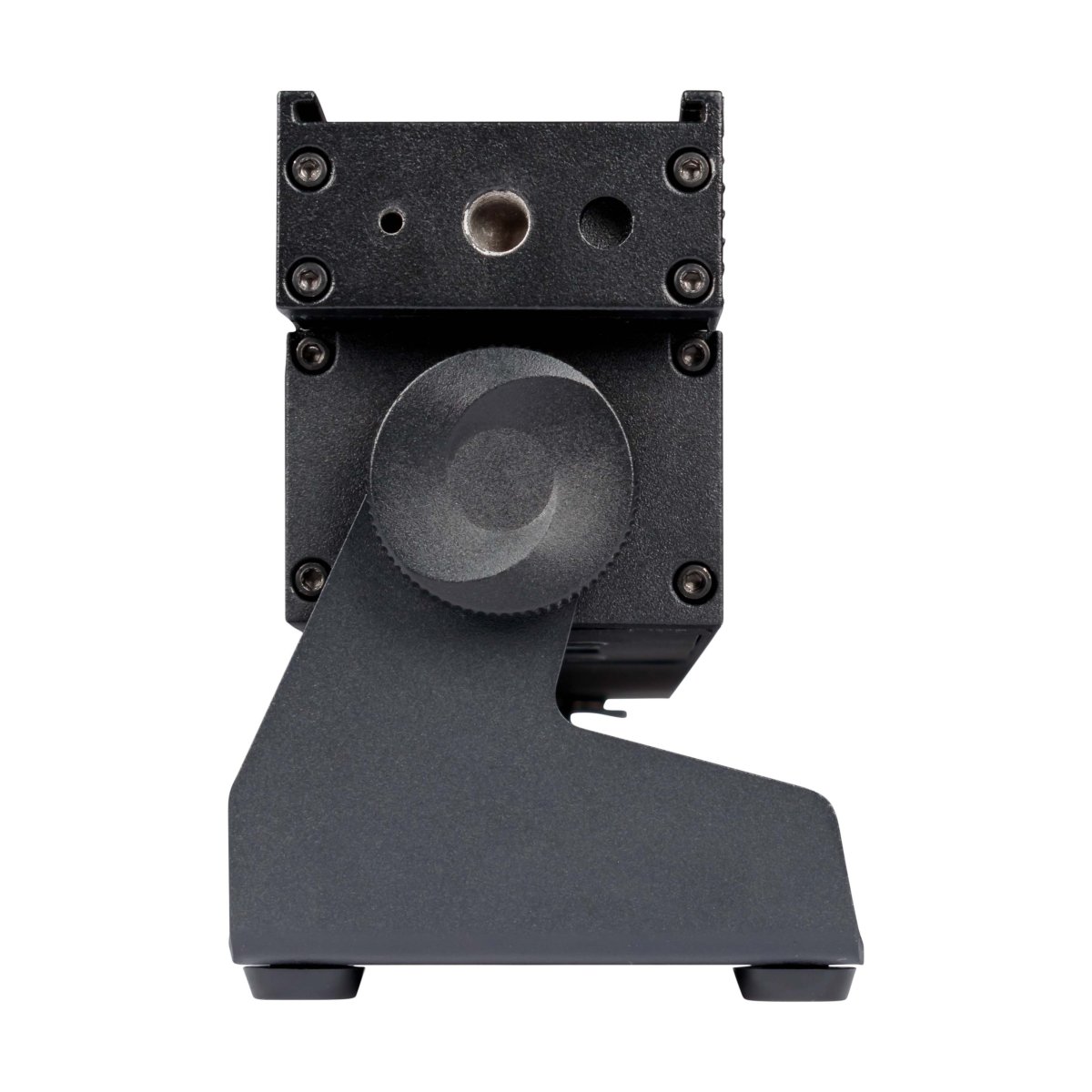

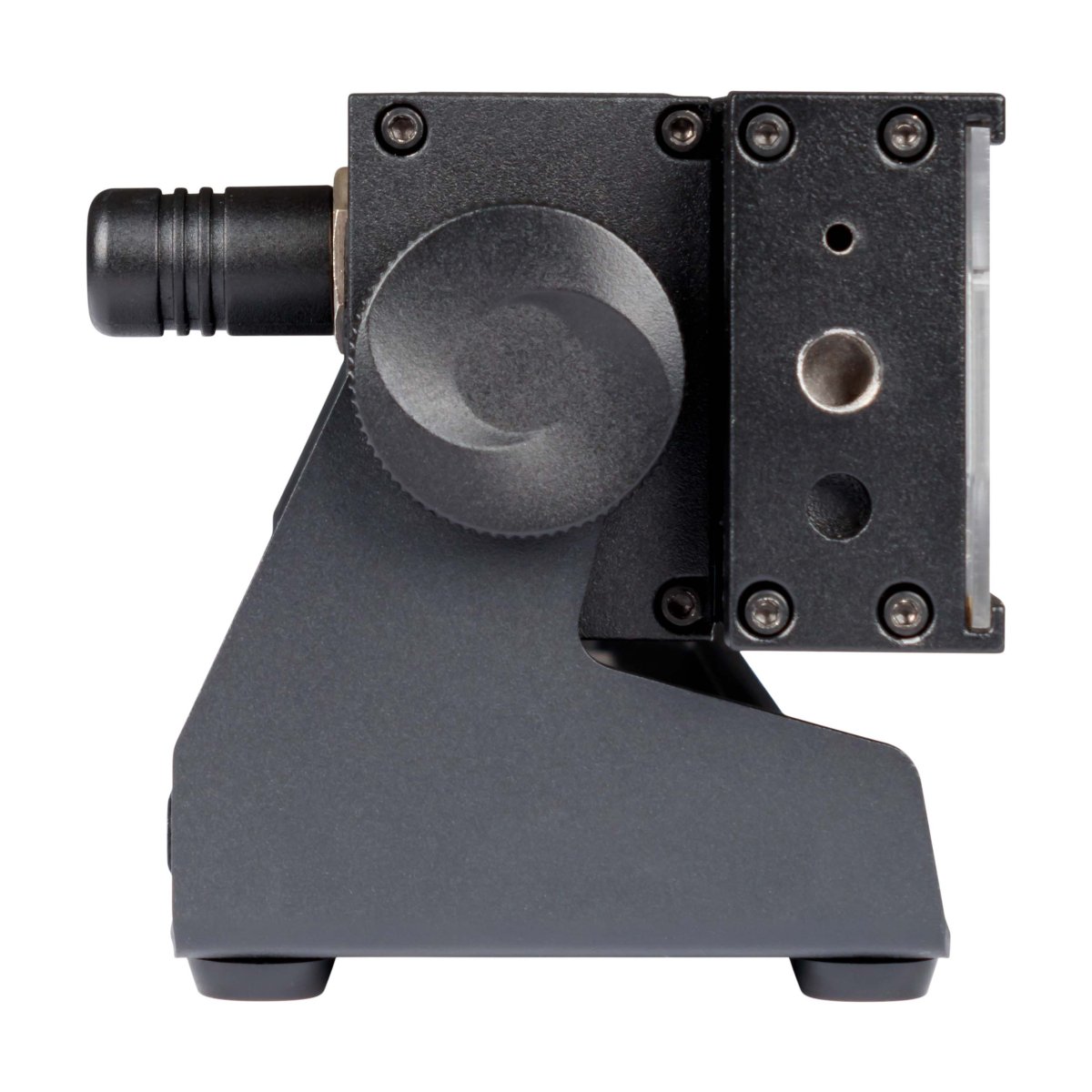

| Structure and cabinet | High corrosion die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle +100°/-80° IP65 rating Convection cooling system without fans |
| Power supply | Input Voltage: 15VDC 3A Switching power supply unit Rechargeable internal Li-Ion battery: 10,8VDC 10000mAh Runtime battery: ~ 3 hrs (full ON – High power mode) Runtime battery: ~ 11 hrs (Color change – High power mode) Charging cycle: ~ 6 hrs (Projector turned off) Max power: 65W External power supply included: IN AC~100-240V, 50/60 Hz – OUT 15VDC 3A |
| Weight and dimensions | Net weight: 3,5 kg Dimensions: 500x95x132(h) mm |
| Light source | 8x10W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > from 600 Hz to 15 KHz flicker-free |
| Optic system | Beam Angle: 25° |
| Color system | LED source RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Pixel control |
| Control and programming | 6 DMX configurations available: 3/4/6/13/32/41 channels Protocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 13 programs selectable from the display, with speed adjustment Color mode with 50 color macros and 11 white macros Color calibration system Power management system 4 different dimming curves available |
| Structure and cabinet | High corrosion die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle +100°/-80° IP65 rating Convection cooling system without fans |
| Power supply | Input Voltage: 15VDC 3A Switching power supply unit Rechargeable internal Li-Ion battery: 10,8VDC 10000mAh Runtime battery: ~ 3 hrs (full ON – High power mode) Runtime battery: ~ 11 hrs (Color change – High power mode) Charging cycle: ~ 6 hrs (Projector turned off) Max power: 65W External power supply included: IN AC~100-240V, 50/60 Hz – OUT 15VDC 3A |
| Weight and dimensions | Net weight: 3,5 kg Dimensions: 500x95x132(h) mm |
