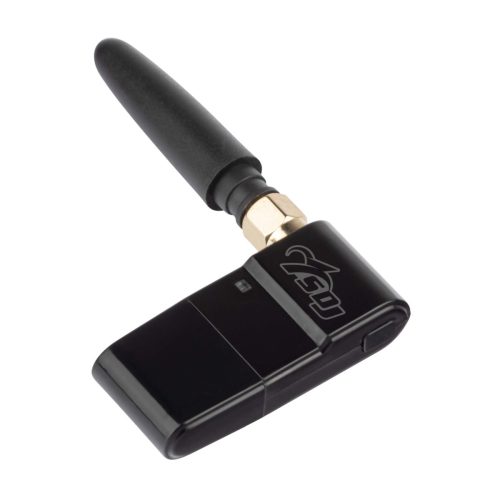

WECON USB PEN wireless DMX receiver
| Light source | 1x75W white led high brightness Color temperature 7500K LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |

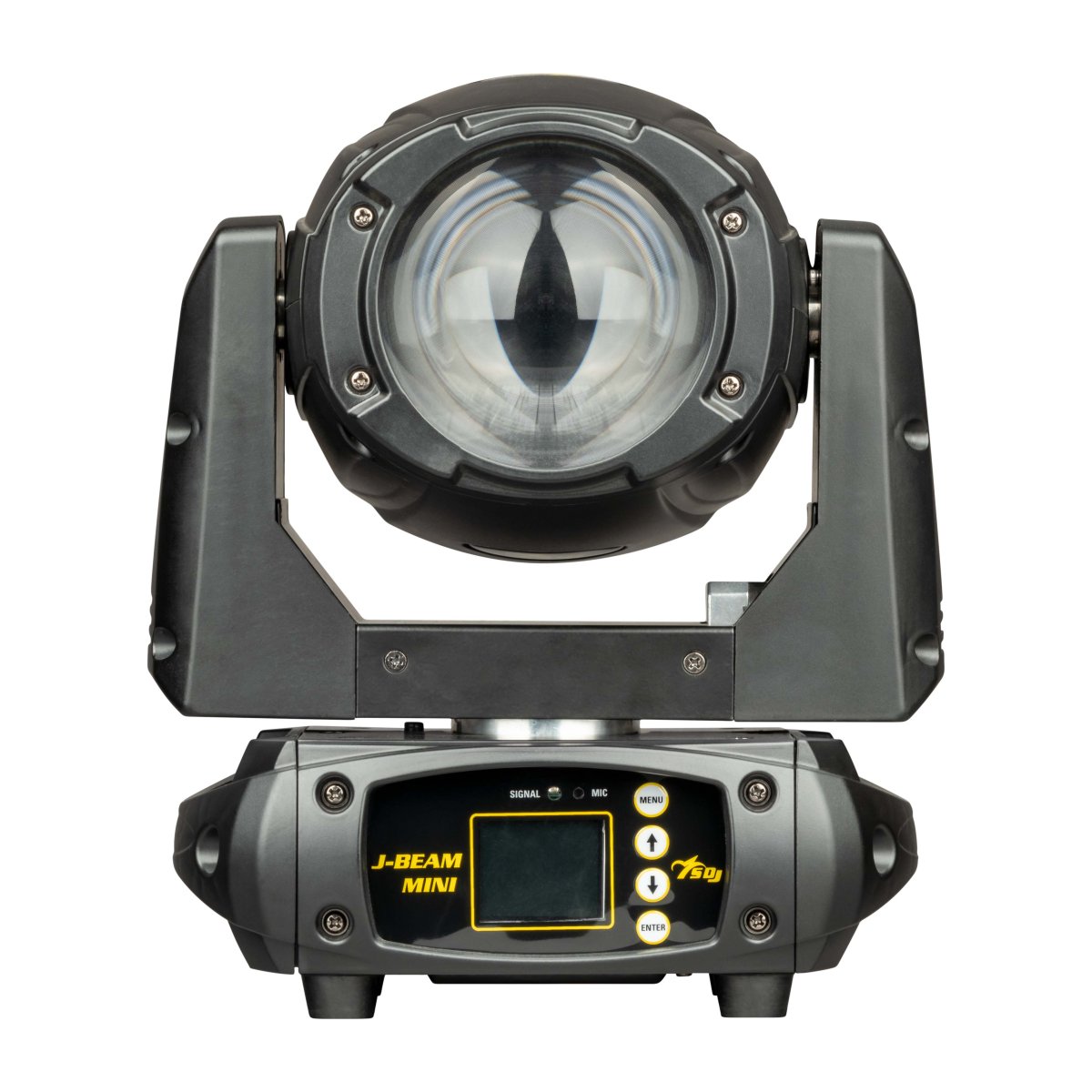

| Optic system | Beam Angle: 3,5° Luminous flux: 16600 lux @5mt (3,5°) |
| Color system | Color wheel with 12 dichroic filters + white |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Gobo wheel: 17 fixed gobos Gobo scroll with adjustable speed 8-facet rotating prism with adjustable speed Color rainbow effect in both directions Half color effect Frost filter |
| Control and programming | 2 DMX configurations available: 10/12 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |

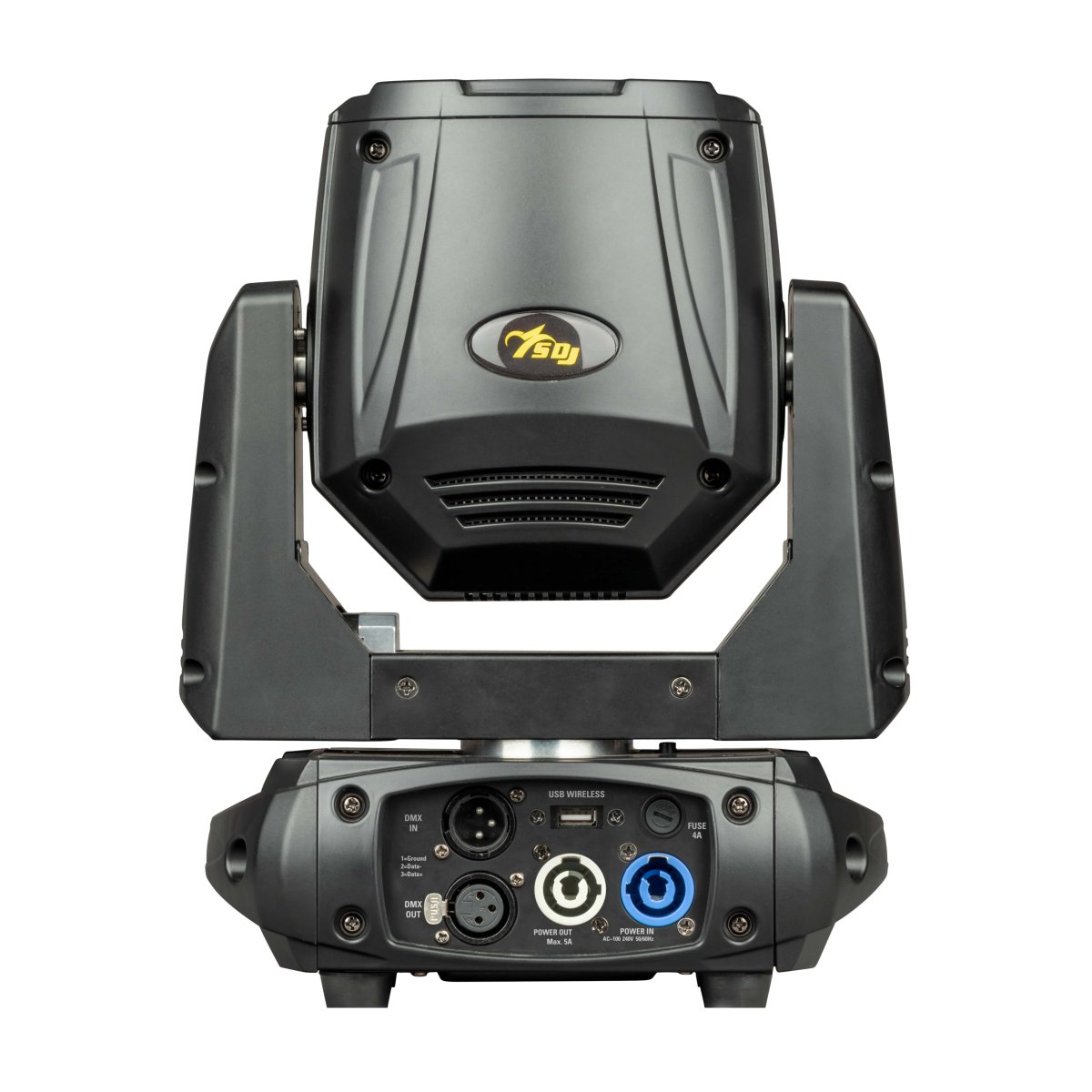

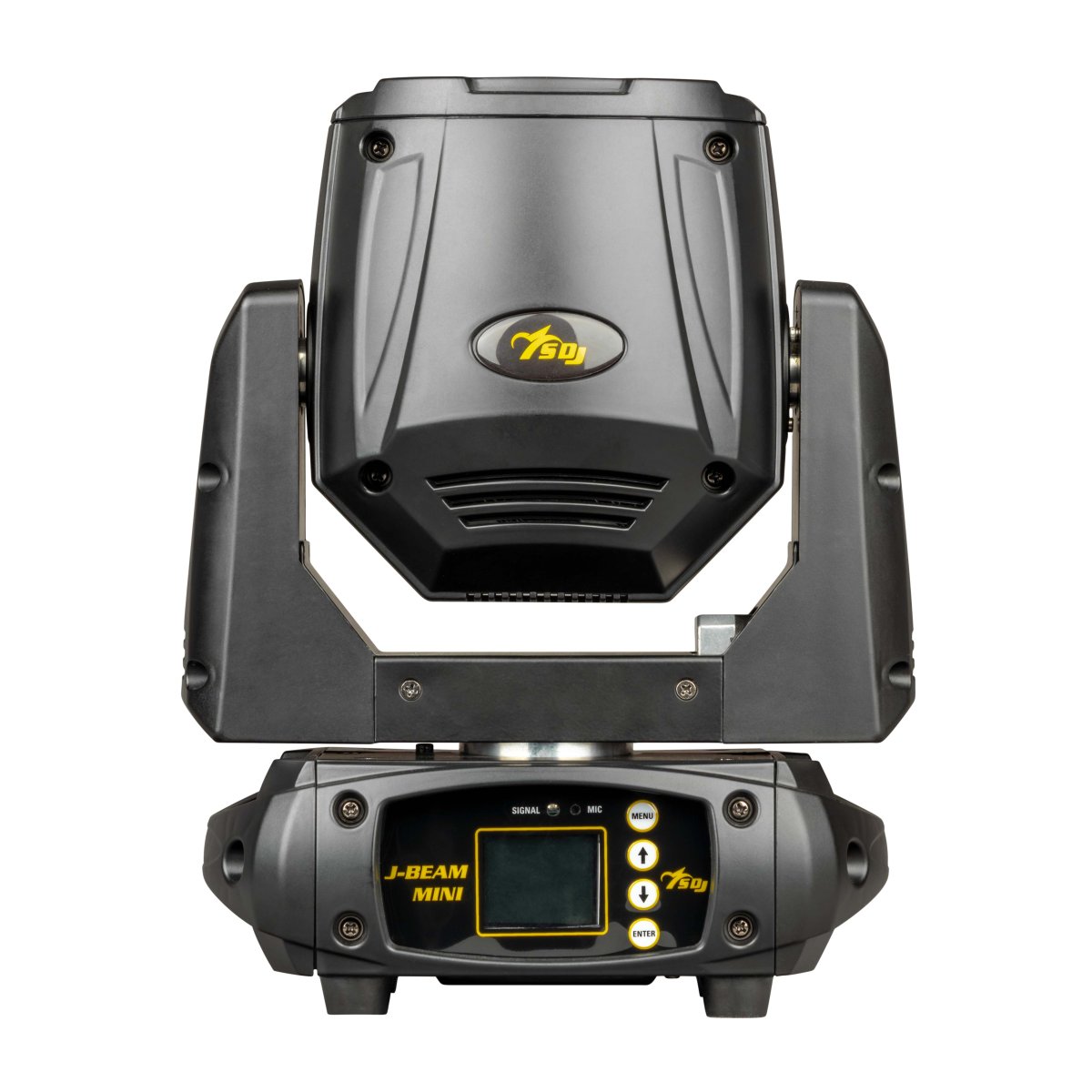

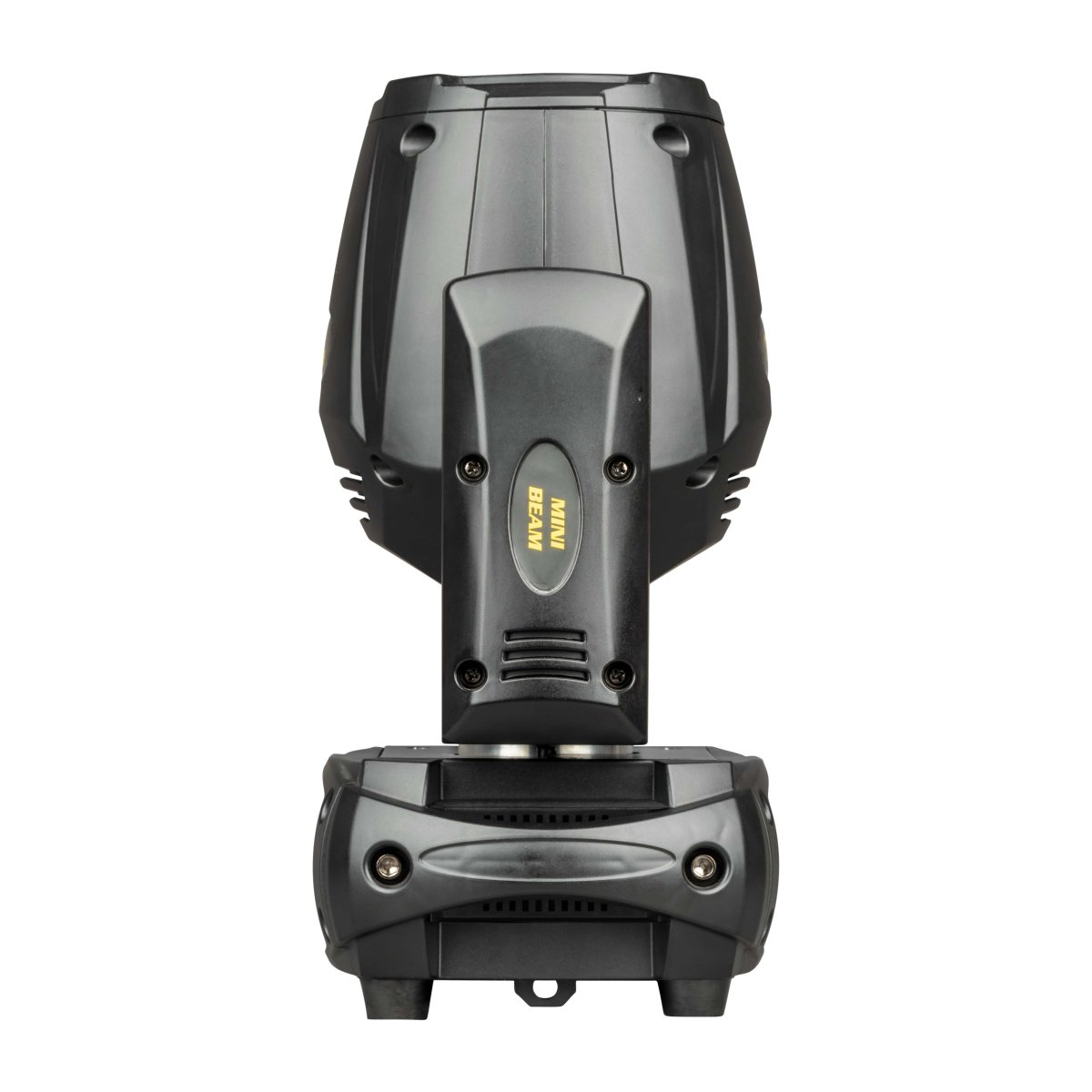

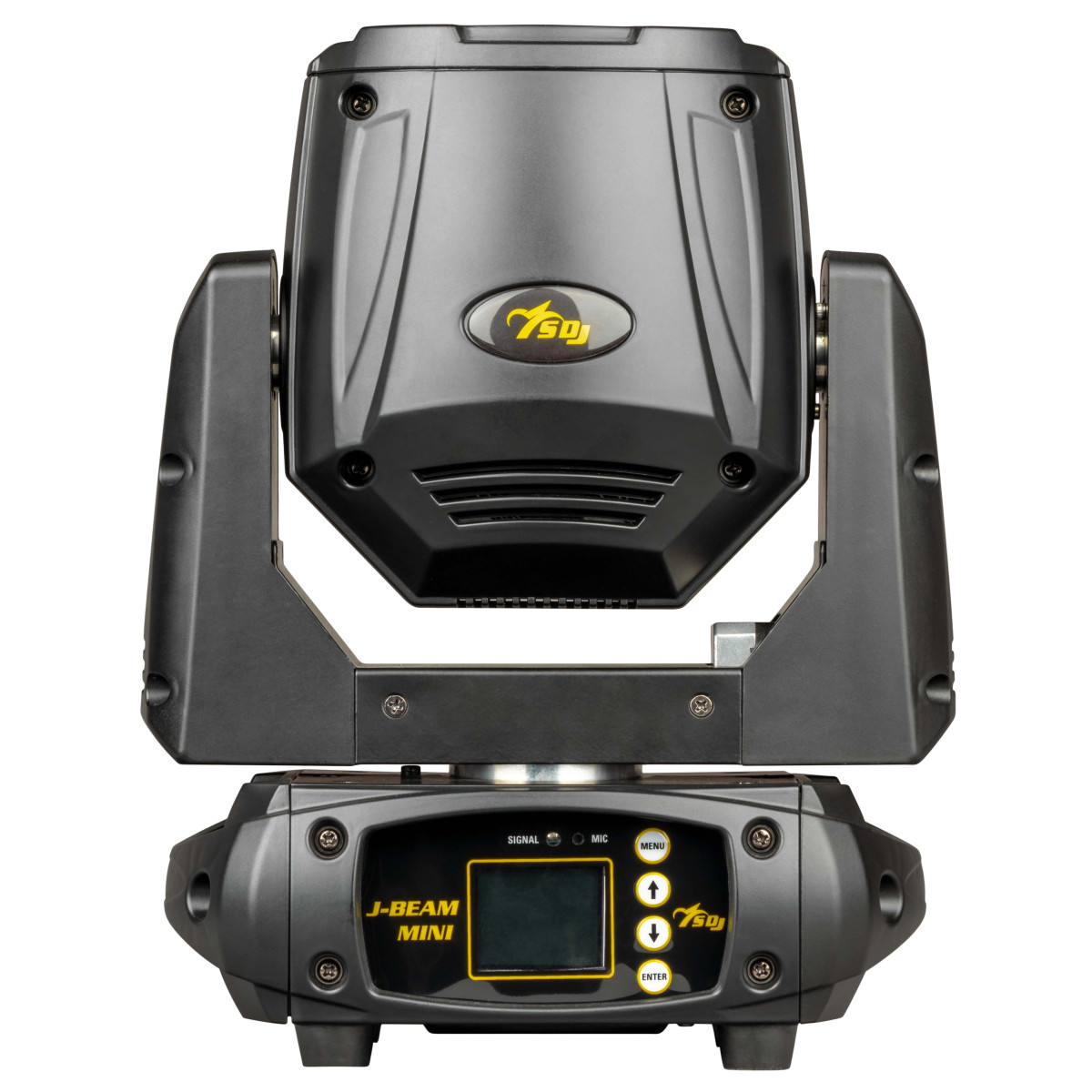

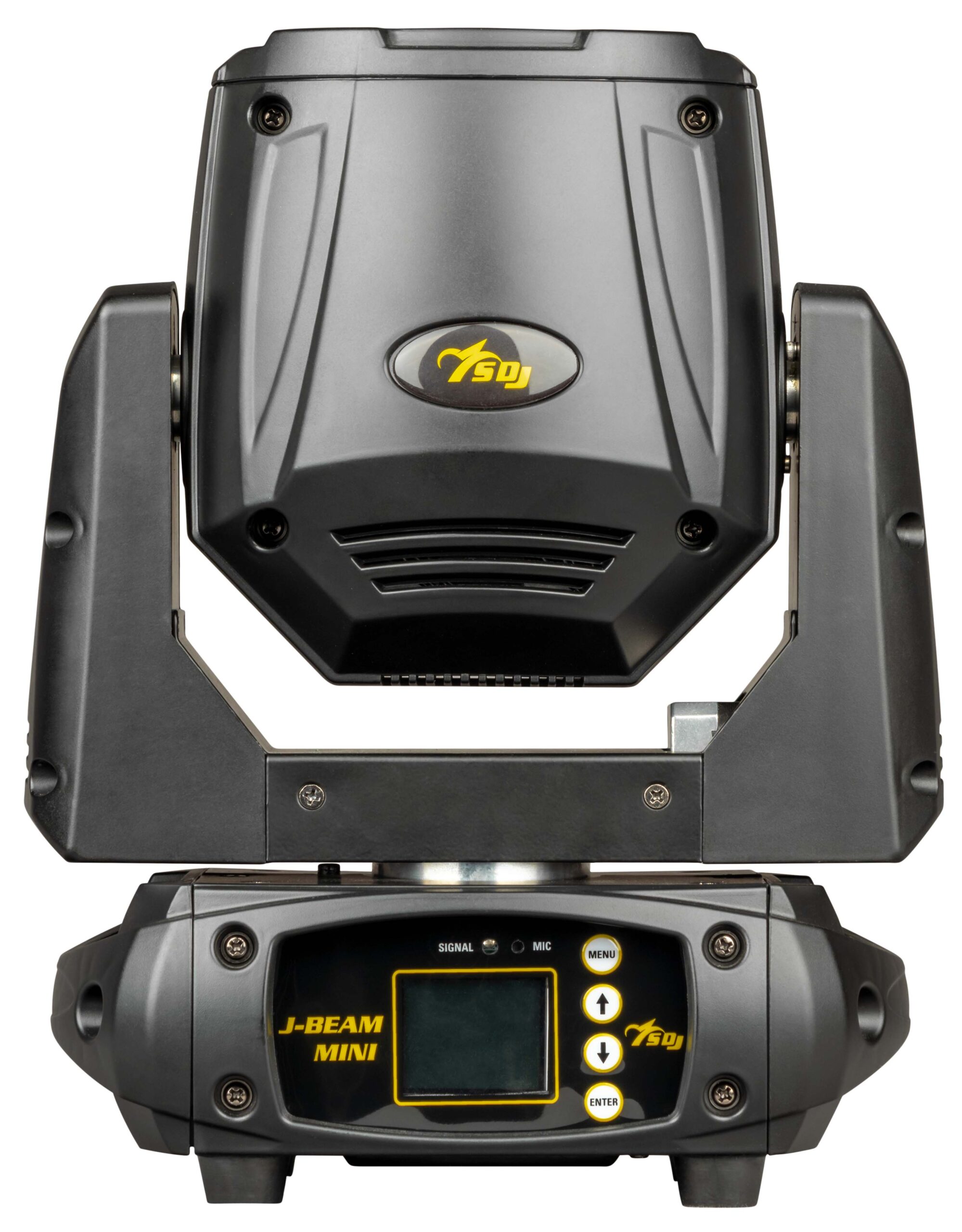

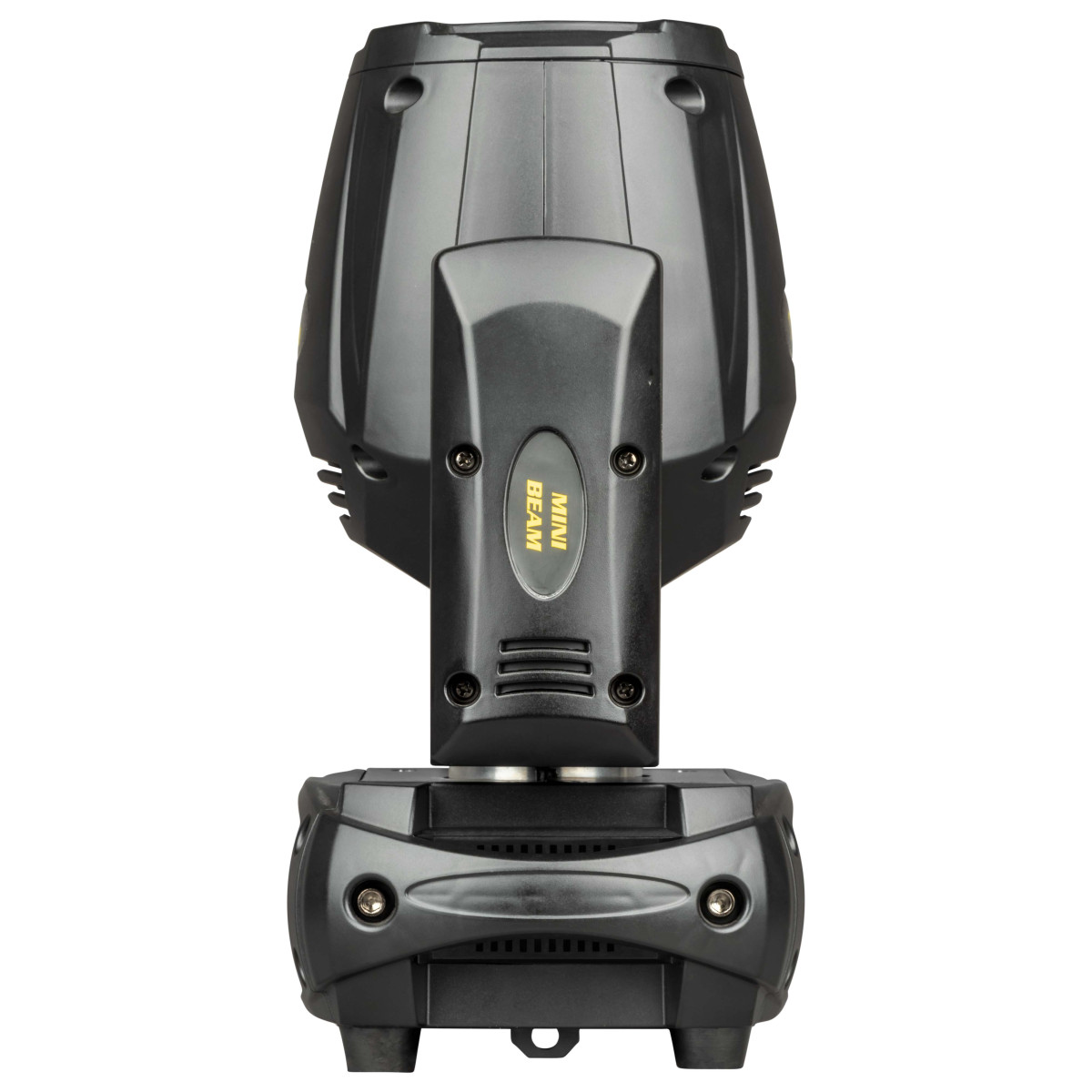

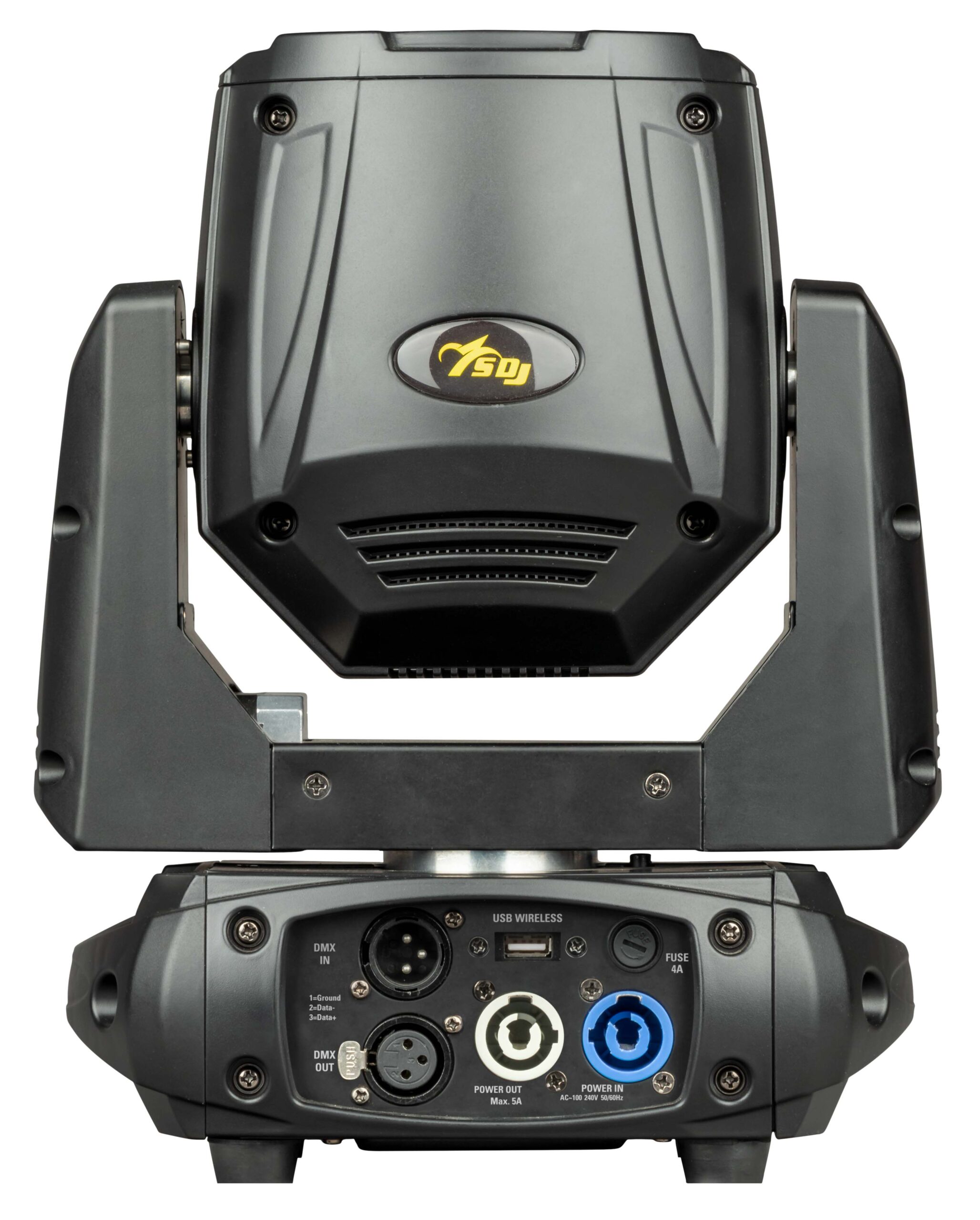

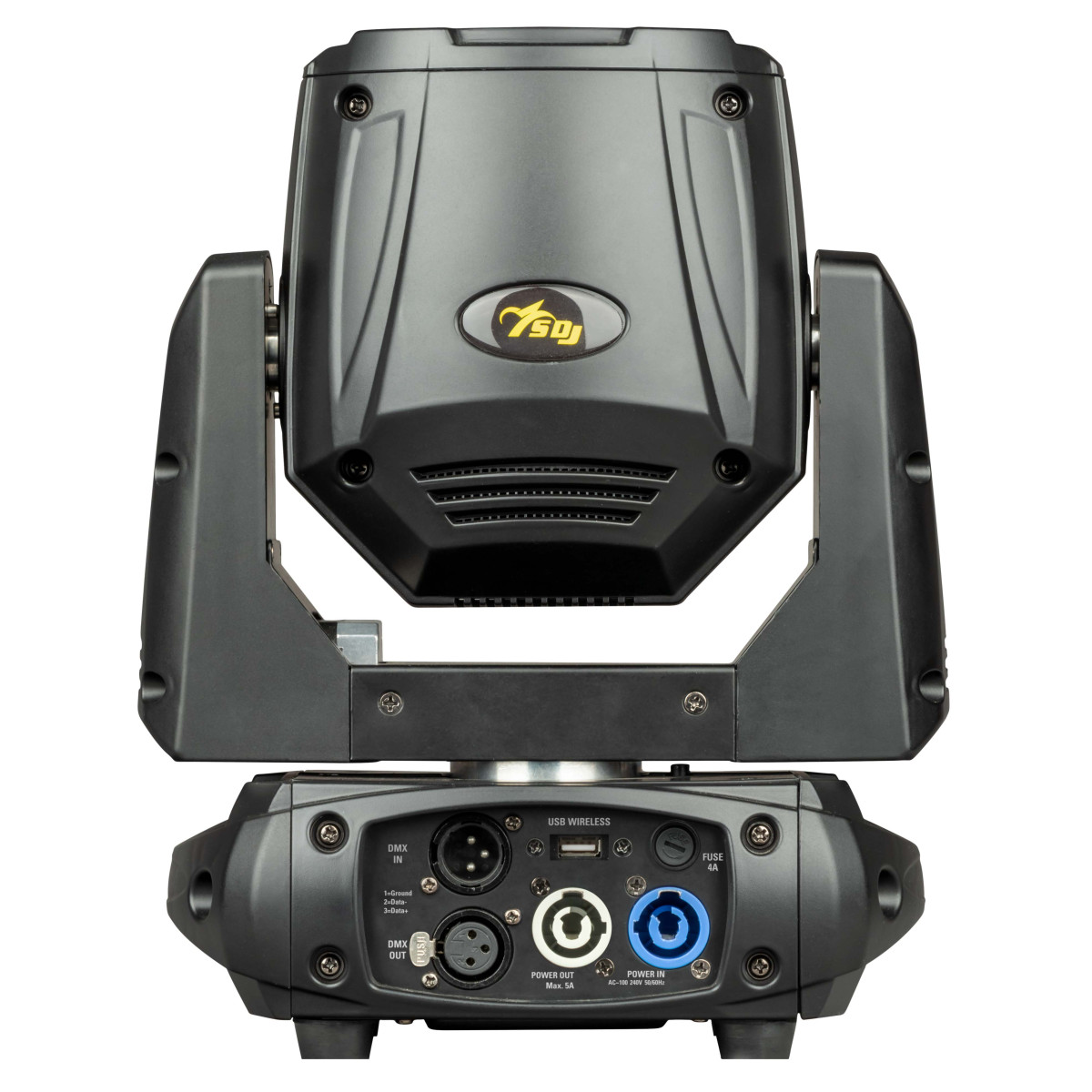

| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 1 pair of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 95W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 4,5 kg Dimensions: 243x304x151 mm |
| Light source | 1x75W white led high brightness Color temperature 7500K LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |
| Optic system | Beam Angle: 3,5° Luminous flux: 16600 lux @5mt (3,5°) |
| Color system | Color wheel with 12 dichroic filters + white |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Gobo wheel: 17 fixed gobos Gobo scroll with adjustable speed 8-facet rotating prism with adjustable speed Color rainbow effect in both directions Half color effect Frost filter |
| Control and programming | 2 DMX configurations available: 10/12 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |
| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 1 pair of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 95W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 4,5 kg Dimensions: 243x304x151 mm |
