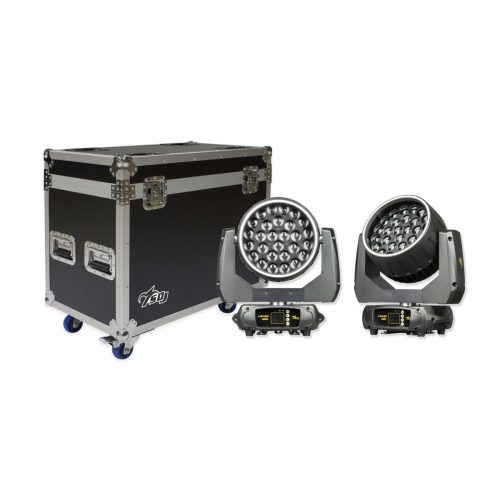

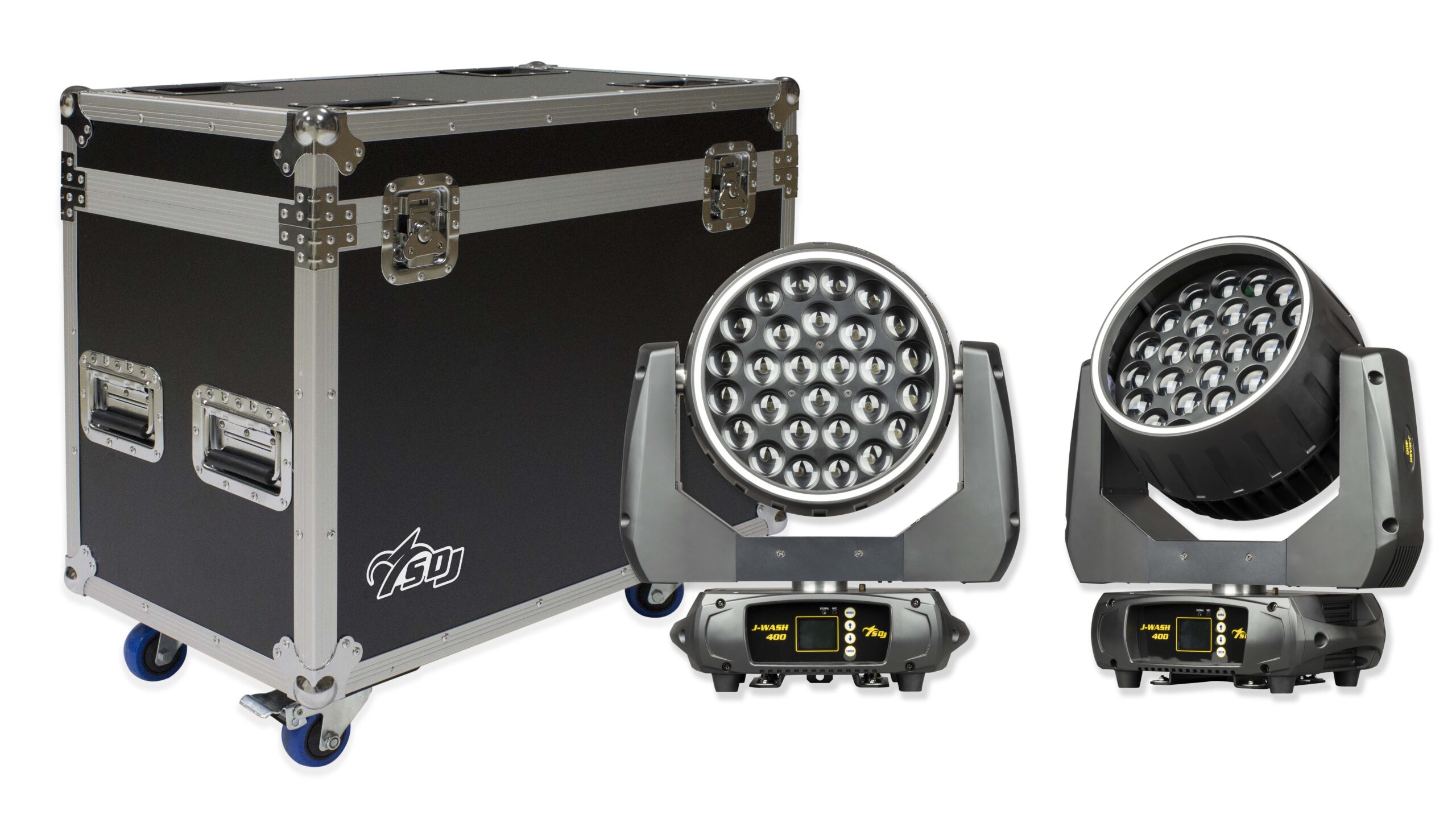

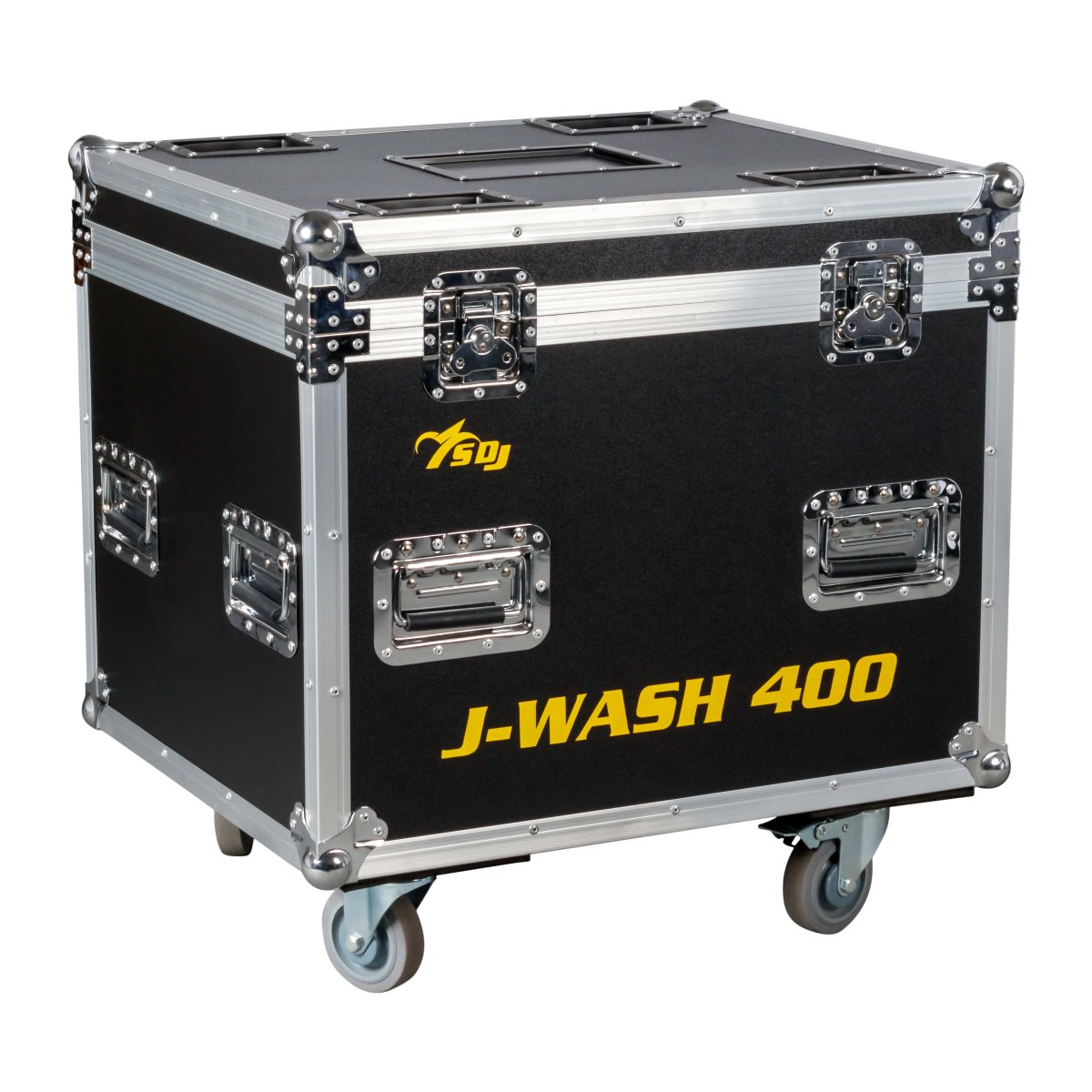

Case for JWash 400

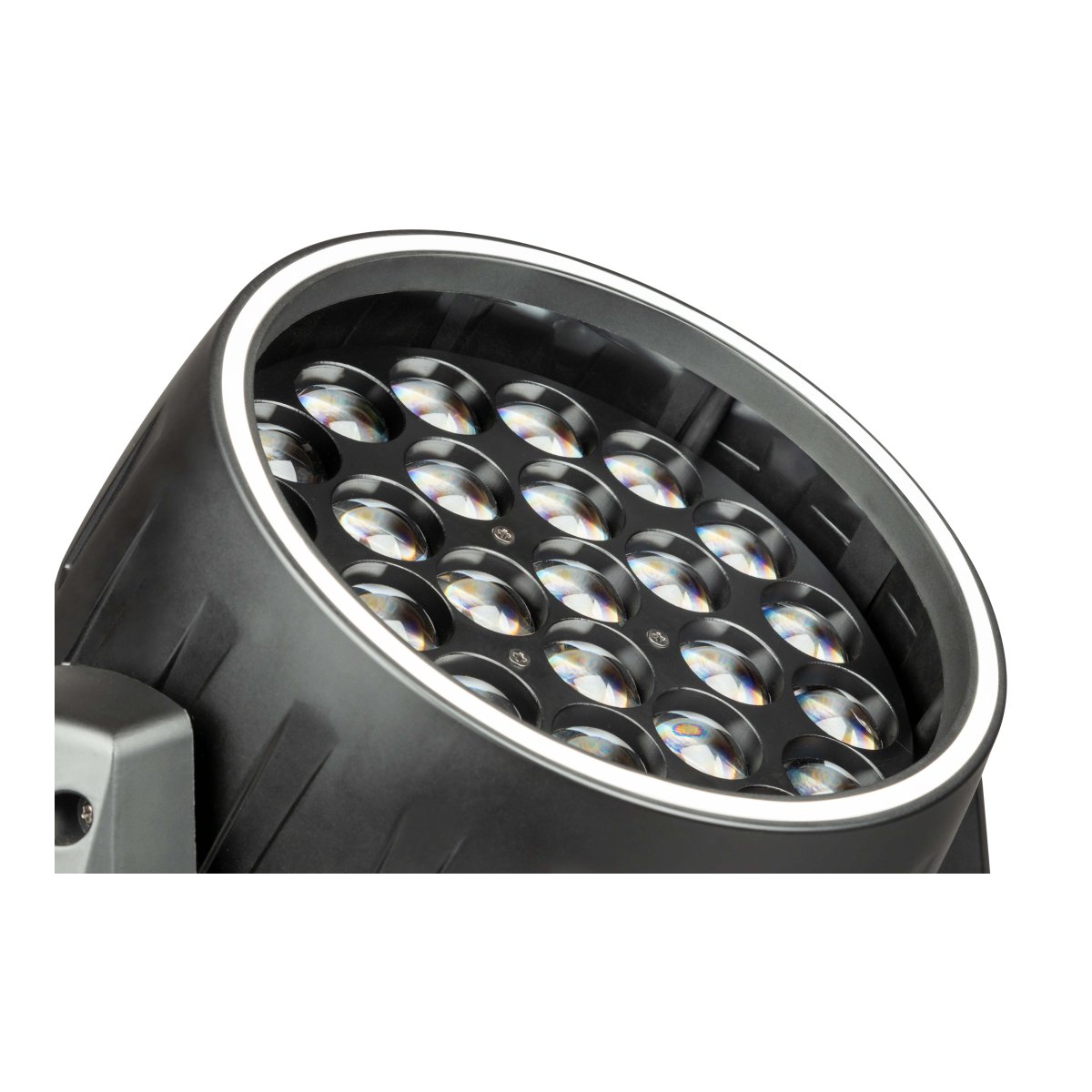

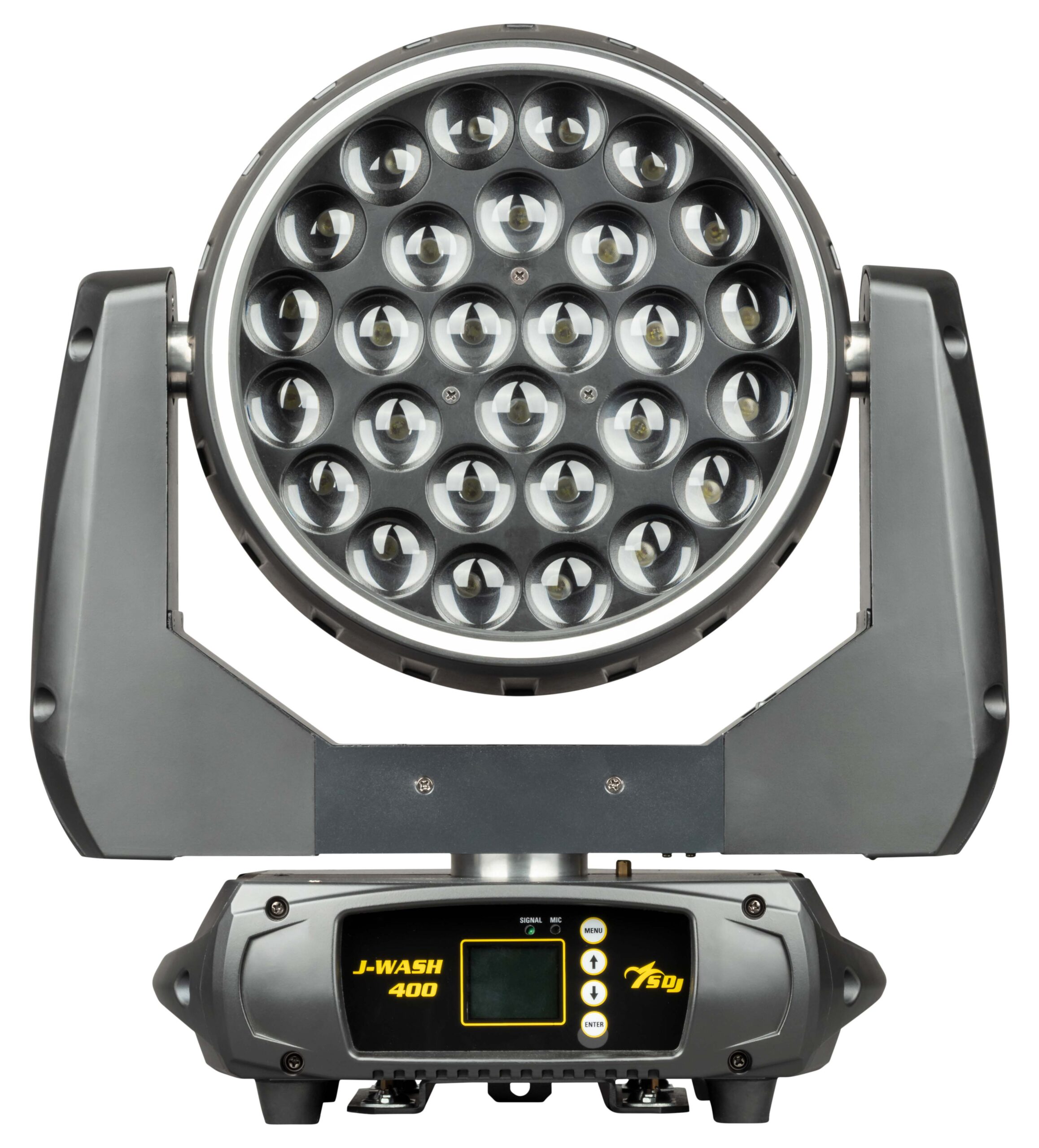

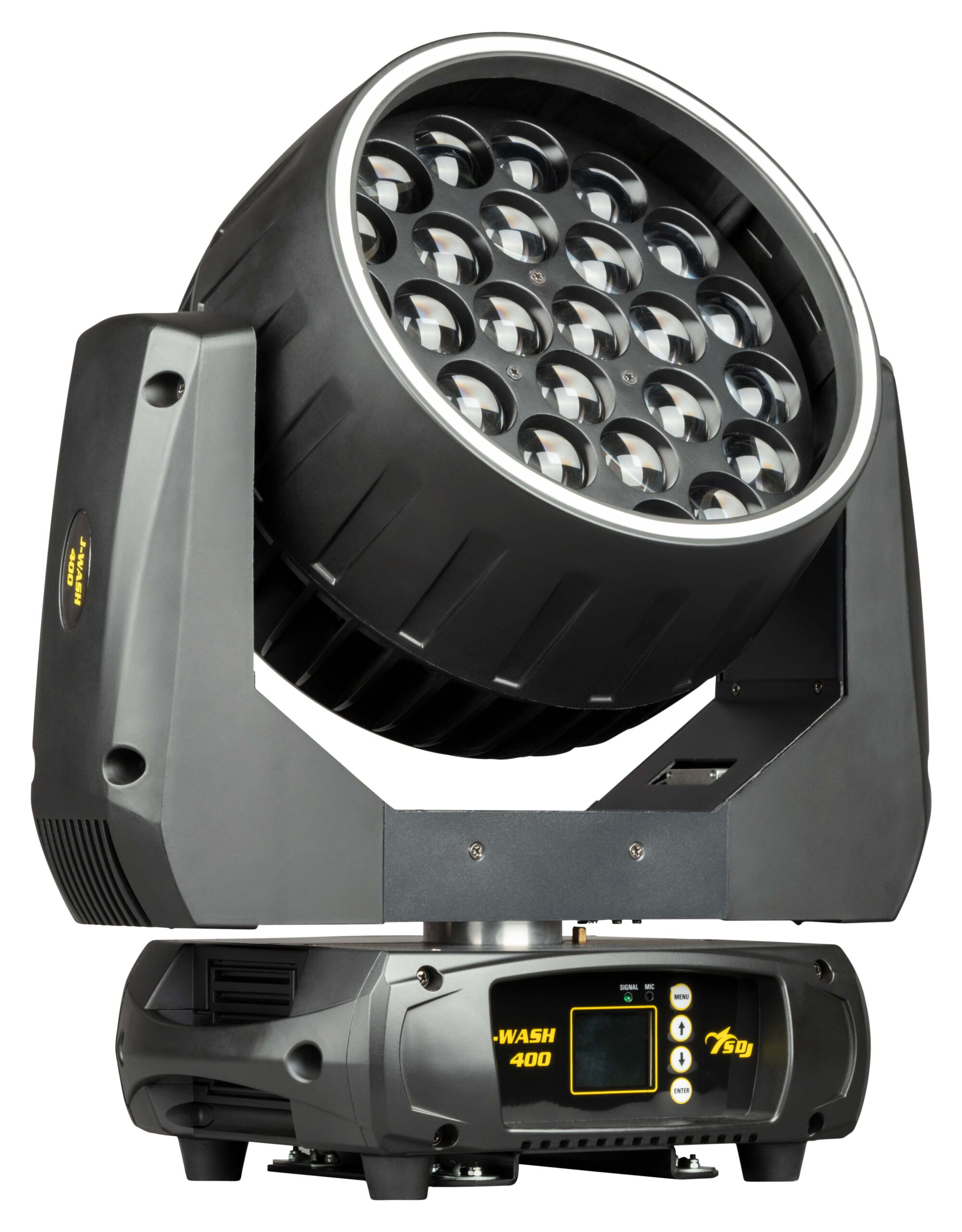

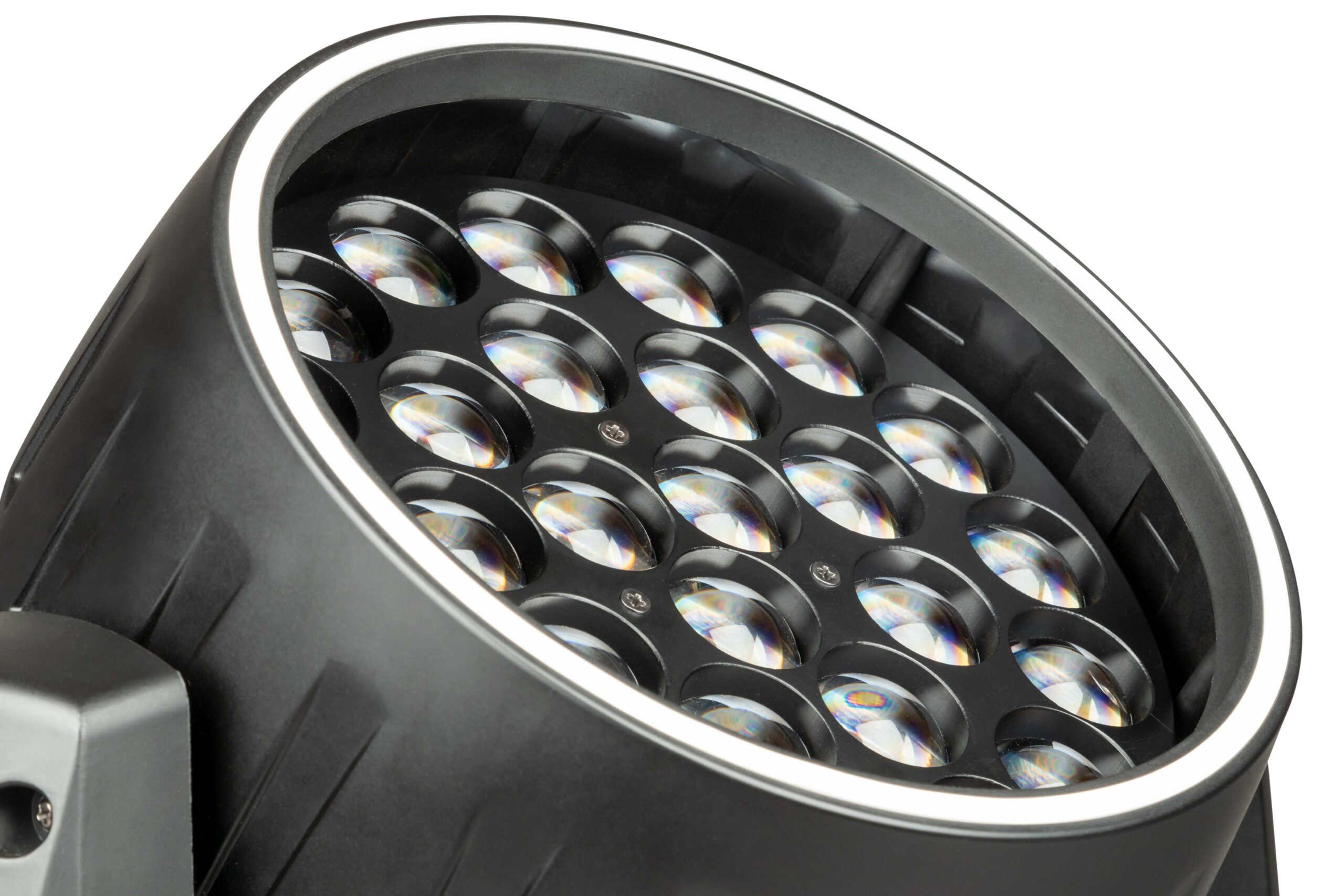

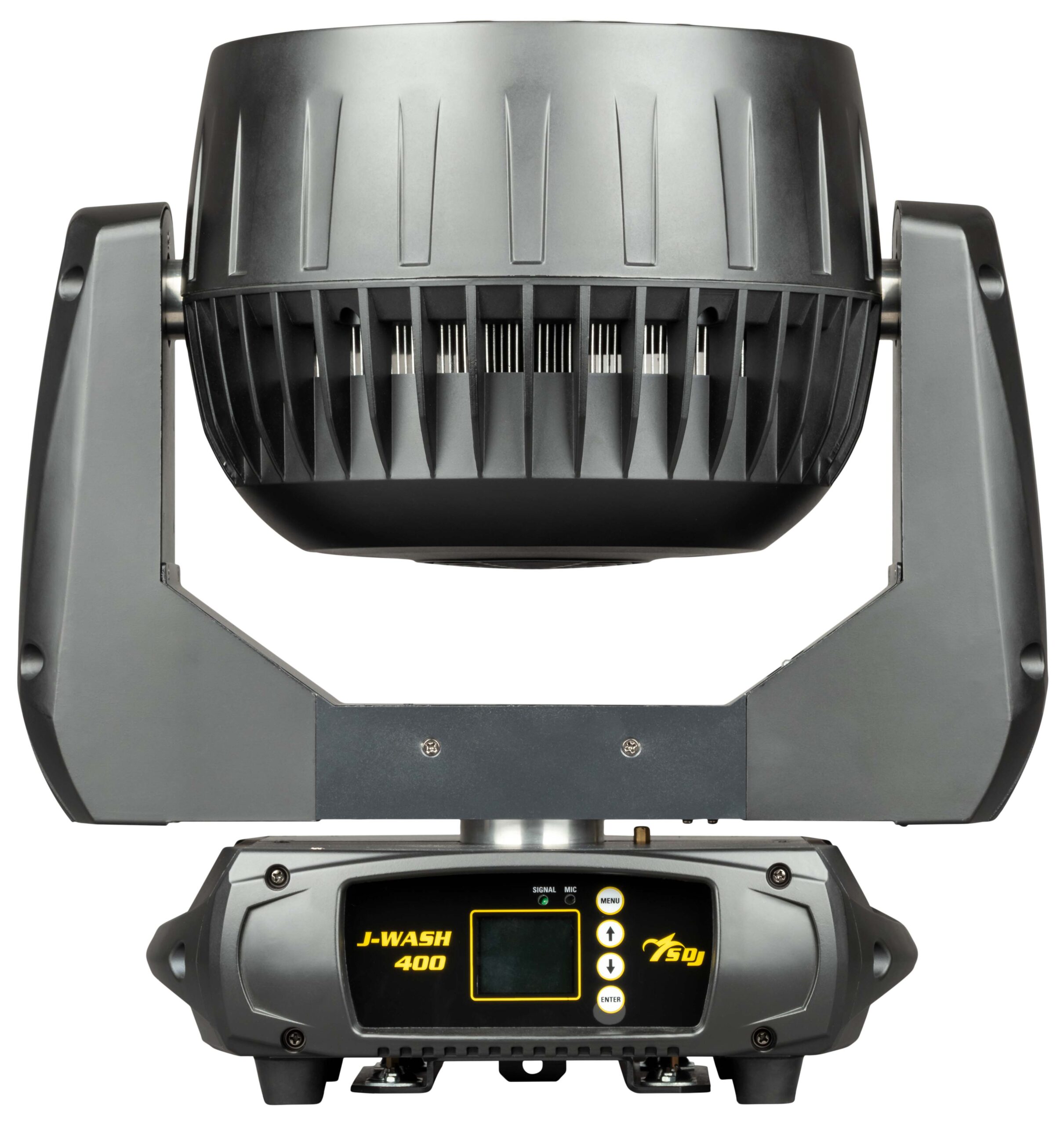

| Light source | 28x15W led RGBW Full Color SMD RGB LEDs on the front ring LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 17° / 32° Illuminance: 9224 lux @ 5 m (full ON – 17°) 1417 lux @ 5 m (full ON – 32°) |
| Color system | LED source RGBW Full color CCT linear correction 2700°K – 8000°K Infinite chromatic possibilities |
| Effects | Linear dimmer 0 – 100 % Motorized zoom Electronic strobo, pulse, random Control with 3 circular sectors Front LED ring with programmable static and dynamic effects Virtual color wheel with 12 colors White presets with 9 macros Virtual linear color wheel 2700°- 8000°K |
| Control and programming | 3 DMX configurations available: 26/31/43 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX Structure and cabinet |

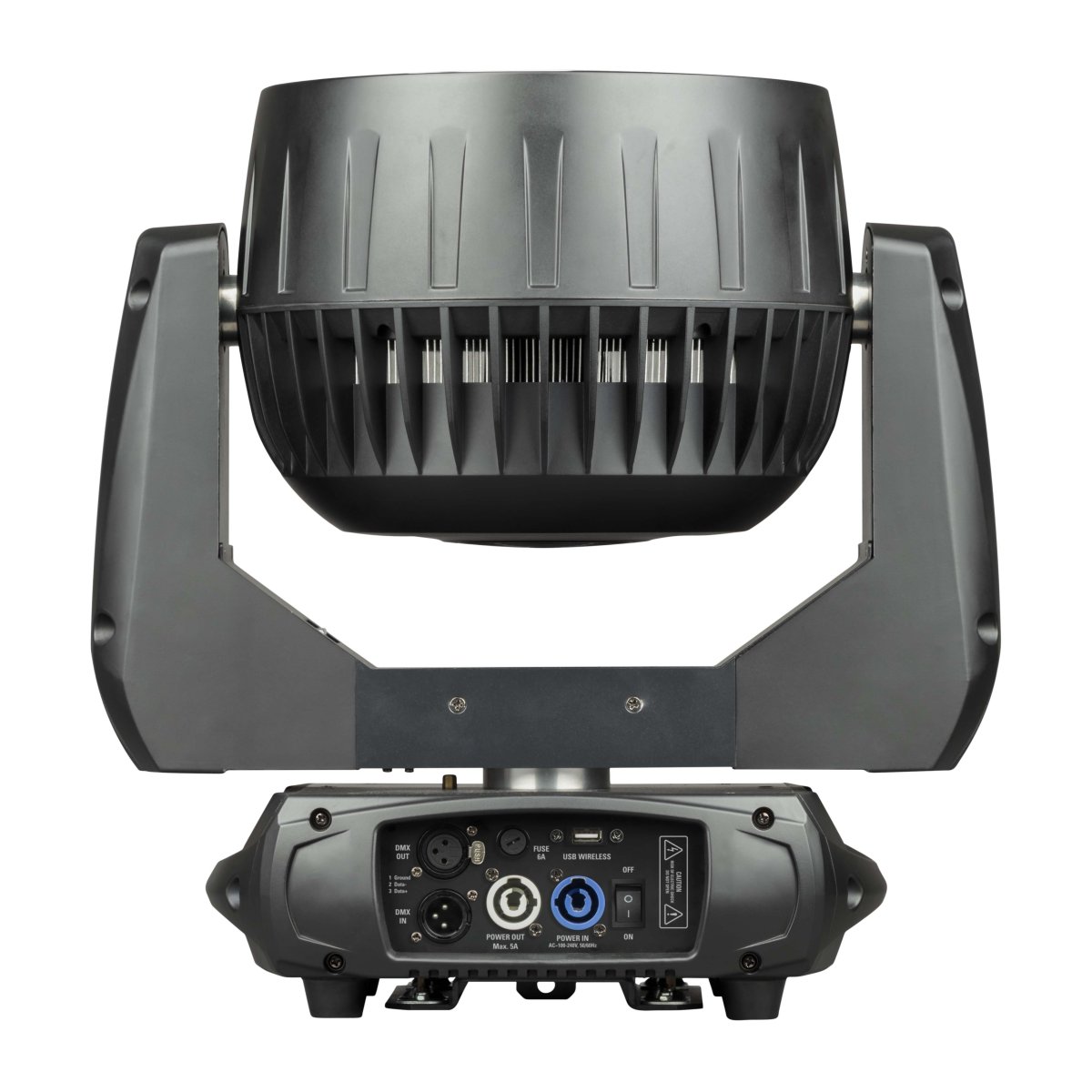

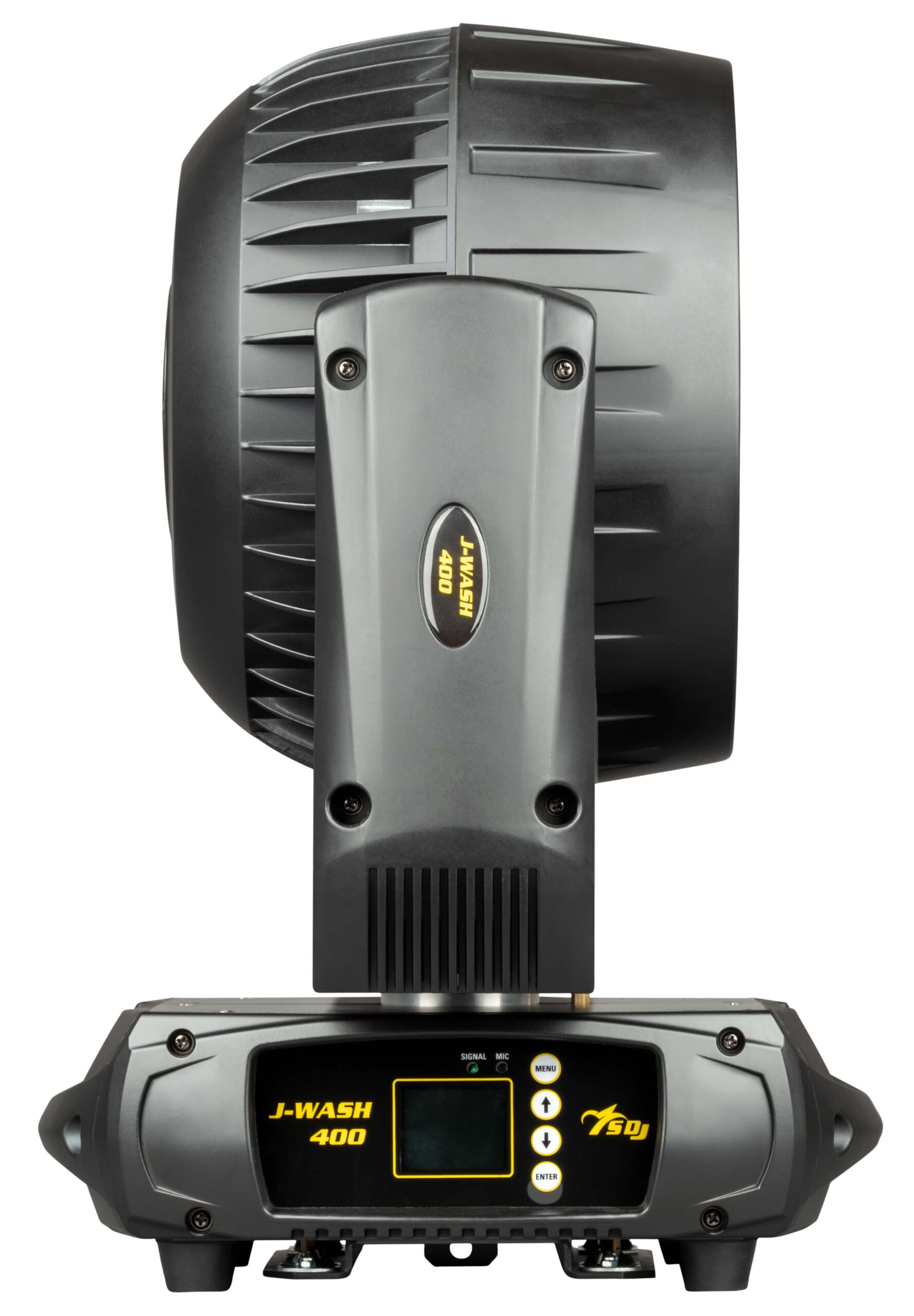

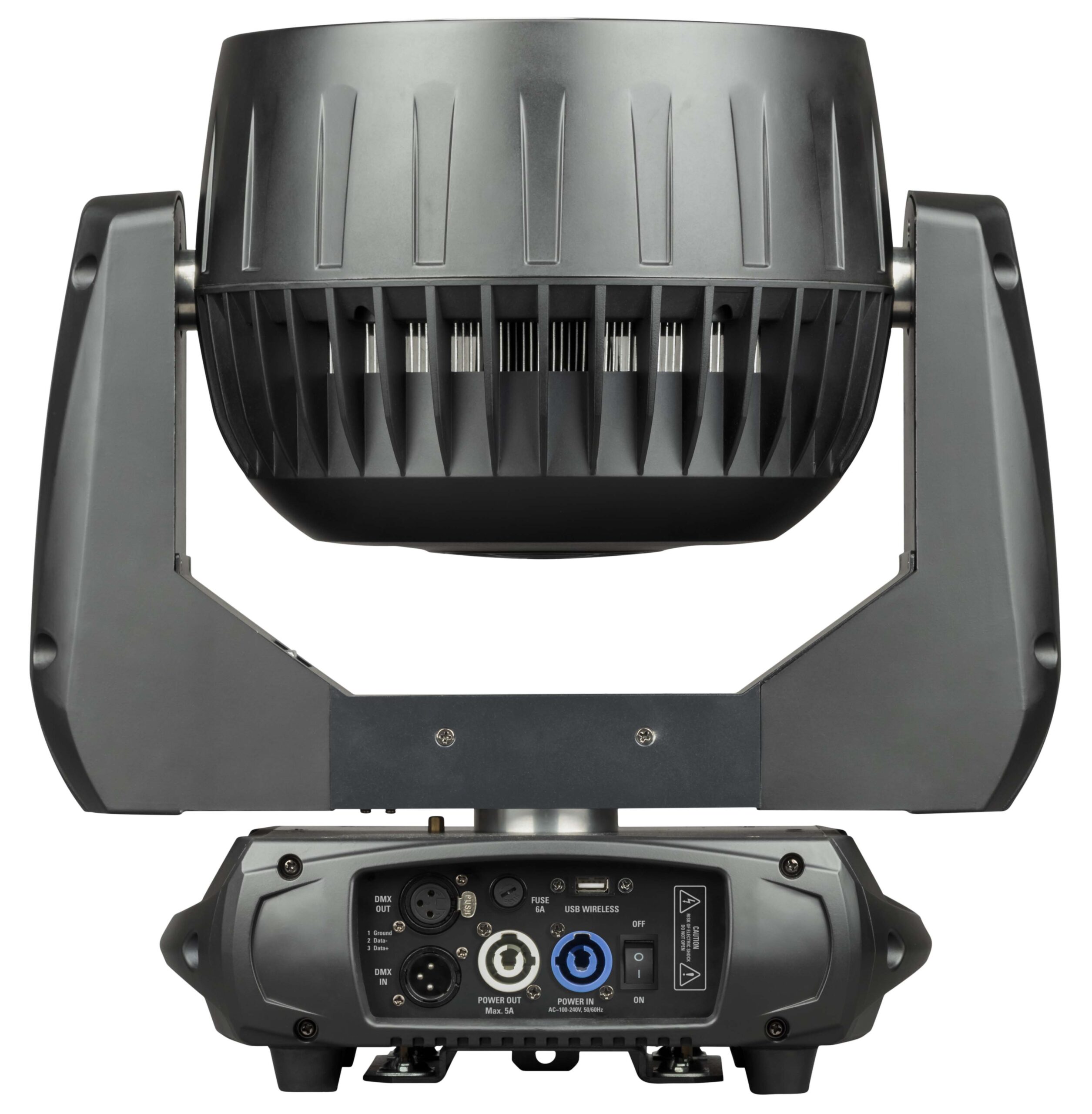

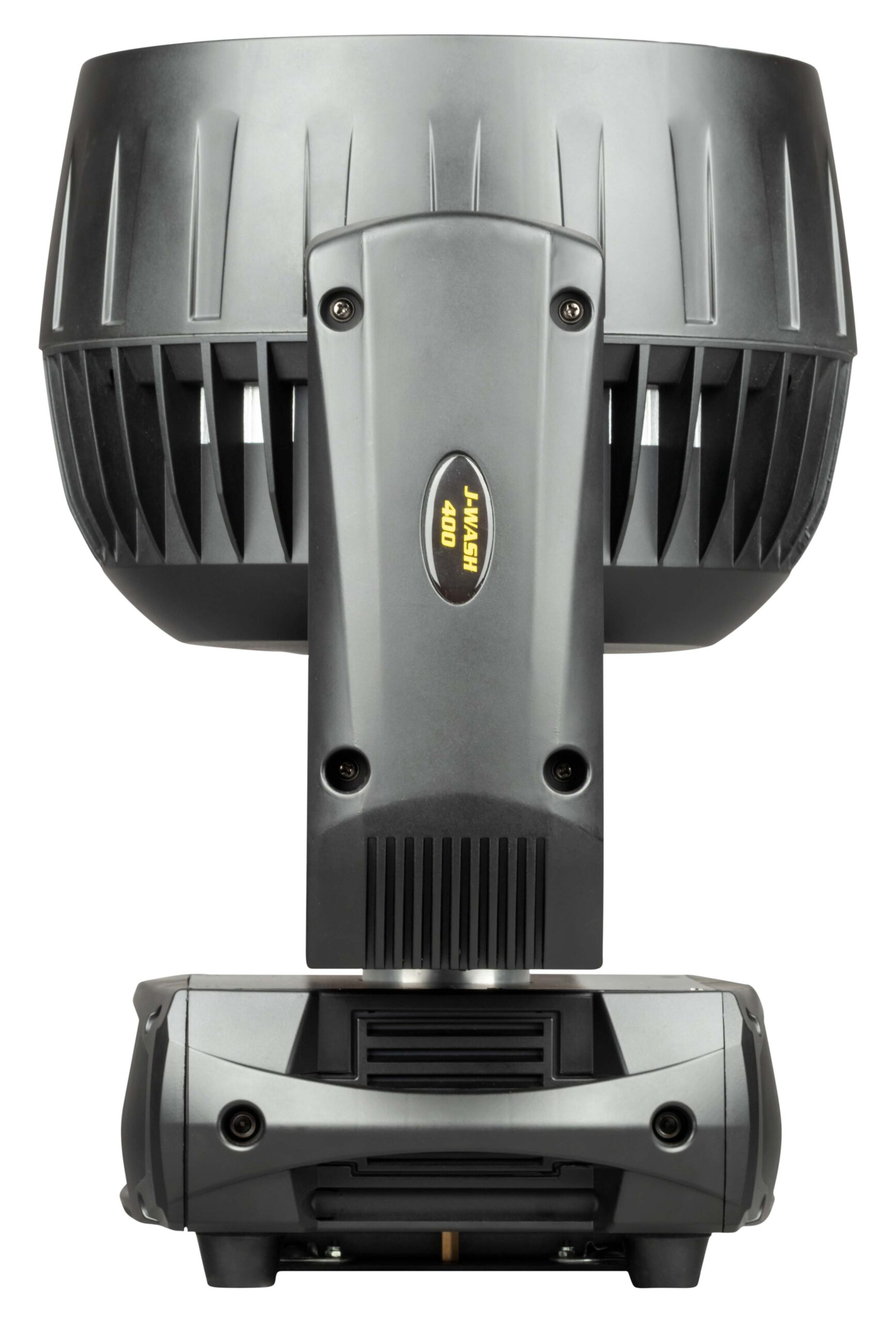

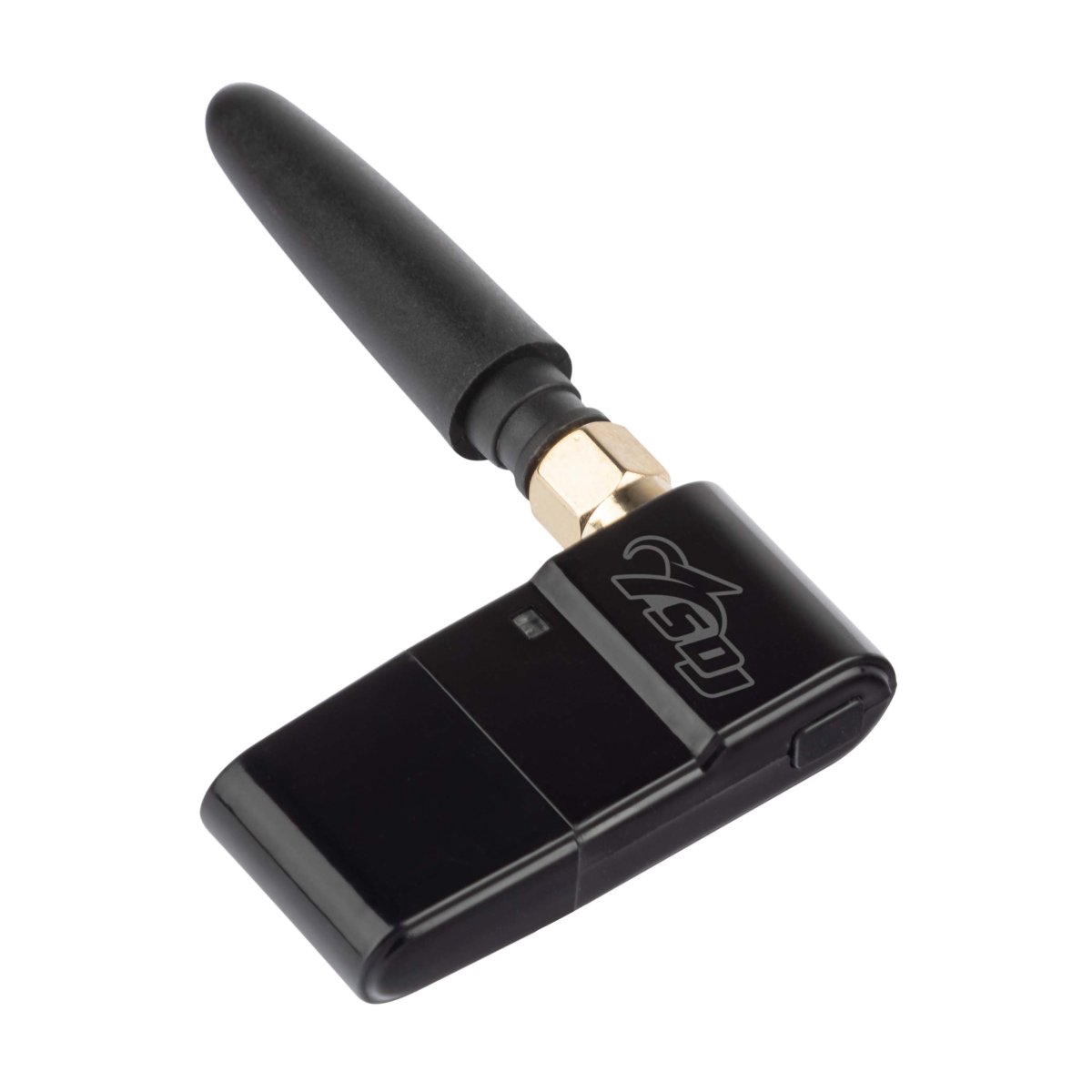

| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 2 pairs of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100 – 240 V 50 / 60 Hz Switching power supply unit Max power: 390 W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 11,5 kg Dimensions: 420x225x250 mm |
| Light source | 28x15W led RGBW Full Color SMD RGB LEDs on the front ring LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 17° / 32° Illuminance: 9224 lux @ 5 m (full ON – 17°) 1417 lux @ 5 m (full ON – 32°) |
| Color system | LED source RGBW Full color CCT linear correction 2700°K – 8000°K Infinite chromatic possibilities |
| Effects | Linear dimmer 0 – 100 % Motorized zoom Electronic strobo, pulse, random Control with 3 circular sectors Front LED ring with programmable static and dynamic effects Virtual color wheel with 12 colors White presets with 9 macros Virtual linear color wheel 2700°- 8000°K |
| Control and programming | 3 DMX configurations available: 26/31/43 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX Structure and cabinet |
| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 2 pairs of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100 – 240 V 50 / 60 Hz Switching power supply unit Max power: 390 W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 11,5 kg Dimensions: 420x225x250 mm |
