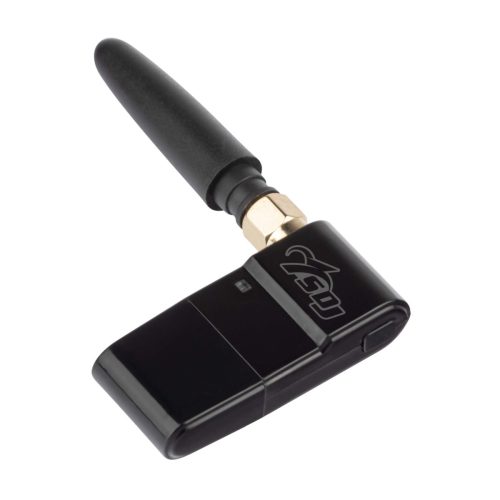

WECON USB PEN wireless DMX receiver

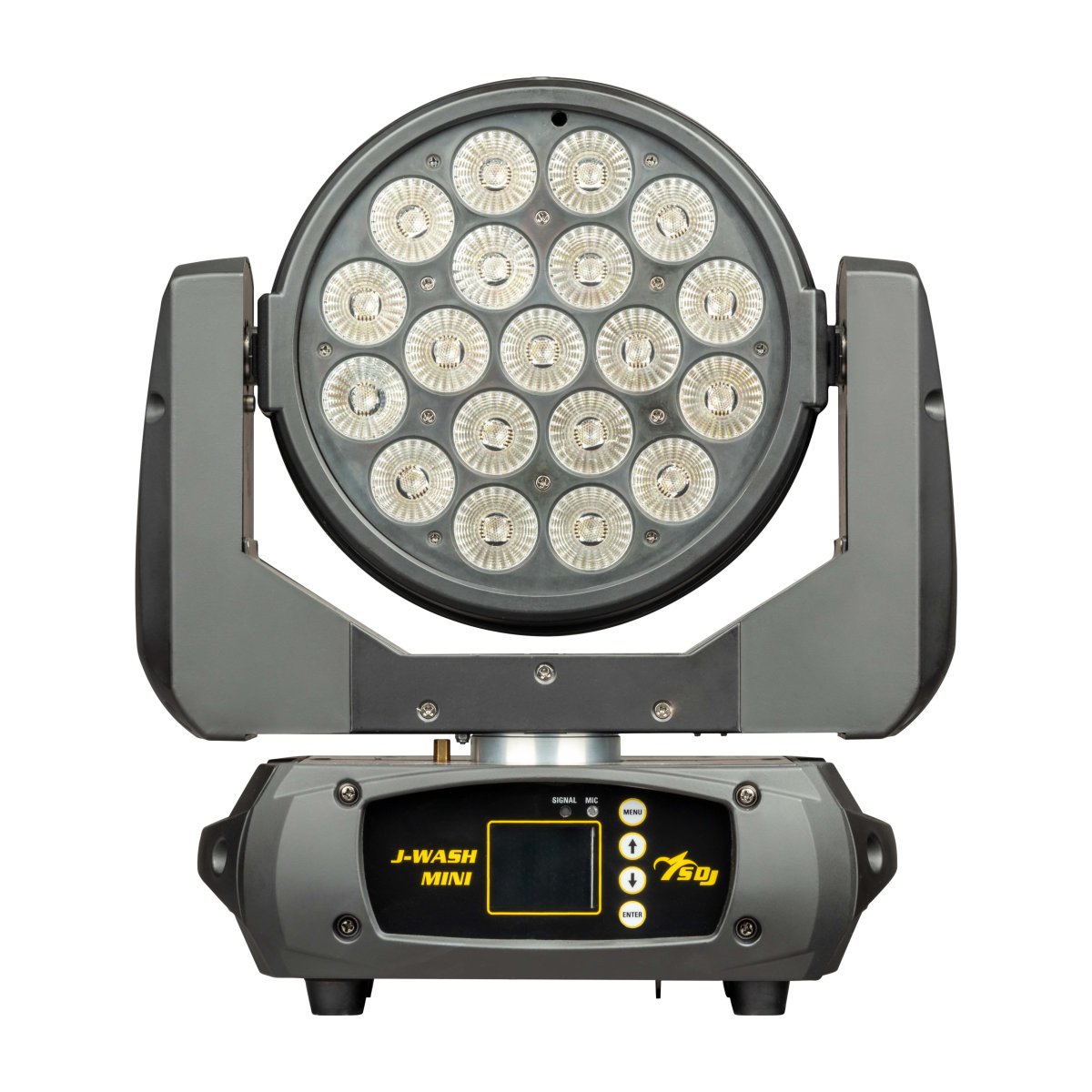

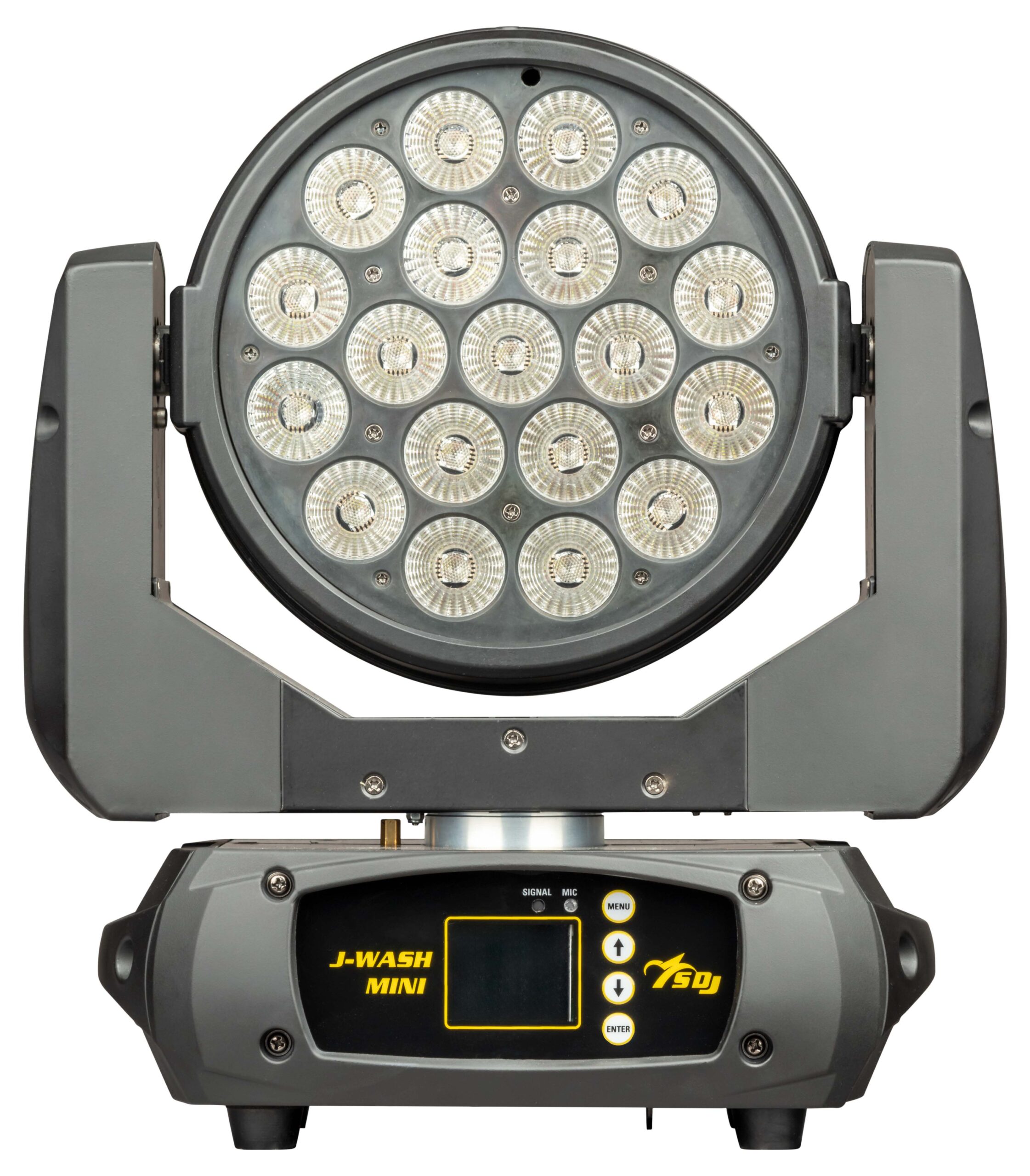

| Light source | 19x12W led RGBWA-UV Full Color LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |
| Optic system | Beam Angle: 26° Illuminance: 3100 lux @3m (full ON – 26°) |
| Color system | LED source RGBWA-UV Full color Virtual linear color wheel 2700°- 8000°K Infinite chromatic possibilities |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Control with 3 circular sectors Virtual color wheel with 12 colors White presets with 9 macros Virtual linear color wheel 2700° – 8000°K |
| Control and programming | 3 DMX configurations available: 13/15/17 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |

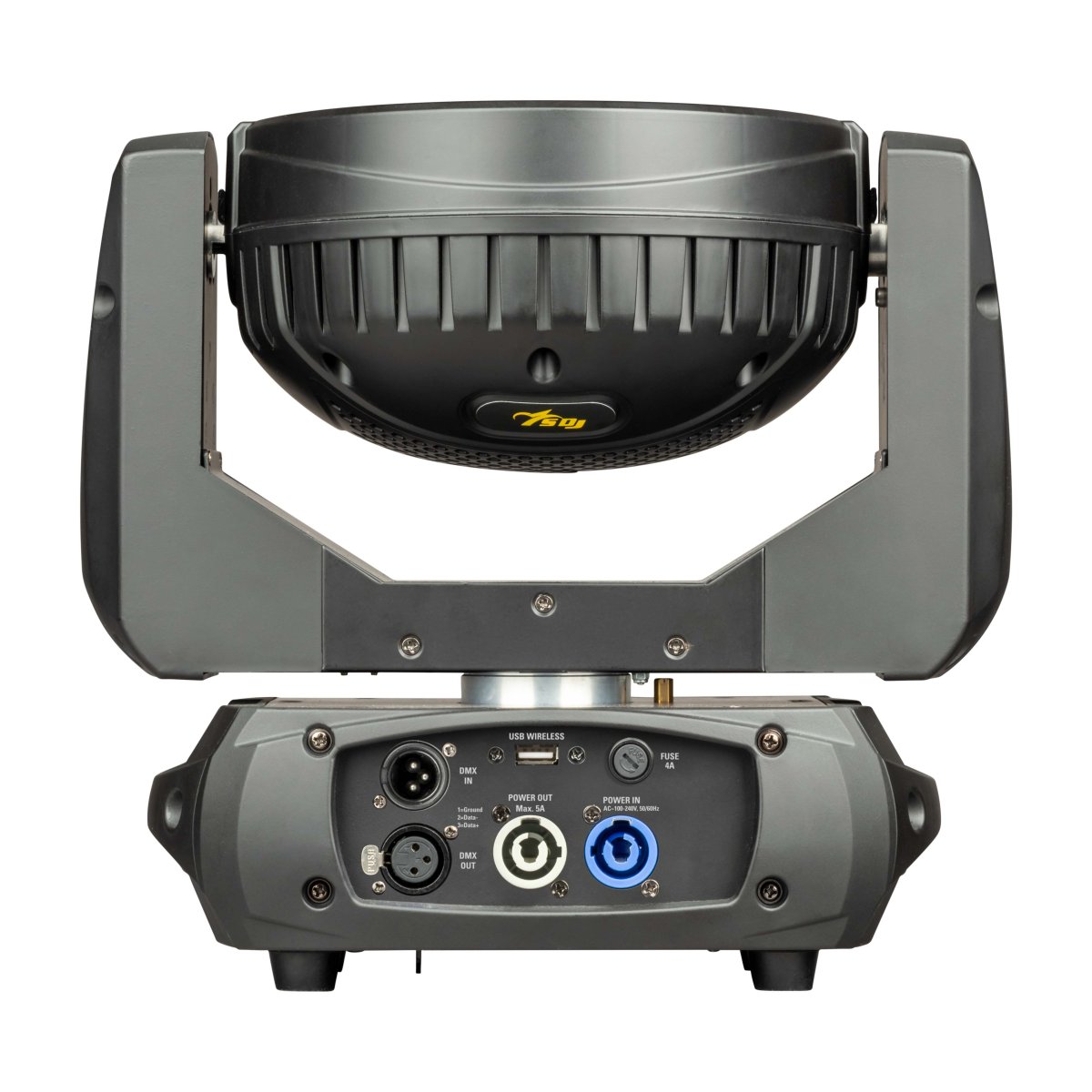

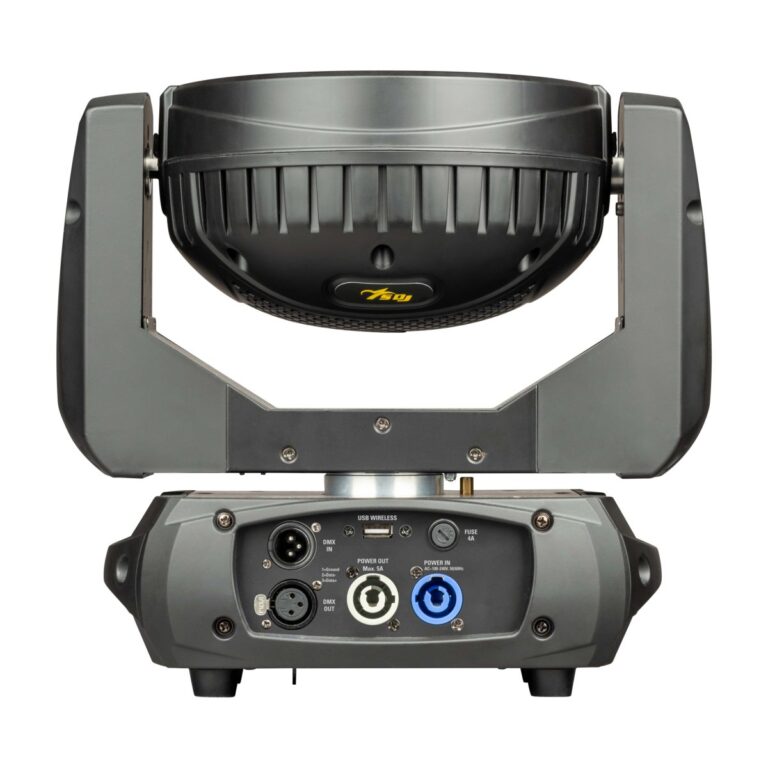

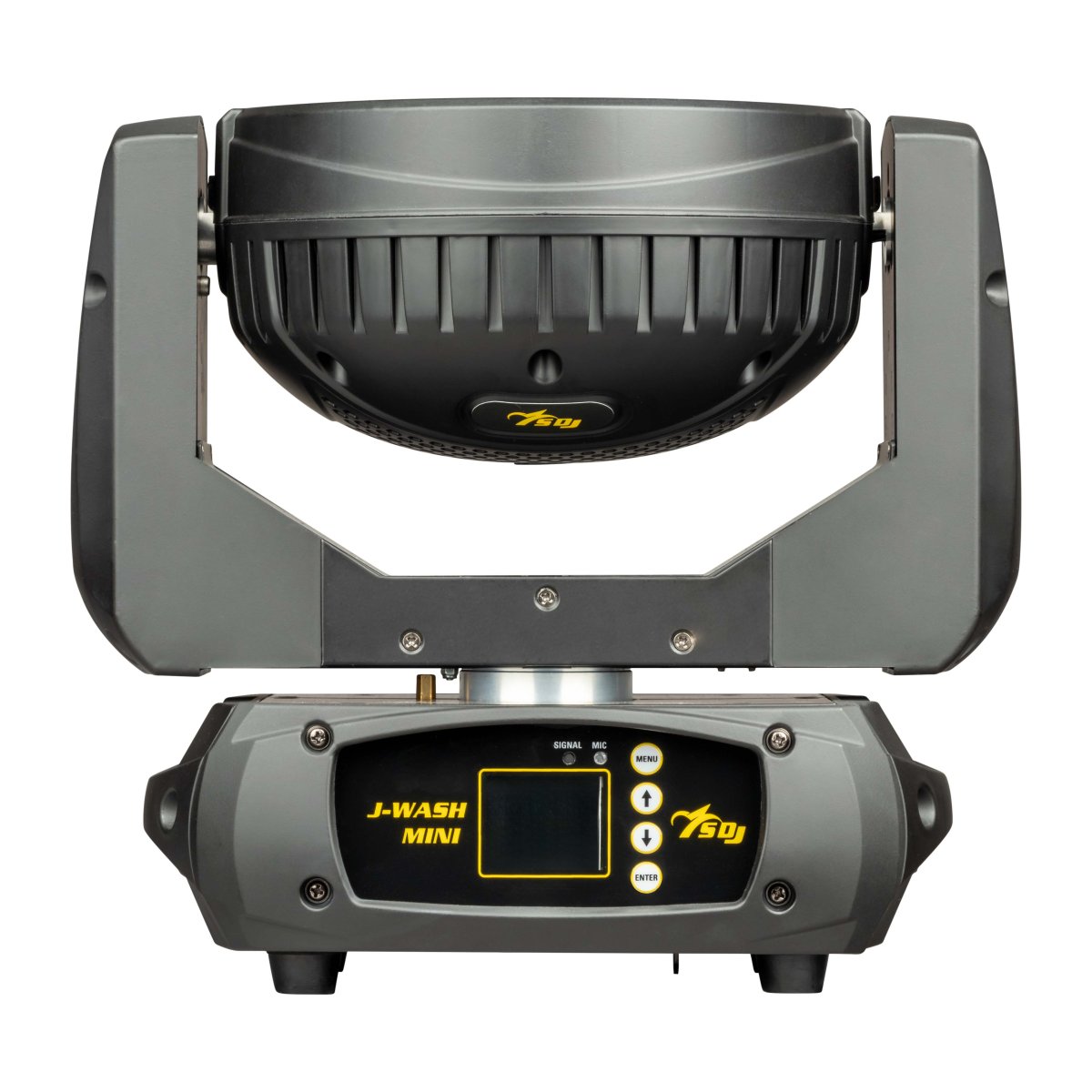

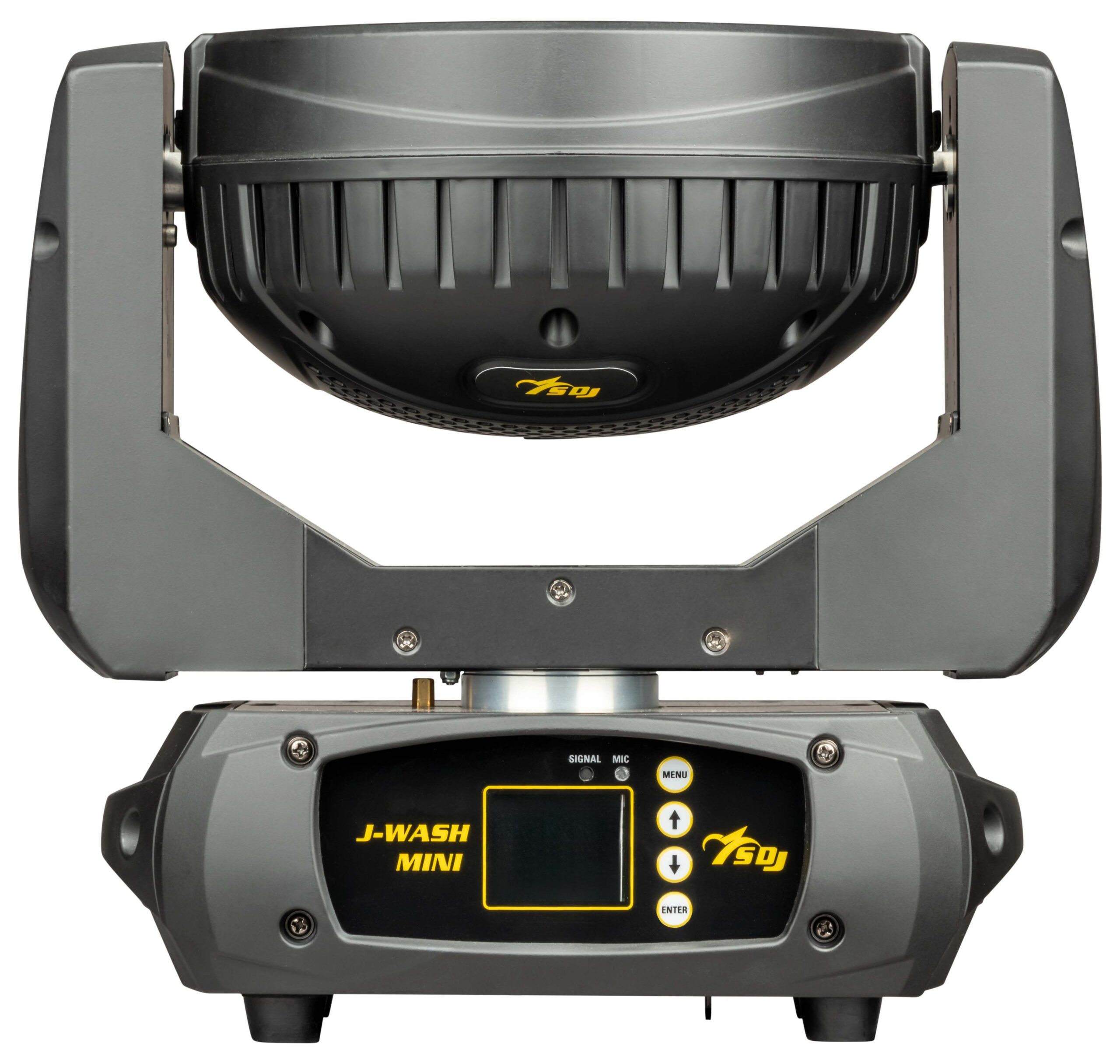

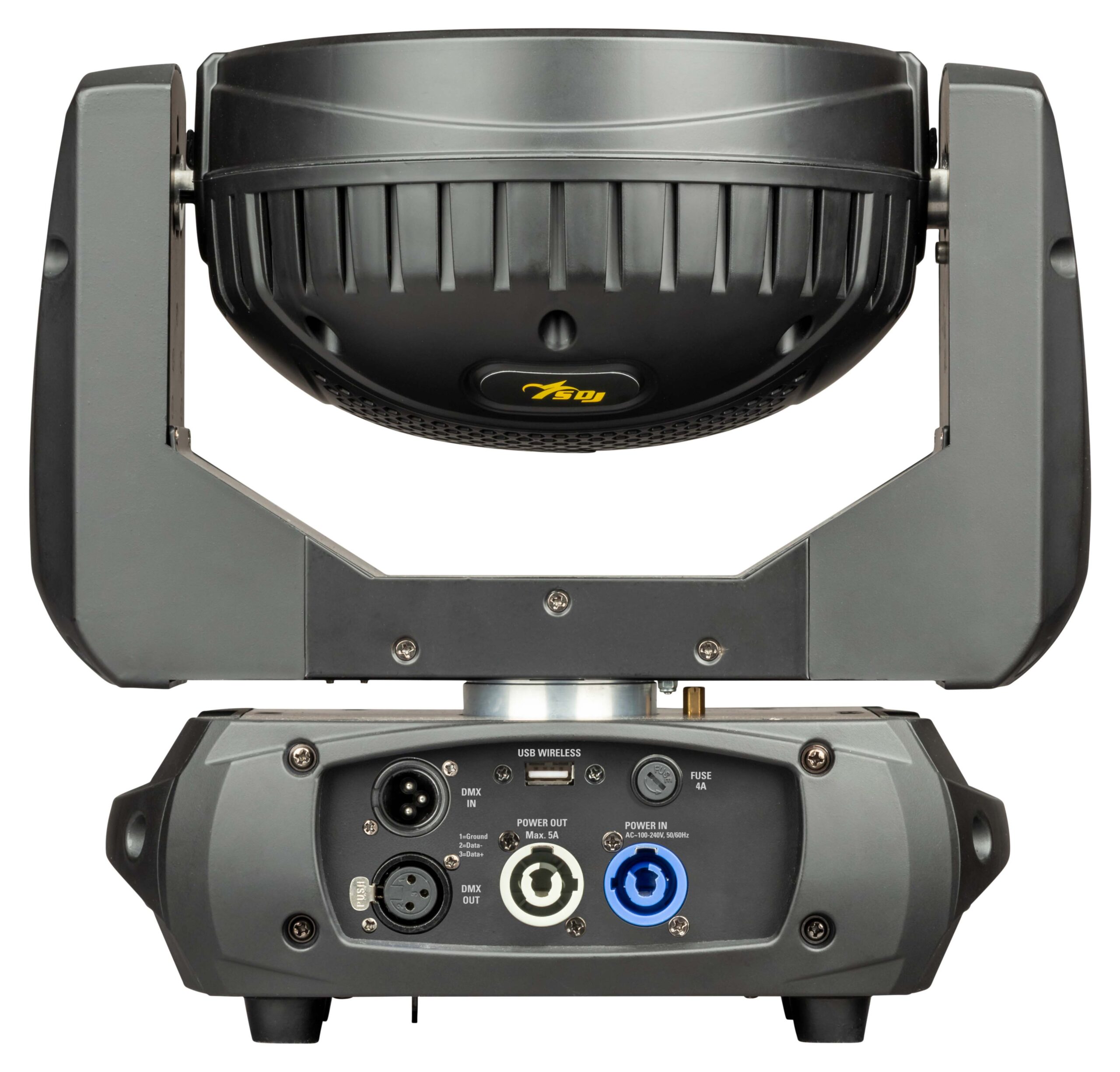

| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 1 pair of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 228W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Peso netto: 5 kg Dimensioni: 315X355X177 mm |
| Light source | 19x12W led RGBWA-UV Full Color LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |
| Optic system | Beam Angle: 26° Illuminance: 3100 lux @3m (full ON – 26°) |
| Color system | LED source RGBWA-UV Full color Virtual linear color wheel 2700°- 8000°K Infinite chromatic possibilities |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Control with 3 circular sectors Virtual color wheel with 12 colors White presets with 9 macros Virtual linear color wheel 2700° – 8000°K |
| Control and programming | 3 DMX configurations available: 13/15/17 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |
| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 1 pair of 1/4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 228W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Peso netto: 5 kg Dimensioni: 315X355X177 mm |
