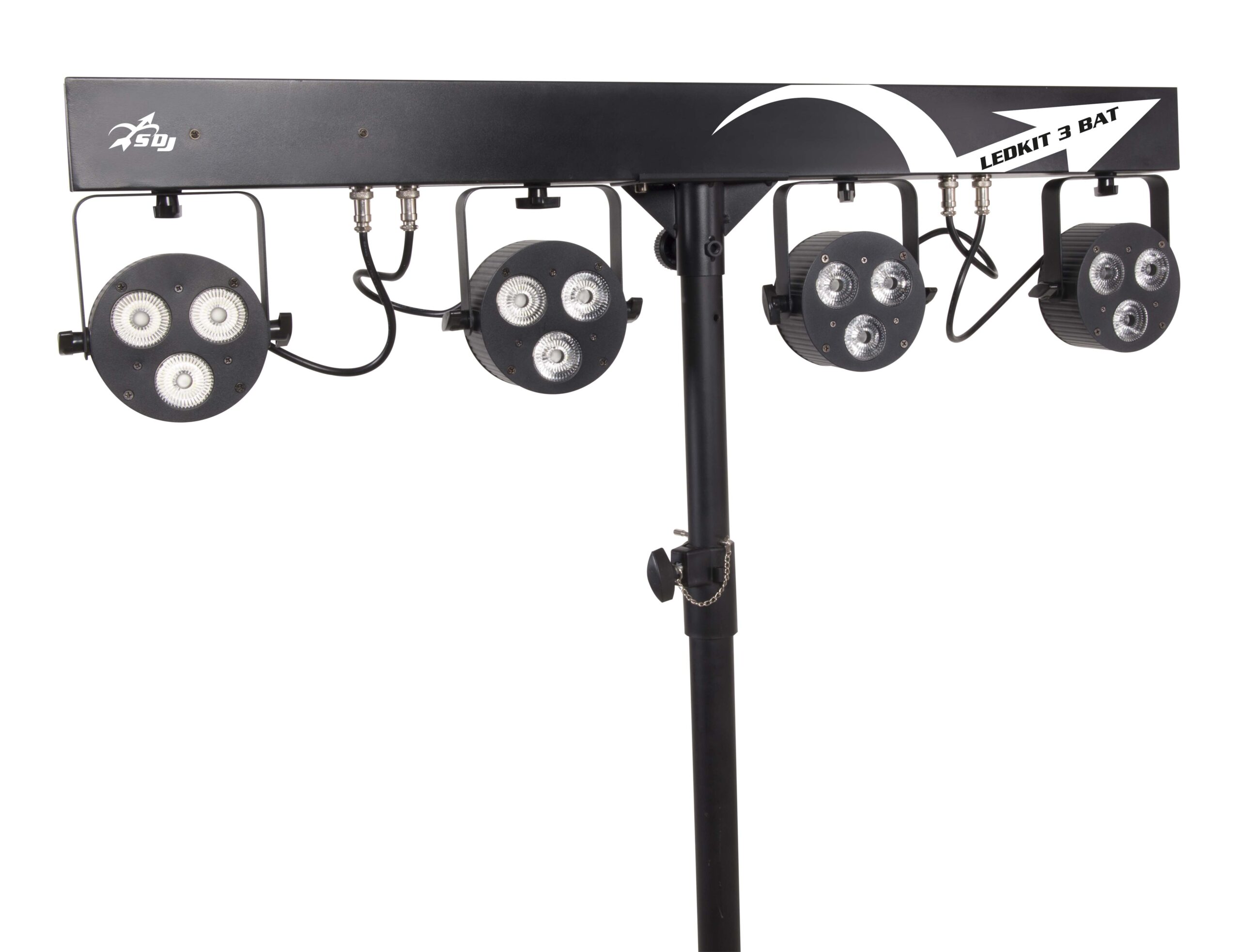

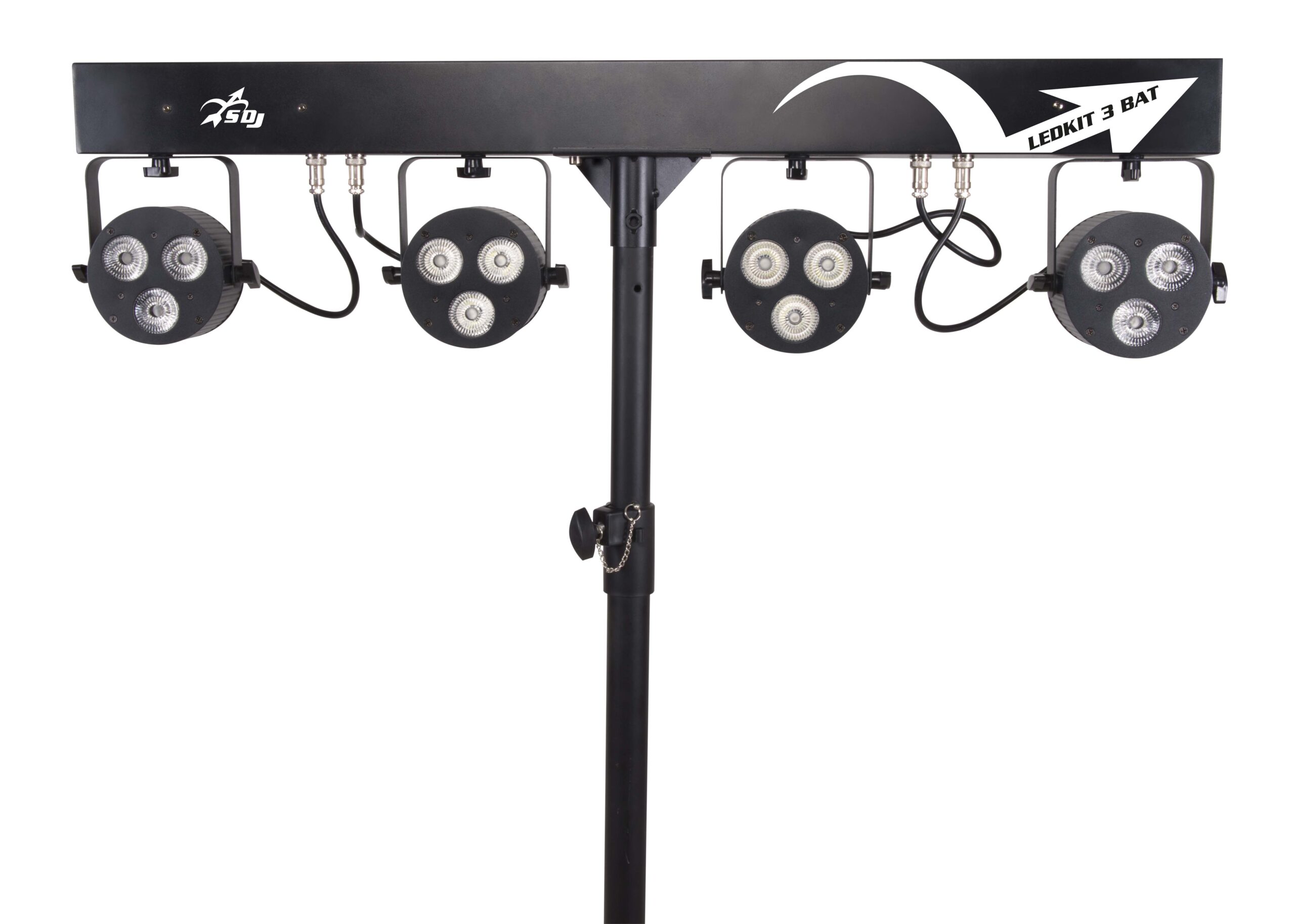

Led kit 4 projectors 3x6W led RGBW/FC

Led kit 4 projectors 3x6W led RGBW/FC

SG LEDKITHP3BAT

Technical Specifications

Light source

• Kit 4 projectors 3x6W led RGBW Full Color
• LED lifespan: > 50.000h

Optic system

• Beam Angle: 25°

Color system

• Led Source 4 in 1 RGBW Full Color
• Infinite chromatic possibilities

Effects

• Linear dimmer 0-100%
• Adjustable strobe effect
• Auto mode can be recalled by DMX

Control and programming

• 7 DMX configurations available: 4/5/6/9/10/16/20 channels
• Each projectopr can be controlled independently via DMX
• Protocol USITT DMX 512
• Master/Slave mode
• Sound mode with adjustable microphone sensitivity
• Automatic mode with 6 different programs selectable from the display or footswitch, with adjustment of the speed
• Color mode with 9 different pre-programmed color macros
• Wireless battery footswitch: Blackout, Sound, Auto, Freeze (included)

Structure and cabinet

• Black metal housing
• Red LED display
• Mounting points: double adjustable brackets
• “light up”positioning

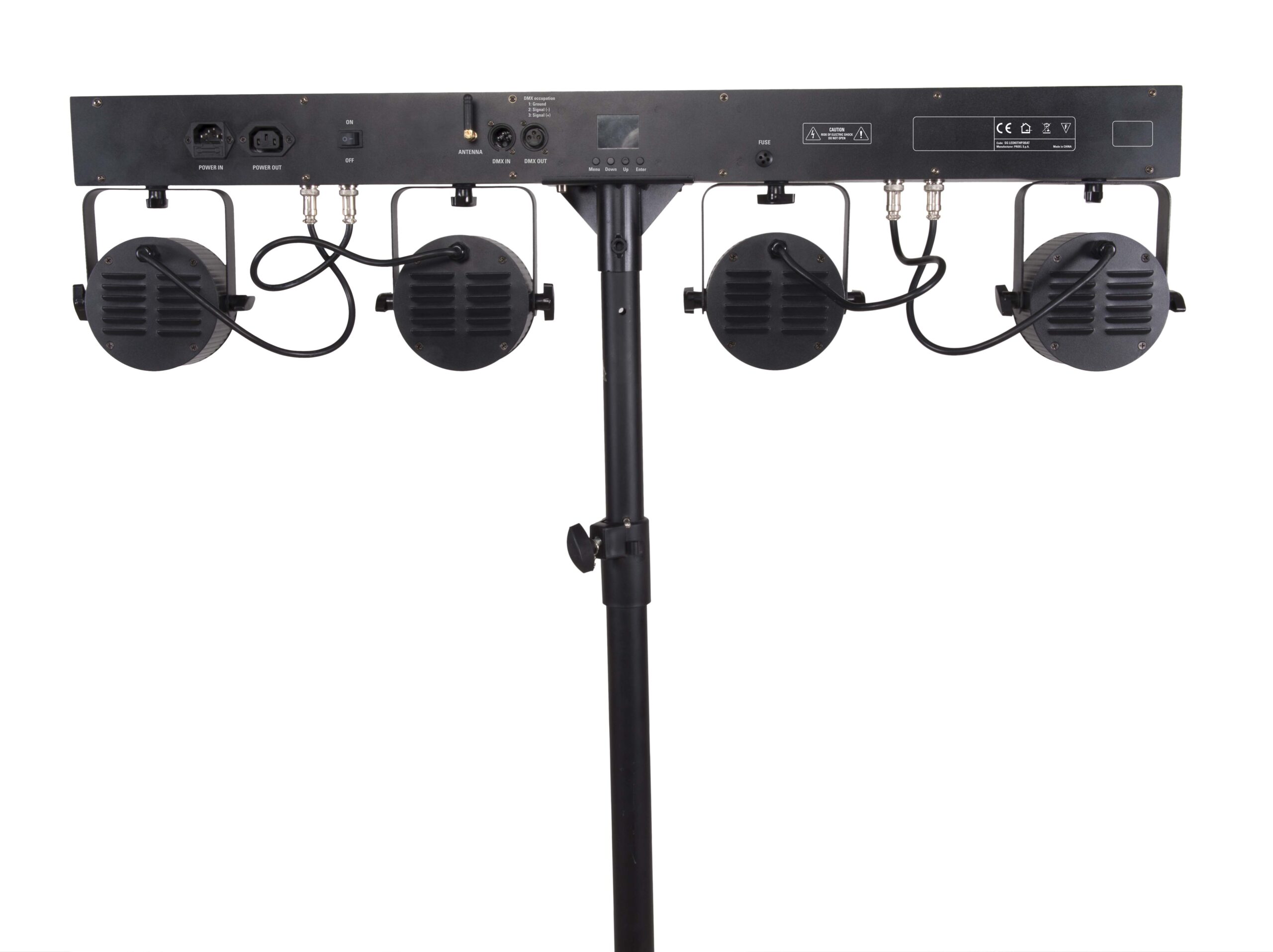

• XLR 3-poles DMX IN/OUT connection
• IP rating: IP20
• Stand max. H 2200
• Soft bag for bar for transport included

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Max power: 80W @ 230VAC
• Internal Li – ion rechargeable battery
• Runtime battery: ~ 8 hrs (full ON)
• Charging cycle: ~ 5 hrs (led blackout when charging)
• Power supply cable included

Weight and dimensions

• Bar net weight: 6,3 kg
• Stand net weight: 2,8 kg
• Bar Dimensions:: 950x90x230 mm
