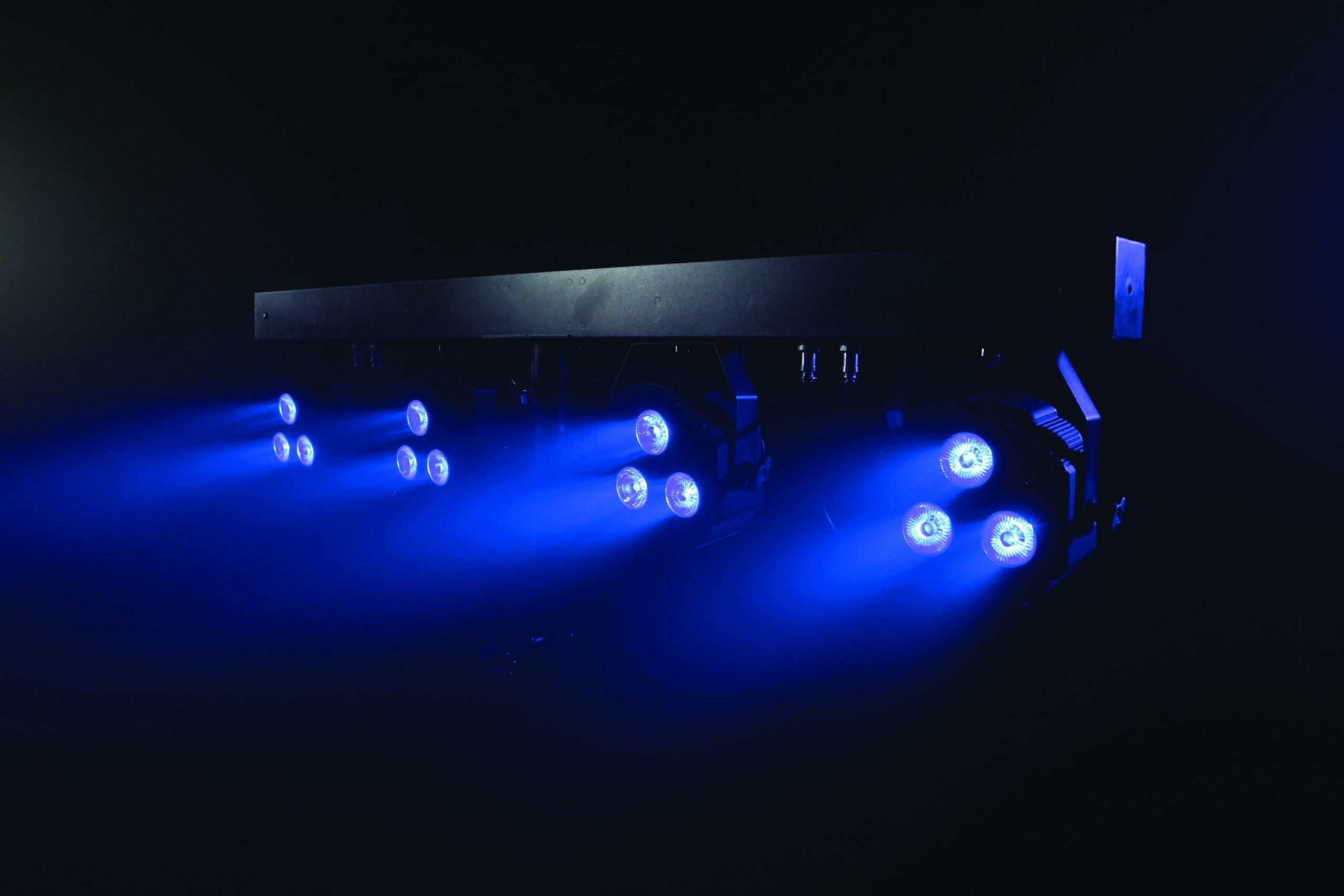

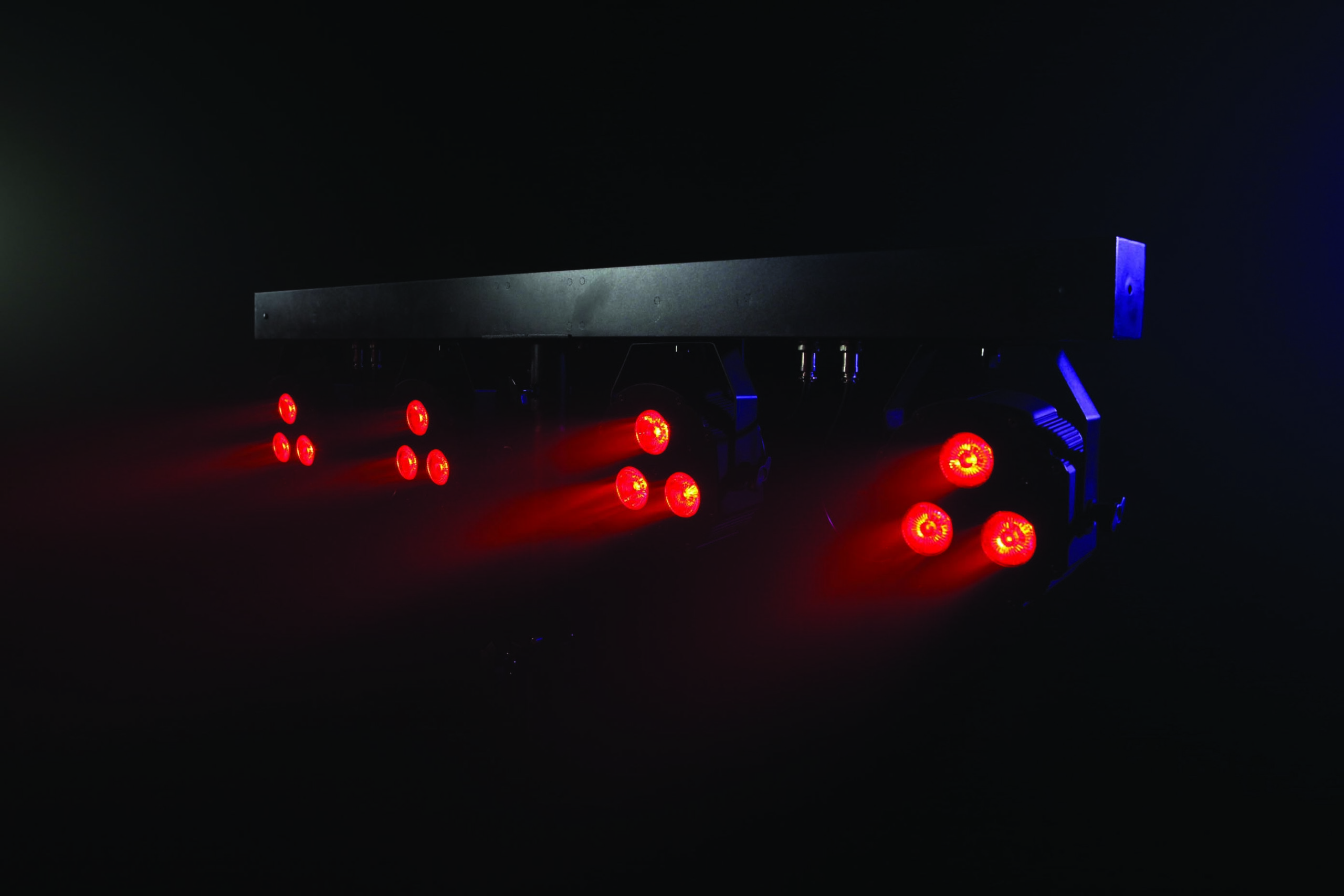

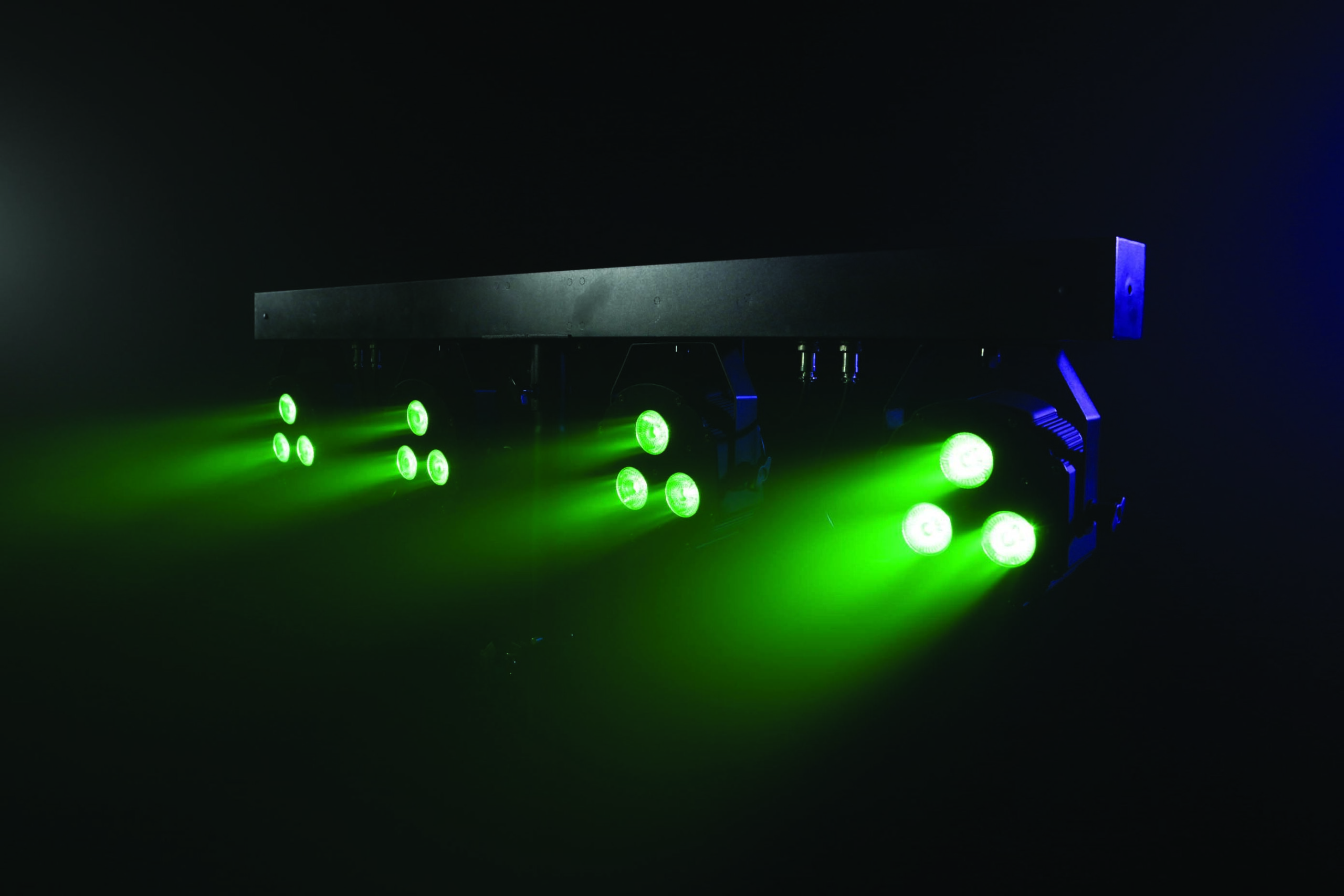

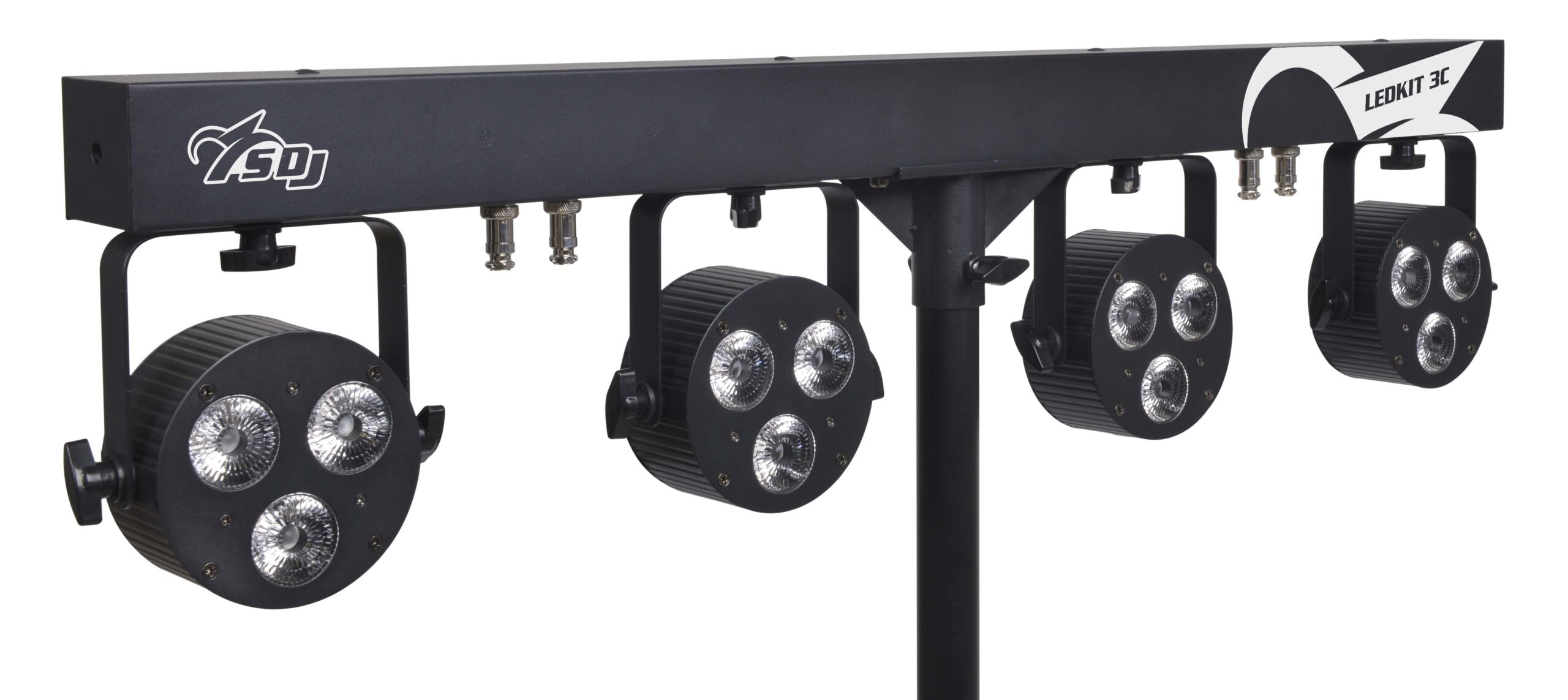

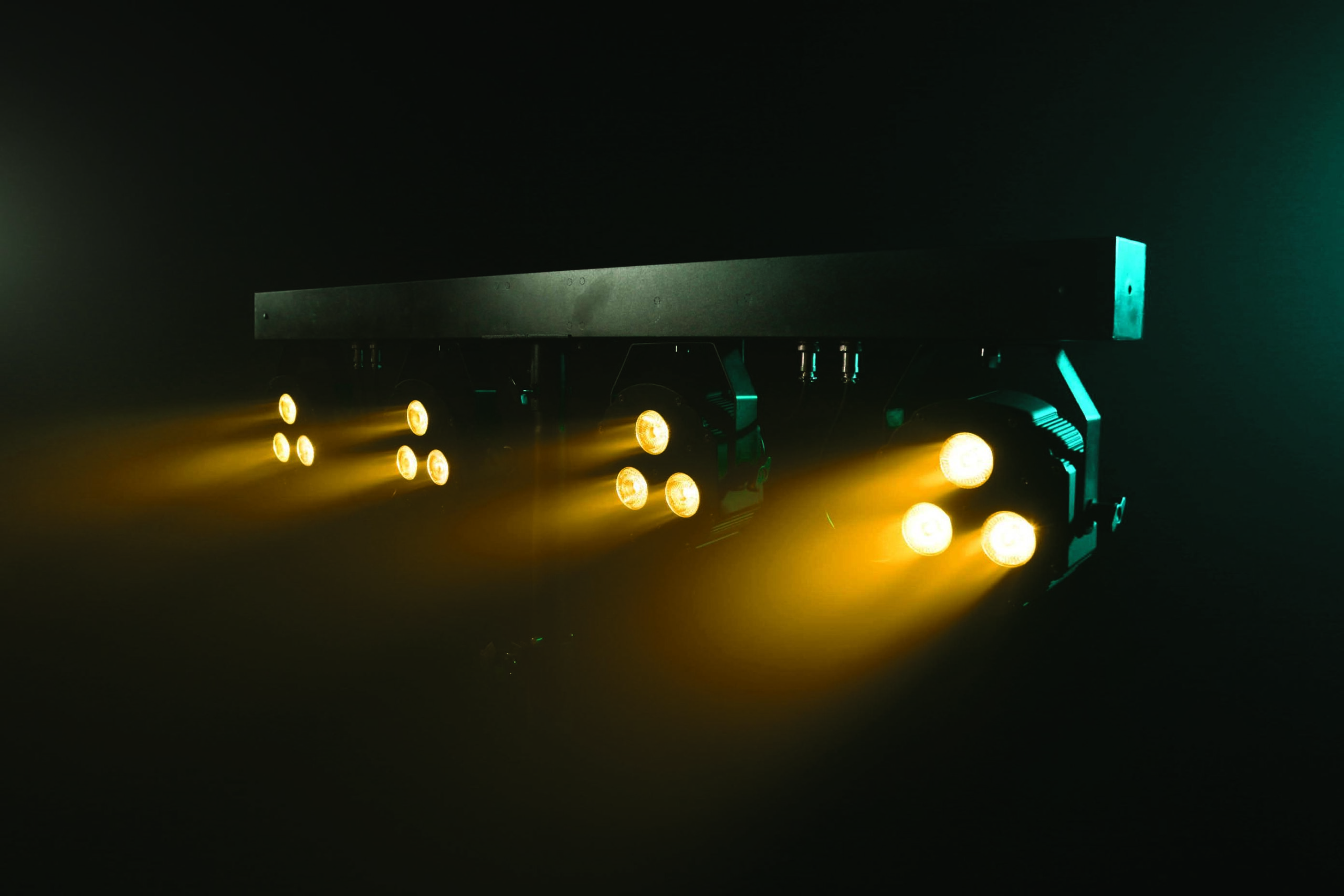

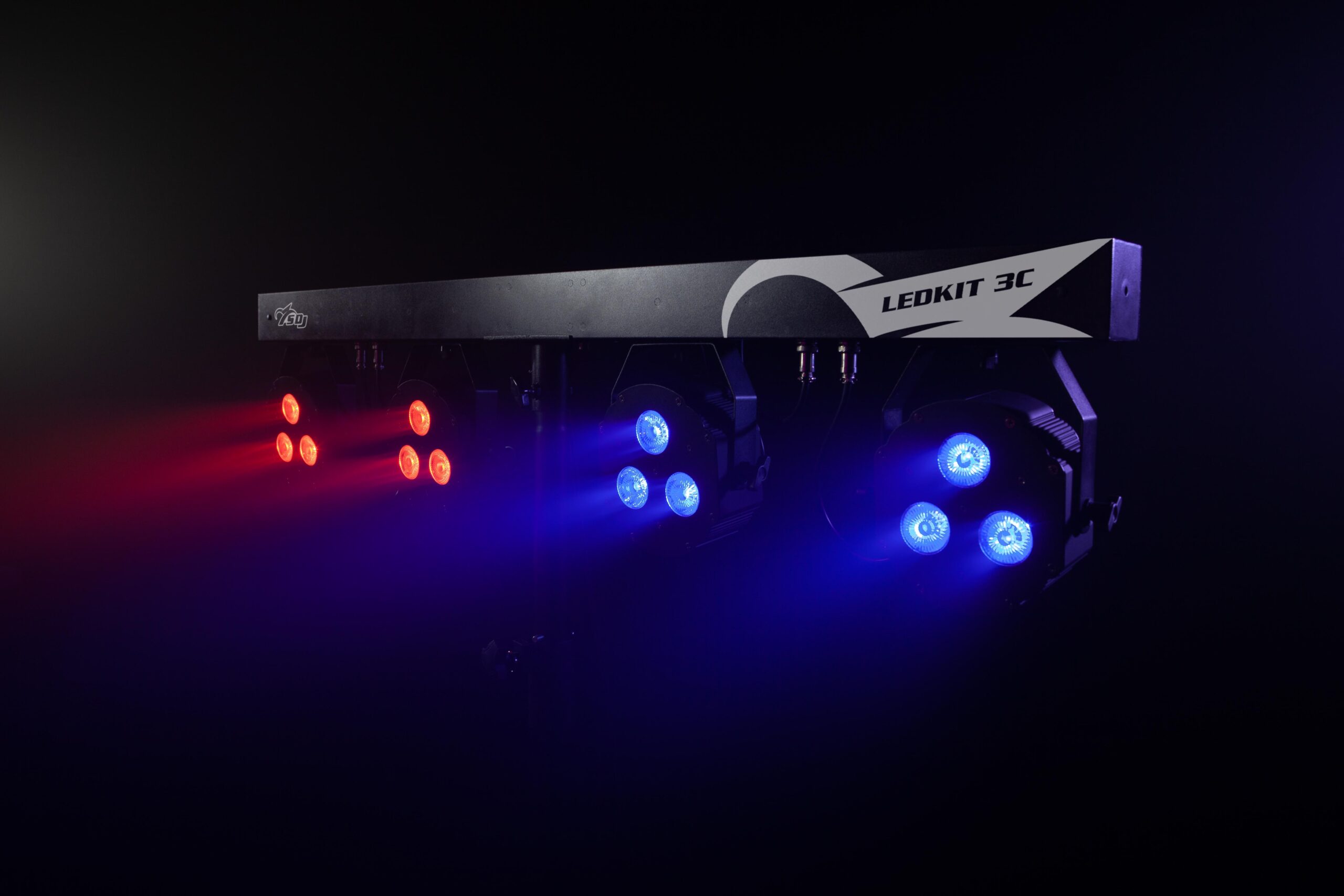

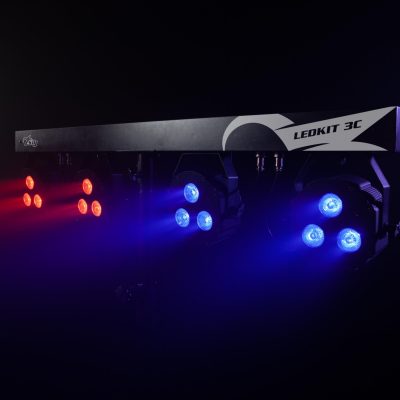

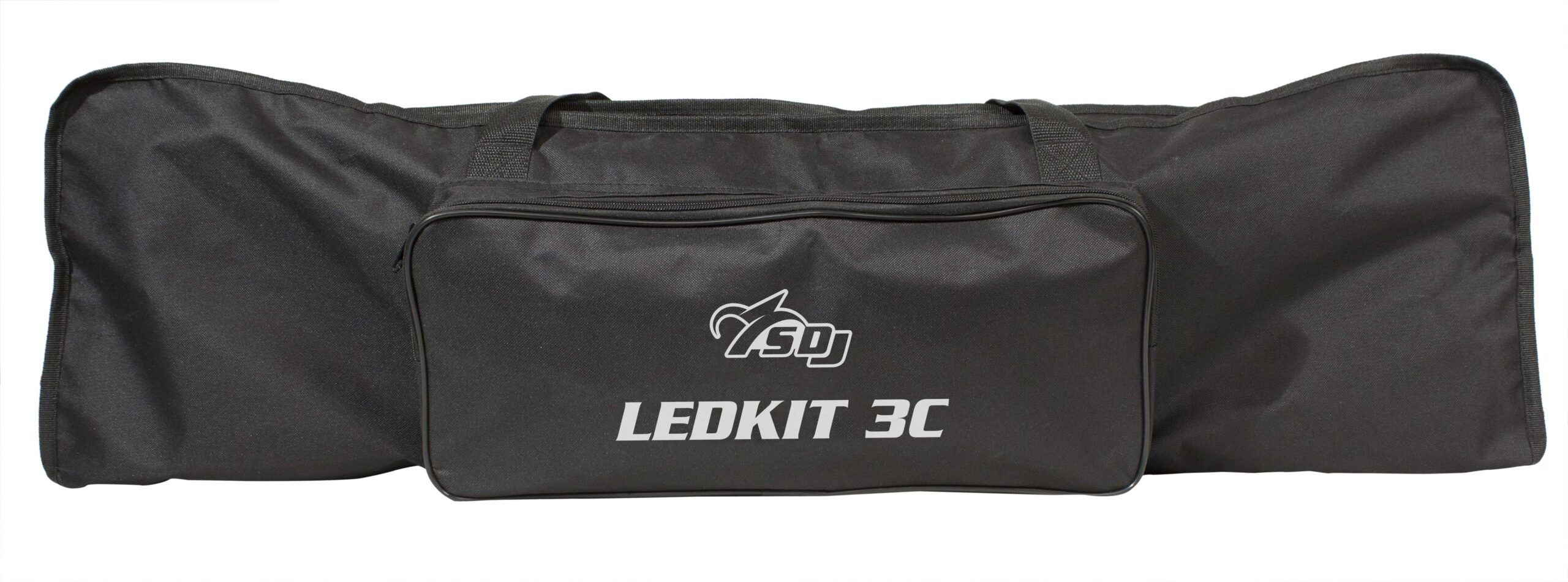

SDJ boasts one of the most extensive selections when it comes to ready to use “plug and play” LED systems. The LED Kit series consists of a portable colour changing LED set, suitable for any user, whether experienced or not. A handy stand with 3 feet (supplied) supports the light bar, a pedal assures easy control of the entire system and one handy bag (included) assure fast and secure transport of the light bar. The smallest one of the series, but no less effective, can count on 4 high power 6W LED sources with 4 in 1 RGBW full colour technology. The high power and the addition of white makes this kit unique for indoor entertainment. The light bar is also equipped with two adjustable side brackets for fastening to structures or in “light up” positions on the ground. For the most demanding users, a control has been added that operates via the DMX signal , to fully customise all the functions and performance of the entire system.

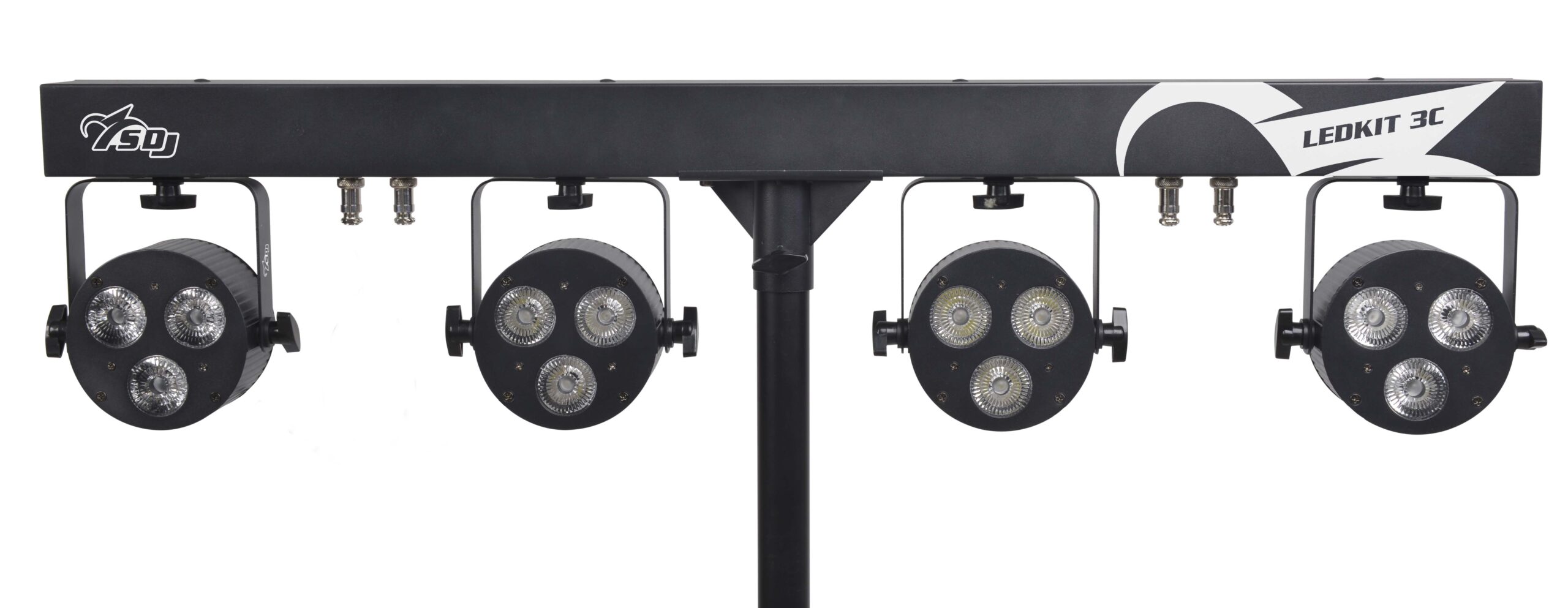

| Light source | Kit 4 projectors 3x10W led RGBW Full Color LED lifespan: > 50.000h |
| Optic system | Beam Angle: 25° |
| Color system | Led Source 4 in 1 RGBW Full Color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Auto mode can be recalled by DMX |

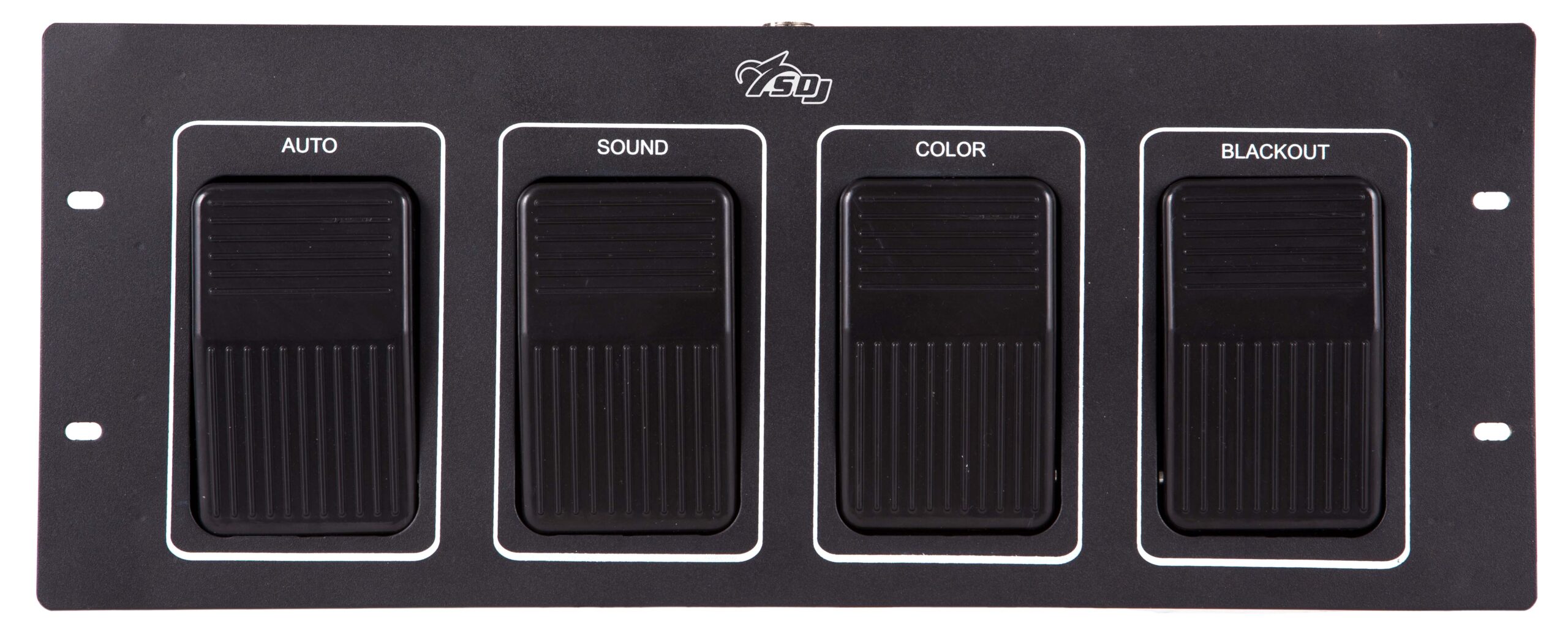

| Control and programming | 5 DMX configurations available: 4/6/10/16/18 channels Each projectopr can be controlled independently via DMX Protocol USITT DMX 512 Master/Slave mode Sound mode with adjustable microphone sensitivity Automatic mode with 6 different programs selectable from the display or footswitch, with adjustment of the speed Color mode with 9 different pre-programmed color macros Footswitch control included: Blackout, Sound, Auto, Freeze |

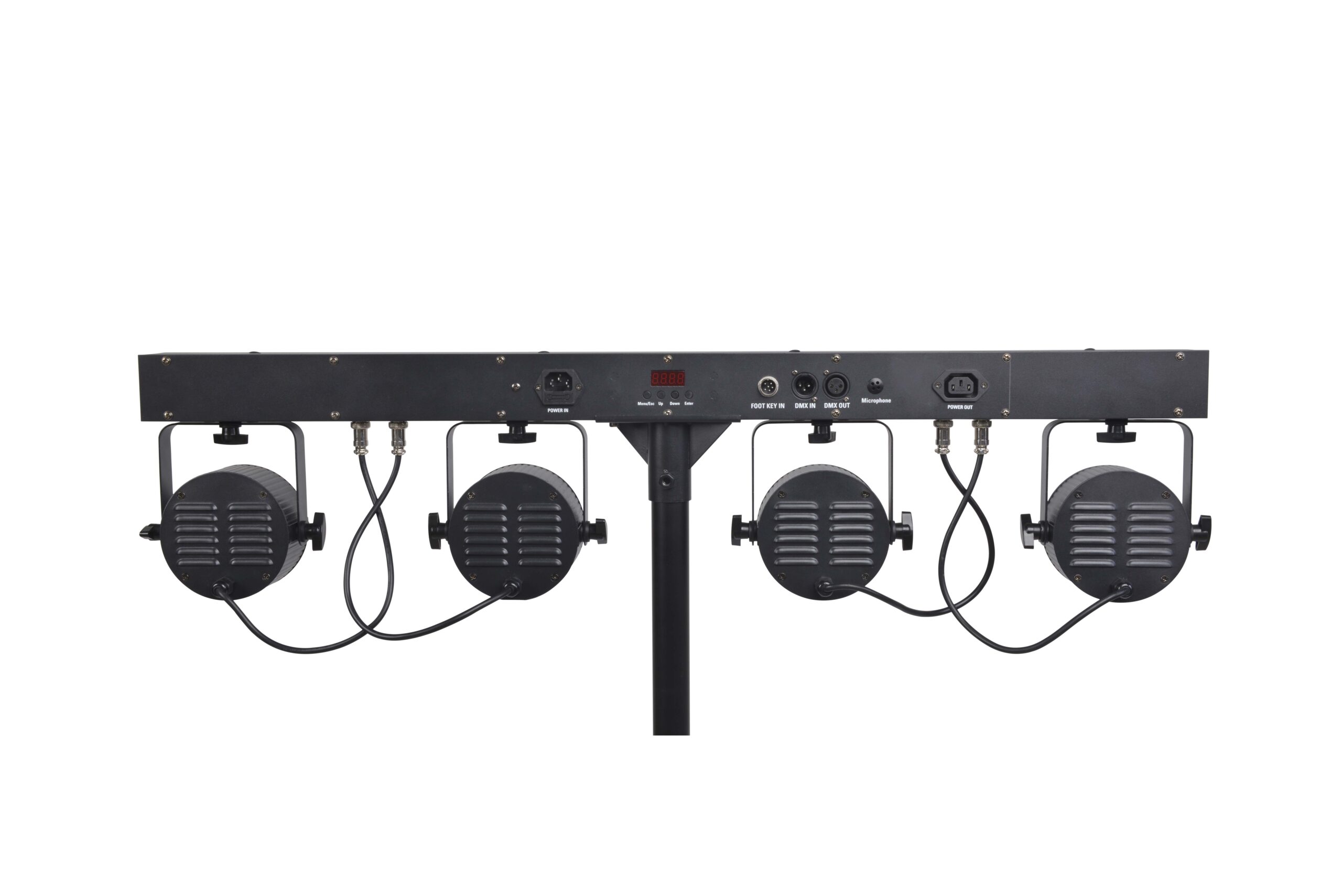

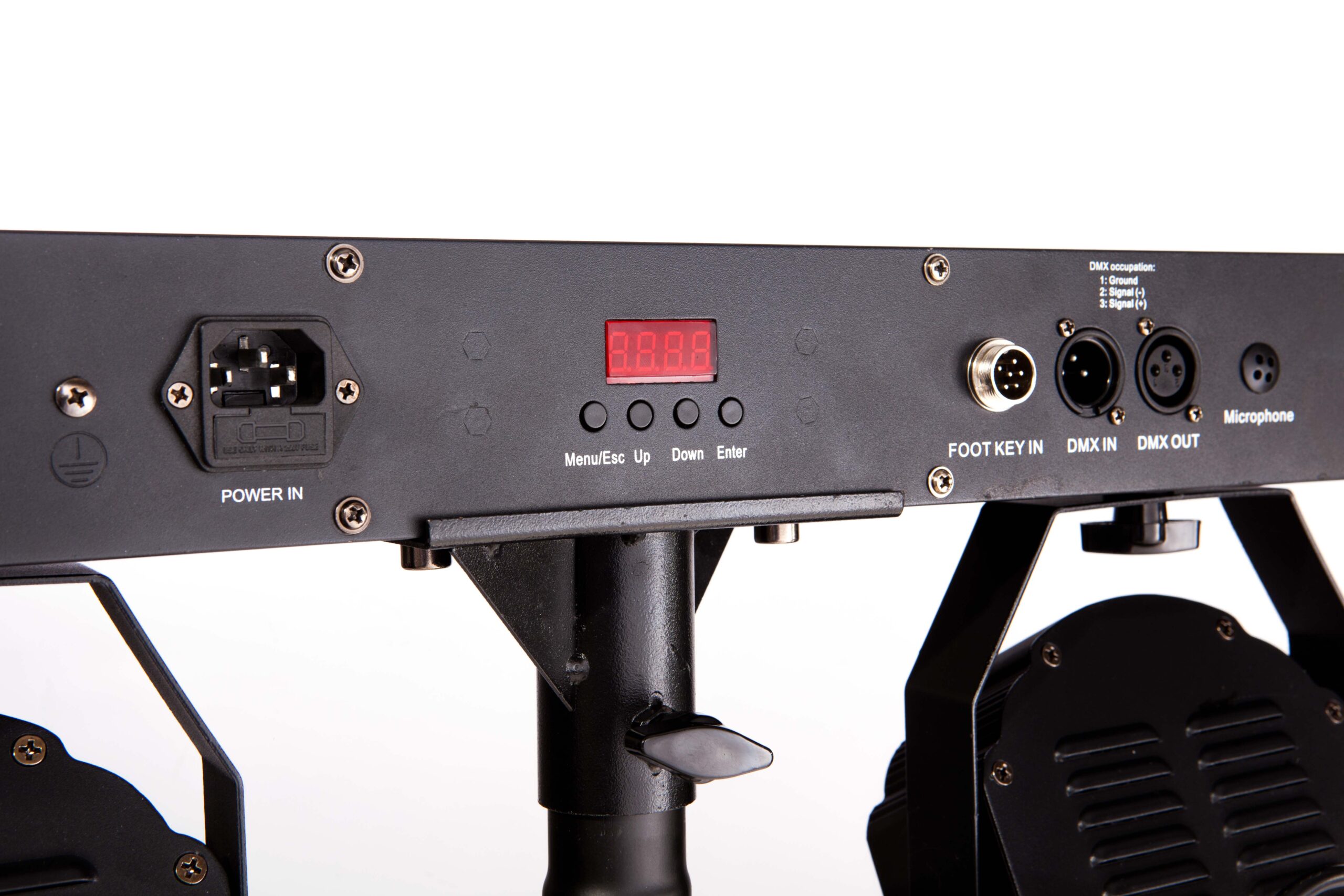

| Structure and cabinet | Black metal housing Red LED display Mounting points: double adjustable brackets “light up”positioning XLR 3-poles DMX IN/OUT connection IP rating: IP20 Stand max. H 2200 Soft bag for bar for transport included |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Power consumption: 80W Power supply cable included |
| Weight and dimensions | Bar net weight: 5,8 kg Stand net weight: 2,8 kg Bar dimensions 950x90x230 mm |
