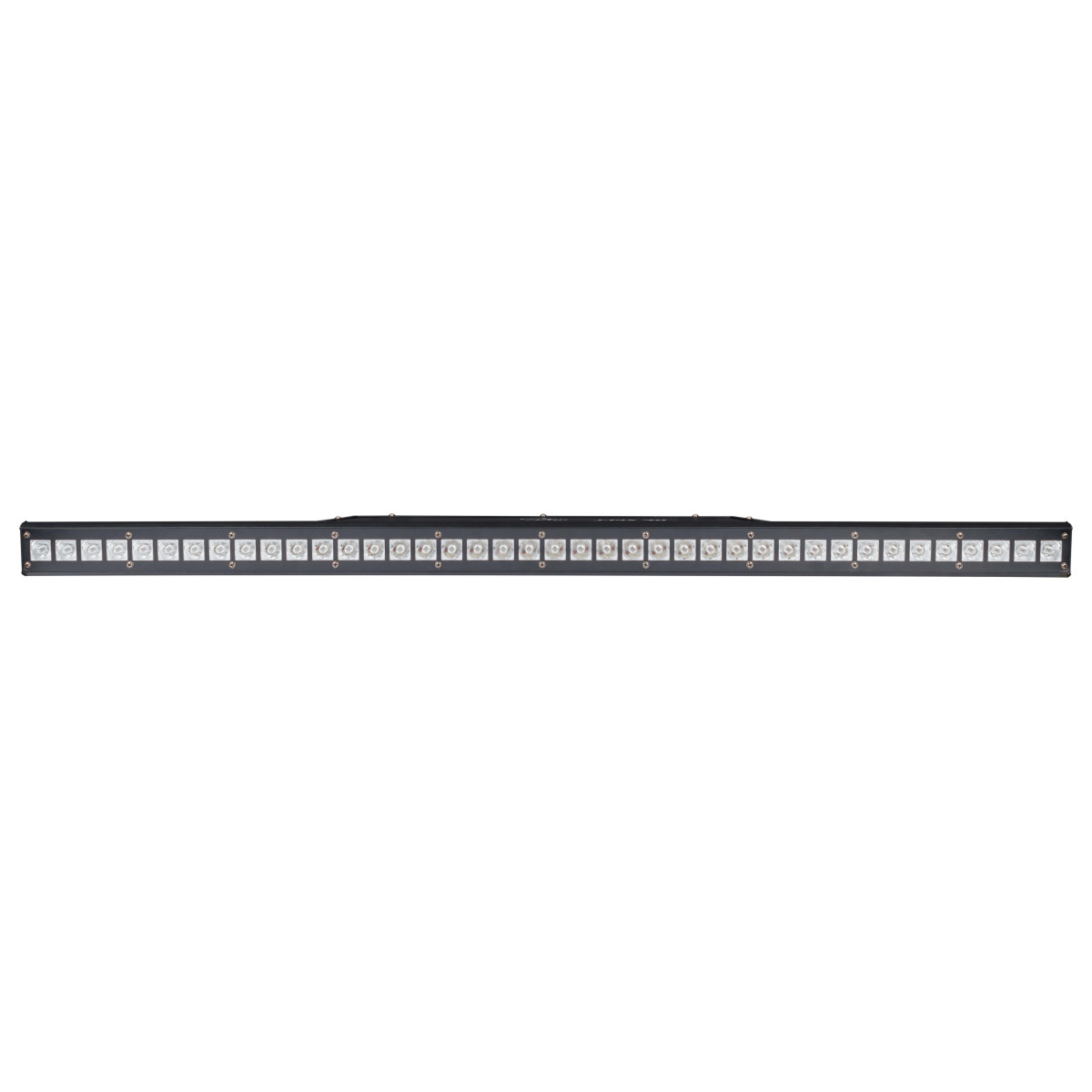

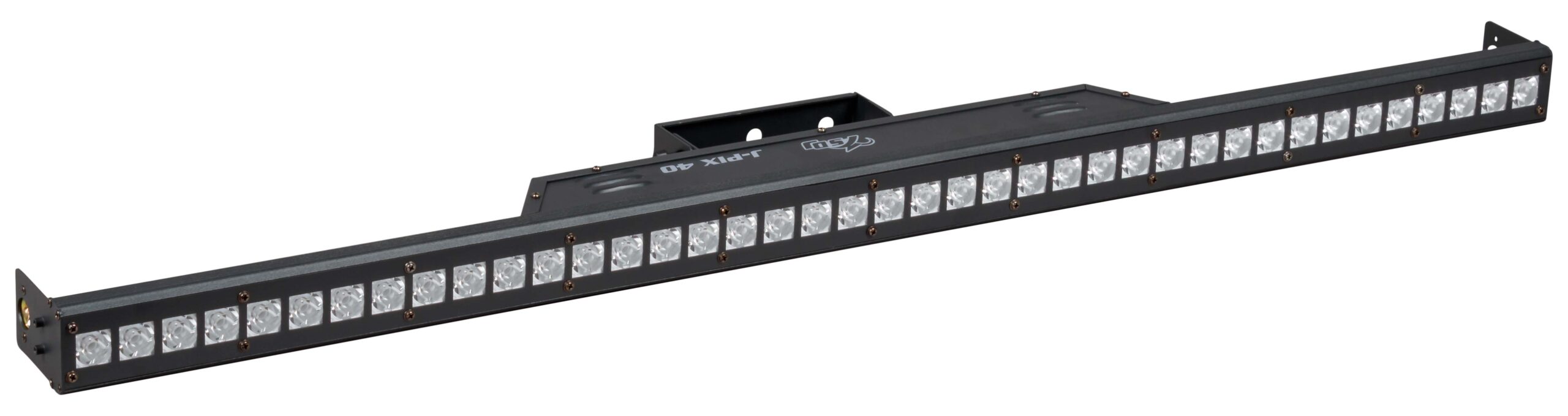

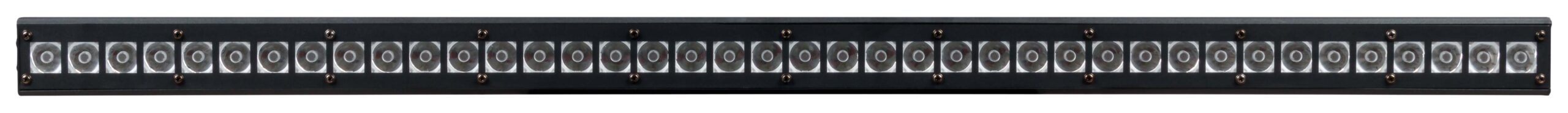

| Light source | 40x3W led RGB Full Color LED lifespan: > 50.000h LED refresh frequency: > from 600 Hz to 15 KHz flicker-free |
| Optic system | Beam Angle: 8° |
| Color system | LED source RGB Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Pixel control |
| Control and programming | 13 DMX configurations available: 3/4/6/7/8/12/13/24/25/60/61/120/121 channels Protocol USITT DMX 512 Master/Slave mode Static Color mode Auto mode with 45 programs selectable from the display, with speed adjustment Auto mode with 23 programs selectable from the display, with color settings |

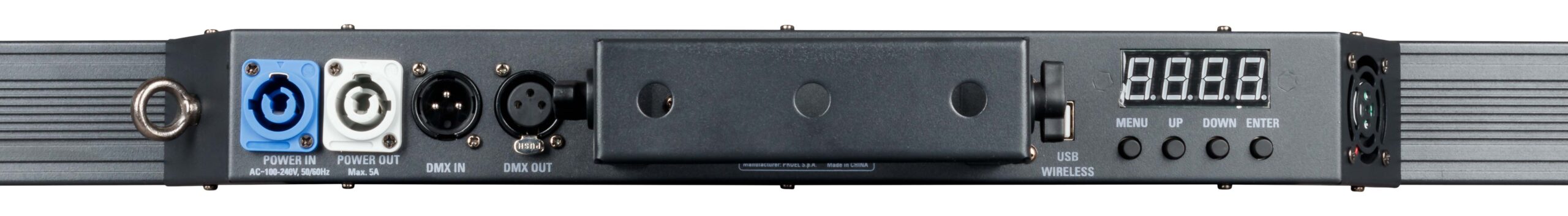

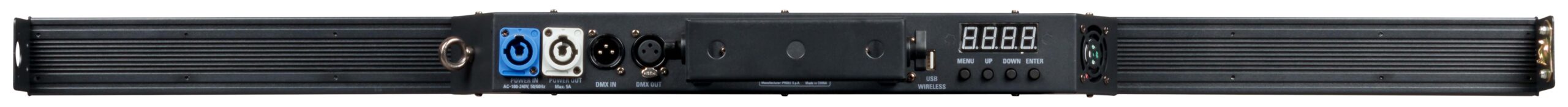

| Structure and cabinet | Aluminum housing, black color Red LED display IP20 rating DMX 3-poles XLR IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) Forced air fan cooling system |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 100W @ 230VAC Power Out Max 5A Powercon Connectors IN/OUT |
| Weight and dimensions | Net weight: 2 kg Dimensions: 1030x54x134(h) mm |
| Light source | 40x3W led RGB Full Color LED lifespan: > 50.000h LED refresh frequency: > from 600 Hz to 15 KHz flicker-free |
| Optic system | Beam Angle: 8° |
| Color system | LED source RGB Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Pixel control |
| Control and programming | 13 DMX configurations available: 3/4/6/7/8/12/13/24/25/60/61/120/121 channels Protocol USITT DMX 512 Master/Slave mode Static Color mode Auto mode with 45 programs selectable from the display, with speed adjustment Auto mode with 23 programs selectable from the display, with color settings |
| Structure and cabinet | Aluminum housing, black color Red LED display IP20 rating DMX 3-poles XLR IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) Forced air fan cooling system |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 100W @ 230VAC Power Out Max 5A Powercon Connectors IN/OUT |
| Weight and dimensions | Net weight: 2 kg Dimensions: 1030x54x134(h) mm |
