QPix Bar 100 cm V2
Menu

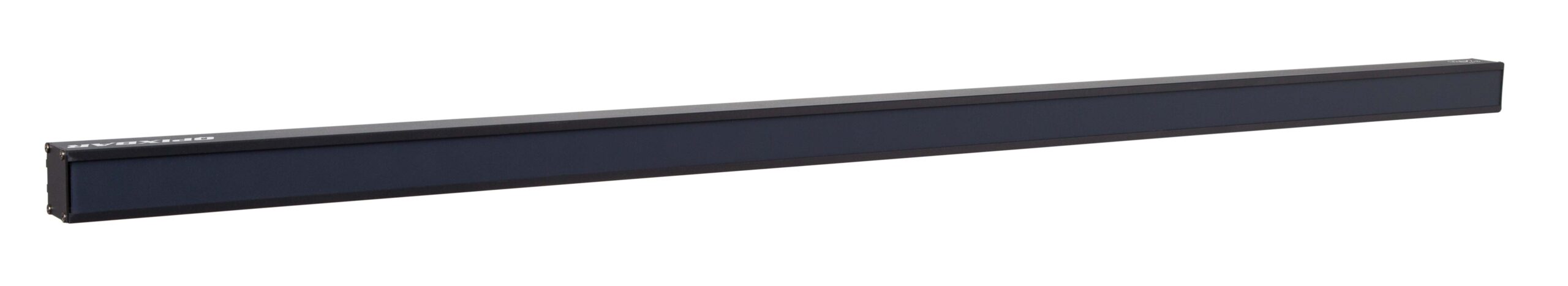

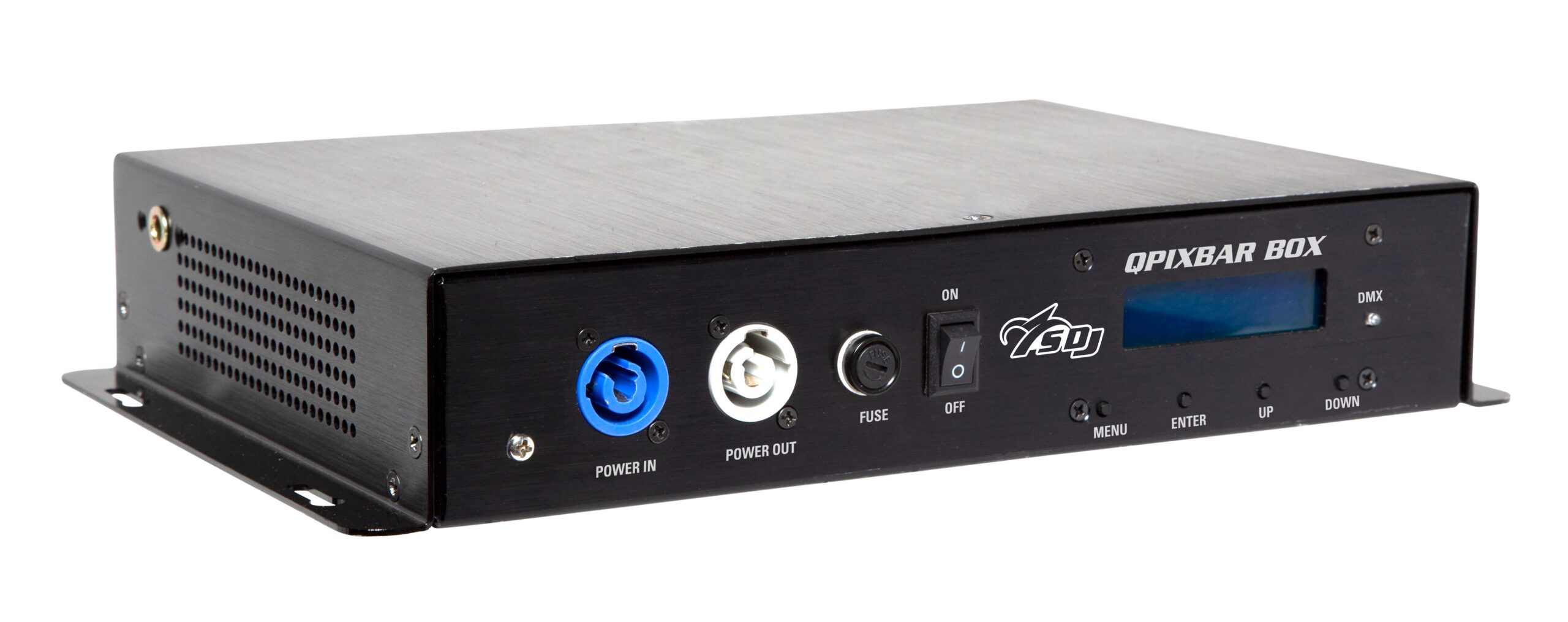

QPix Bar is the linear element, its numerous connection accessories make it suitable for developing shapes of any kind and size. Its robust and light frame made entirely of black aluminum has been designed to offer maximum camouflage in the dark. The special “flat smoked diffuser” with which the bar is equipped increases the contrast making the light effects generated by the 40 powerful LED sources clearer and more visible. The whole system has been designed for maximum ease of use. The setting and control is entrusted to the “QPix Bar control box” which allows you to drive a maximum of 16 bars offering two possibilities of control, DMX and ARTNet, protocol already on board the box.
| Light source | 40 SMD5050 led RGB high efficiency (for each QPix Bar) Led refresh frequency >400Hz flicker free |
| Optic system | Viewing angle 120° x 120° Flat smoked diffuser (flat white diffuser included) Pitch 25 mm |
| Color system | RGB led source |
| Effects | Control pixel to pixel Linear dimmer Electronic strobe Color macro and pixel macro can be recalled by DMX |
| Control and programming | 5 different DMX configuration available 7/16/48/82/480 Artnet configuration available 4×480 Proprietary control signal between QPix Bar DMX/Artnet control by QPix Bar BOX (sold separately) Signal cable CAT 6 UTP AVG24 Each QPix Bar Box control 16 pcs of QPix Bar divided into 4 outputs Master/Slave mode |

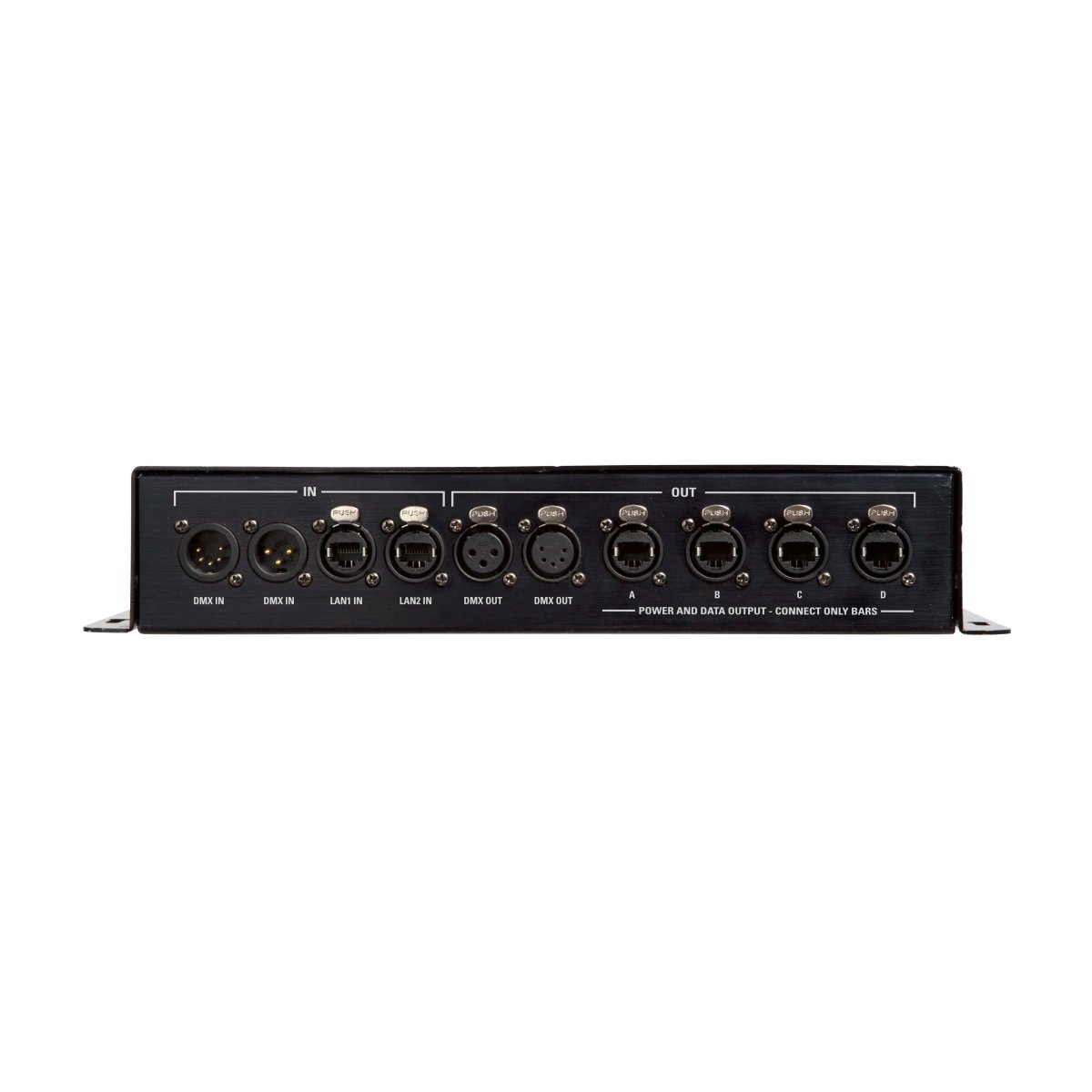

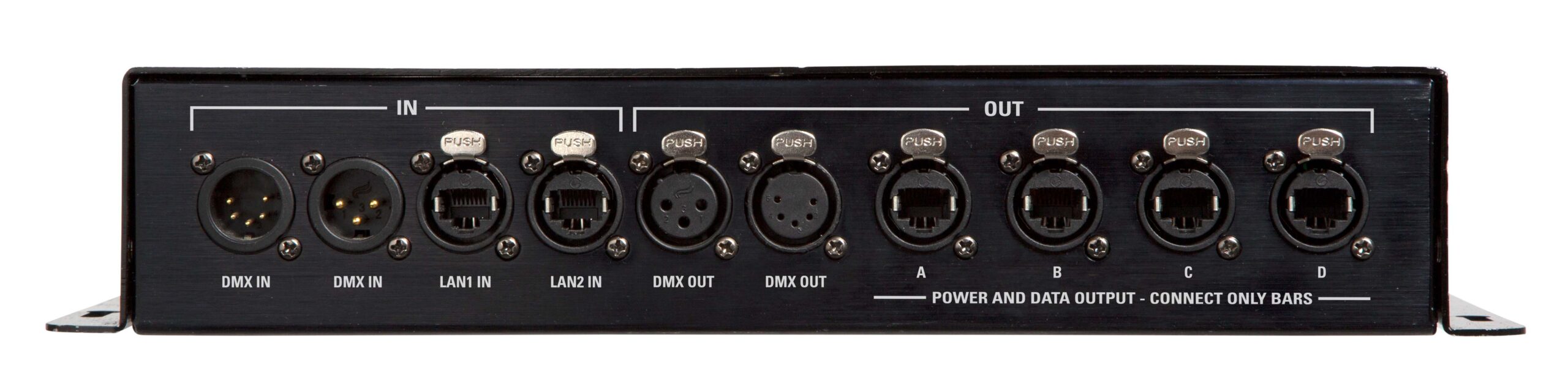

| Structure and cabinet | Diecast aluminium housing black color Mounting points: single metal braket for suspension 1 linear connection KIT (included) 3 different connection KIT multi ways (sold separately) RJ45 IN/OUT connections on the QPix Bar 3/5 poles XLR IN/OUT on the QPix Bar BOX RJ45 EtherCON data connectors IN/OUT on the QPix Bar BOX 4 outputs RJ45 EtherCON connections on the QPix Bar BOX IP rating 20 |

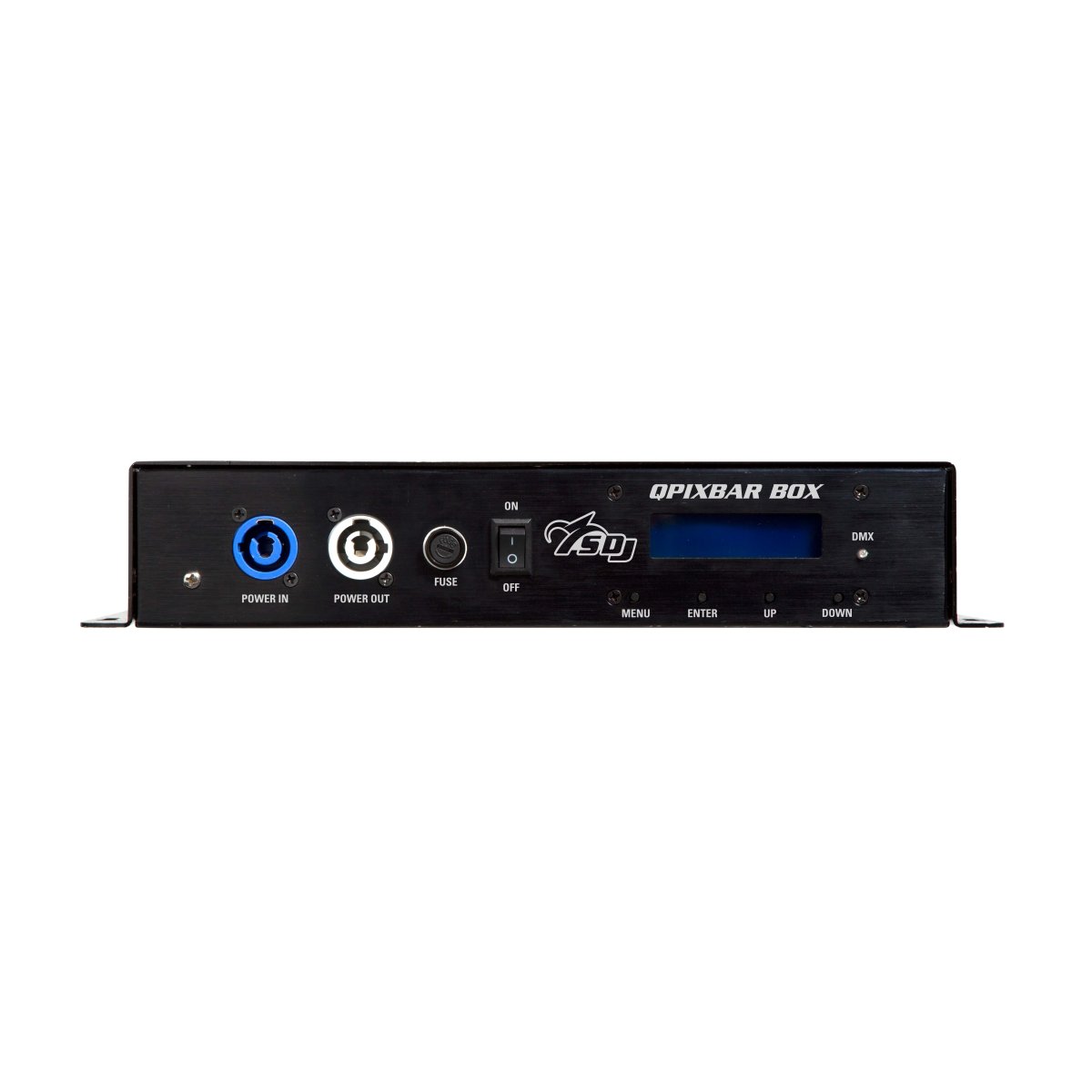

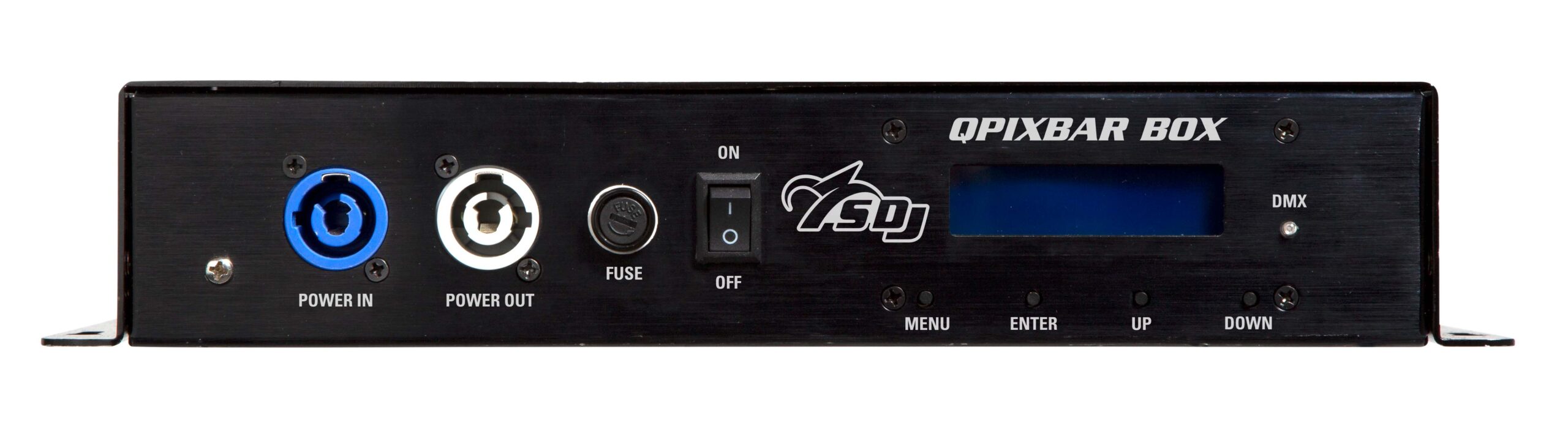

| Power supply | QPix Bar is powered by QPix Bar BOX Maximum power 400W for the QPix Bar BOX (full power maximum 16 led bar) IN/OUT power connection with PowerCON on the QPix Bar Box |
| Weight and dimensions | QPix Bar weight: 1,2kg QPix Bar BOX: 4kg QPix Bar sizes: 100x40x95 mm QPix Bar BOX sizes: 290x205x85 mm |
QPix Bar is the linear element, its numerous connection accessories make it suitable for developing shapes of any kind and size. Its robust and light frame made entirely of black aluminum has been designed to offer maximum camouflage in the dark. The special “flat smoked diffuser” with which the bar is equipped increases the contrast making the light effects generated by the 40 powerful LED sources clearer and more visible. The whole system has been designed for maximum ease of use. The setting and control is entrusted to the “QPix Bar control box” which allows you to drive a maximum of 16 bars offering two possibilities of control, DMX and ARTNet, protocol already on board the box.
| Light source | 40 SMD5050 led RGB high efficiency (for each QPix Bar) Led refresh frequency >400Hz flicker free |
| Optic system | Viewing angle 120° x 120° Flat smoked diffuser (flat white diffuser included) Pitch 25 mm |
| Color system | RGB led source |
| Effects | Control pixel to pixel Linear dimmer Electronic strobe Color macro and pixel macro can be recalled by DMX |
| Control and programming | 5 different DMX configuration available 7/16/48/82/480 Artnet configuration available 4×480 Proprietary control signal between QPix Bar DMX/Artnet control by QPix Bar BOX (sold separately) Signal cable CAT 6 UTP AVG24 Each QPix Bar Box control 16 pcs of QPix Bar divided into 4 outputs Master/Slave mode |
| Structure and cabinet | Diecast aluminium housing black color Mounting points: single metal braket for suspension 1 linear connection KIT (included) 3 different connection KIT multi ways (sold separately) RJ45 IN/OUT connections on the QPix Bar 3/5 poles XLR IN/OUT on the QPix Bar BOX RJ45 EtherCON data connectors IN/OUT on the QPix Bar BOX 4 outputs RJ45 EtherCON connections on the QPix Bar BOX IP rating 20 |
| Power supply | QPix Bar is powered by QPix Bar BOX Maximum power 400W for the QPix Bar BOX (full power maximum 16 led bar) IN/OUT power connection with PowerCON on the QPix Bar Box |
| Weight and dimensions | QPix Bar weight: 1,2kg QPix Bar BOX: 4kg QPix Bar sizes: 100x40x95 mm QPix Bar BOX sizes: 290x205x85 mm |
