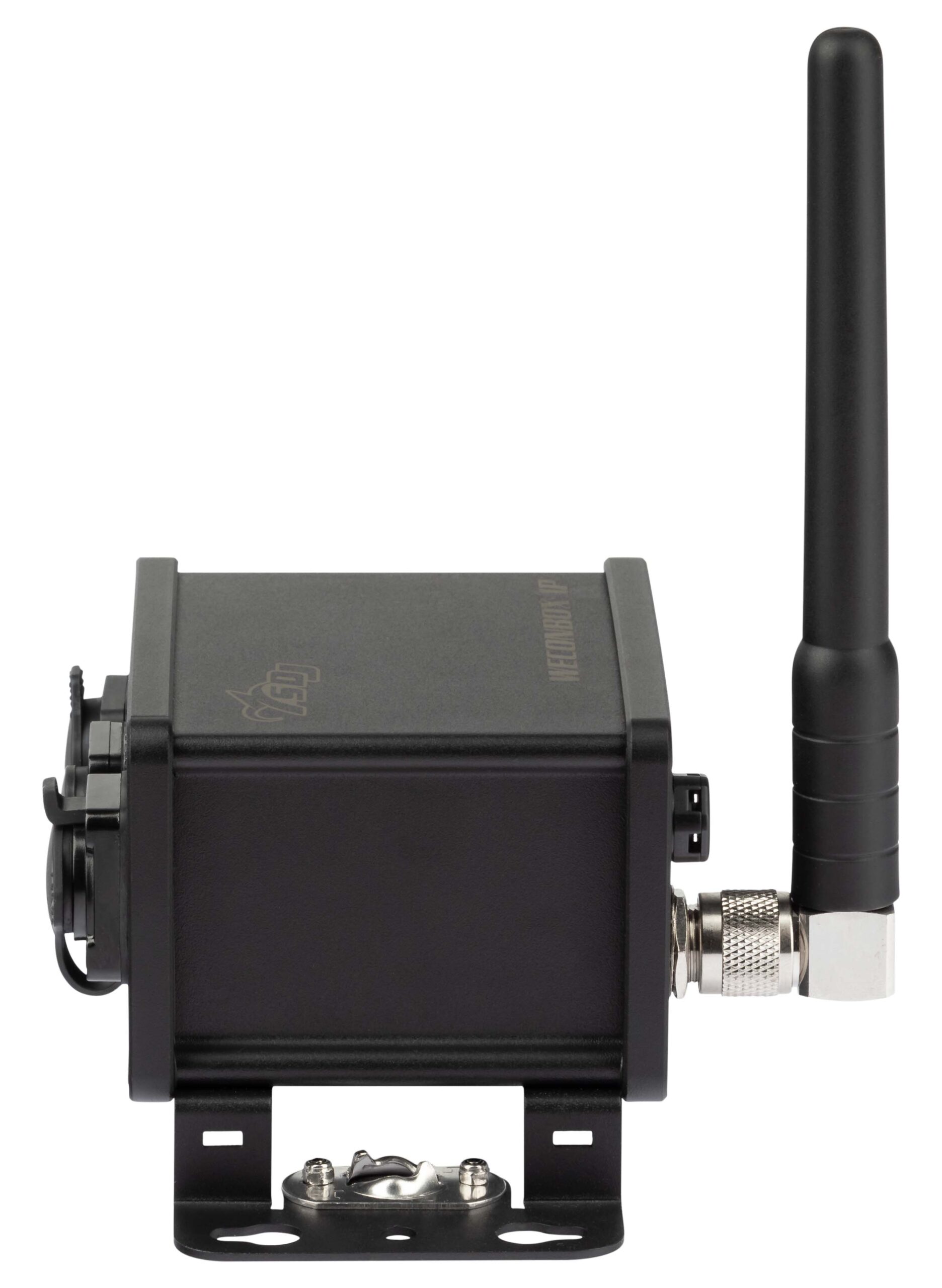

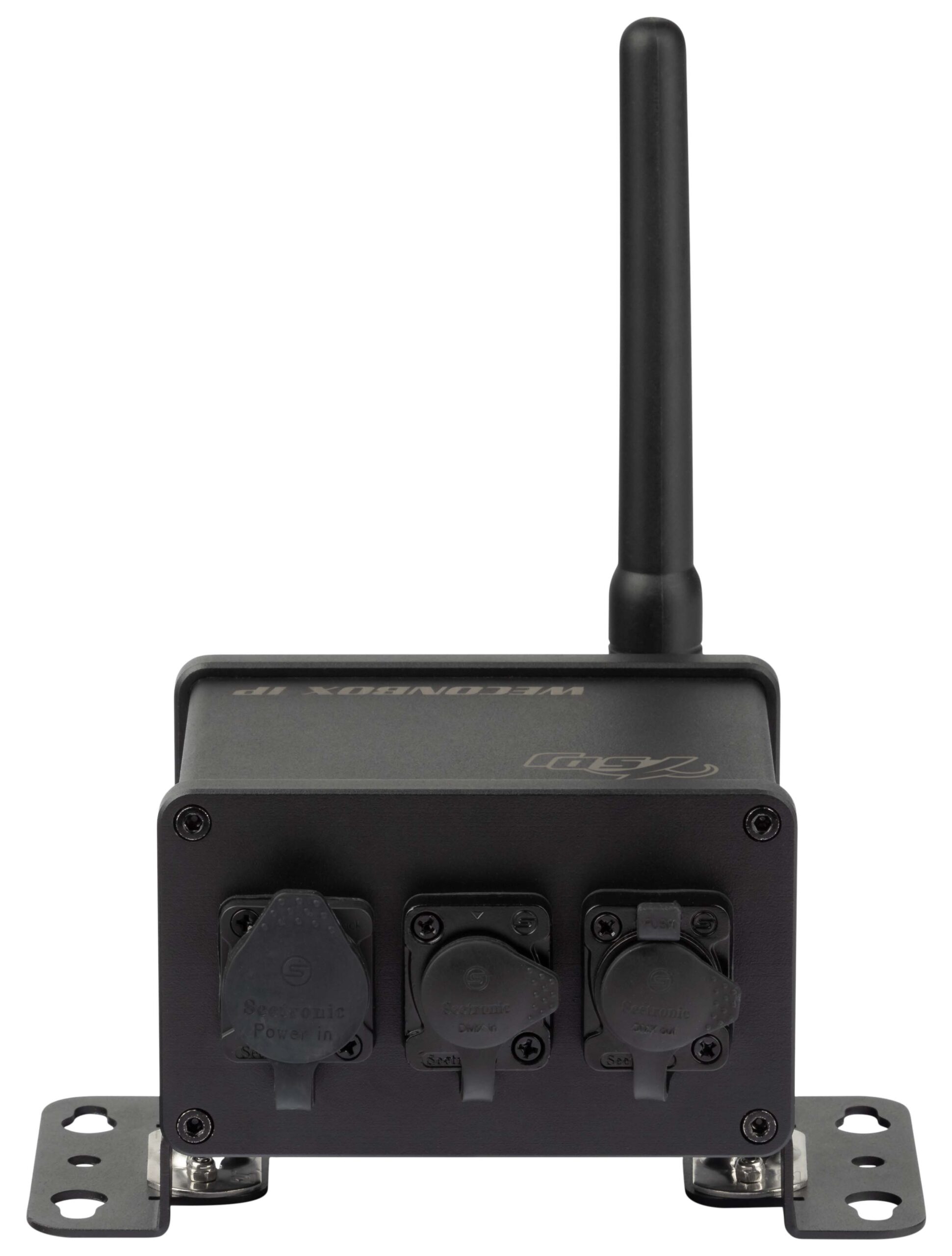

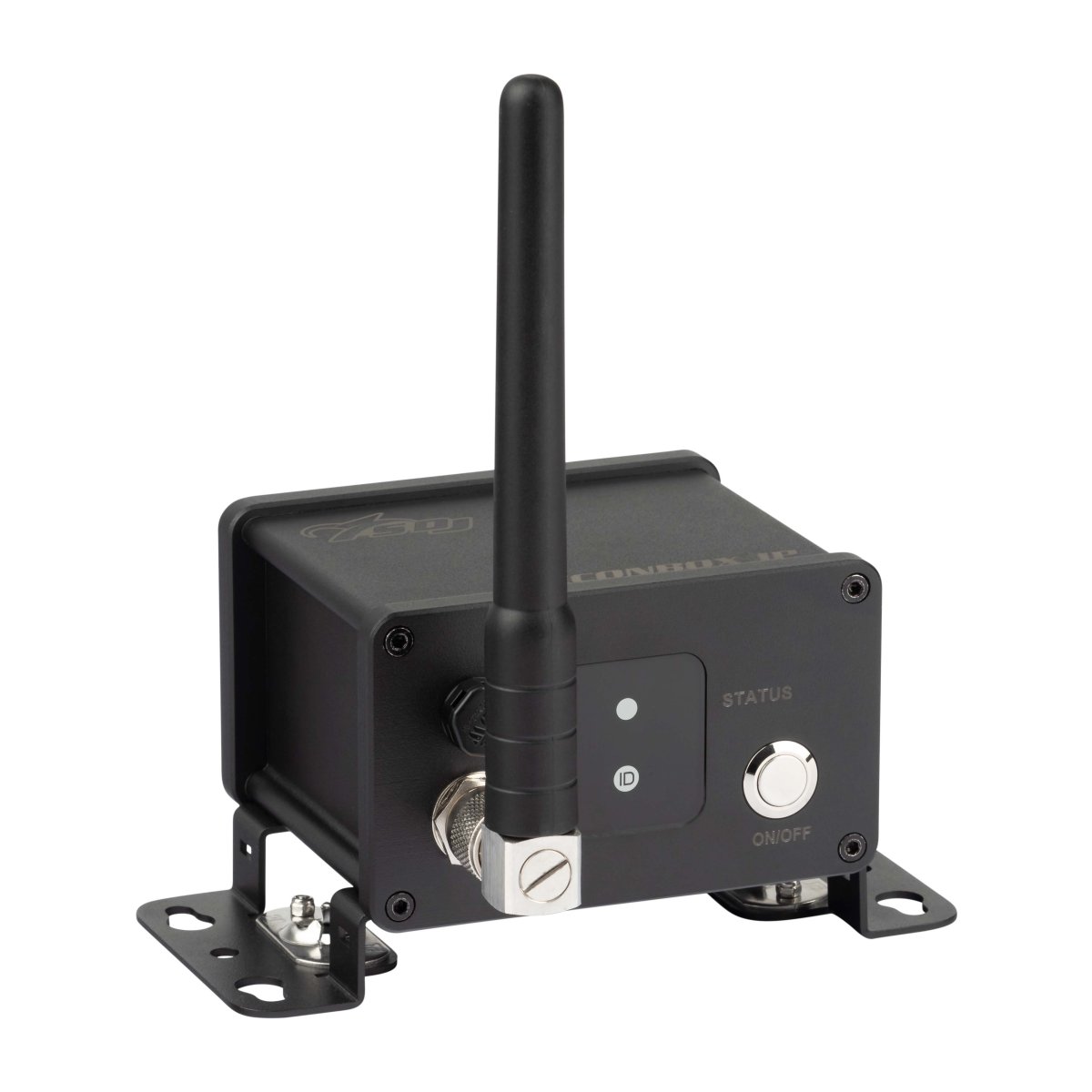

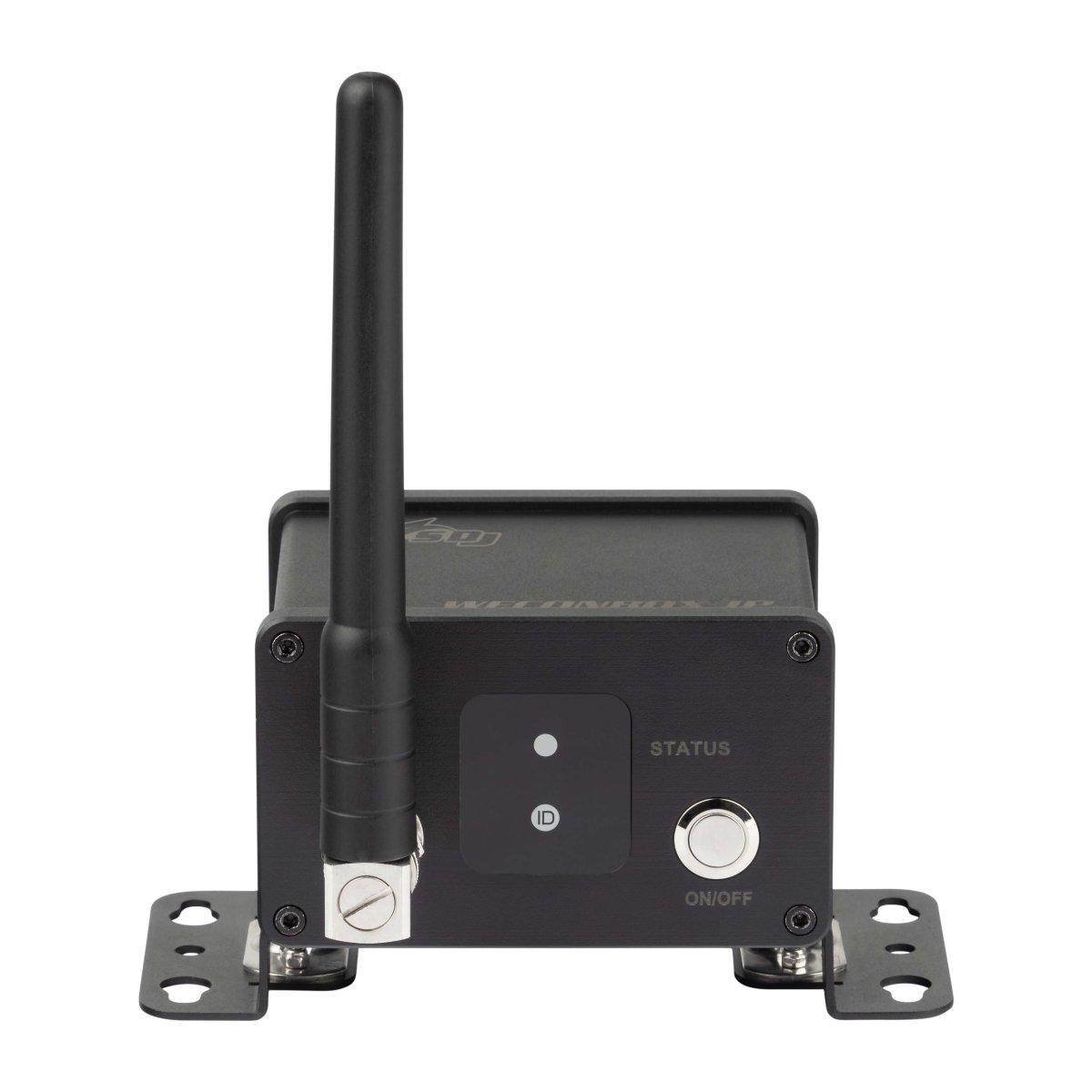

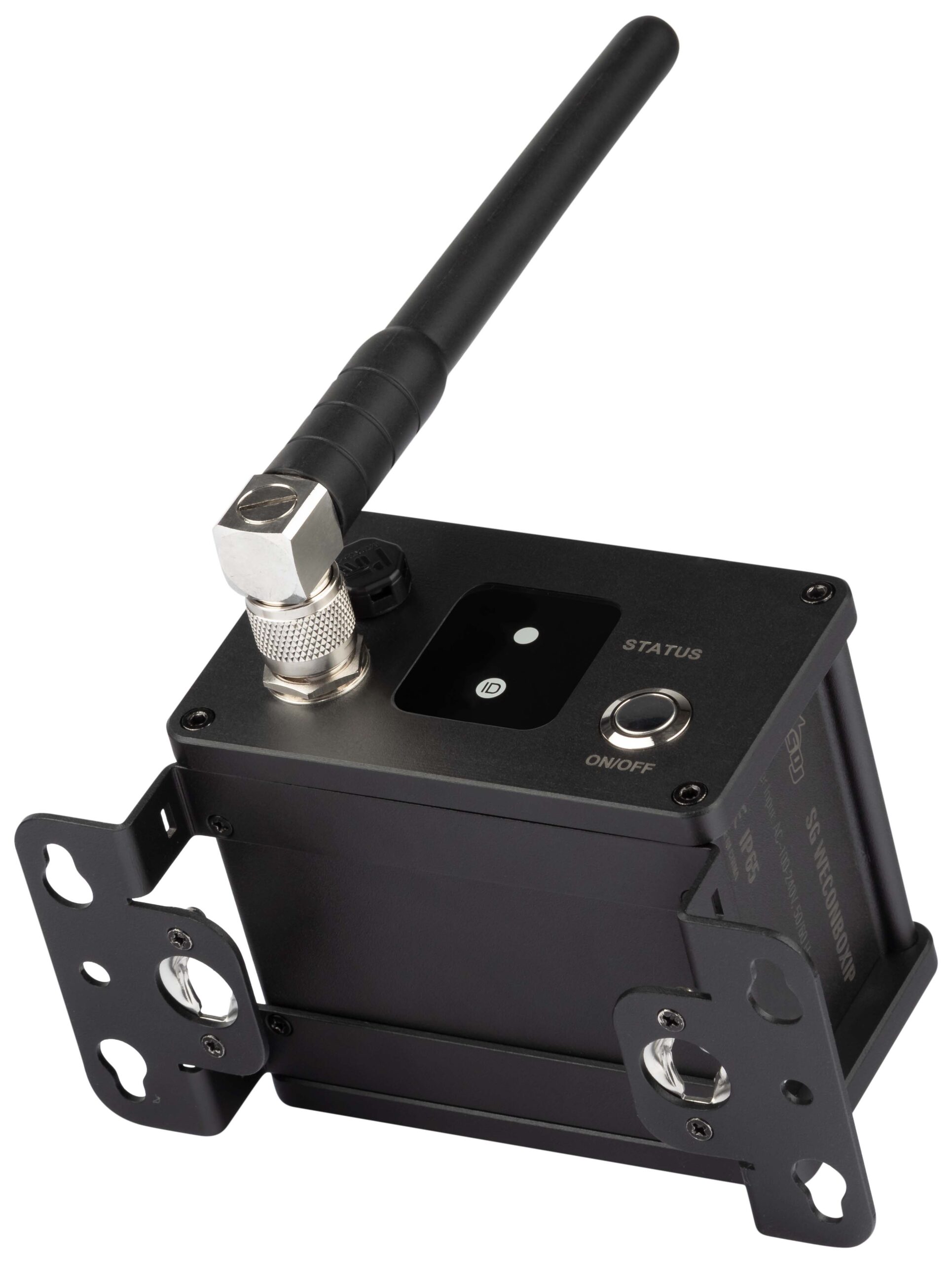

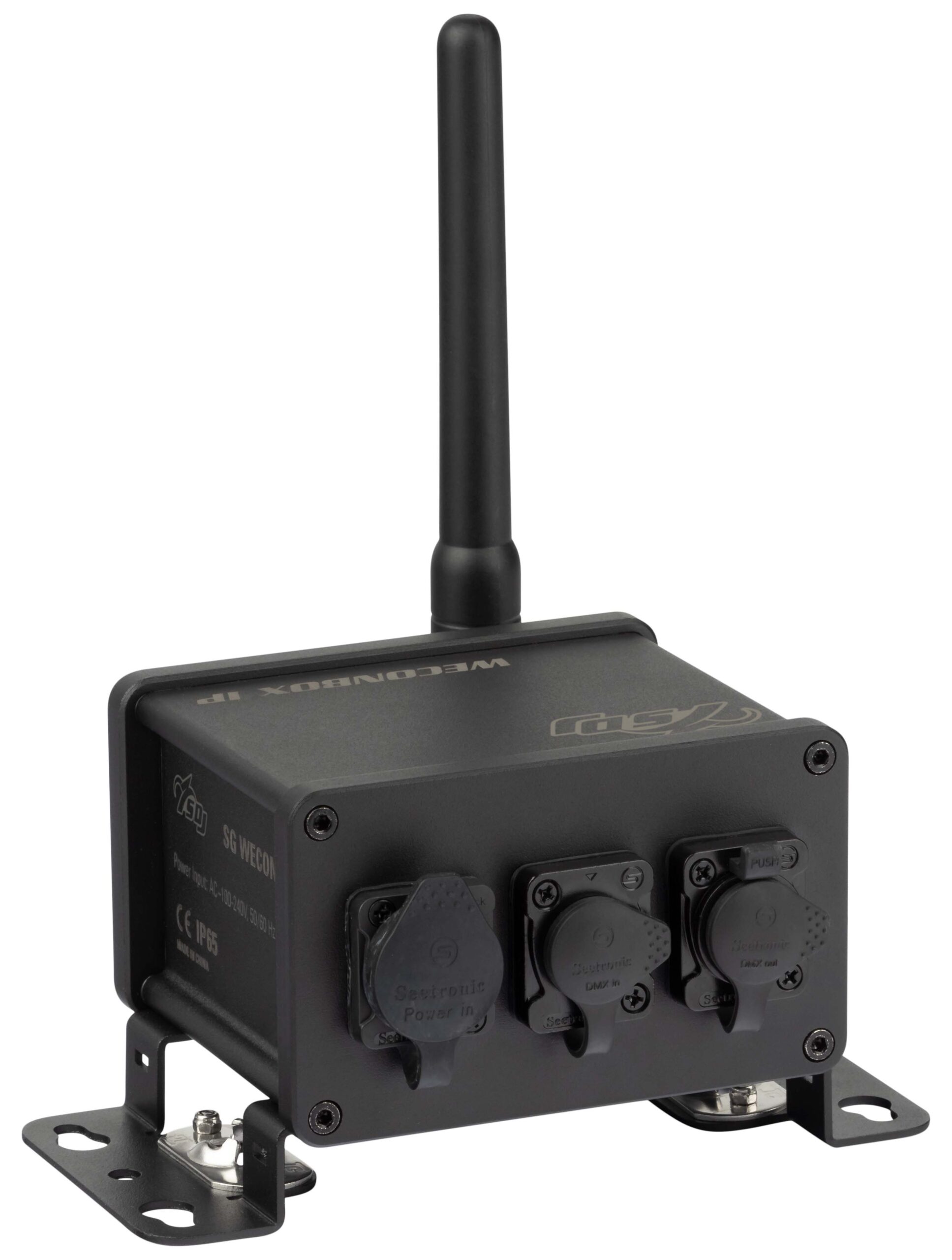

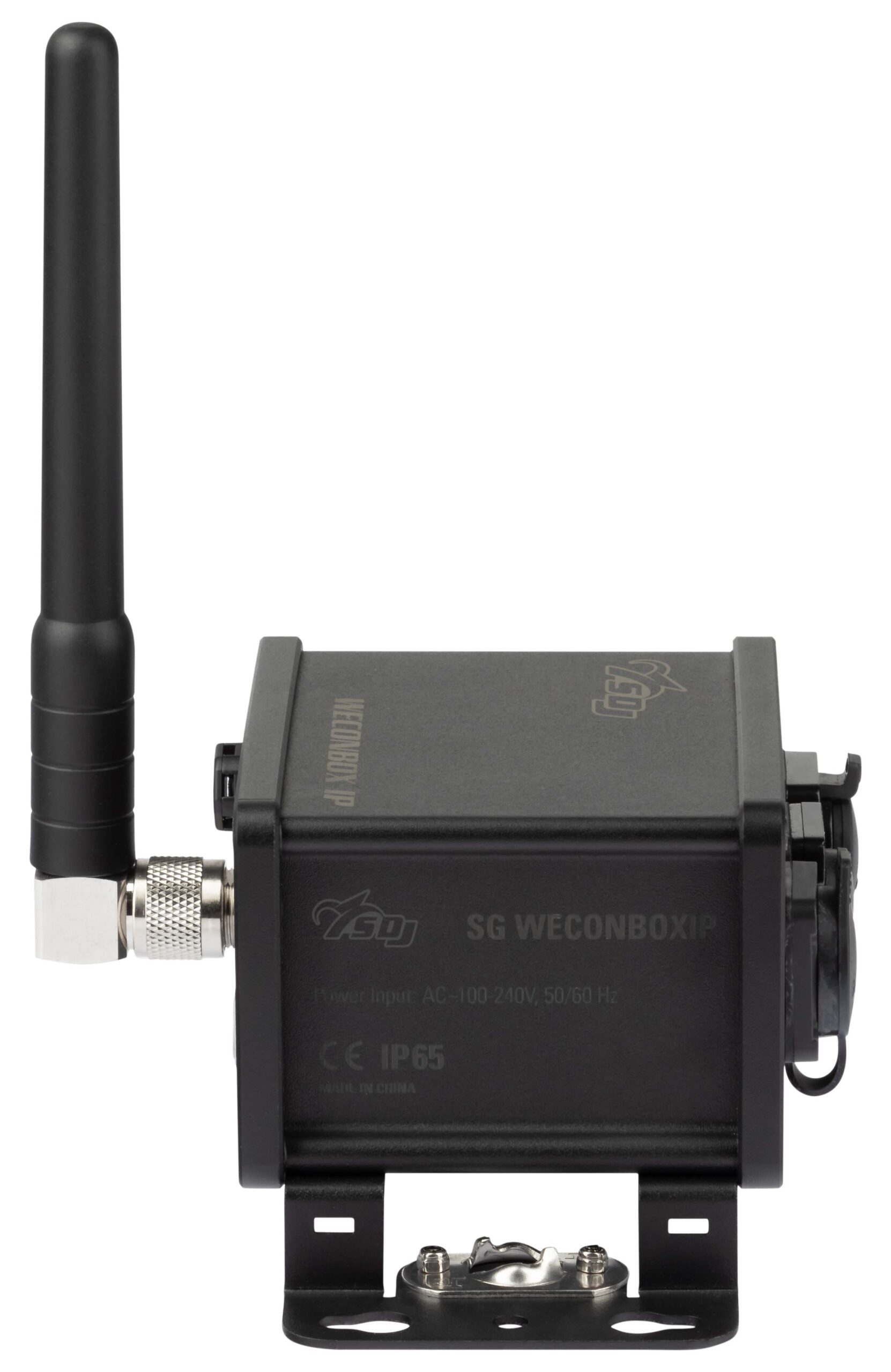

| Technical Data | DMX Wireless Transmitter/Receiver Range: 600 meters (line-of-sight) Number of channels: 512 Operational Frequency: Frequency: 2.402 – 2.480GHz, ISM, 79 channels FHSS: 1100 hops / sec Modulation method: GFSK Maximum Transmit Power: 22dBm Receiver Sensitivity: -93dBm 32-bit ARM Processor, DMA transfer without delay One-touch button with a Tri-color status indicator Groups and dmx protocols easy selection |
| Structure and cabinet | Aluminium Housing Mounting points: 1 pairs of 1/4 turn locks IP rating: IP65 XLR 3-poles DMX IN/OUT connection IP65 |
| Power Supply | Input Voltage: AC 100-240V, 50/60 Hz Switching power supply unit IN/OUT power connection with Power Twist TR1 sockets Power supply cable 1mt included |
| Weight and dimensions | Weight: 930g Dimensions: 120120x100x75 mm |
| Technical Data | DMX Wireless Transmitter/Receiver Range: 600 meters (line-of-sight) Number of channels: 512 Operational Frequency: Frequency: 2.402 – 2.480GHz, ISM, 79 channels FHSS: 1100 hops / sec Modulation method: GFSK Maximum Transmit Power: 22dBm Receiver Sensitivity: -93dBm 32-bit ARM Processor, DMA transfer without delay One-touch button with a Tri-color status indicator Groups and dmx protocols easy selection |
| Structure and cabinet | Aluminium Housing Mounting points: 1 pairs of 1/4 turn locks IP rating: IP65 XLR 3-poles DMX IN/OUT connection IP65 |
| Power Supply | Input Voltage: AC 100-240V, 50/60 Hz Switching power supply unit IN/OUT power connection with Power Twist TR1 sockets Power supply cable 1mt included |
| Weight and dimensions | Weight: 930g Dimensions: 120120x100x75 mm |
